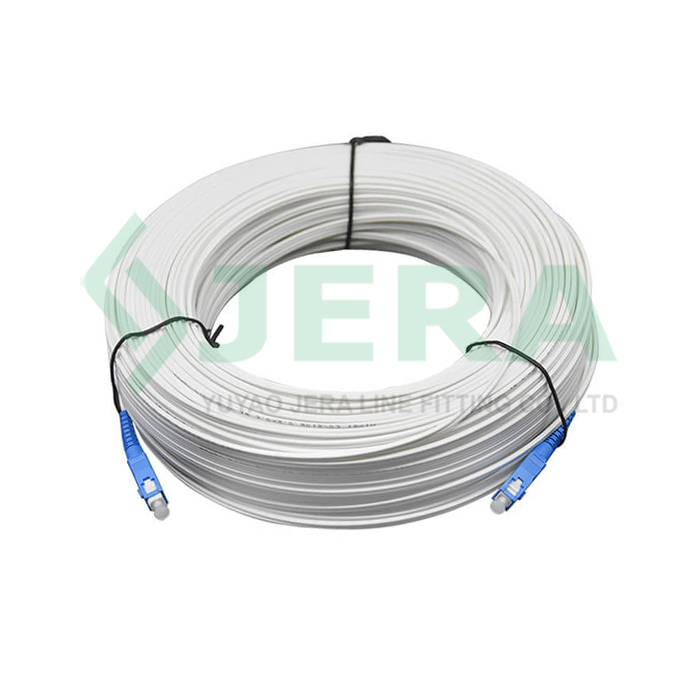

Indoor fiber optic drop cable patch cord SC/UPC 30M

Indoor fiber optic drop cable patch cord either called FTTH optical drop cable patchcord is an indoor optical drop wire each end pre-connected with SC/UPC connector. It will help end user to save installation time and cost during FTTH line constructions.

Features

Pre-connected with SC/UPC connectors
Cable reinforced with 0.4mm steel rods
LSZH cable outer jacket, white and black are available
Low insertion loss, high return loss
High stability in long period field application
Good in repeatability and exchangeability
Fair price

DESCRIPTION Specification Test

REVIEW

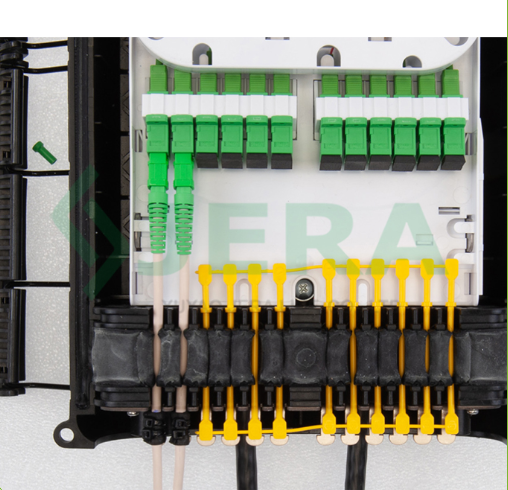

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

Technical specification

Item	Value
Polish types	SC/UPC
Fiber cores	G652D, G657A1, G657A2
Fiber counts	Simplex
Fiber modes	Single-mode 9/125
Cable color	White
Size,mm	2.0*3.0
Tensile strength	200
Length,m	30
Insertion losses(IL),dB	≤0.3
Material	LSZH
Working temperature	-40~+85℃

Test

The loss of signal, which occurs along the length of a fiber optic link, is called insertion loss, and insertion loss test is for measuring the losses of light appears in fiber optic core and fiber optic cable connections. The measurement of the amount of light that is reflected back toward the source is called return loss test. and insertion loss and return loss are all measured in decibels(dBs).

Regardless of type, when a signal travels through a system or a component, power (signal) loss is unavoidable. When light passes through the fiber, if the loss is very small, it will not affect the quality of the optical signal. The higher the loss, the lower the amount reflected. Therefore, the higher the return loss, the lower the reflection and the better the connection.

Jera proceed test on below products

-Fiber optic drop cables

-Fiber optical adapters

-Fiber optical patch cords

-Fiber optical pigtails

-Fiber optical PLC splitters

For fiber core connections test is operated by IEC-61300-3-4 (Method B)standards. Procedure IEC-61300-3-4 (Method C) standards.

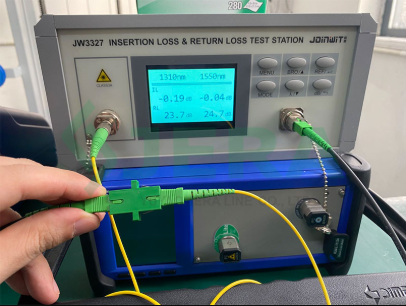

We use test equipment in our daily quality testing,To ensure our customer could receive products which meet quality requirements. Our internal laboratory is capable to proceed such a series of standard related type tests.
