Indoor Fiber Optic Terminaton Box
/
Indoor Fiber Optic Distribution Boxes

Indoor fiber cable distribution box, FODB-8R

FODB-8R

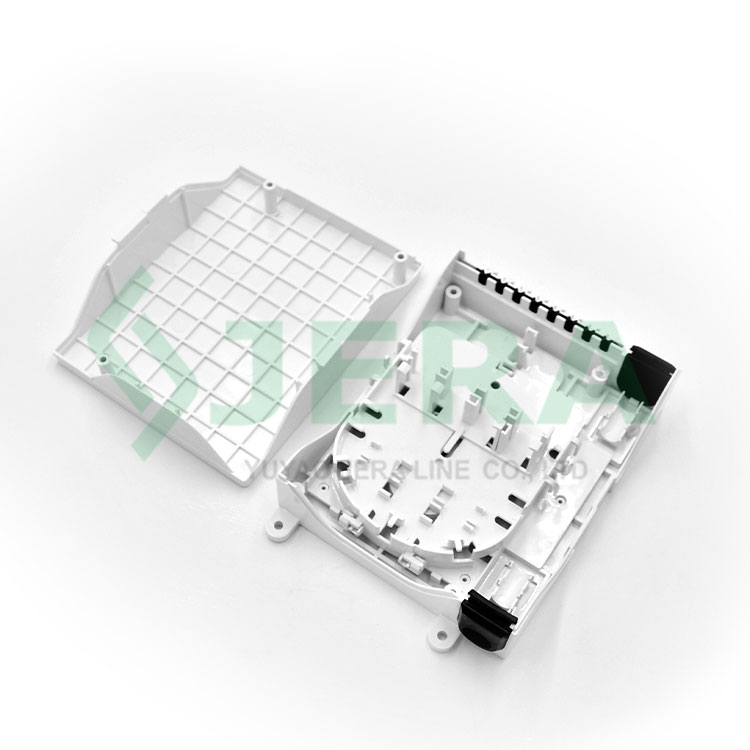

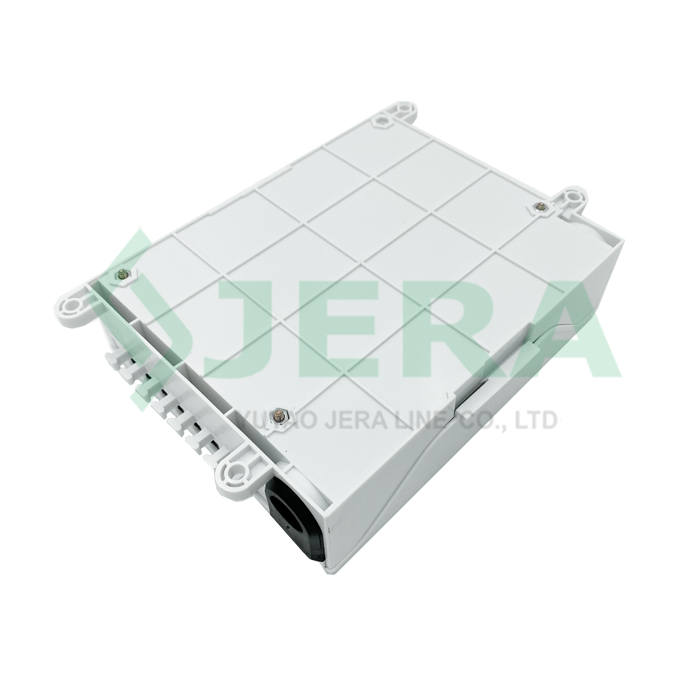

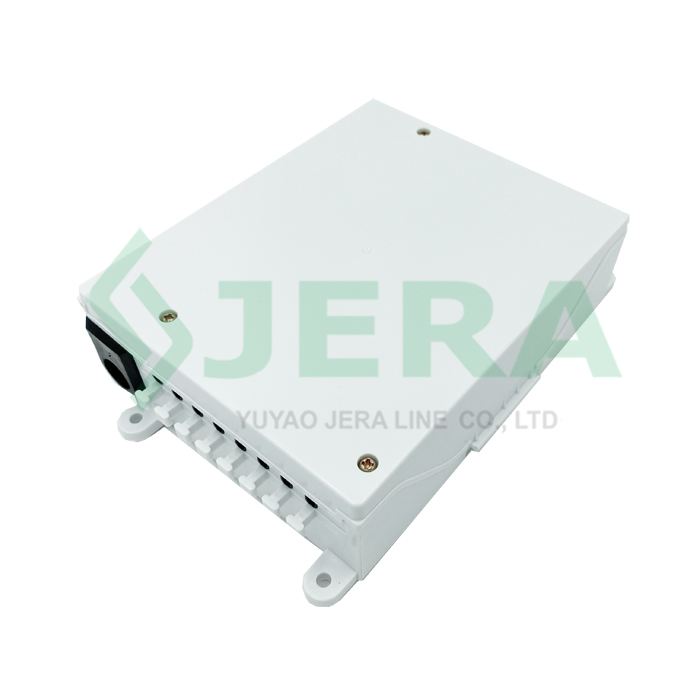

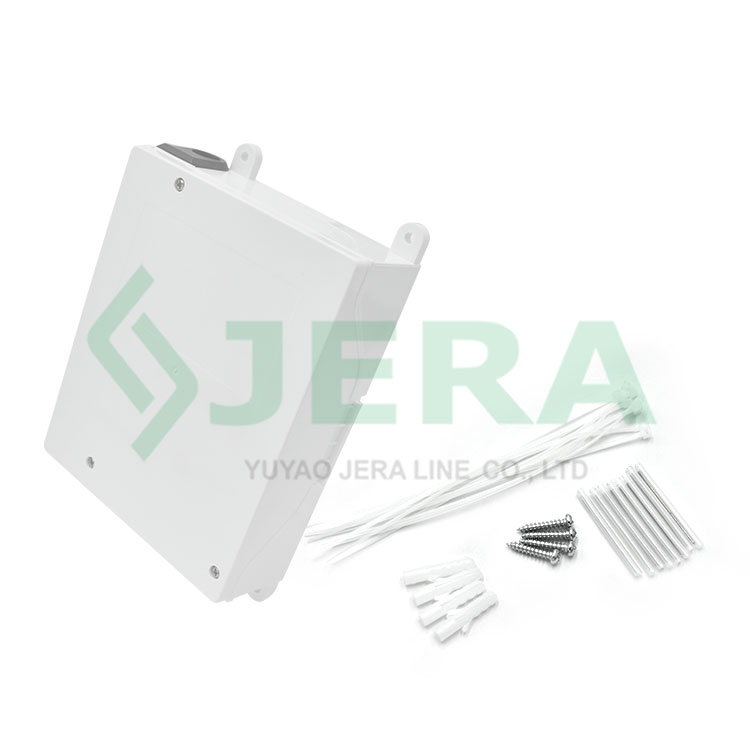

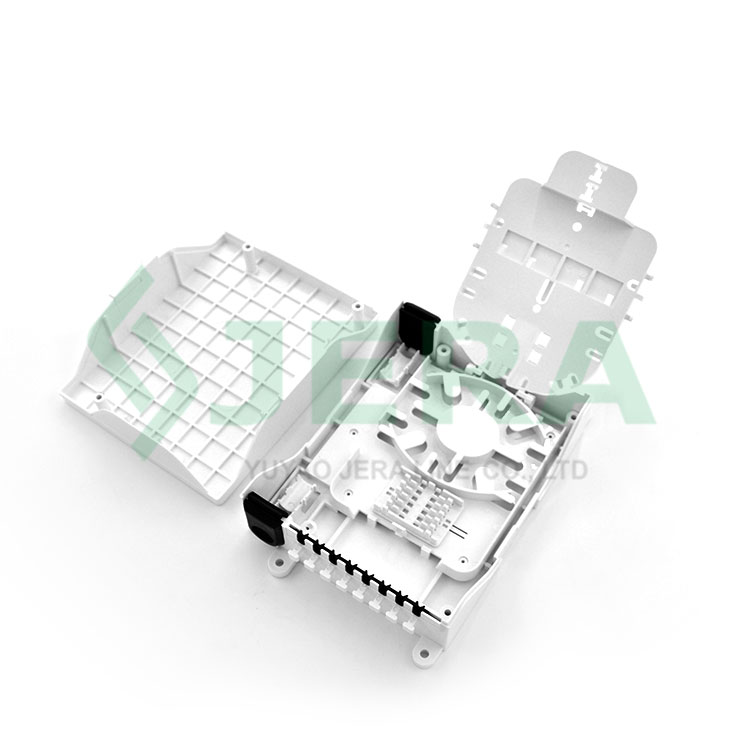

Indoor fiber cable distribution box FODB-8R also called Raiser cable terminal box, is a device designed to provide protection and space for terminating feeder optic cable to fiber optical cords, patch cords, pigtail cords during FTTH telecommunication deployments.
Indoor fiber cable distribution box, FODB-8R
Features
    • Feeding cable: 2 of Ø5-14
    • Drop cable: 8*2.0*3.0
    • Max splicing capacity: 8
    • Adapter SC type: 10
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Intergrated seal, IP 54 protection
  • Compact size, perfect for indoor deployment
  • Fiber optic splitter or cassette splitter installation
  • Two cable inputs and 8 outputs ports
  • Made of high quality ABS and PVC, durable
  • Screw bolt locking design
  • Quick and easy access for drop cable connection
  • High mechanical strengths
  • Competitive price
Indoor fiber cable distribution box, FODB-8R Indoor fiber cable distribution box, FODB-8R

SPECIFICATION

The cable boxes consist of:

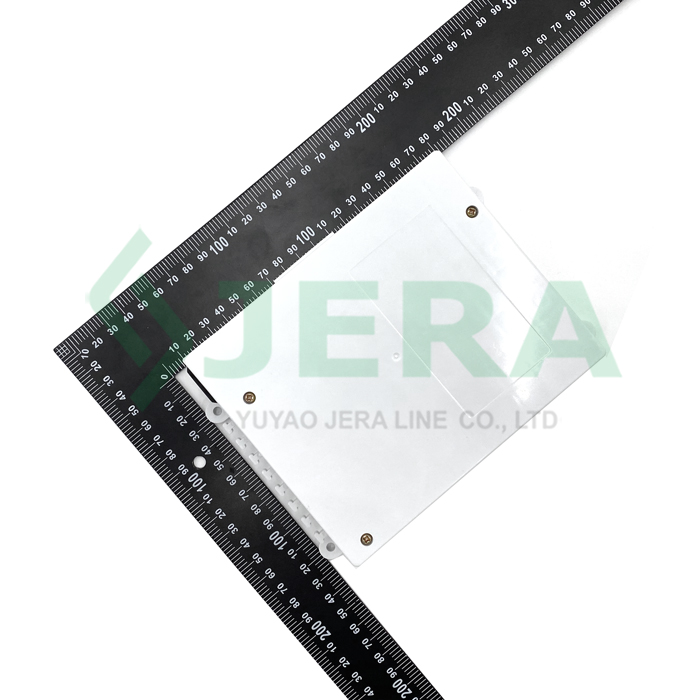

  • The box dimensions:

- Length: 150 mm

- Width：126 mm

- Height: 50 mm

  • Max fiber splicing capacity: 8
  • Material: ABS

Fiber optic box is a connection device in fiber optic communication, which usually consists of a casing, a base, a plug board, a panel, a protection piece, and a distribution frame. The device is used to provide functions such as fiber optic cable connection, amplifier access, protection and distribution of fiber optic cable ends.

ABS plastic is a terpolymer of three monomers: acrylonitrile (A), butadiene (B) and styrene (S). A makes it resistant to chemical corrosion, heat, and has a certain surface hardness, B makes it have high elasticity and toughness, and S makes it have the processing and molding characteristics of thermoplastics and improve electrical properties.

read more

APPLICATION

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

read more

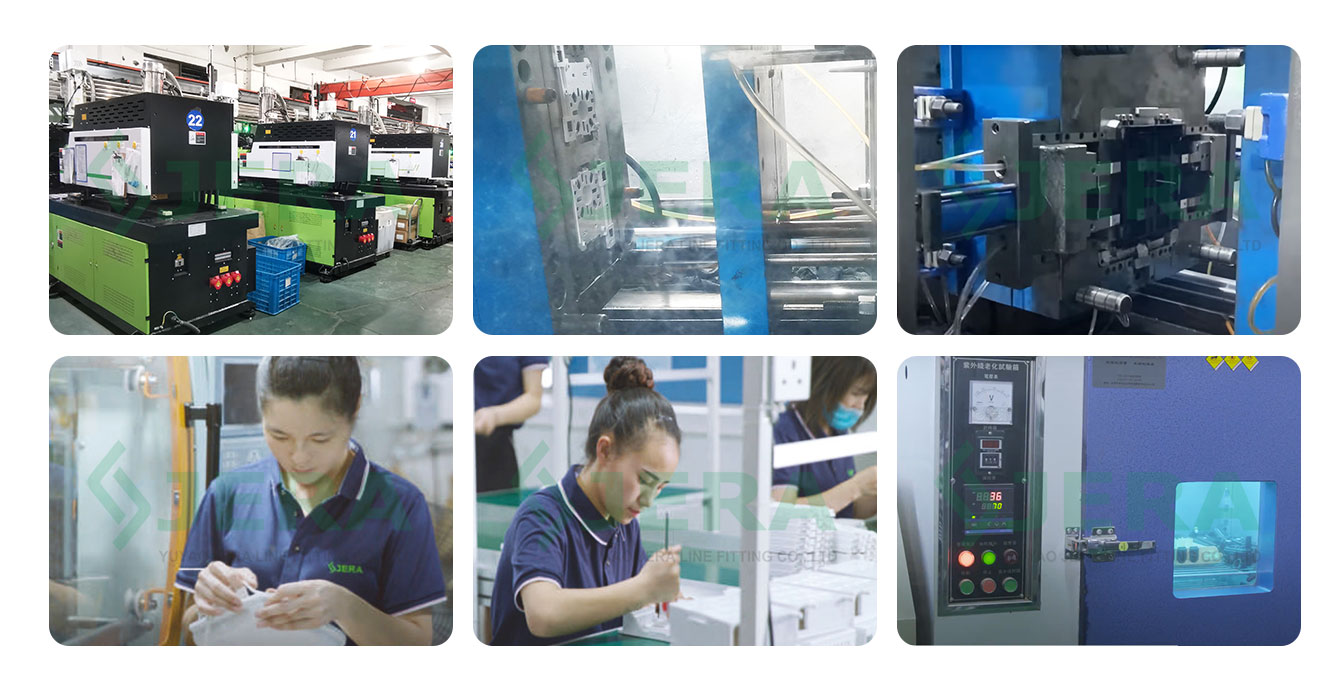

Manufacturing

Watch Our Factory Video

Technical specification

Product code

Fiber’s capacity

Inputs cable diameters, mm

Output drop cables, mm

Dimensions, mm

Adapters

FODB-8R

8

2*Φ5-14

8*2.0*3.0

150*126*50

10
