The Pneumatic Steel Strapping Tool A480 is a professional strapping tool designed for small - batch and irregular surface strapping tasks. Pneumatic Steel Strapping Tool A480 is widely used for stainless steel bundling in industrial packaging. This guide will show you how to use it step by step.
Usage steps：
-

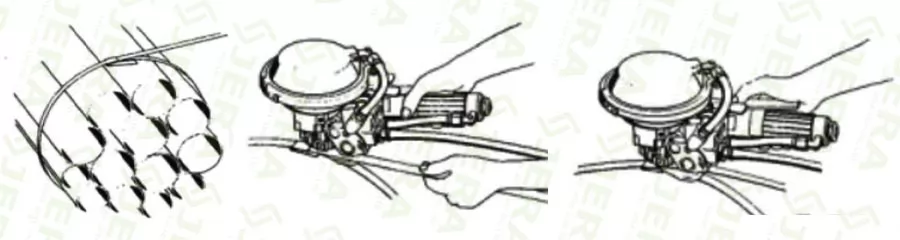

Step 1: Slide the buckle over the steel strapping for bundling, wrap the steel strapping around the object once, and then insert the strapping into the buckle to form upper and lower layers of strapping. Finally, fold the lower layer of strapping over at a position approximately 50mm away from the buckle.
-
Step 2:Turn on the air supply switch. As shown in Figure 3, move the strapping machine to bring it close to the top of the object to be strapped. Place the upper layer of the steel strapping under the tensioning roller and push the strapping machine forward to align the locking buckle with the buckle mechanism. At this point, the strapping machine is ready for operation.
-
Step 3: As shown in the figure, press down on valve arm 42 once. At this point, the tensioning roller will press against the steel strapping and start operating. The strapping will be tightened until the pneumatic motor stops. (If for any reason the tensioning process needs to be interrupted, press clip 44 to the left.)
-

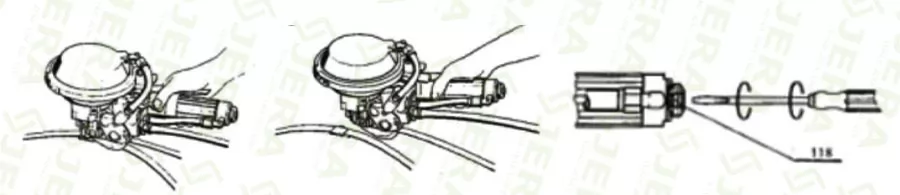

Step 4: Press the locking valve arm 43 again to perform buckling and cutting. At this point, the operation process is completed. As shown in picture, lift the motor to remove the steel strapping from the machine.
-
Step 5: As shown in the figure, the tension force of the strapping machine can be adjusted by turning the adjusting screw 118. Turning the screw clockwise will increase the flow rate of the compressed air, thereby increasing the tension force.
Key Advantages of Pneumatic Powered Steel Strapping Tool
Pneumatic steel strapping tool offer a range of competitive advantages tailored to industrial bundling needs, combining performance, reliability, and operational efficiency. Here’s a detailed breakdown based on technical insights and industry context:
-
High Tension Force and Precision
-
Efficiency and Speed
-
Durability and Reliability
-
Ergonomic Design for Operator Comfort
-
Safety Features
-
Versatility and Compatibility
-
Cost-Effectiveness
-
Compliance with Industry Standards
The A480 strapping tool operation excel in delivering high-performance bundling with a focus on safety, durability, and efficiency. While specific model details (e.g., tension force ratings) are not explicitly disclosed in available sources, their design aligns with industry-leading standards, positioning them as a reliable choice for heavy-duty industrial applications.
Applications of Pneumatic Powered Steel Strapping Tool
JERA LINE's Pneumatic Powered Steel Strapping Tool is mainly used for bundling heavy and irregular items in industrial scenarios, with the following core applications:
1. Metal Industry
It is mainly used for bundling steel coils, steel pipes, aluminum ingots, copper coils and other products. For example, it can stably bundle large steel coils of tens of tons and aluminum ingot stacks of 500kg, ensuring no loosening during transportation.
2. Building Materials Industry
It is suitable for bundling cement pipe piles, ceramic tiles, wooden boards and other materials. The adjustable tension can avoid damage to fragile materials such as ceramic tiles, and it can match the assembly line rhythm.
3. Logistics and Chemical Industry
In logistics, it is used for standardized bundling of palletized goods, reducing labor intensity.
In the chemical industry, the explosion-proof type can be used in hazardous areas to bundle plastic particles and chemical fertilizers, preventing safety accidents.
4. Emerging Fields
It is used for bundling auto parts such as engines and new energy battery modules. The intelligent model can integrate with the production line to achieve high-precision and efficient bundling. It is also suitable for special scenarios such as high and low temperature environments.
Why Choose JERA LINE’s Pneumatic Powered Steel Strapping Tool
The core reasons to choose JERA LINE’s Pneumatic Powered Steel Strapping Tool lie in its comprehensive advantages of high efficiency, durability, and strong adaptability, summarized in four key points:
-
Powerful Performance for Reliable Strapping
-
Durable & Low Maintenance
-
User-Friendly & Flexible Adaptation
-
Safe, Compliant & Quality-Assured

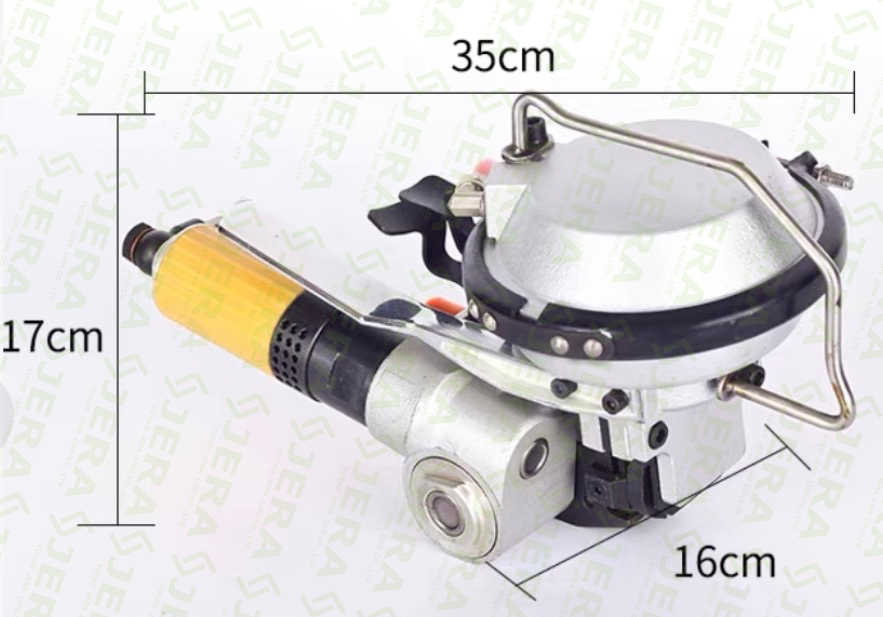

InTo wrap up, the Pneumatic Powered Steel Strapping Tool is more than just a bundling tool—it’s a reliable solution for heavy-industry pain points. It secures heavy loads (like steel coils) with 5,500N tension and 75% joint strength, stands up to harsh conditions (-10°C to 40°C, oil/corrosion resistance), and eases operator fatigue with its 4.5–5.4kg lightweight design. Plus, it offers customization (explosion-proof, high/low-temperature models) and meets ISO standards. For businesses wanting to streamline packaging while ensuring efficiency, durability, and safety, this tool delivers real value.
Contact us today to request samples, quotations, or technical consultation. Our team is ready to support your projects.
