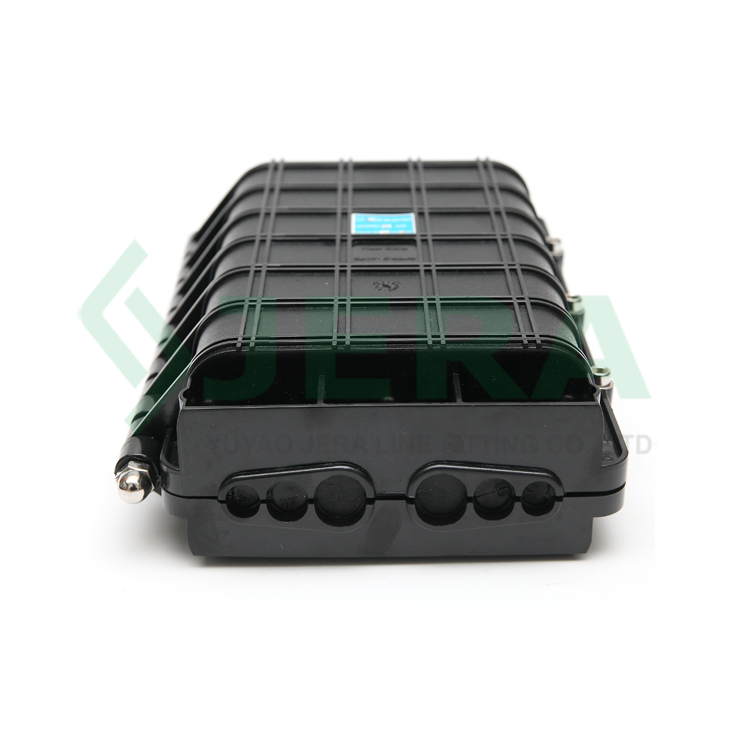

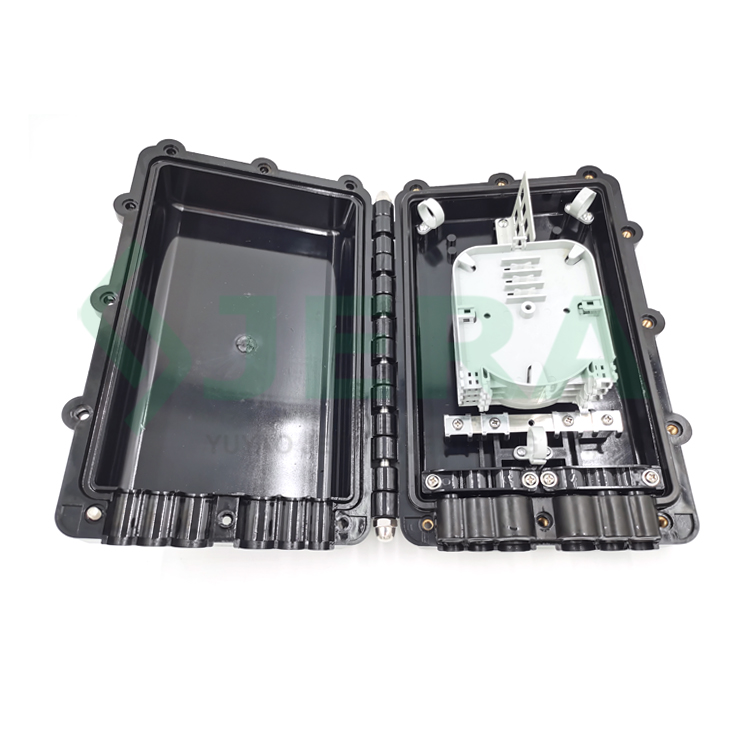

Horizontal type splice closure, FOSC-5A(48)

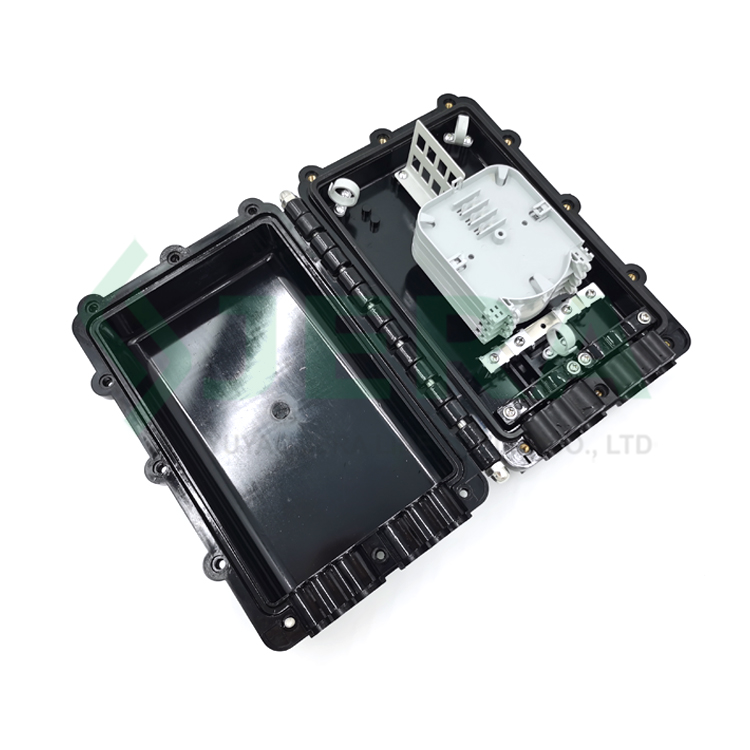

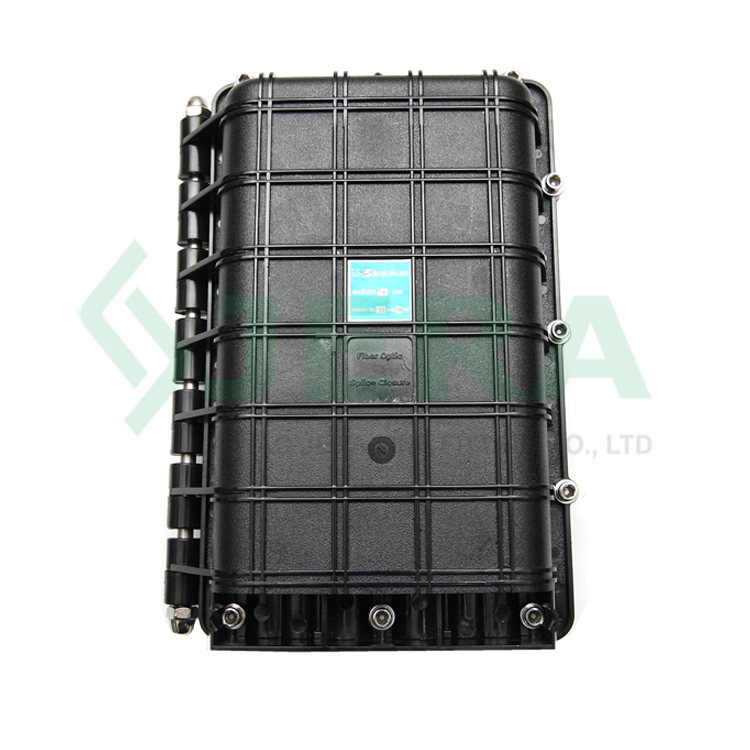

Fiber optic splice closure FOSC-5A (48), also called fiber optic cable joint closure is designed to provide a space for fiber optic cables splicing together, has superior reliability in underground, aerial and central office/branch splicing and terminal applications.

Features

Advanced internals structure designs
With adapter tray, maximum capacity 48 fibers
Integrated seal, IP68 water and dust proof
Made of high quality UV resistant thermoplastic, high mechanical strength
Applied in through, branch or mid span splice locations
Enough interior space for optic fiber bending
Superior environmental stability
Fair price

DESCRIPTION Specification Test

REVIEW

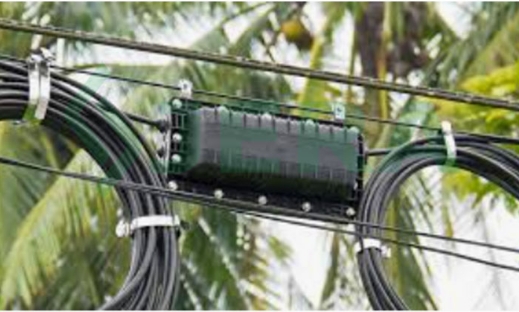

Jera horizontal splice closure are made of 1 ^st grade UV resistant plastic which is weather and rust proof provide confident performance whether in overhead or buried underground during FTTX network constructions. We also provide relevant accessories such as pole bracket, stainless steel banding, cable slack storage and etc which are available in jera line product range.

We apply European fundamental test standards, when inspecting the quality of our production operations. Such as UV resistant test, aging test, temperature cycling test and etc.

Jera line is operating according to ISO9001:2015, we provide a whole solution for FTTH line constructions. Our main product is fiber optic drop cable , cable tension clamps, fiber optic boxes, stainless steel banding, dead end guy grips and so so.

Technical specification

Product code	Fiber’s capacity	Adapters	Inputs and cable diameters	Dimensions, mm	Protection class
FOSC-5A (48)	48	8, SC	2Φ8-13mm, 2Φ8-16mm, 2*Φ8-20mm	32320286	IP68

Test

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

-Anchor clamps

-Fiber optic cable

-Fiber optic splice closures

-Fiber optic distribution boxes

-FTTH drop cable clamp

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
