Horizontal splice closure FOSC-15T

Horizontal splice closure FOSC-15T(24)

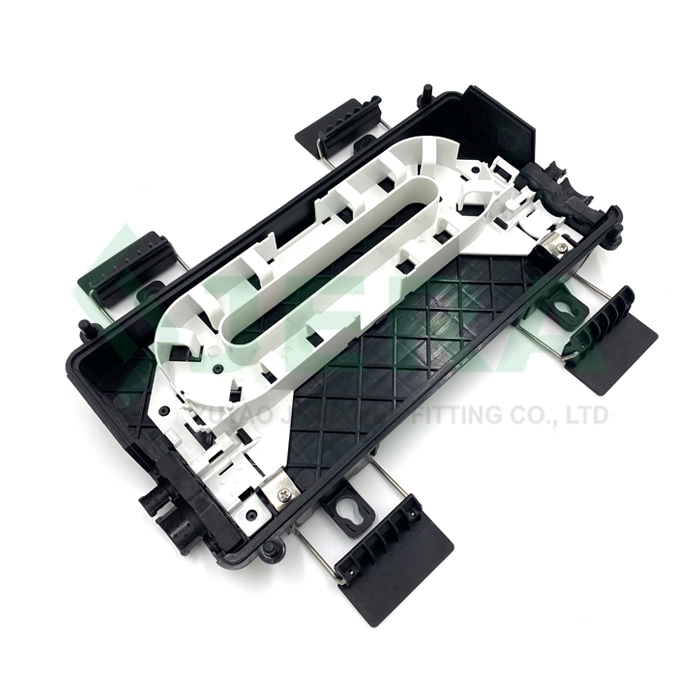

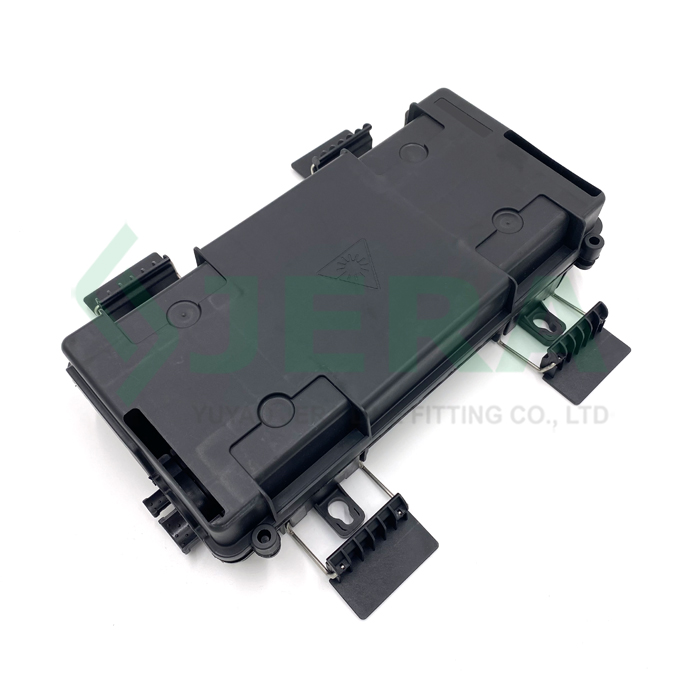

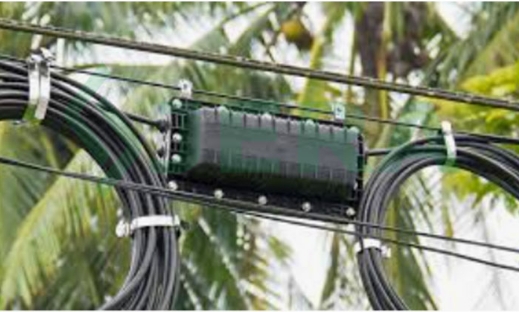

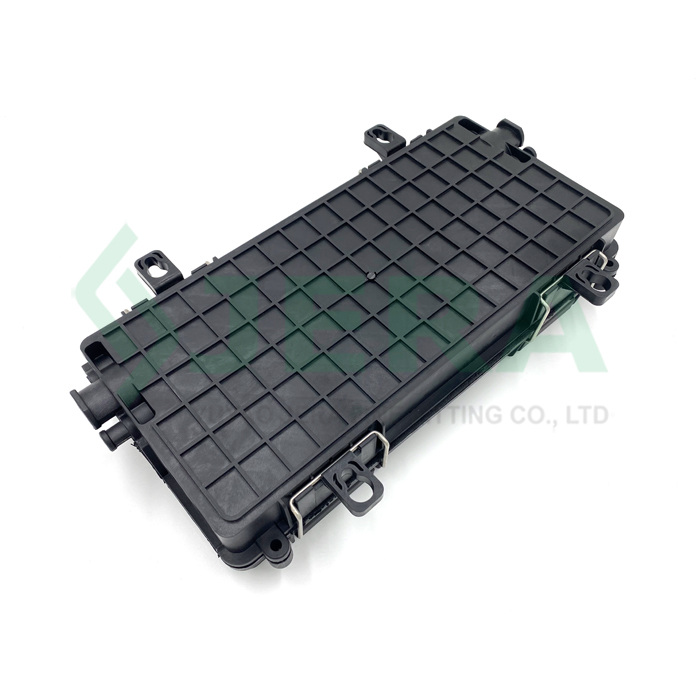

Horizontal splice closure FOSC-15T, either called Inline splice closure, as known as a flat type plastic case, which provide a space for fiber optic cable splicing and joint. It’s can be mounted aerial, buried or for underground FTTx deployment.

Features

Advanced internals structure designs
Integrated seal, IP67 water and dust protection
Made of high quality UV resistant thermoplastic, high mechanical strength
Applied in through, branch or mid span splice locations
Maximum capacity of 3 fiber strays, up to 24 fibers each tray
Enough interior space for optic fiber bending
Appropriate for 4 OPTITAP connectors(OD 18mm)
Easy locking system
Superior environmental stability
Competitive price

DESCRIPTION Specification Test

REVIEW

Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards. Such as UV resistant test, aging test, temperature cycling test and etc.

Jera line is operating according to ISO9001:2015, we provide a whole solution for FTTX line constructions. Product including fiber optic cables, drop wire clamps, ADSS clamps, **fiber optic distribution boxes** , dead end guy grips, stainless steel bandings, pole brackets and hooks etc.

Each and every day, we are improving our products, to meet the new challenges of evolving global information and energy markets.

Technical specification

Product code

Fiber’s capacity

PLC Splitter, 60×7×4 mm

Input and output cable diameter

Dimensions, mm

Protection class

FOSC-15T

24/48/72

2 of them per each tray

In/Out Round – 1 max dia 23 mm In/Out Round – 1 max dia 14 mm In/Out Fig.8 – 1 size 33*23mm

384*215*70

IP67

Test

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

-Anchor clamps

-Fiber optic cable

-Fiber optic splice closures

-Fiber optic distribution boxes

-FTTH drop cable clamp

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
