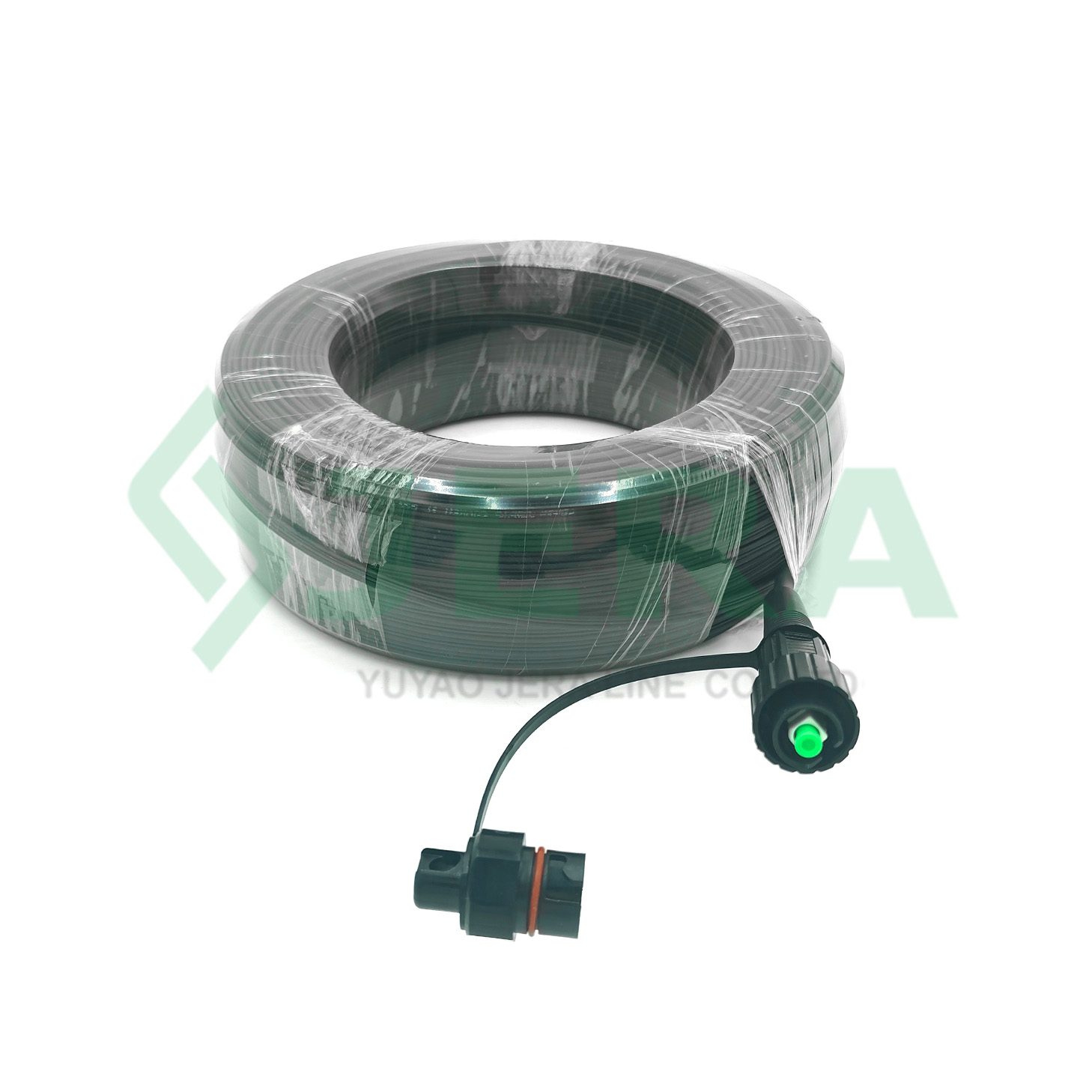

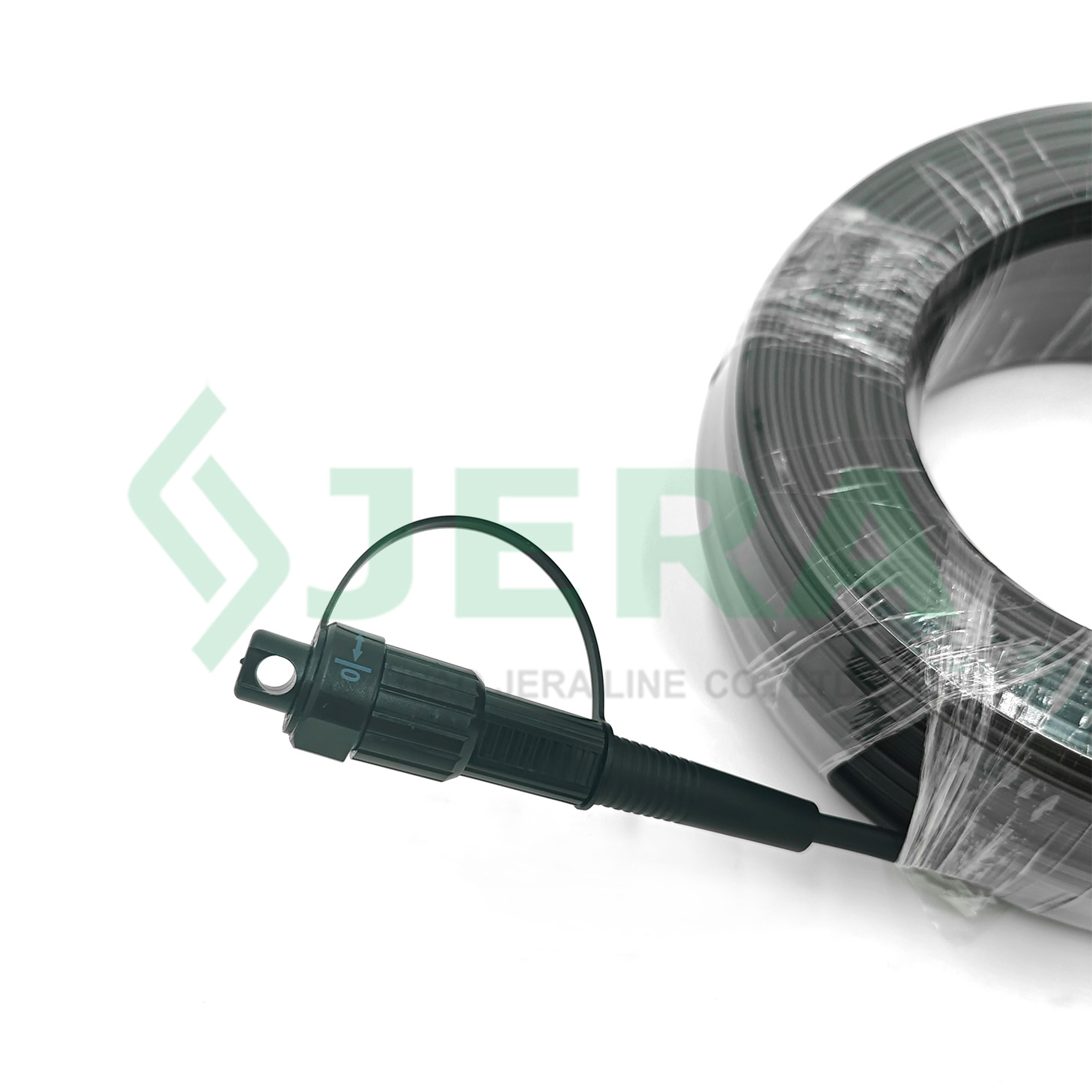

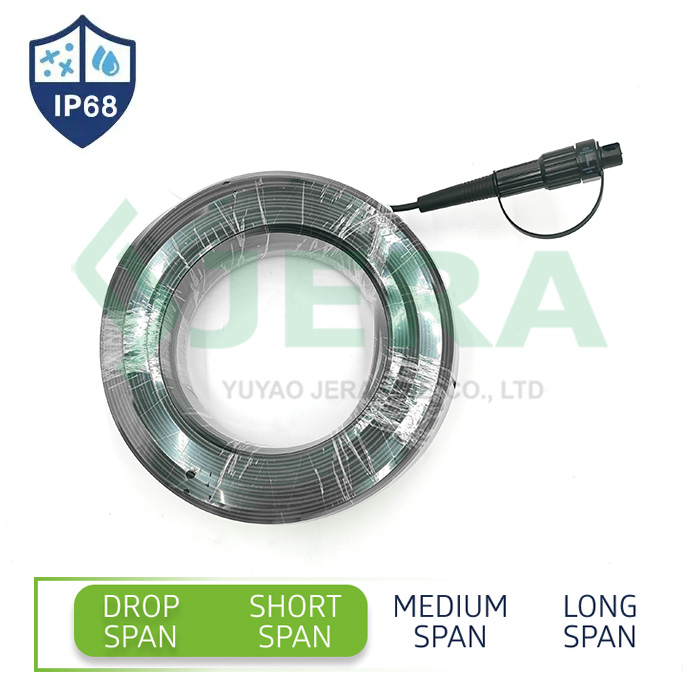

Hardened mini SC/APC patch cord

Hardened mini SC/APC patch cord

Hardened mini SC/APC patch cord either called Terminal Mini SC/APC Fastfiled patch cord，is a high-strength fiber optic connector suitable for use in harsh environments. It offers increased durability and reliability against external factors such as vibration, shock and temperature changes. The connector adopts SC/APC interface, ensuring low insertion loss and high return loss. It is a kind of optical fiber jumper used in FAT Pre-Terminated box.

Features

Application: Outdoor
Fiber quantity: 1 fiber
Dimensions: 2.0*5.0 mm
Waterproof: IP68

DESCRIPTION Specification Test

REVIEW

Key Features

The highest level of waterproof and dustproof specification IP68
Easy to plug and unplug
Durable, high temperature resistant, acid and alkali resistant
Easy installation, save time
Factory direct sales, quality assurance

The cable patch cords consists of:

The cable dimensions:

- Width : 5.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 1 fiber.

LSZH jacket sheath, UV protected.

Optical fiber of Single mode G657A1 / G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied in harsh outdoor environment, outdoor communication equipment connection, waterproof optical fiber equipment.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Model NO.	OptiTap
Type	Single-mode Fiber
Insertion Loss	<0.3dB
Return Loss	>60dB
Item	Values
Cable Type	Outdoor Flat Drop Cable
Sheath Material	LSZH
Messenger Wire	1.0±0.02mm
Steel Wire	0.5±0.02mm
Fiber Cores	G657A1 / G657A2
Cable Size，mm	(2.0±0.1)x(5.0±0.2)mm
