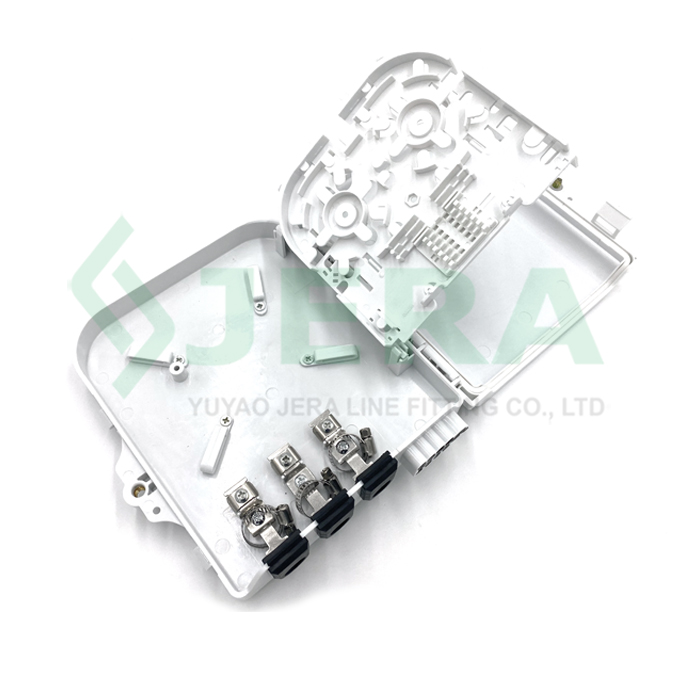

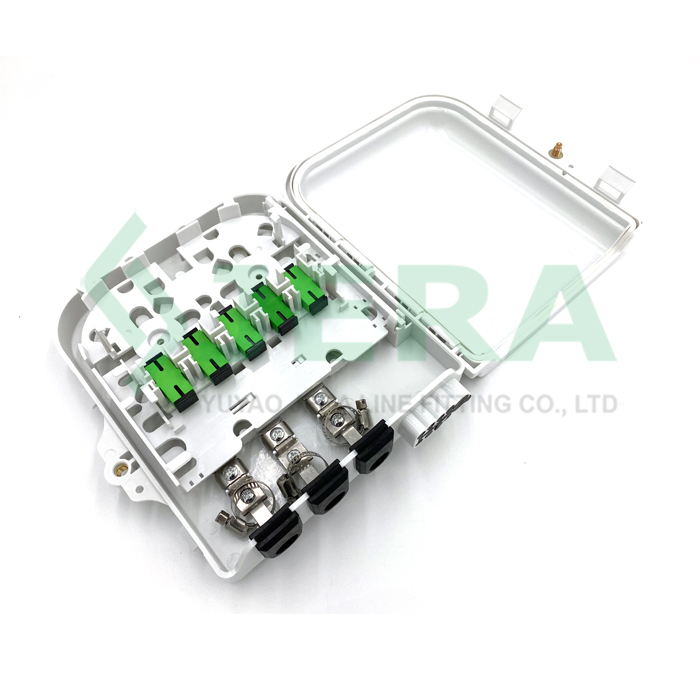

Ftth termination box FODB-8A-3

Ftth terminal box FODB-8A-3 also called fiber optic distribution box, is a device developed to terminating feeder optic cable to fiber optical cords, patch cords, pigtail cords on the routes of last mile to users during Ftth telecommunication network constructions.

Features

Feeding cable: 3 of Ø17
Drop cable: 8 of ∅3, 1 of ∅10
Max splicing capacity: 8 (16*)
Adapter SC type: 10+2

DESCRIPTION Specification Test

REVIEW

Application

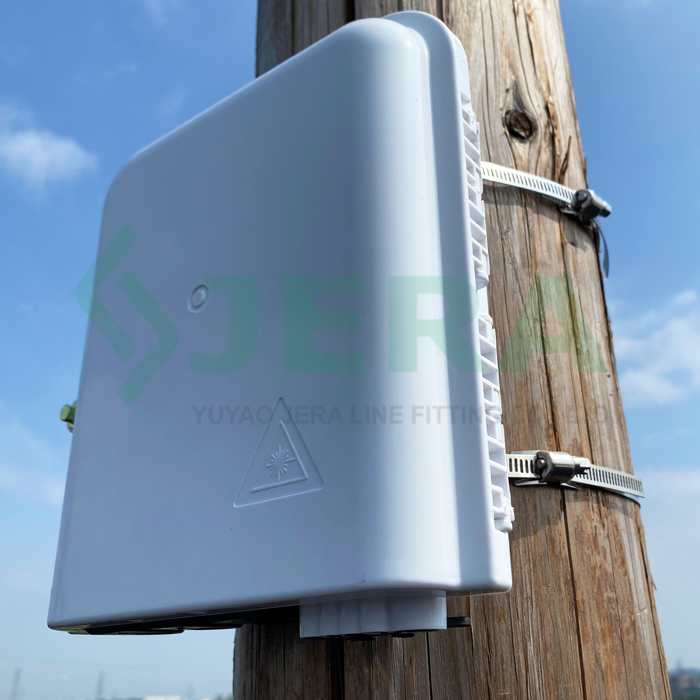

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

Technical specification

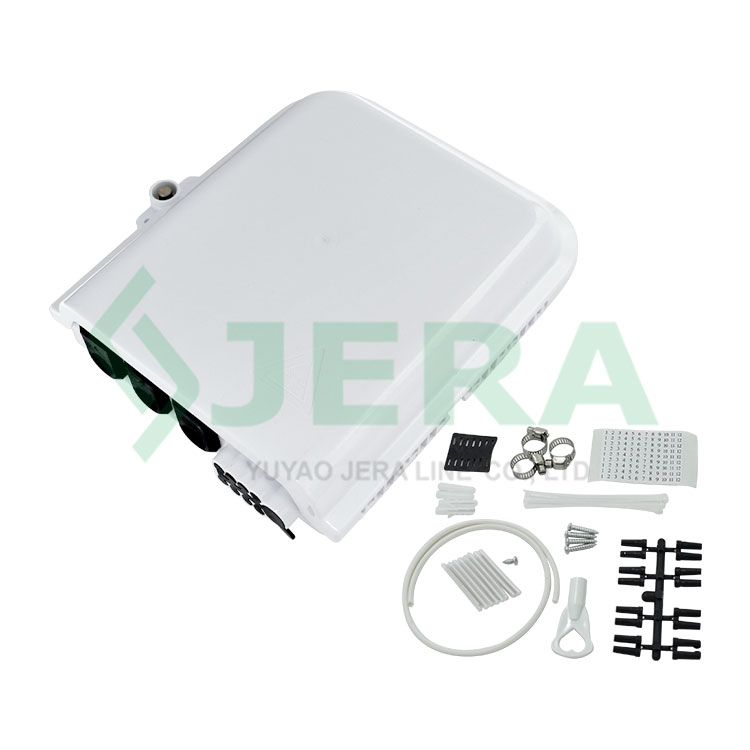

Product code	FODB-8A-3
Feeding cable dimensions, mm:	3 of ∅17
Drop cable dimentions, mm:	8 of ∅3, 1 of ∅10
Max splicing capacity:	8 (16*)

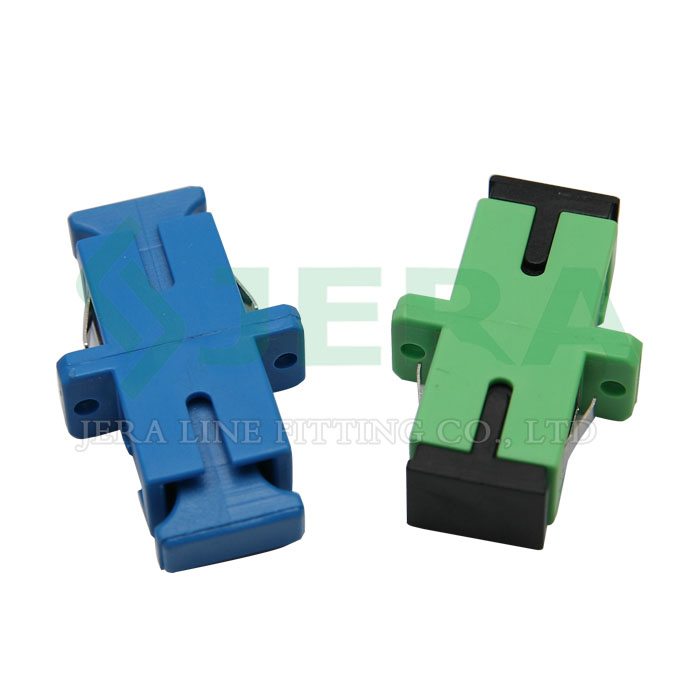

Adapters, SC type:	10+2

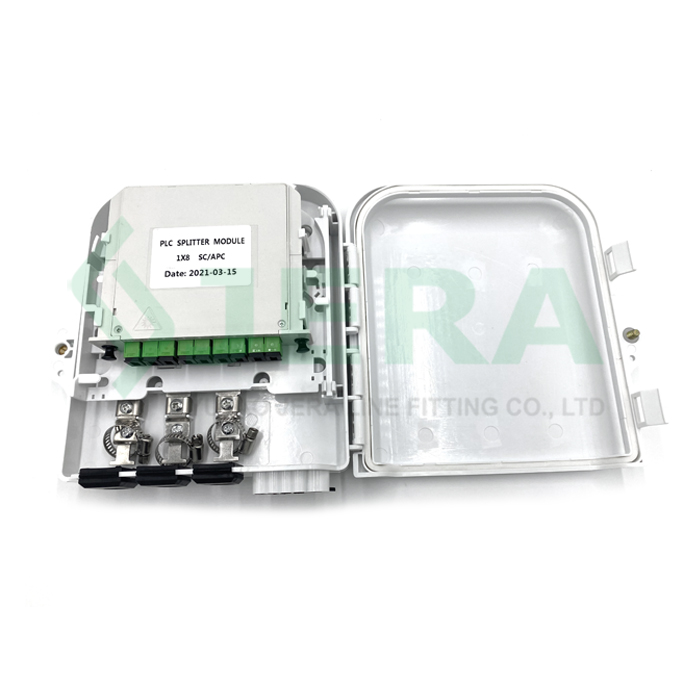

PLC splitters , blockless 60x7x4 mm	1 of 1:8 or 2 of 1:4
IP protection	53
Overall dimensions, mm	210×195×55

* two layers for storage of fiber splicing tubes

Test

Outdoor fiber optic terminal boxes are made of ABS material and meet the IP54 protection level to ensure reliable protection for internal components such as fiber optic connections under various weather conditions.

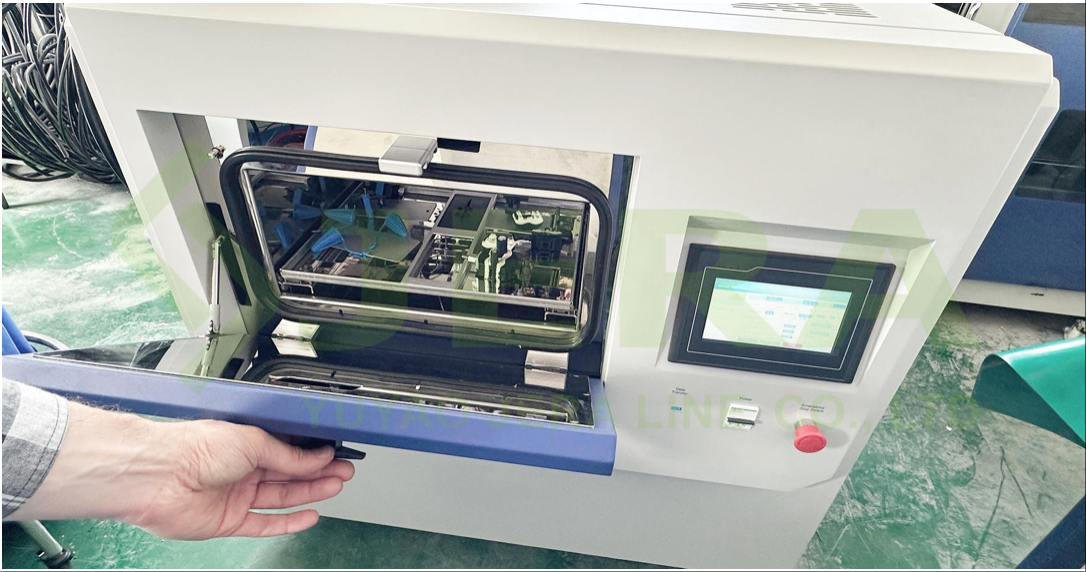

Jera Line's internal lab has the Test chamber which can perfomes the UV and temperature aging test which is used to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.
