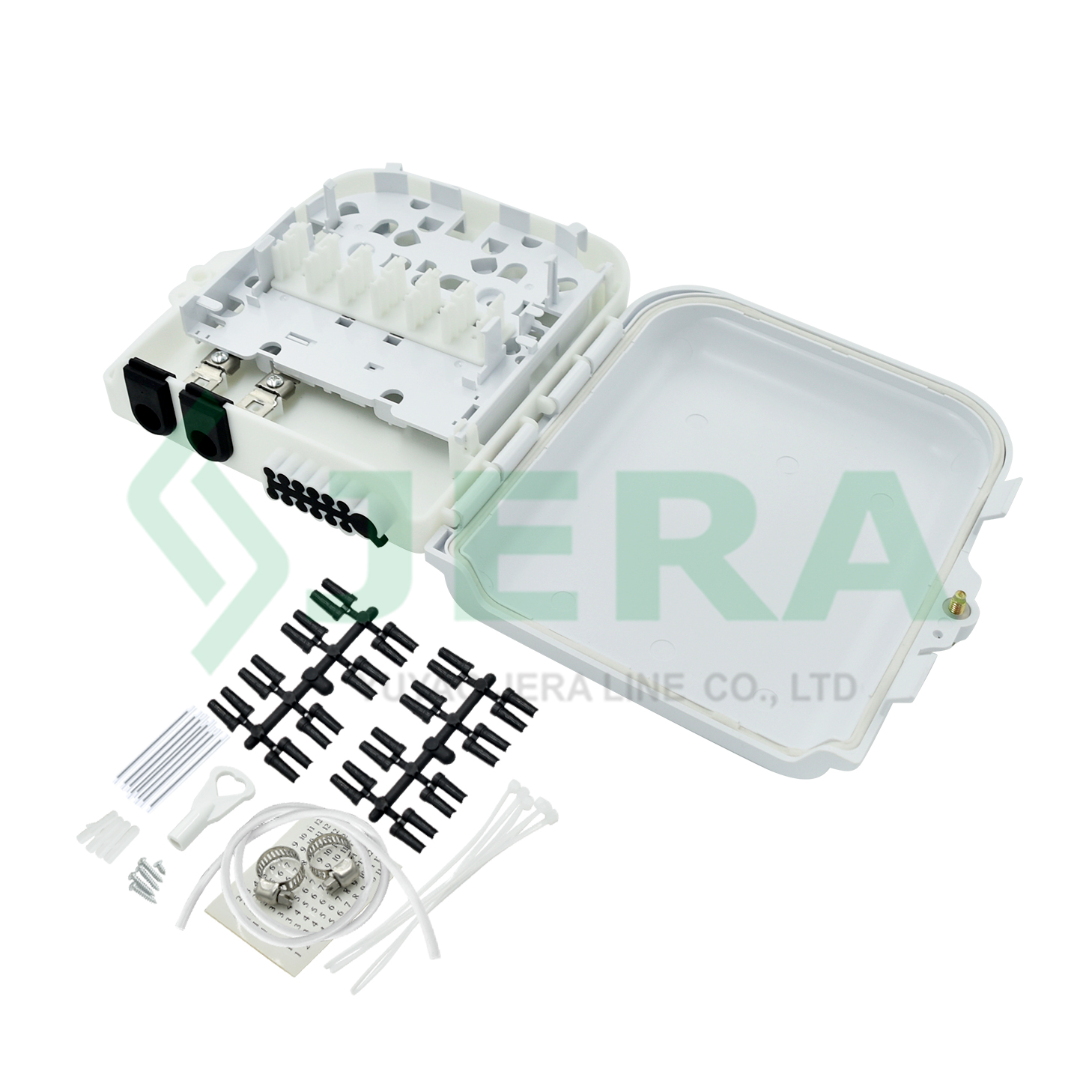

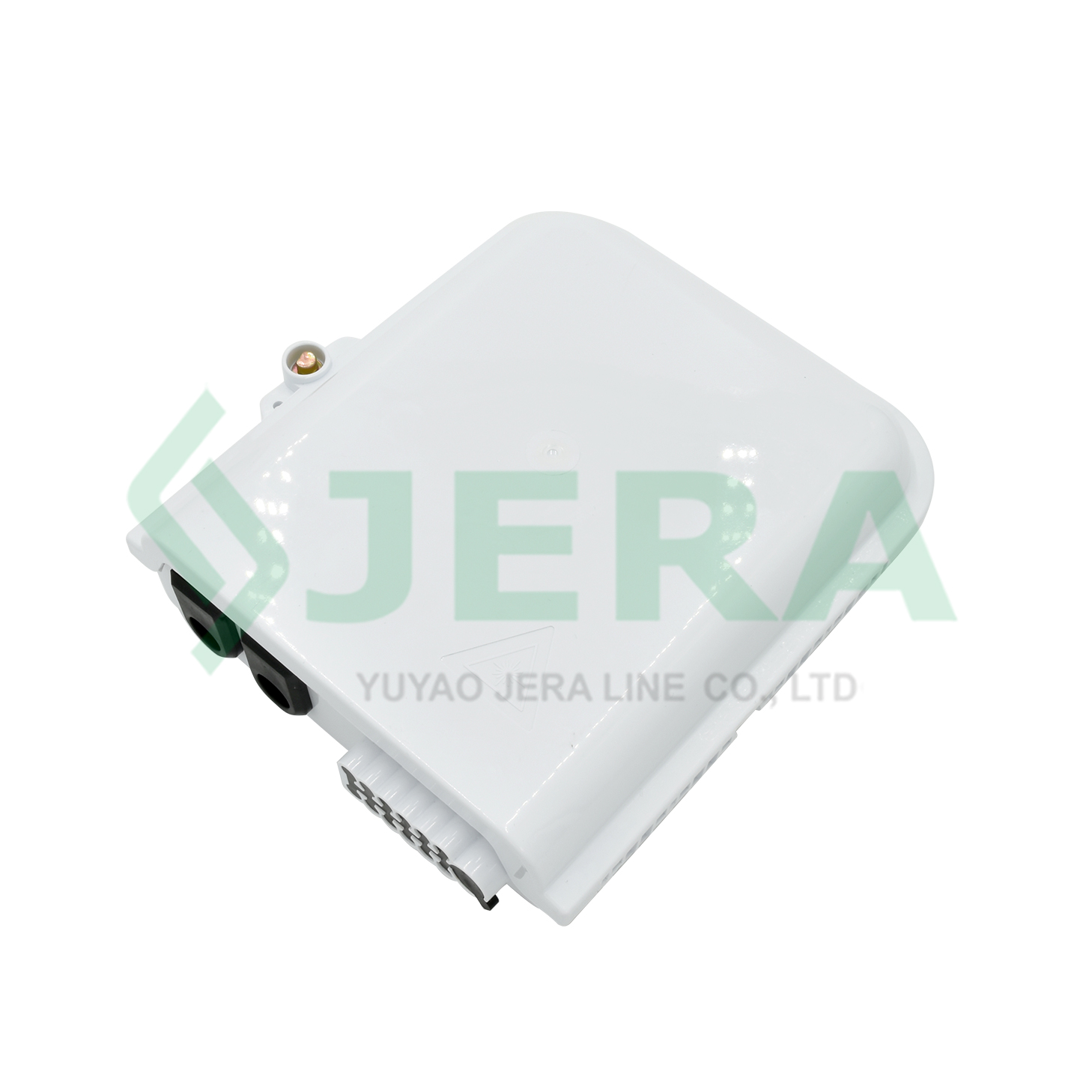

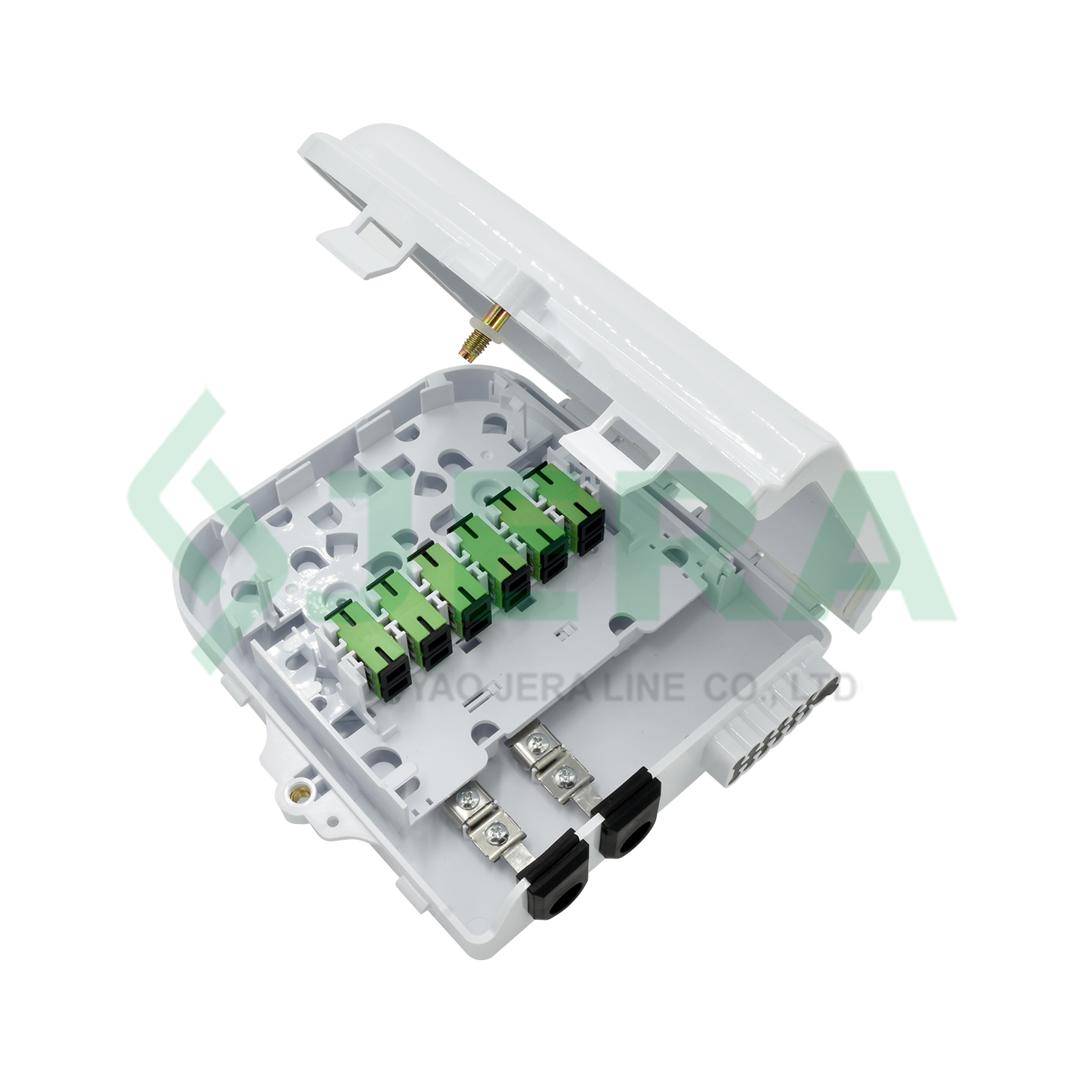

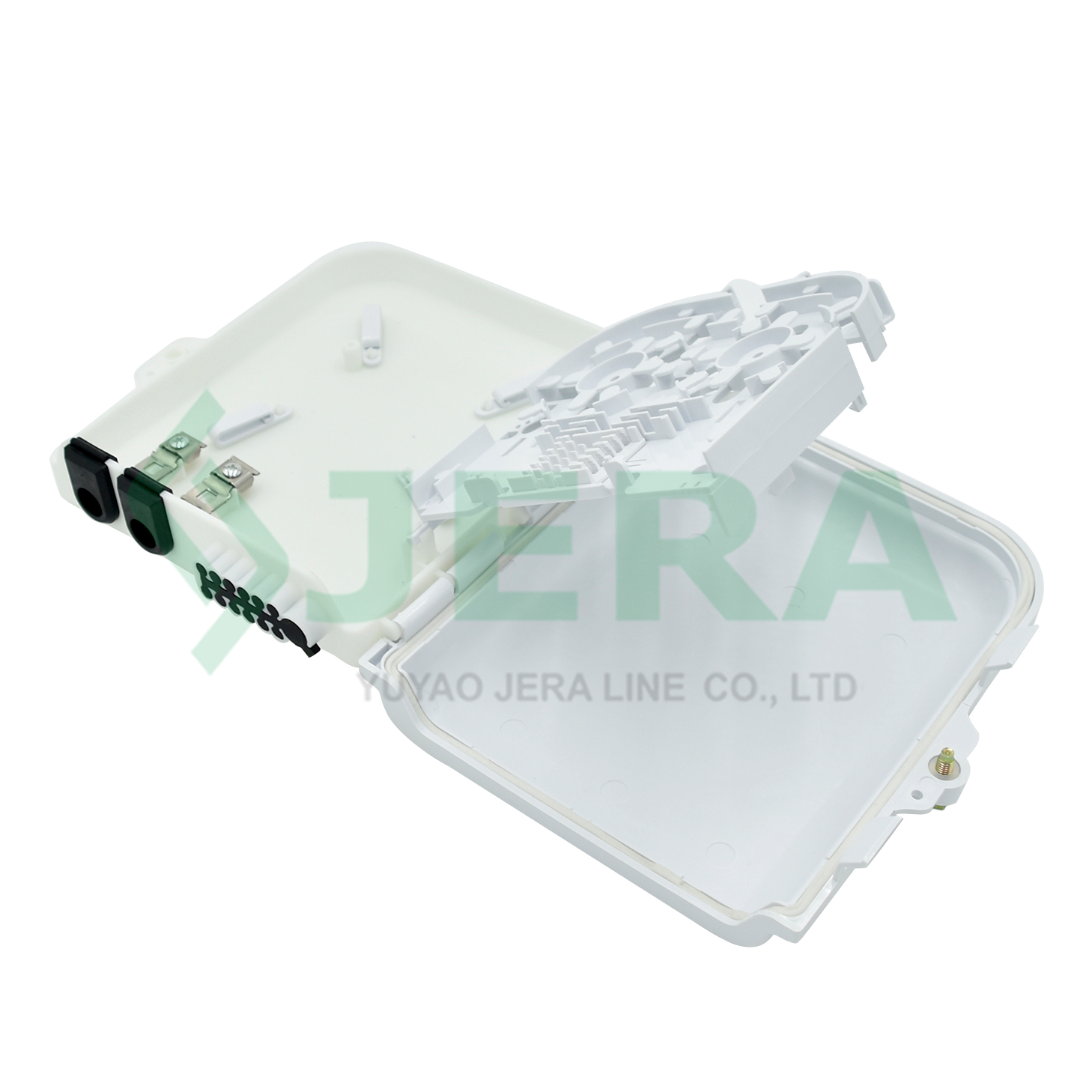

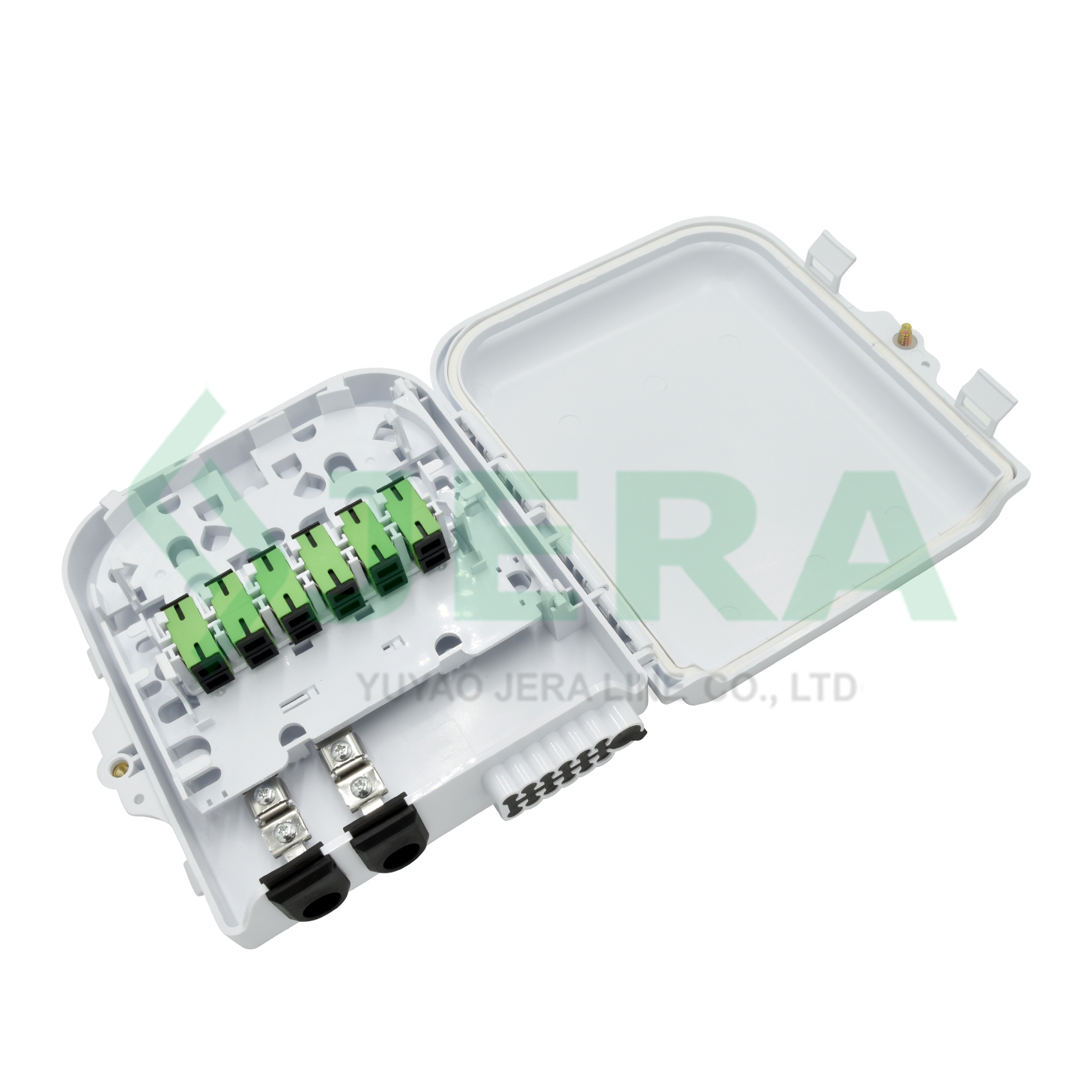

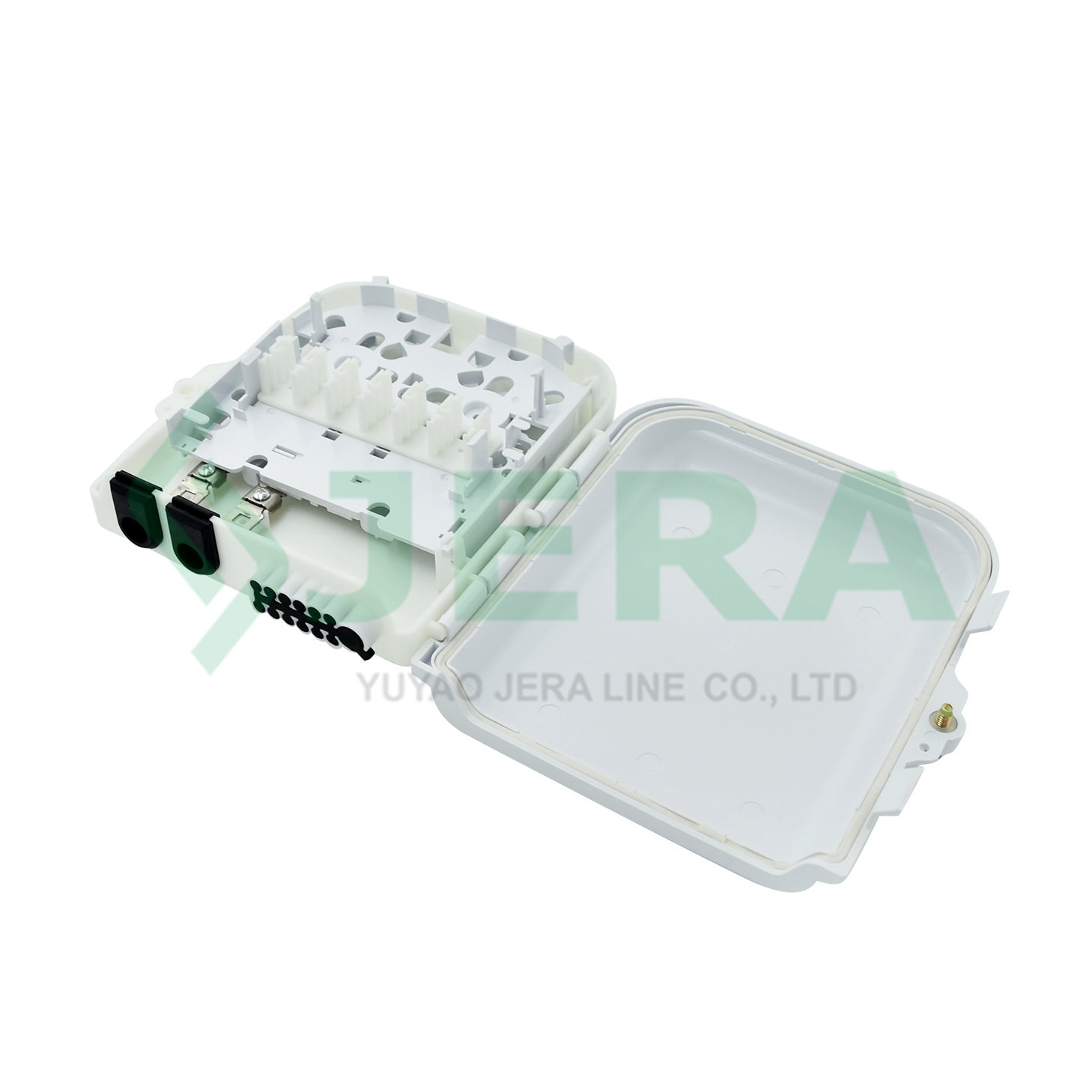

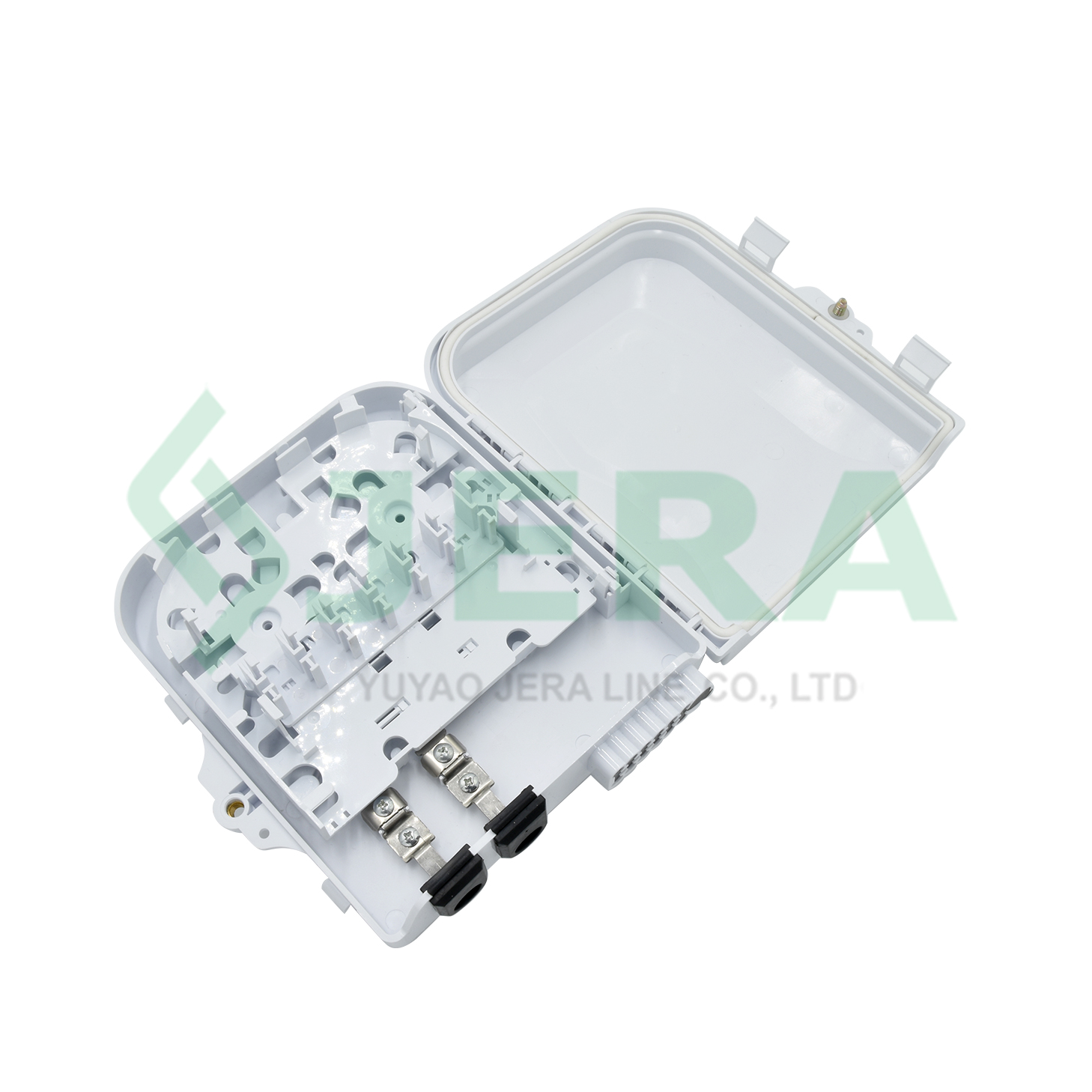

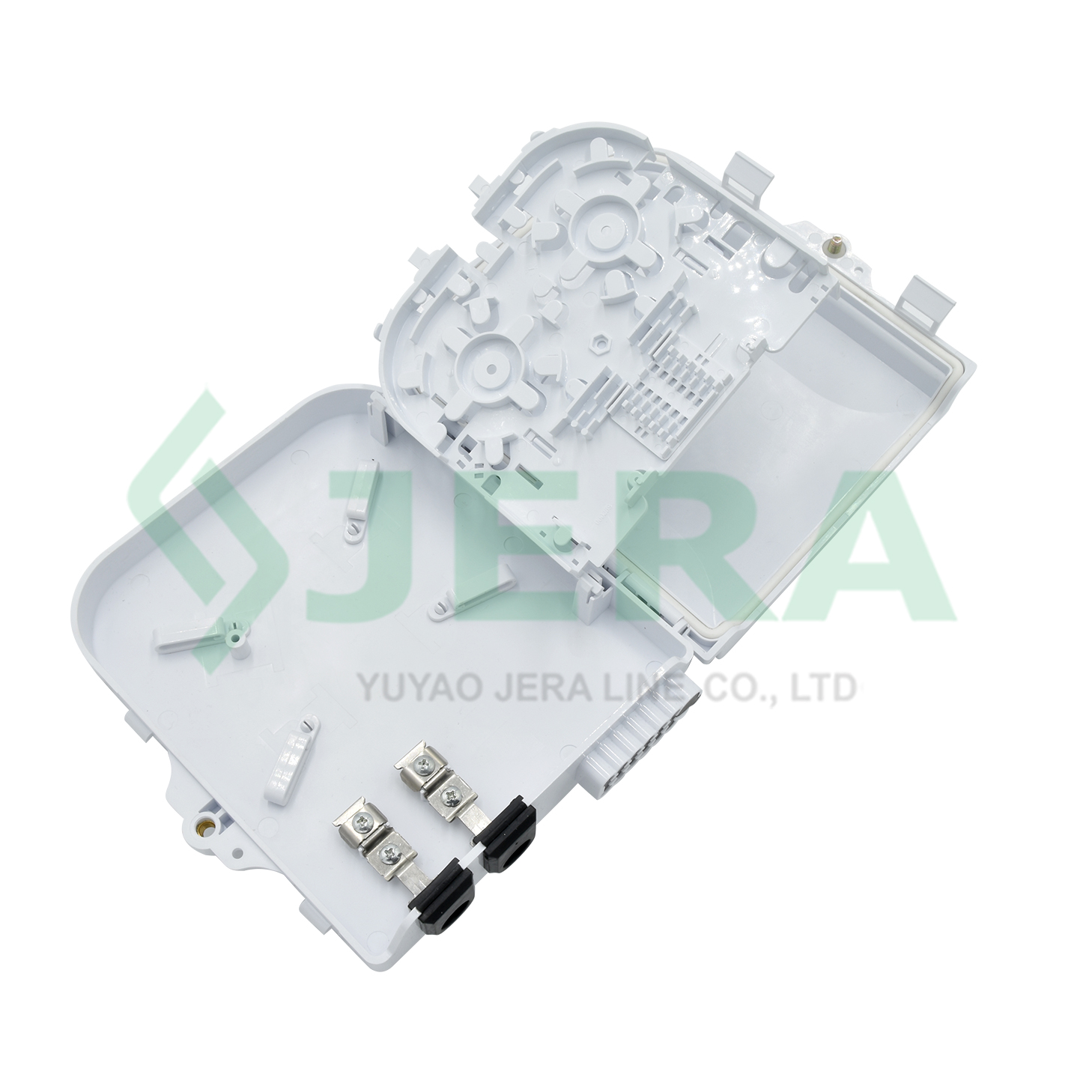

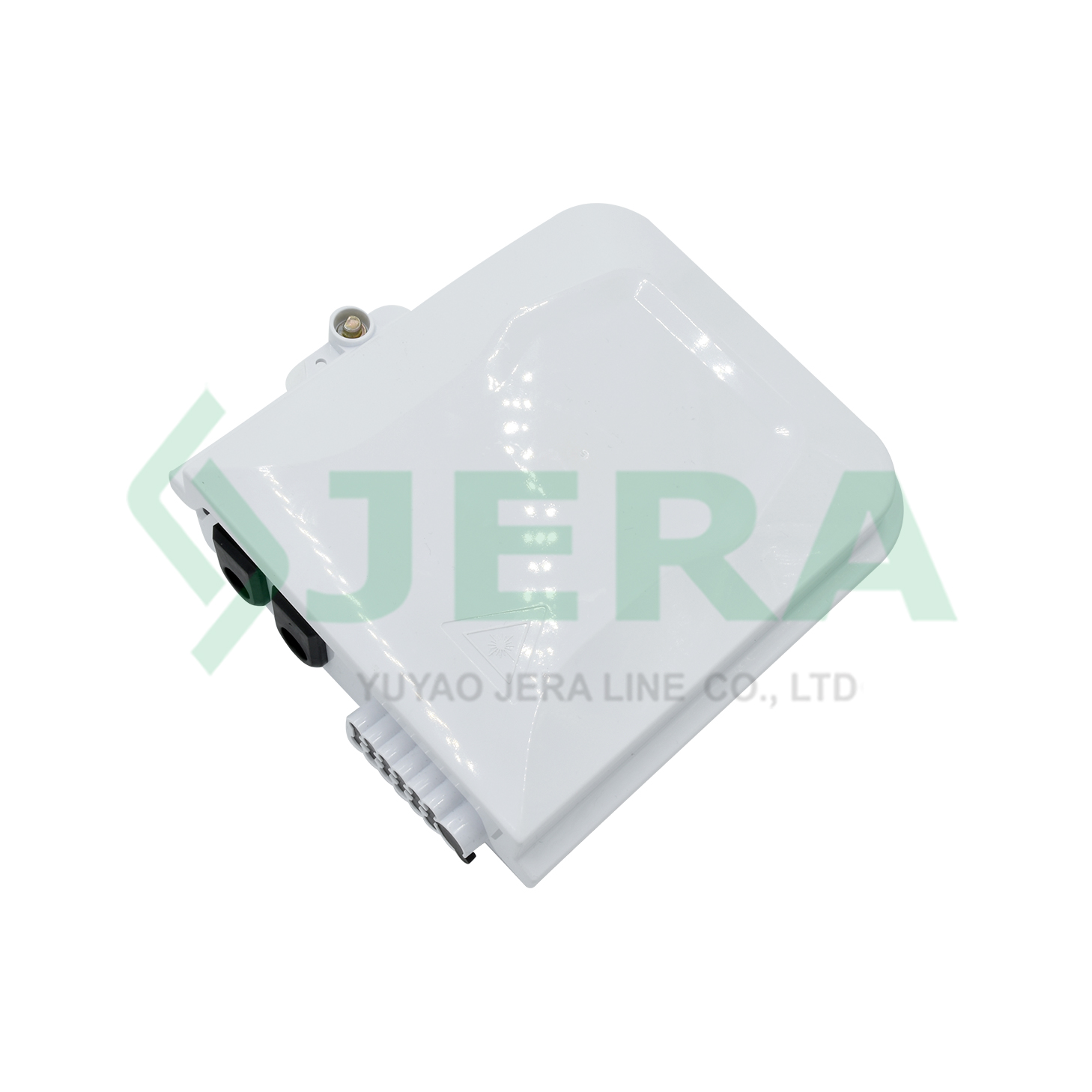

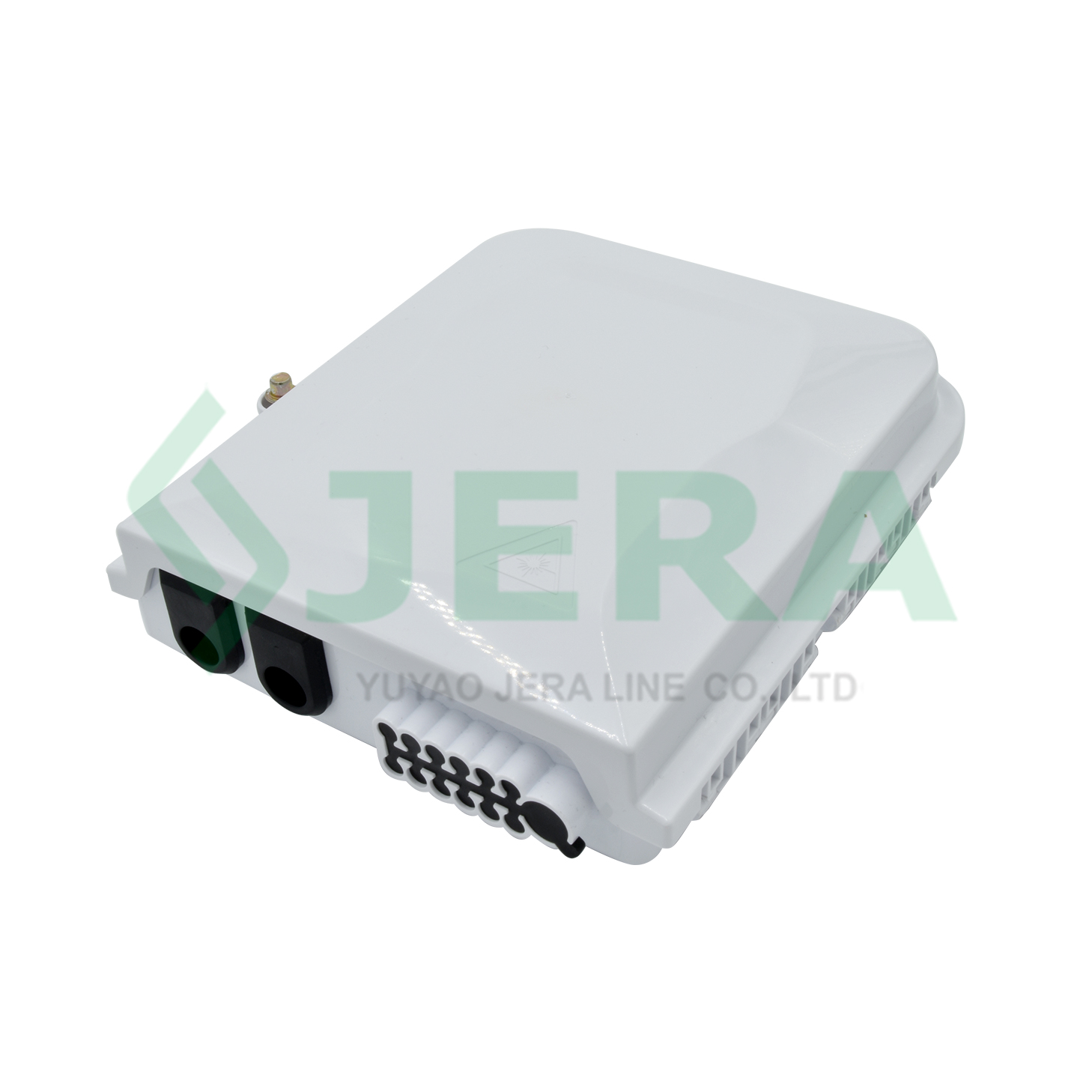

Ftth terminal box FODB-8F.2-2

FTTH terminal box FODB-8F.2-2 is a device Used to terminating feeder optic cable to fiber optical cords, patch cords, pigtail cords on the routes of last mile to users during Ftth telecommunication network constructions.

Features

Feeding cable: 2 of Ø17
Drop cable: 12 of ∅3; 1 of ∅10
PLC splitters: 1 of 1:8 ; 2 of 1:4
Adapter SC type: 12

DESCRIPTION Specification Test

REVIEW

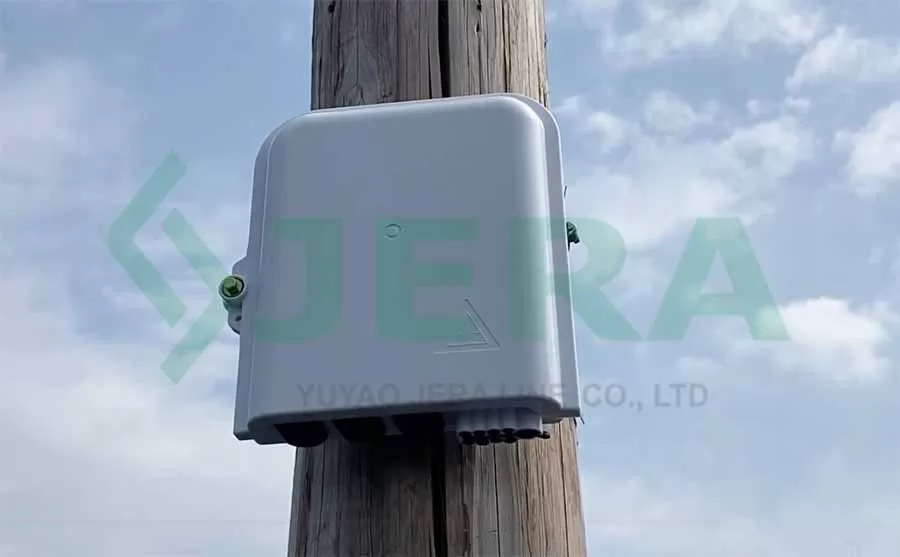

FTTH terminal box FODB-8F.2-2 is suitable for outdoor wall or pole mounting, designed to connect optical fiber lines and transmit signals.

For indoor scenarios, it is used for splicing indoor optical cables and protecting pigtails.

Key features

2 cable inputs and 13 outputs ports;

Intergrated seal sealed , wet and dust proof;

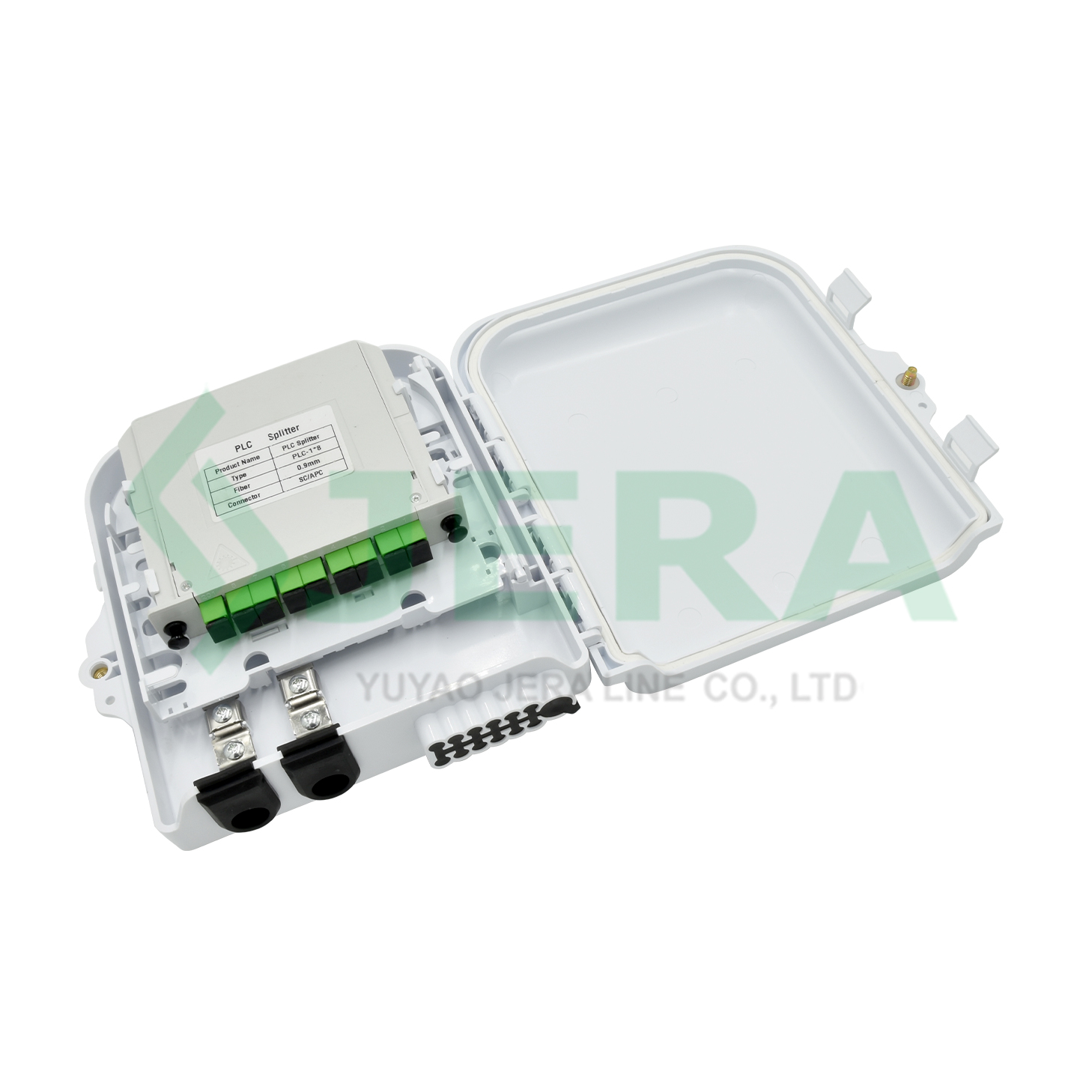

Appropriate for PLC splitters, SC adapter installation;

Made of high quality ABS and PVC, with high mechanical strength;

No ground device, anti-vandal and equipped with lock and key;

Interior stainless steel ties allow fixating feeder cable of different size without slippage;

Provide quick and easy access for drop cable connection;

Easy operation, screw installation on wall;

Excellent environment stability.

Technical specification

Product code	FODB-8F.2-2
Feeding cable dimensions, mm	2 of θ17
Drop cable dimensions, mm	12 of max dia 3 mm 1 max dia 10 mm
Adapters, SC type	12 SC (no ears-type)
PLC splitters	1 of 1:8 or 2 of 1:4
IP protection	54
Overall dimensions, mm	210×195×55

Test

UV and temperature aging test

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

Anchor clamps
Fiber optic cable
Fiber optic splice closures
Fiber optic distribution boxes
FTTH drop cable clamp

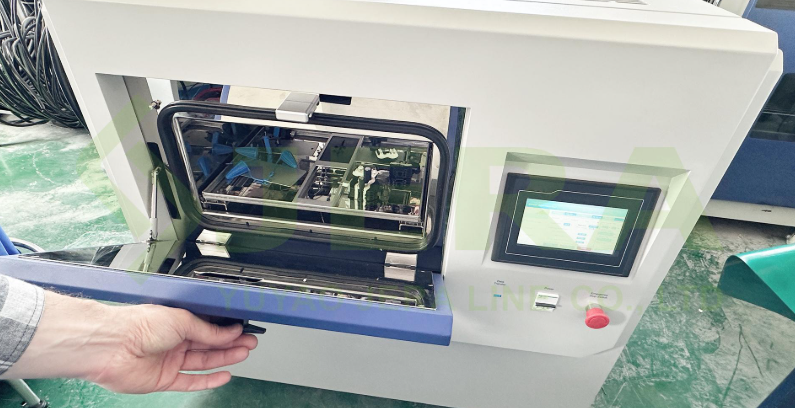

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
