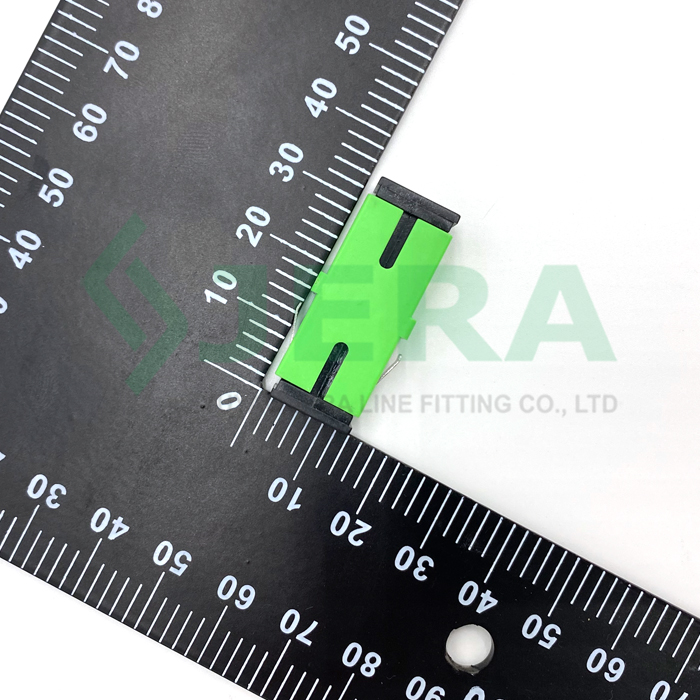

FTTH SM fiber optic adapter SC/APC

FTTH SM fiber optic adapter SC/APC

FTTH SM fiber optic adapter SC/APC as known as fiber optic coupler is a special connector designed to mate or connect two ends of fiber optic cable with high precision during FTTx line deployment.

Features

Socket type: SC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Small flange compare to common adapter
Low insertion loss,high return loss
Good repeatability and exchangeability
Strict curing time and temperature control
100% NEW raw material and well quality control ensure the best life time.
High reliability and stability
Excellent mechanical endurance
Competitive price

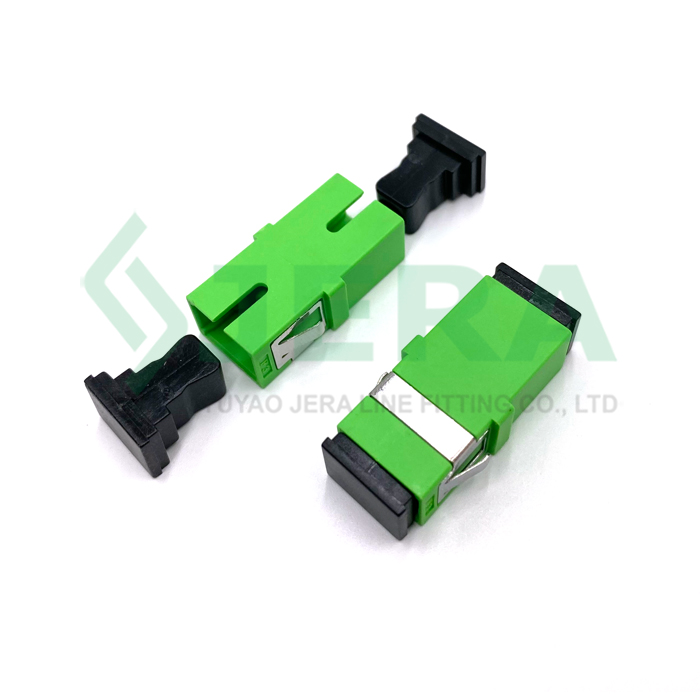

Fiber optic adapter generally consists of three parts, two fiber optic connectors and a coupler.

Two optical fiber connectors connect the two optical fiber tail ends. The coupler acts as a bushing.

SC (Standard Connector)：The standard square joint is made of engineering plastic, which has the advantages of high temperature resistance and not easy to oxidize.

APC: Polished at an 8-degree angle.

The casing is usually made of wear-resistant, dustproof, and waterproof materials. The connection interface is usually made of ceramic. This design protects internal components from the external environment, ensures stable fiber connection and reduces optical signal loss.

Adapters sometimes also include some auxiliary parts, such as sealing rings, locks, etc., to cope with complex environments.

read more

Applied Indoor, for connecting fiber optic cable to various devices such as routers, switches, and servers, ensuring seamless and high-speed data transmission within a confined space.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Adapter Type	Polish Type	Color	Fiber Counts	Fiber Mode	Insertion Loss (IL)	Working Temperature
SC/APC	APC	Green	Simplex	Singlemode	≤0.3dB	-40~+85℃
