FTTH Q Span clamp, DH-02

DH-02
Ftth Q span clamp DH-02, also called ftth draw hook is designed to used in drop cable installations as an attachment to the strand for either accepting the bail of drop wire clamps or for wrapping the support wire of drop cable. This optical cable Q span clamp has a wider range of messenger diameters of cable from 4-10mm.
FTTH Q Span clamp, DH-02
Features
    • Bracket type: Tension
    • Application: Strand
    • Span: 30-70 meters
    • MBL: 0.8 KN
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Light weight
  • Easy operation
  • ightening is realized by screw by hex key
  • Aluminum alloy and galvanized steel material, weather resistance
  • High mechanical strength
  • Superior environmental stability
  • Competitive price
FTTH Q Span clamp, DH-02 FTTH Q Span clamp, DH-02

SPECIFICATION

Ftth Q span clamp DH-02, also called ftth draw hook is designed to used in drop cable installations as an attachment to the strand for either accepting the bail of drop wire clamps or for wrapping the support wire of drop cable. This optical cable Q span clamp has a wider range of messenger diameters of cable from 4-10mm.

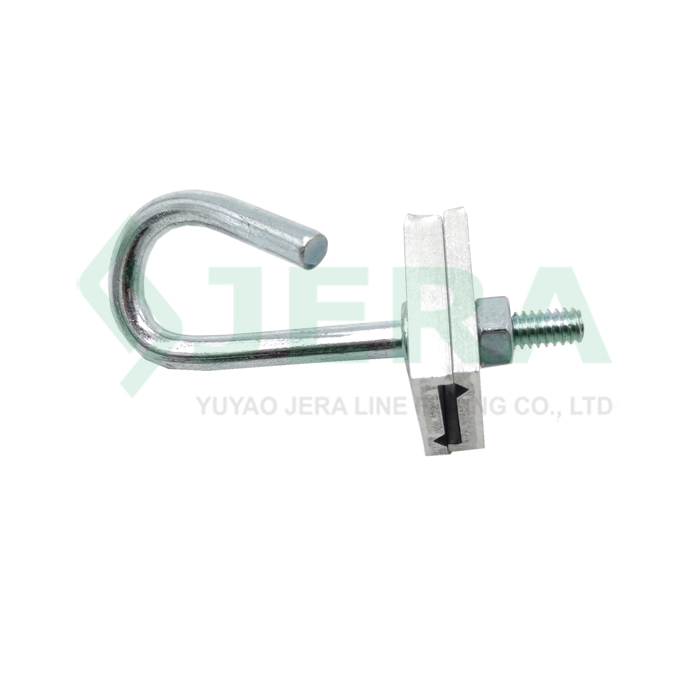

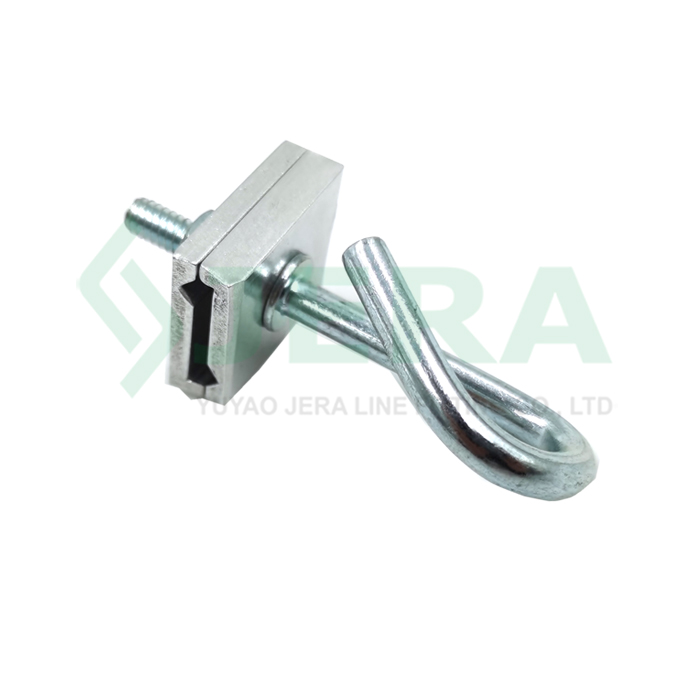

This Q type span clamp is consists of a set of aluminum jaws, a 1/4″ diameter “pig-tail” shaped bolt, and a hex nut.The Jaws are rolled and stamped from 6063 Aluminum,The bolt and hex nut are formed from Grade 2 galvanized steel. All the part are rust proof and with high mechanical strength which guarantee long period usage.

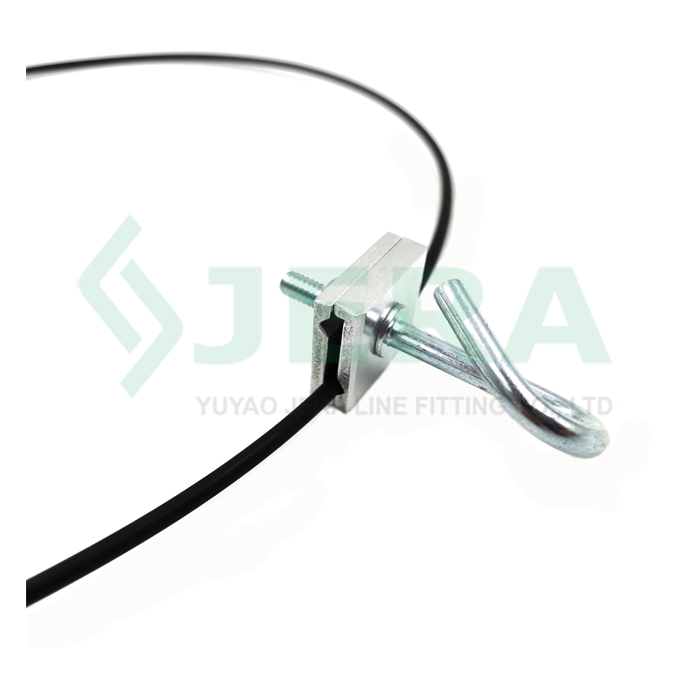

The operation of this span clamp is very easy, just need to insert appropriate diameter cable in the groove of two plate and tightening the nut, at last attach the assemblies on pole bracket or hook. The fiber drop cable does not slips from when mechanical strength was reached and metal hook part of draw hook allows easily handily installation.

read more

APPLICATION

Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards. Test including max tensile strength test, UV resistant test, aging test, temperature cycling test etc.

Jera Line is a direct factory, with many years of experience, we supply a wide range of products for aerial telecommunication line deployments. We supply fiber optic drop cable , tension clamp, fiber optical box, dead end guy grips etc.

Welcome to contact us for more information about this fiber optic Q span clamp price.

read more

Manufacturing

drop cable clamp brackets manufacture

Watch Our Factory Video

Technical specification

Product code

Application diameter, mm

Material

Tensile strength ,KN

DH-02

4-10

Galvanized steel, aluminum 6063

0.8
