FTTH flat GYFBY cable 1 fiber

FTTH flat GYFBY cable 1 fiber, also called flat optical drop cable is designed to used on last mile installation routes to connect final users to FTTH or GPON line. This fiber drop cable especially suitable for application where requests small diameter but with high mechanical strength during FTTH deployment.

Features

Application: Outdoor
Fiber quantity: 1 fiber
Dimensions: 4.0*2.0 mm
Reinforcement: FRP

DESCRIPTION Specification Test

REVIEW

Application

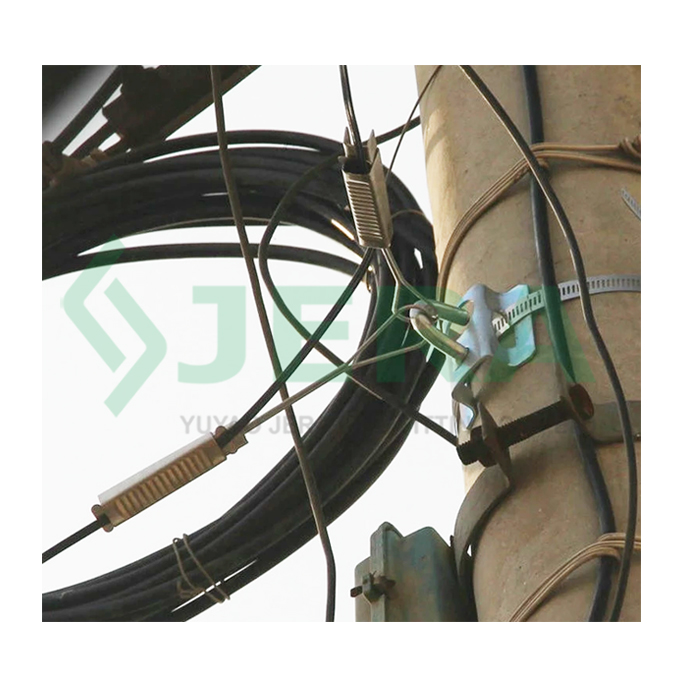

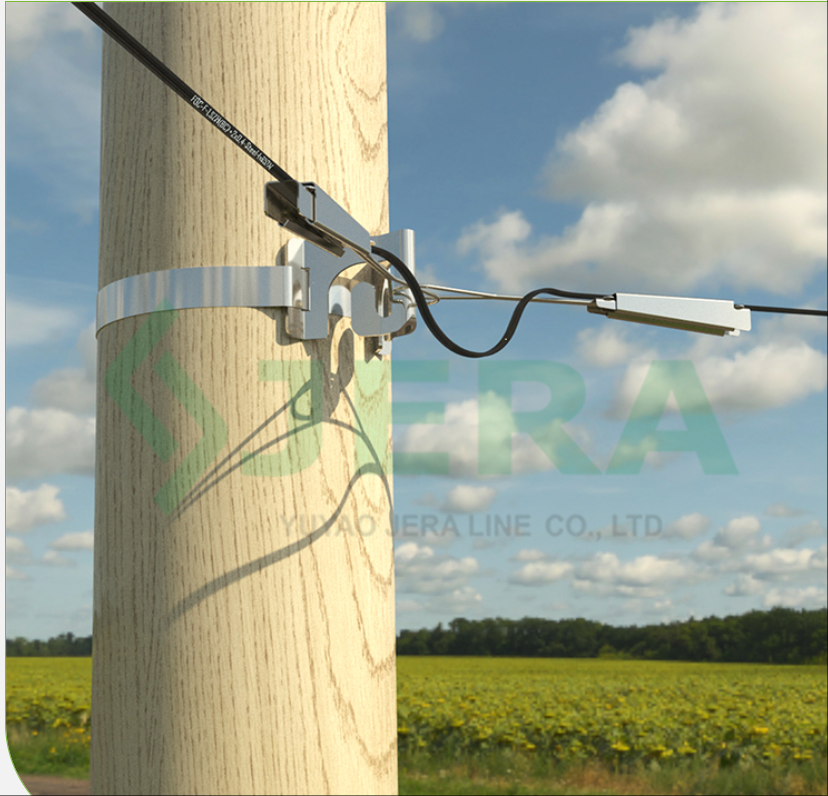

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Technical specification

Item	Technology Parameters
Applications	Outdoor, indoor
Product code	FOC-F-HDPE-BC+2×0.8-FRP+1.2-PBT-1xG657A1-4.0*2.0
Loose tube material and diameter	PBT, 1.2(±0.2)mm
Strength member material and size	FRP rods, 0.8 mm
Fiber cores	1
Fiber core options	G.652.D, G.657A1, G.657A2
Cable jacket color	Black
Sheath material	HDPE
Cable dimension,mm	4.0*2.0 (oval）
Tensile strength, N	800
Certification	IEC-60794-1-2, ISO9001:2015
Length	1000/2000 m per drum

Drawing

Test

OTDR is useful for testing the integrity of fiber optic cables. It can verify splice loss, measure length and find faults. The OTDR is also commonly used to create a "picture" of fiber optic cable when it is newly installed. Later, comparisons can be made between the original trace and a second trace taken if problems arise. Analyzing the OTDR trace is always made easier by having documentation from the original trace that was created when the cable was installed. OTDR show you where the cables are terminated and confirm the quality of the fibers, connections and splices. OTDR traces are also used for troubleshooting, since they can show where breaks are in fiber when traces are compared to installation documentation.

Jera proceed test of FTTH drop cables on wavelengths (1310,1550 and 1625 nm). We use EXFO FTB-1 in this quality tests. Examining the quality of our cables to ensure ours customer could receive products which meet quality requirements.

We do this test on every cables we produce.
