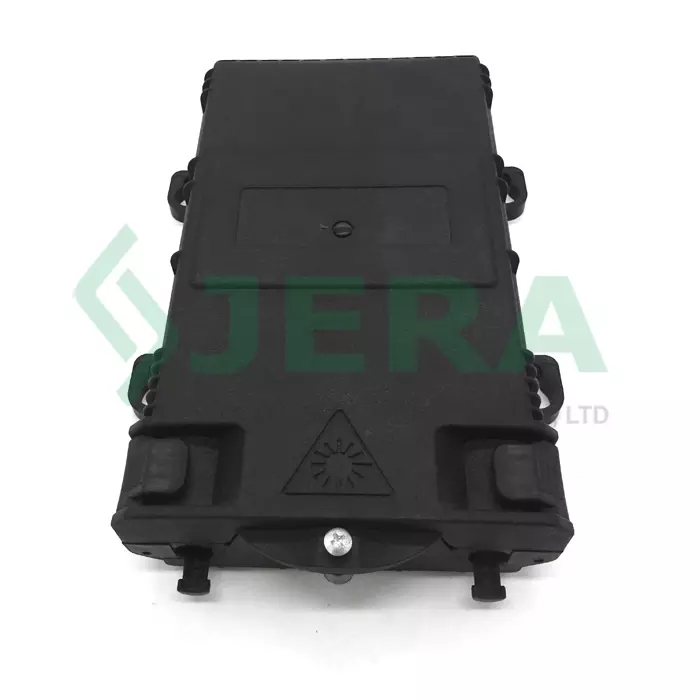

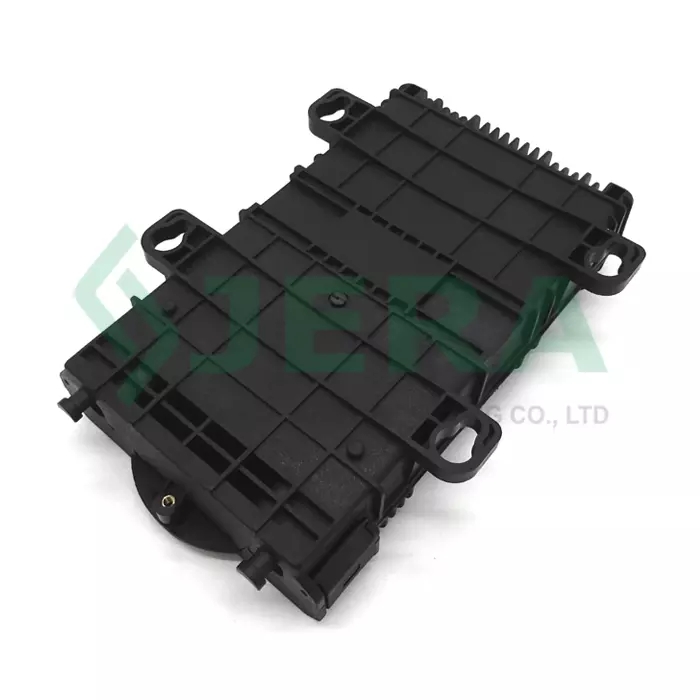

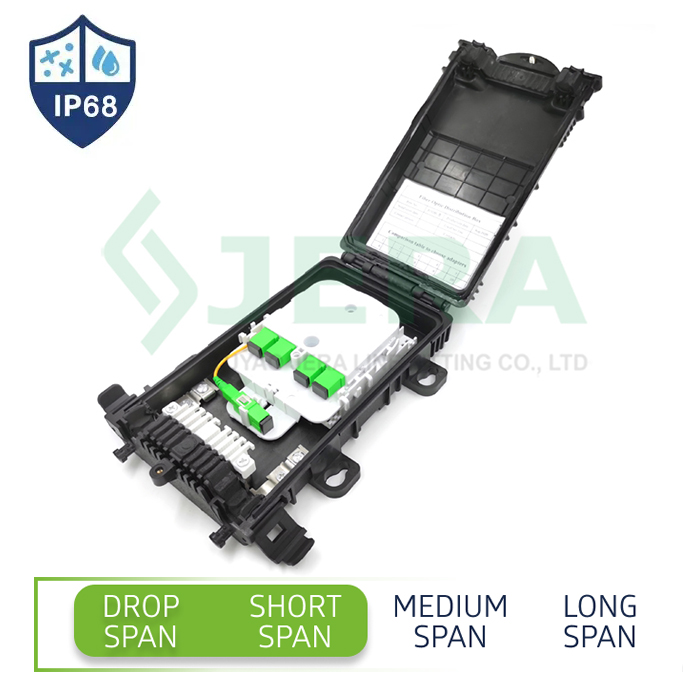

FTTH Fiber termination box, FODB-8+C1-1*4

Fiber optic terminal box FODB-8+C1-1*4, either named ftth fiber optic terminal box is developed to terminate the fiber optical cable to ftth fiber optical cords, patch cords, pigtail cords, or plc splitters according to capacity of distribution box. Box applied overhead for deployment of fiber optic cable by ftth technology, on the poles and walls according to project requirements.

Features

Easy installation and long-term service life
Made of UV resistant plastic, wet and dust proof,durable
Applied in main line or last mile cable’s transit & termination.

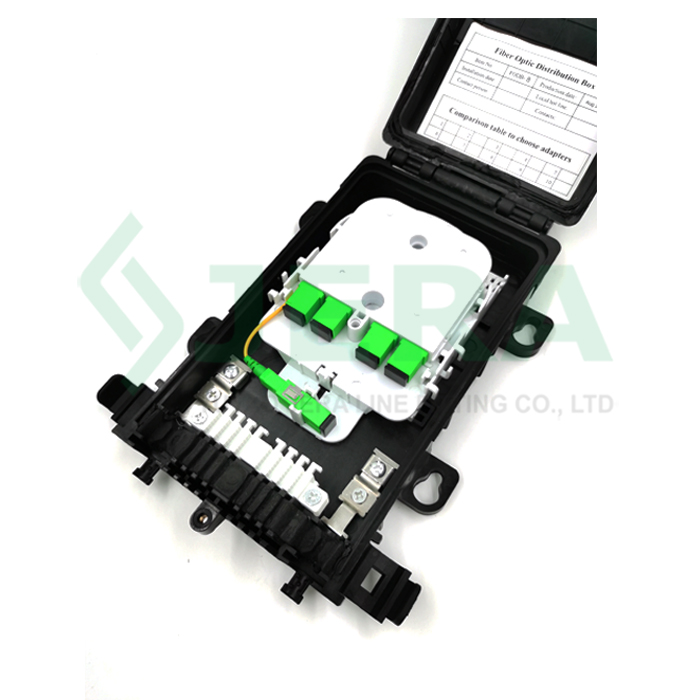

Gel sealed ideal protection, IP 68.
Easy installation-Can be mounted with screws on wall and stainless steel band on pole
High quality UV resistant thermoplastic, wet and dust proof for long time usage.

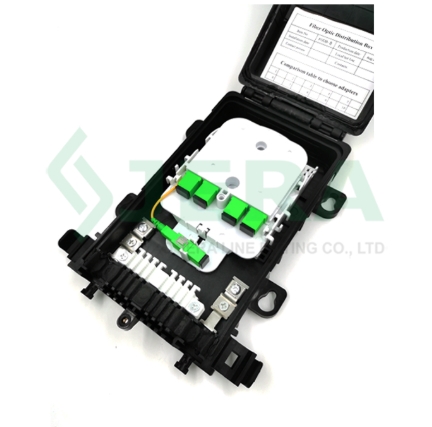

Equipped with one 1*4 PLC SC/APC cassette splitter
2 cable inputs and 8 outputs ports
Fair price

DESCRIPTION Specification Test

REVIEW

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

Technical specification

Product code	FODB-8+C1
Feeding cable dimensions, mm:	2 of ∅3-12
Drop cable dimensions, mm:	8 of ∅2-3
Max splicing capacity:	8 (16*)
PLC splitter, mini cassette 89x82x22 mm	1 of 1:8 or 2 of 1:4
PLC splitters , blockless 60x7x4 mm	1 of 1:8 or 2 of 1:4
IP protection	68
Overall dimensions, mm	235×161×50

Test

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

-Anchor clamps

-Fiber optic cable

-Fiber optic splice closures

-Fiber optic distribution boxes

-FTTH drop cable clamp

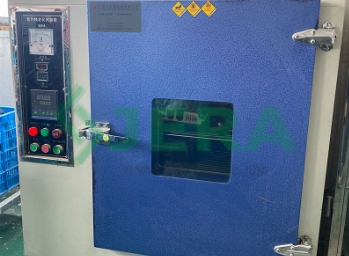

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
