FTTH fiber PLC splitter 1×8 SC/UPC

1×8 SC/UPC

FTTH fiber PLC splitter either called micro fiber optic PLC splitter is a fiber optic accessories used divide light signal at each splitter output port to be the same in FTTx line deployment. It will speed up the installation process and save installation cost.

Features

Type: 1×8
Adapter type: SC
Polish type: UPC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

The splitter interface type is SC/APC
Compact structure allow applied with various termination boxes
The splitter has low insertion loss, high return loss, and good interchangeability
Easy and low cost FTTH installation
Excellent environmental & mechanical stability
Competitive price

FTTH fiber PLC splitter either called micro fiber optic PLC splitter is a fiber optic accessories used divide light signal at each splitter output port to be the same in FTTx line deployment. It will speed up the installation process and save installation cost.

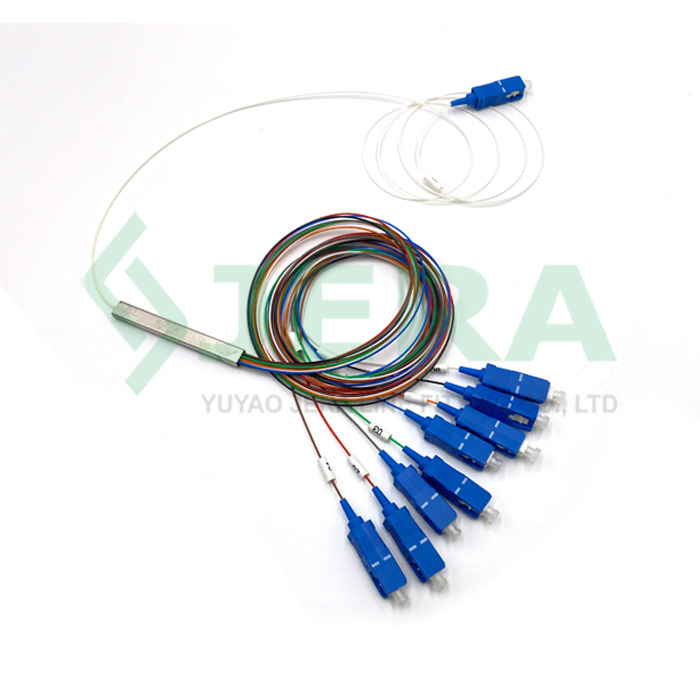

This blockless fiber optic PLC splitter has stronger fiber protection than bare fiber fiber splitter, it’s a miniaturization result of cassette splitter. It can be used for various connection and indoor and outdoor fiber optic distribution boxes. Suitable for home wiring, engineering project, enterprise and fiber LAN etc.

read more

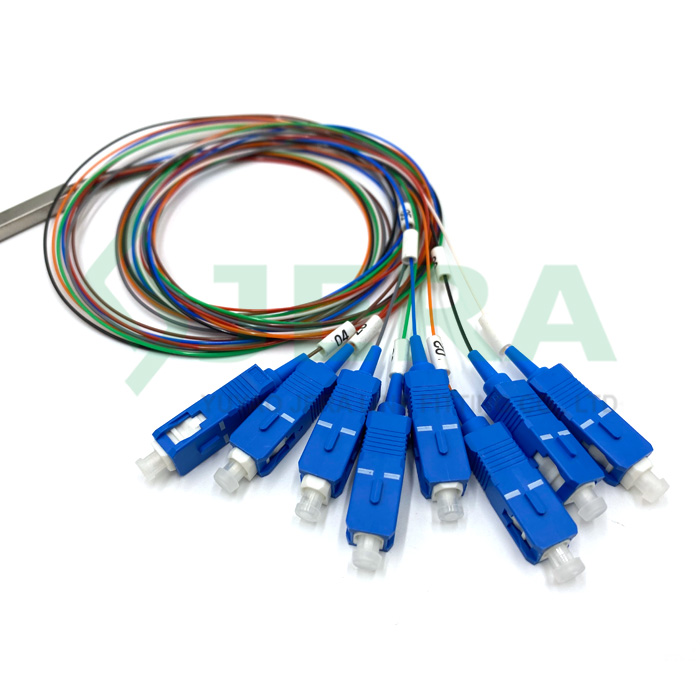

Jera line is operating according to ISO 9001:2015, we proceed essential fiber reflect test before shippment to ensure every UPC fiber optic PLC splitter will meet clients’ requirement and industry standard.

Jera line is a direct **fiber optic cable** manufacturer, who provides a complete solution for aerial FTTx line constructions. Our product including fiber optic cables , drop cable patch-cord, ADSS cable clamps, cable bracket, fiber optic termination boxes, guy grips, stainless steel bandings and so on.

Welcome to contact our sales team for more information about this FTTH fiber PLC splitter 1×8 SC/UPC price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×8
Operating wavelength (nm)		1260-1650
Optical fiber thickness,mm mmmm		0.9
Optical fiber type		G657A1,G657A2
Adapter type		SC
Polish type		UPC
Insertion loss(dB)	Typical	10.5
Insertion loss(dB)	Maximum	10.7
Uniformity(dB)	Typical	0.6
Uniformity(dB)	Maximum	0.8
Polarization Dependent Loss(dB)	Typical	0.15
Polarization Dependent Loss(dB)	Maximum	0.25
Wavelength dependent Loss(dB)	Typical	0.15
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40 to 85
Optical fiber length (m)		0.5, 1.0, 1.5
