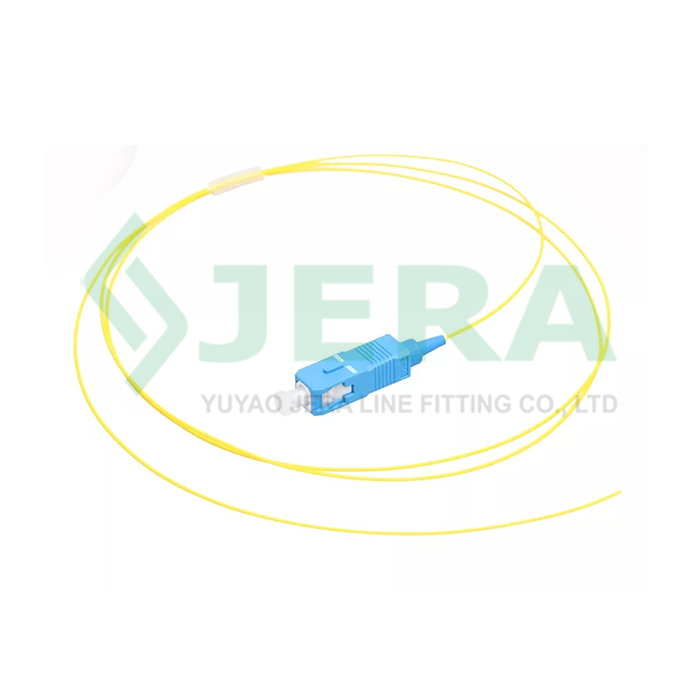

FTTH fiber optic pigtail SC/UPC

FTTH fiber optic pigtail SC/UPC also called simplex fiber optic pigtail is a fiber optic cable pre-connected with a SC/UPC connector at one end, and the other end left empty. It help end user to speed up the operation of connect to CATV, optical boxes etc during FTTx deployment.

Features

Terminated with SC/UPC connector
Low insertion loss and low back reflection loss
Flexible and easy to peel fiber buffer
100% factory tested assemblies with traceable test date
Conform to the criterion of GR-326-CORE and ROHS
Good exchange ability and good durability
Competitive price

DESCRIPTION Specification Test

REVIEW

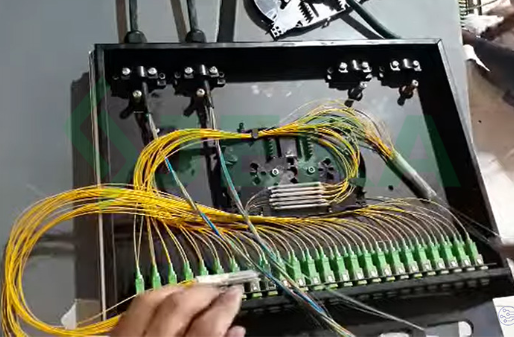

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

Technical specification

Model name	Fiber optic pigtail
Fiber type	Single mode G652A2
Cable assemblies	Simplex
Jacket material	LSZH
Cable diameter, mm	0.9
Length,m	1.0
Connector type	SC
End face	UPC
Working wavelength, nm	1310/1550
Insertion loss, dB	≤0.1
Return loss, dB	≥60
Exchangeability	≤0.2dB
Operating temperature（℃）	-40~85
Storage temperature（℃）	-40~85
