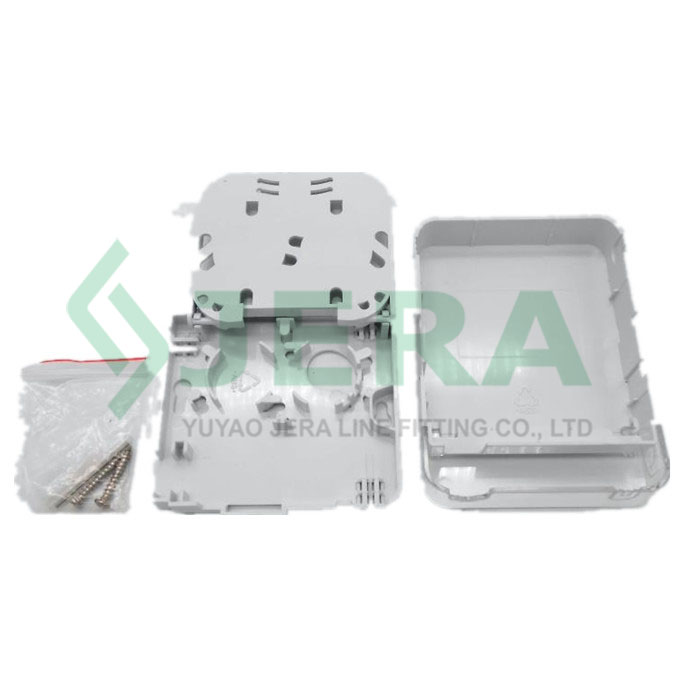

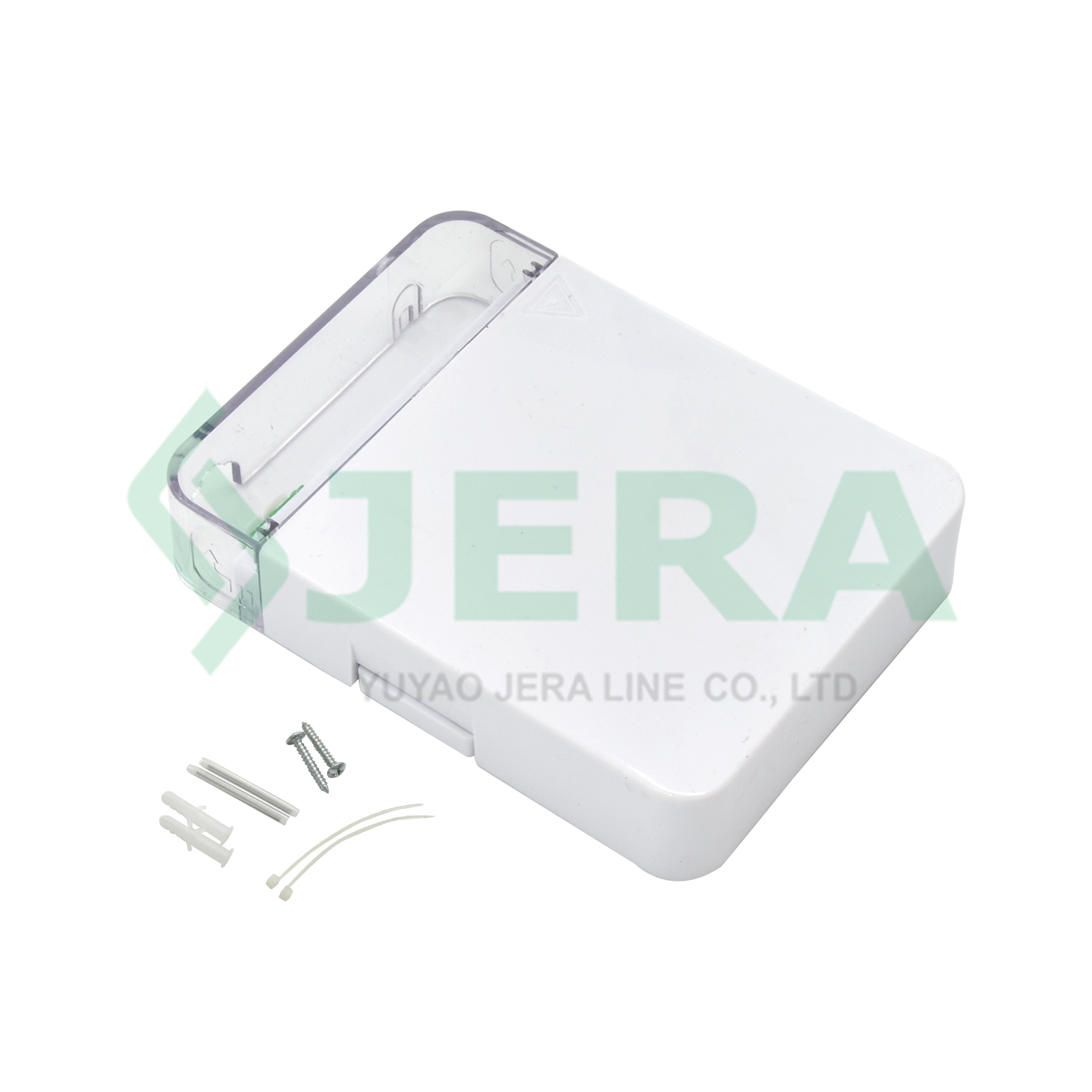

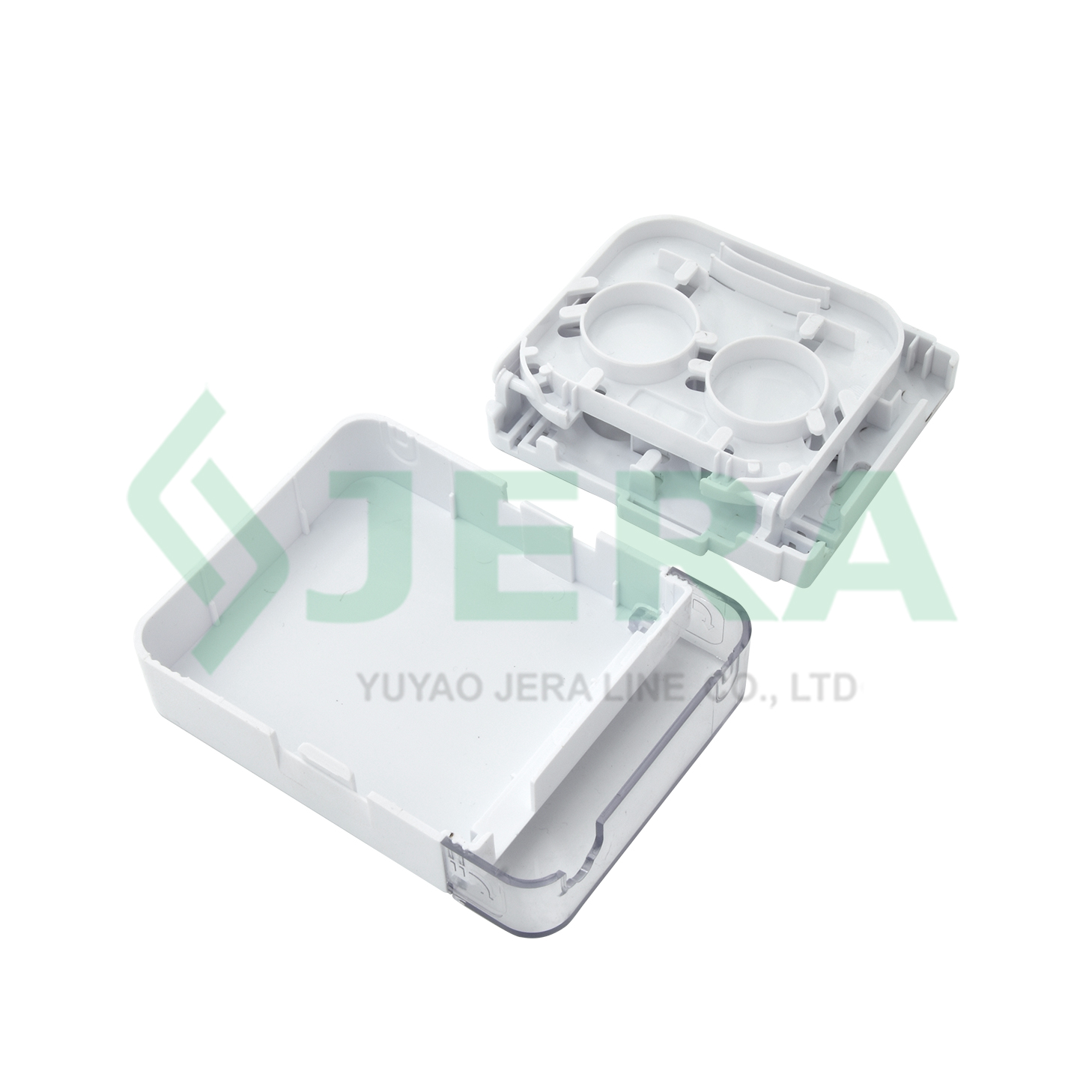

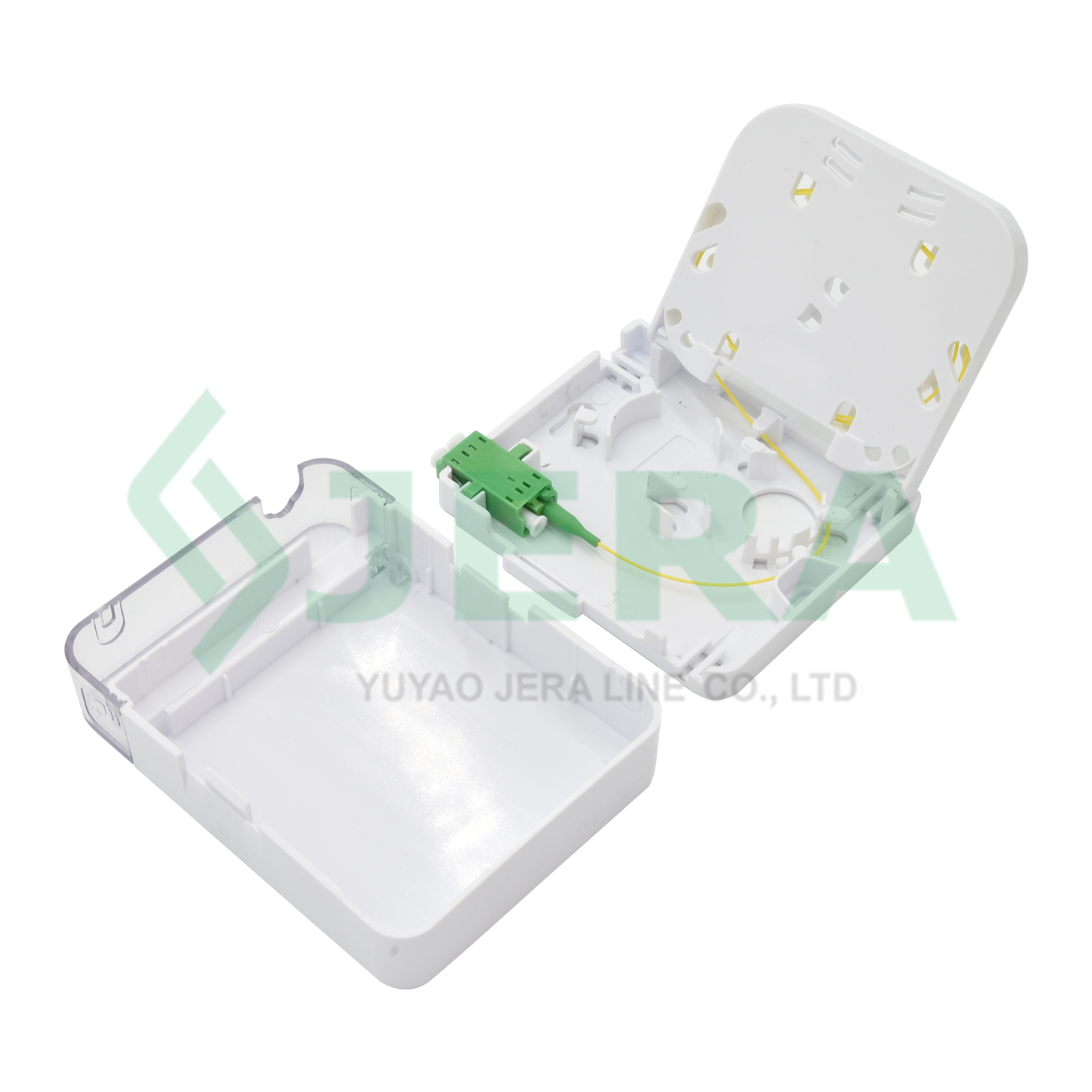

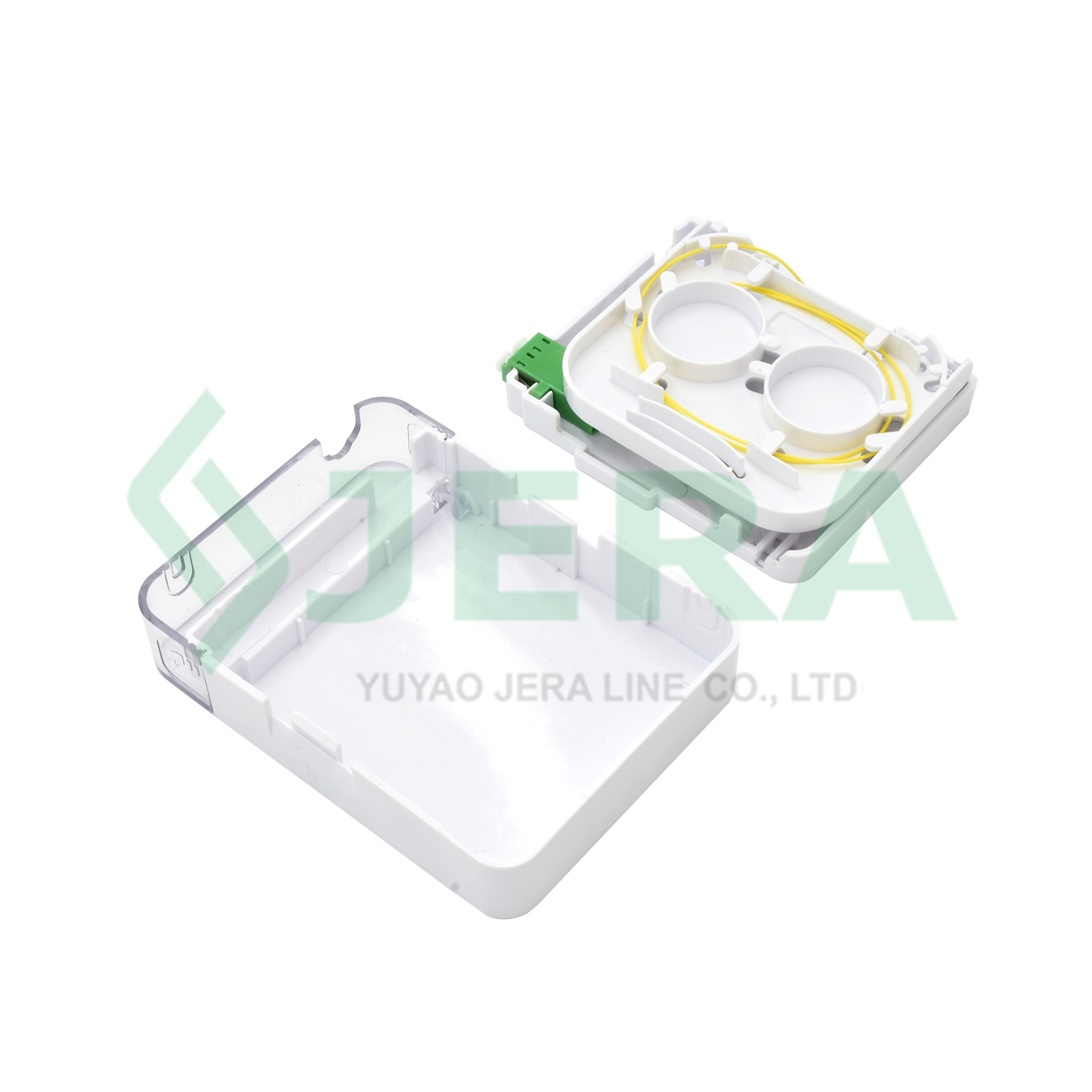

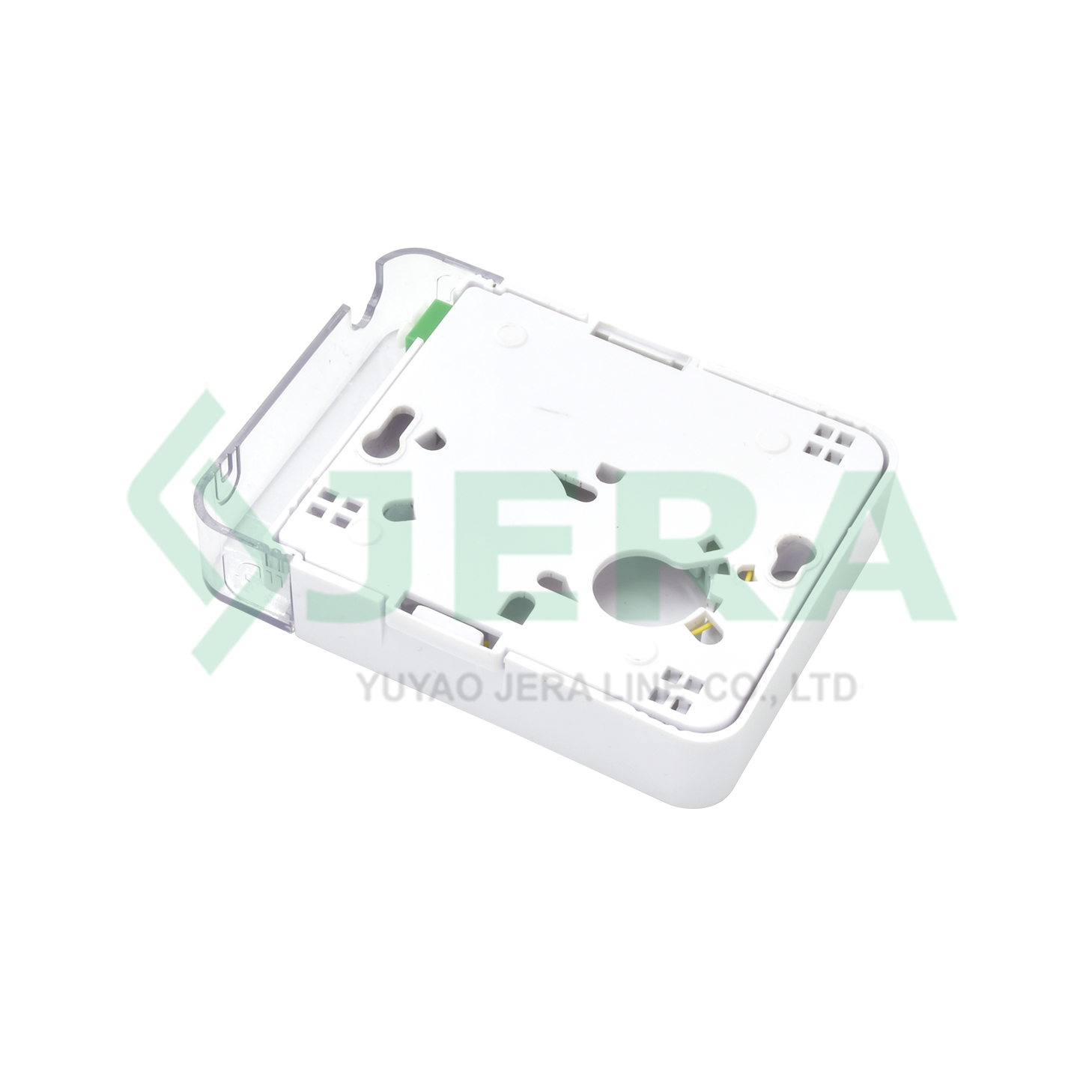

Ftth fiber optic faceplate, ODP-01H

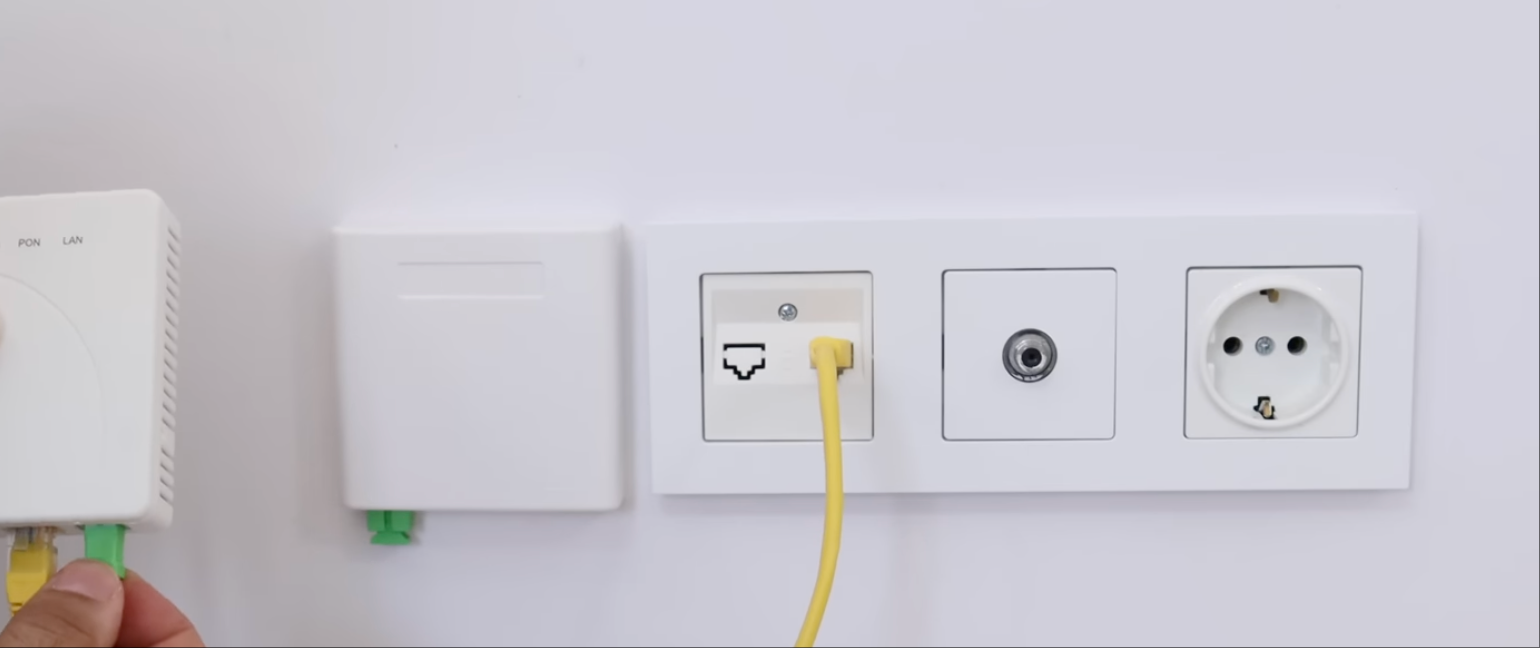

Ftth fiber optic faceplate, is a wall mounting box designed to terminate fiber optic cords, patch cords, pigtail cords, with adapters in FTTH net work. Applied indoor to connect end user to network.

Features

Application: Indoor
Material： ABS/PC
Dimensions: 115*86*23
Adapter SC type: 1 SC or 1 Double LC

DESCRIPTION Specification Test

REVIEW

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

Technical specification

Product code	Dimensions	Adapters	Material	Application
ODP-01H	1158623	1 SC or 1 Double LC	ABS+PC	Indoor

Test

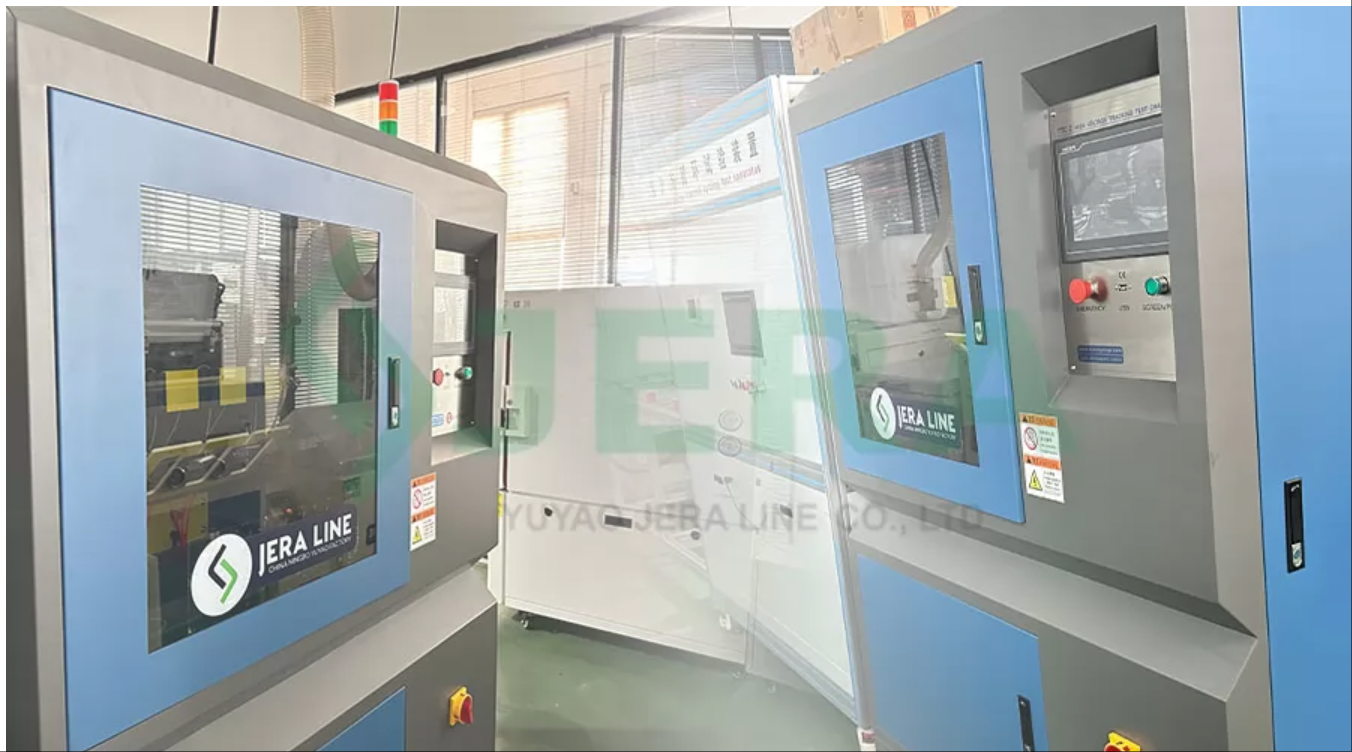

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.
