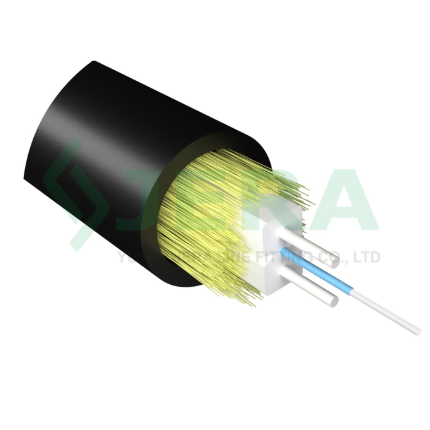

FTTH Fiber Optic Drop Cable, 1 fiber

FOC-R+F-LSZH(BC)+8*PF yarns

FTTH Fiber Optic Drop Cable also called double sheath fiber drop cable is an assembly designed to transfer information by light signal in last mile internet constructions.

Features

Double sheath protection
Inner cable with FRP strength member, high flexibility
Aramid yarn or polyester yarn provide high tensile strength
UV resistant MDPE guarantee long period usage
Both indoor and outdoor application
Fire resistant protection
Competitive price

DESCRIPTION Specification Test

REVIEW

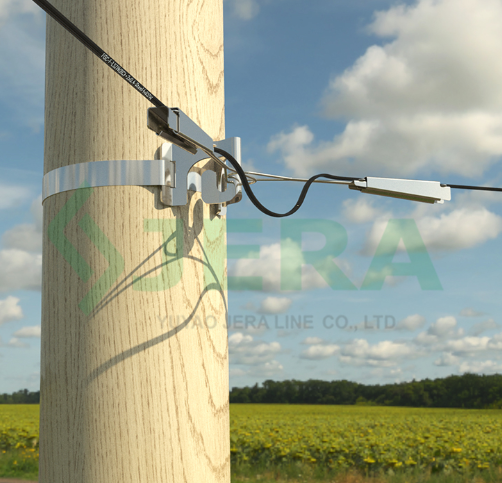

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Technical specification

Items	Parameters
Product code	FOC-R+F-LSZH(BC)+8*PF yarns+1xG657A1-5.0
Product name	FTTH double sheath round drop cable, 1 fiber
Strength member details	2×0.5mm (±0.05）FRP
Inner sheath material	LSZH
Inner cable size,mm	2.0×3.0 (±0.1）
Support member	Aramid yarn or Polyester yarn
Outer sheath details	1.0mm(±0.1）MDPE
Cable diameter,mm	5.0mm(±0.1）
Cable weight kg/km	24(±2.0）
Attenuation coefficient (dB/km)	1210nm–0.35
Attenuation coefficient (dB/km)	1550nm–0.25
Allowable tensile strength(N)	200 to 300
Allowable crush resistance (N/100mm)	2200
Min.bending radius(mm)	Without tension–20D
Min.bending radius(mm)	Under maximum tension–40D
Temperature range(℃)	Installation 0~+50
	Transport & storage -20~+50
	Operation -20~+50

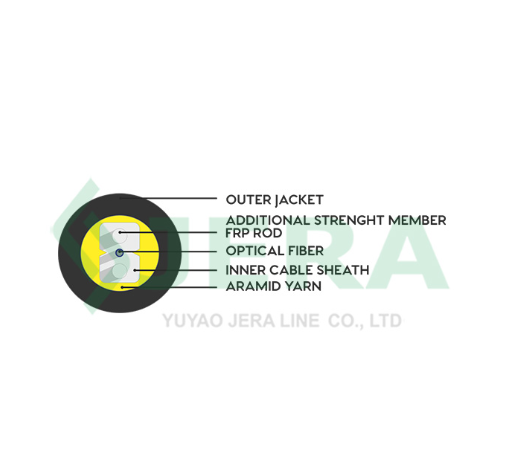

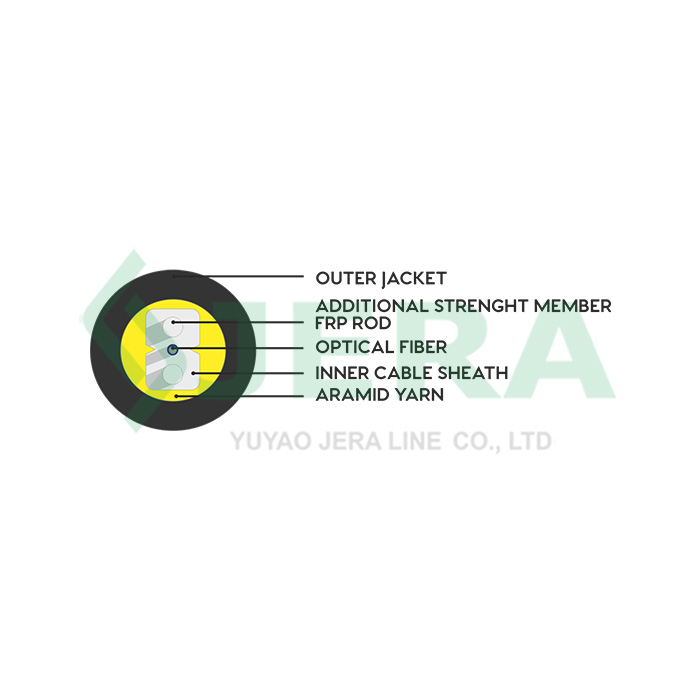

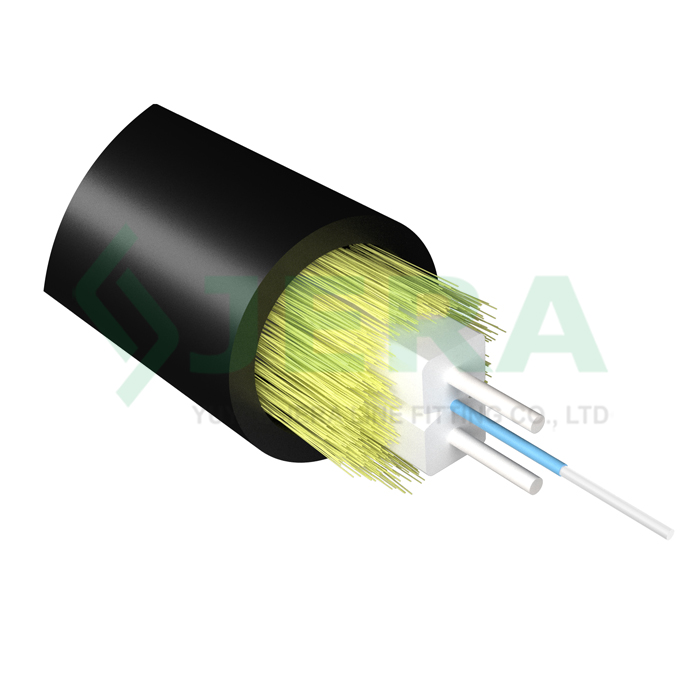

Drawing

Test

Fiber optic core reflection test is proceed by Optical Time Domain Reflectometer (OTDR). Which is a device used to precisely detect faults in an optical fiber link of a communication networks. An OTDR generates a pulse inside a fiber to be tested for faults or defects. Different events within the fiber create a Rayleigh back scatter. Pulses are returned to the OTDR and their strengths are then measured and calculated as a function of time and plotted as a function of fiber stretch. The strength and returned signal tell about the location and intensity of the fault present. Not only maintenance, but also optical line installation services utilize OTDRs.

OTDR is useful for testing the integrity of fiber optic cables. It can verify splice loss, measure length and find faults. The OTDR is also commonly used to create a "picture" of fiber optic cable when it is newly installed. Later, comparisons can be made between the original trace and a second trace taken if problems arise. Analyzing the OTDR trace is always made easier by having documentation from the original trace that was created when the cable was installed. OTDR show you where the cables are terminated and confirm the quality of the fibers, connections and splices. OTDR traces are also used for troubleshooting, since they can show where breaks are in fiber when traces are compared to installation documentation.

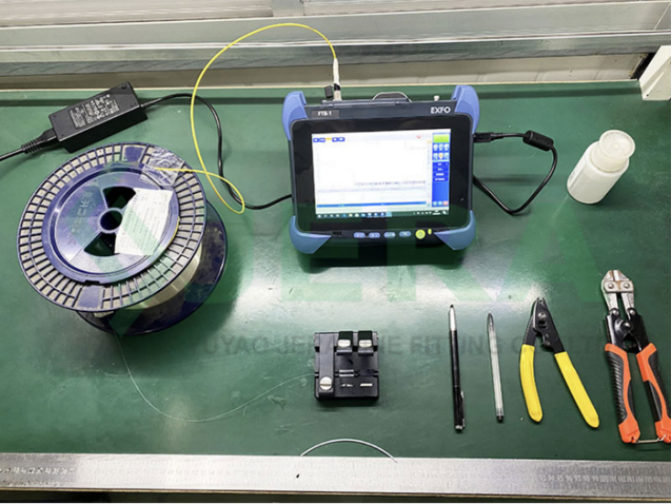

Jera proceed test of FTTH drop cables on wavelengths (1310,1550 and 1625 nm). We use EXFO FTB-1 in this quality tests. Examining the quality of our cables to ensure ours customer could receive products which meet quality requirements.

We do this test on every cables we produce.
Our internal laboratory is capable to proceed such a series of standard related type tests.
