Ftth fiber cable faceplate

Ftth fiber cable faceplate, ODP-02

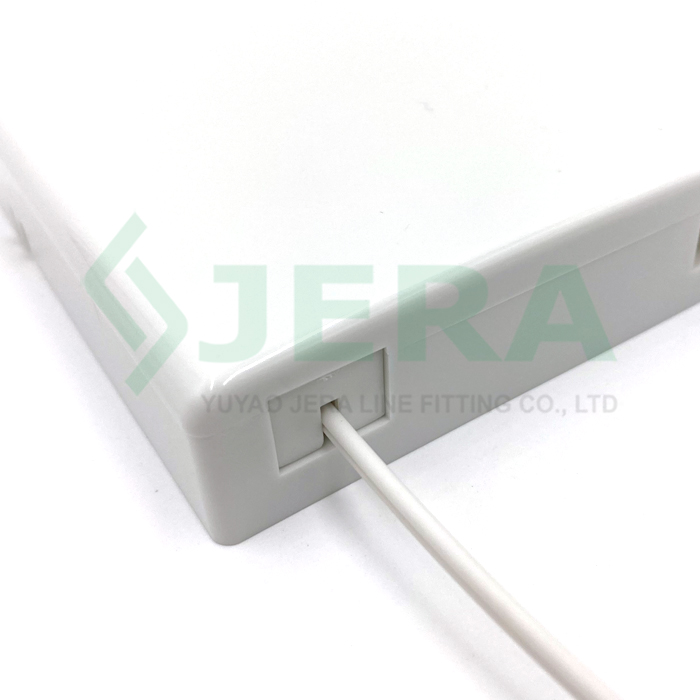

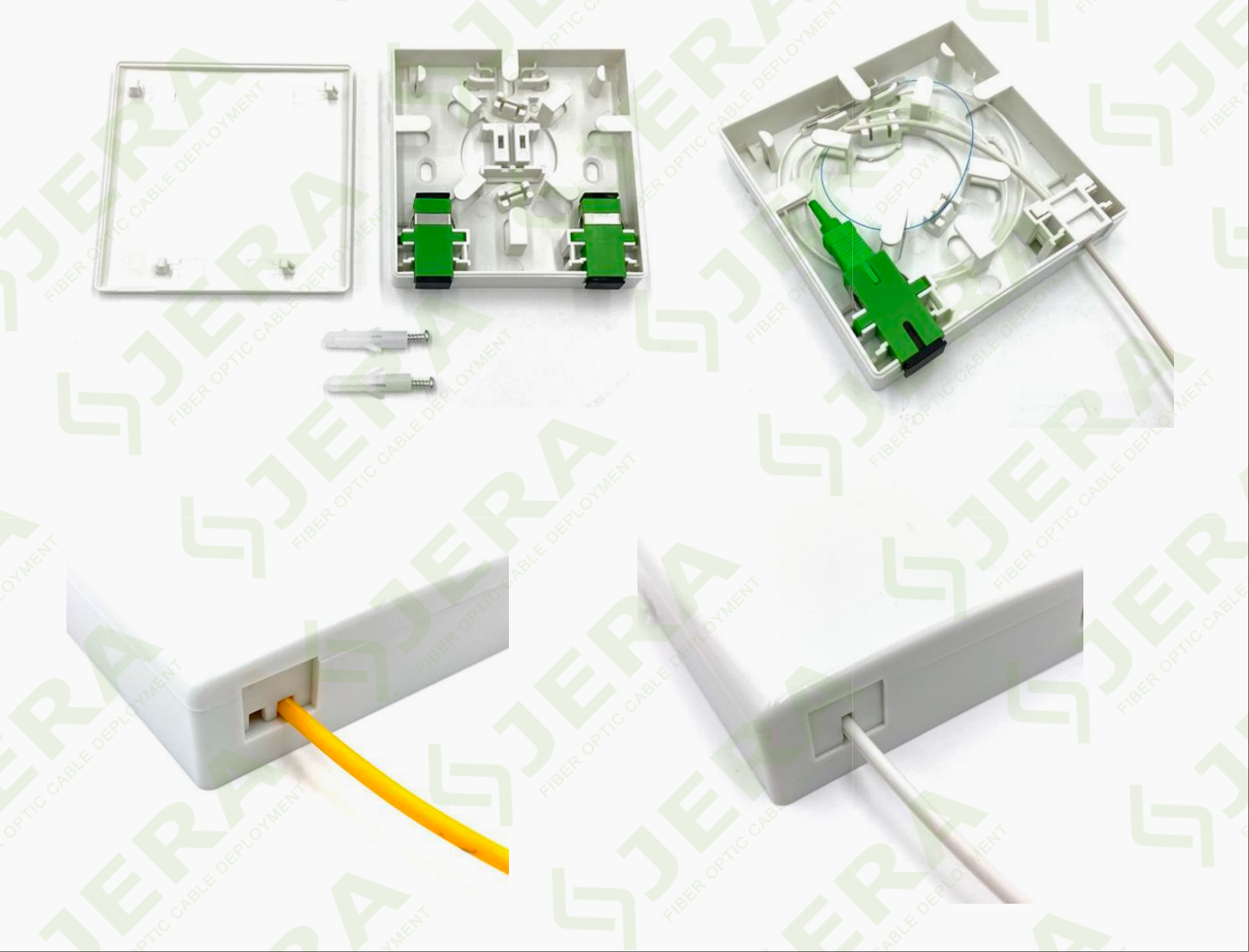

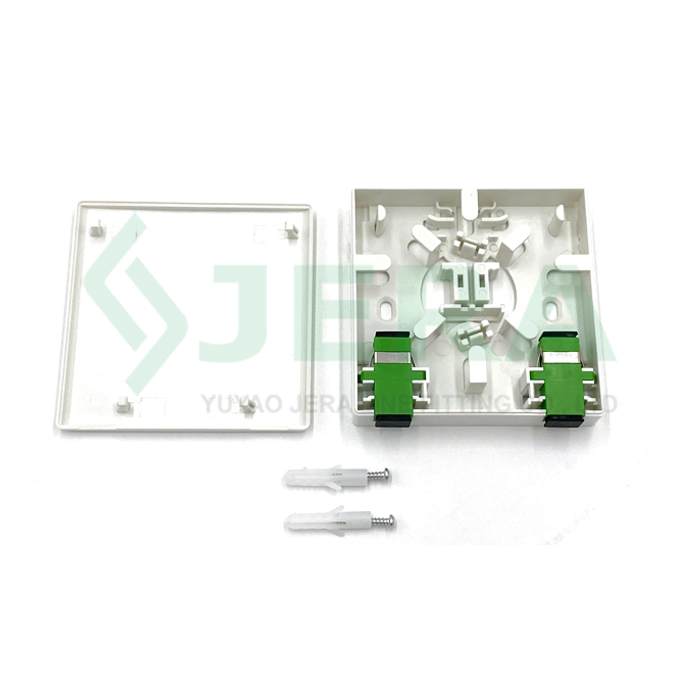

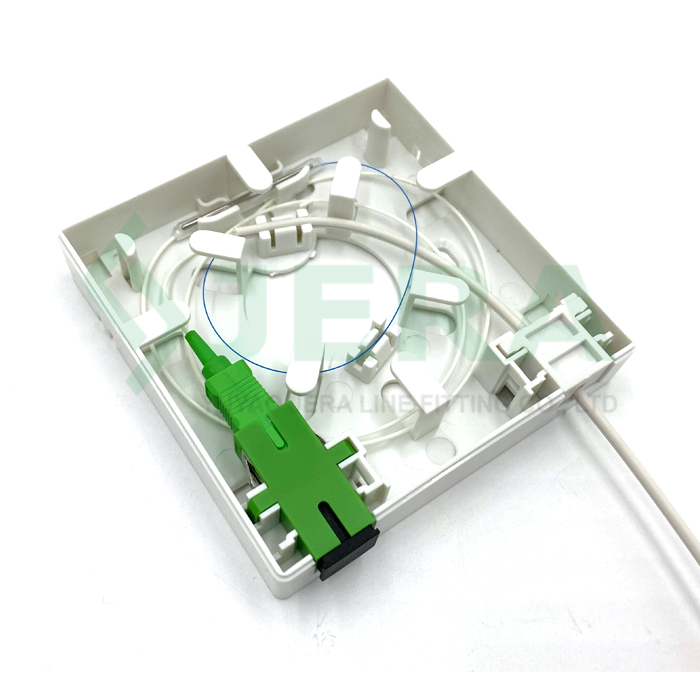

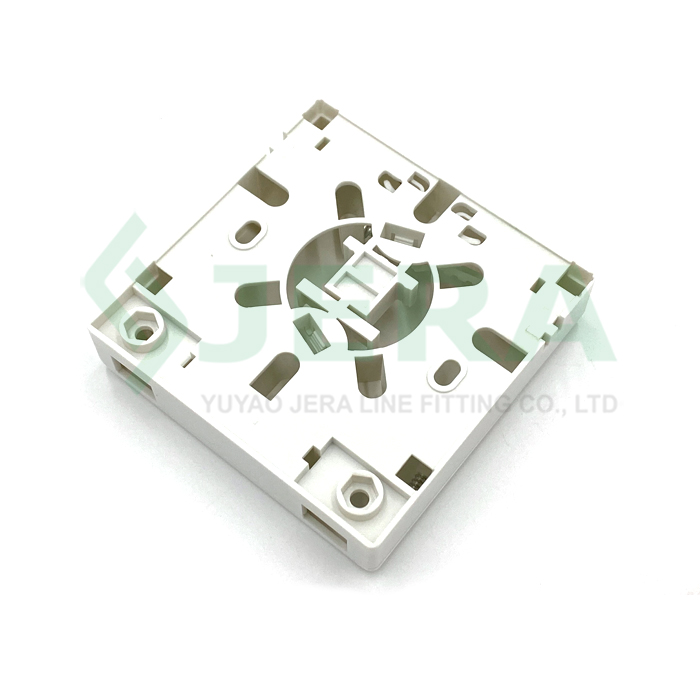

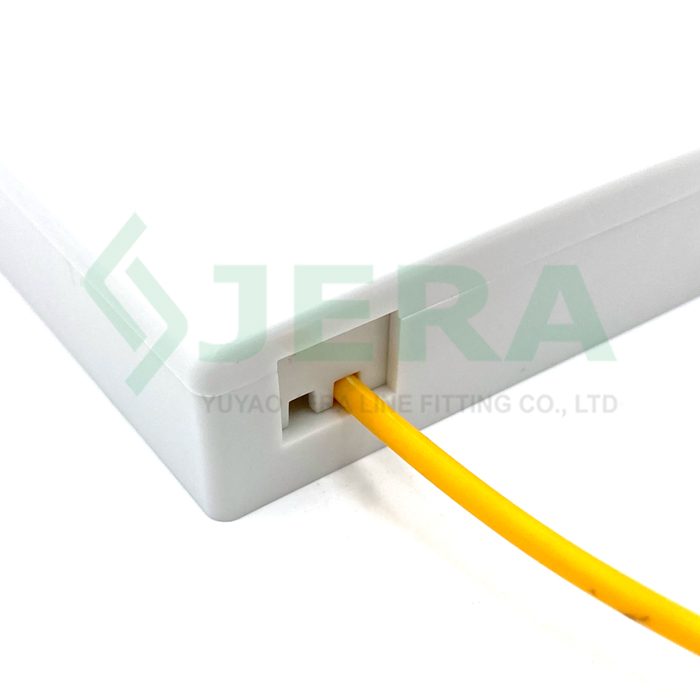

Ftth fiber cable faceplate other called Fiber optical distribution socket, is a wall mounting box designed to terminate fiber optic cords, patch cords, pigtail cords, with adapters in FTTH network. Applied in buildings and houses to connect end user to network.

Features

Application: Indoor
Material： ABS

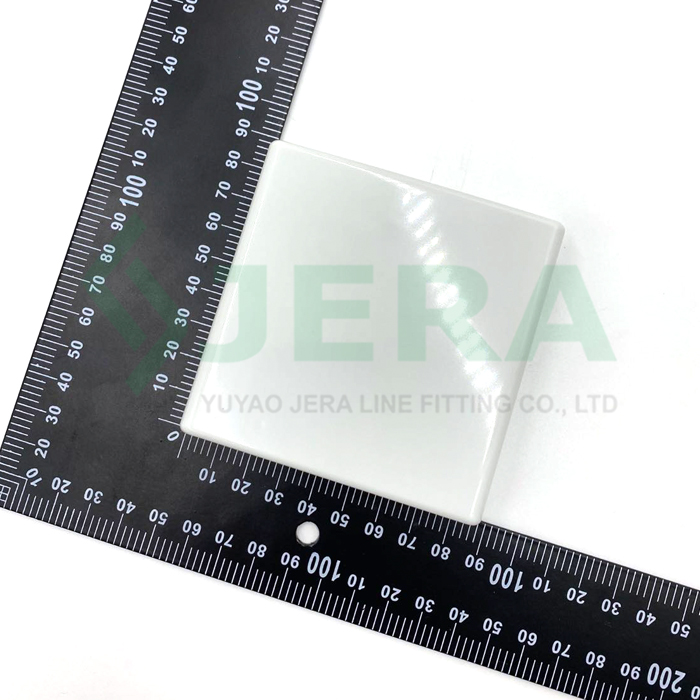

Dimensions: 86*86*22
Adapter SC

DESCRIPTION Specification Test

REVIEW

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

Technical specification

Product code	Dimensions	Adapters	Material	Application
ODP-02	868622	1 SC	ABS	Indoor

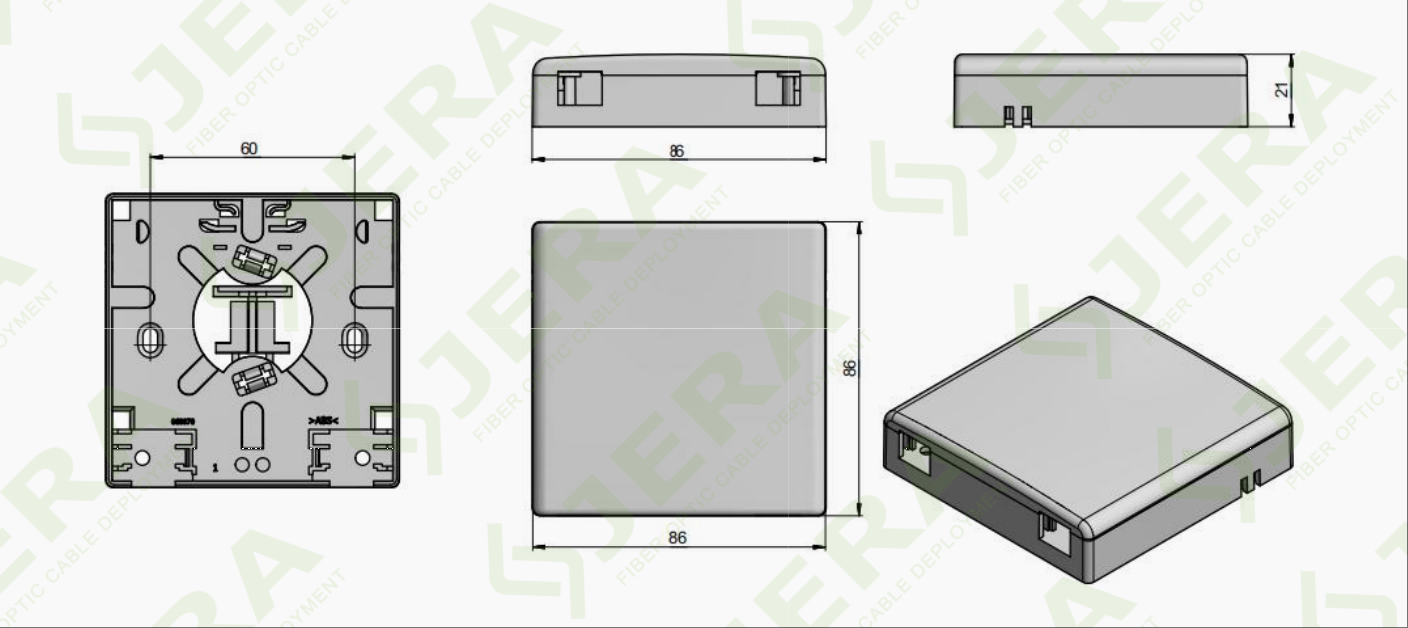

Drawing

Test

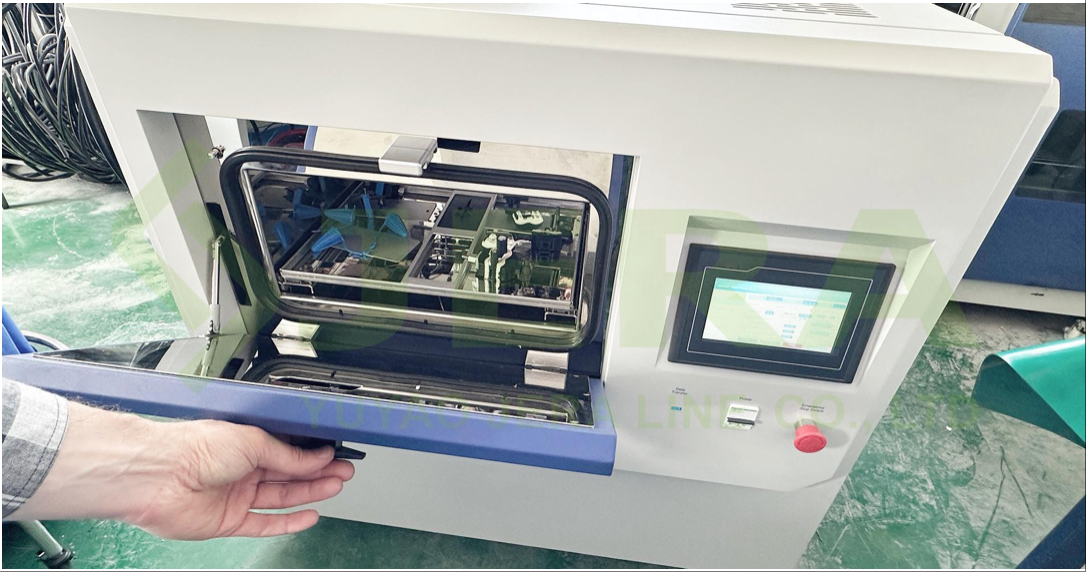

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
