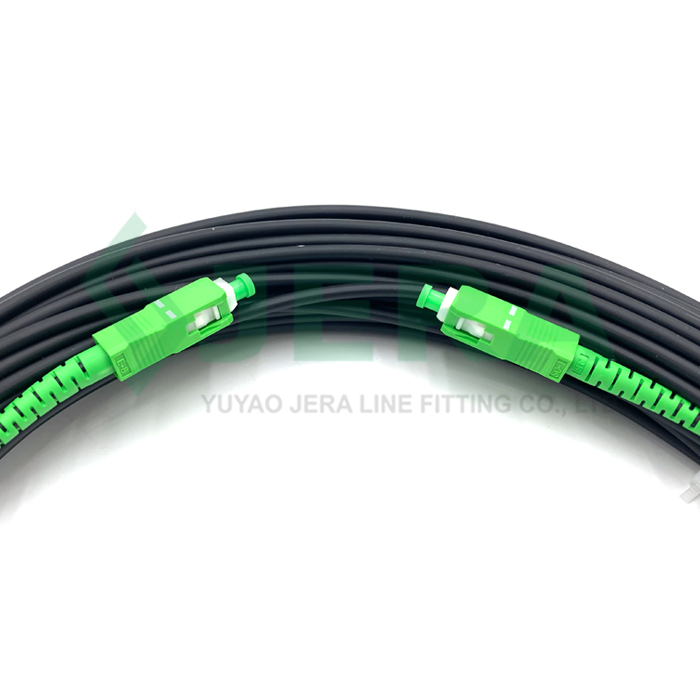

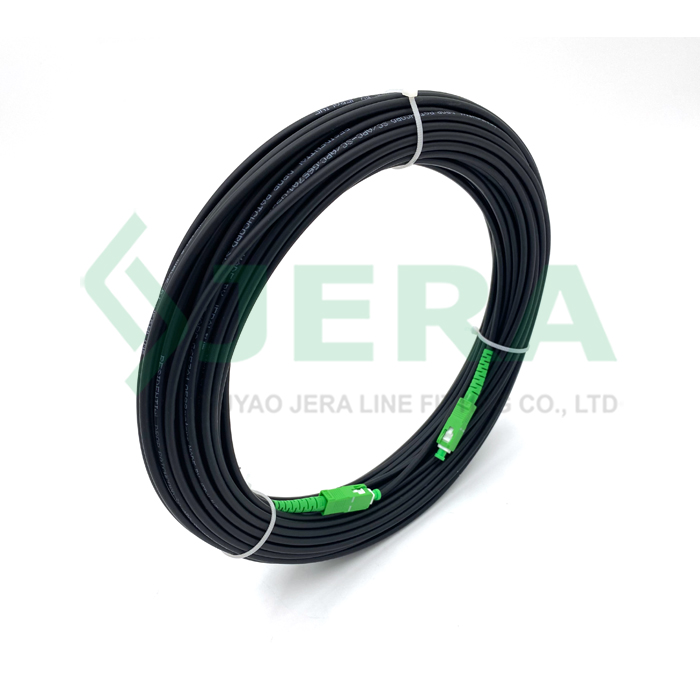

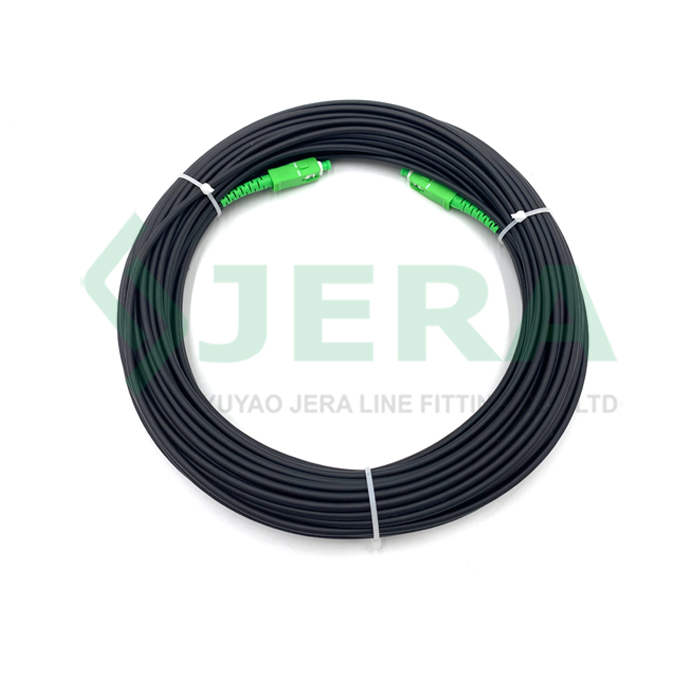

FTTH drop outdoor patch cords SC/APC 30M

FTTH drop outdoor patch cords SC/APC
FTTH drop outdoor patch cords SC/APC 30M is a round type optical drop cable each end capped with SC/APC connectors which designed for quick and convenient FTTX network line constructions.
FTTH drop outdoor patch cords SC/APC 30M
Features
    • Application: Outdoor/Indoor
    • Fiber quantity: 1 fiber
    • Cable dimensions: 3.0 mm
    • Length：30m
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Terminated with SC/APC connectors
  • Reinforced with aramid yarn and PBT tube
  • LSZH cable outer jacket, outdoor application
  • Low insertion loss, high return loss
  • High stability in long period field application
  • Good in repeatability and exchangeability
  • Direct factory price
FTTH drop outdoor patch cords SC/APC 30M FTTH drop outdoor patch cords SC/APC 30M

SPECIFICATION

The cable patch cords consist of:

  • The cable dimensions:

- Diameter: 3.0 mm

  • Fiber quantity is 1 fiber.
  • LSZH jacket sheath, UV protected.

Optical fiber of Single mode G652D, G657A1, G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

APPLICATION

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

read more

Manufacturing

patch cord manufacture

Watch Our Factory Video

Technical specification

Item

Value

Polish types

SC/APC

Fiber cores

G652D, G657A1, G657A2

Fiber counts

Simplex

Fiber modes

Single-mode 9/125

Cable color

Black

Size,mm

3.0

Tensile strength

1000

Length,m

30

Insertion losses(IL),dB

≤0.3

Material

LSZH

Working temperature

-40~+85℃
