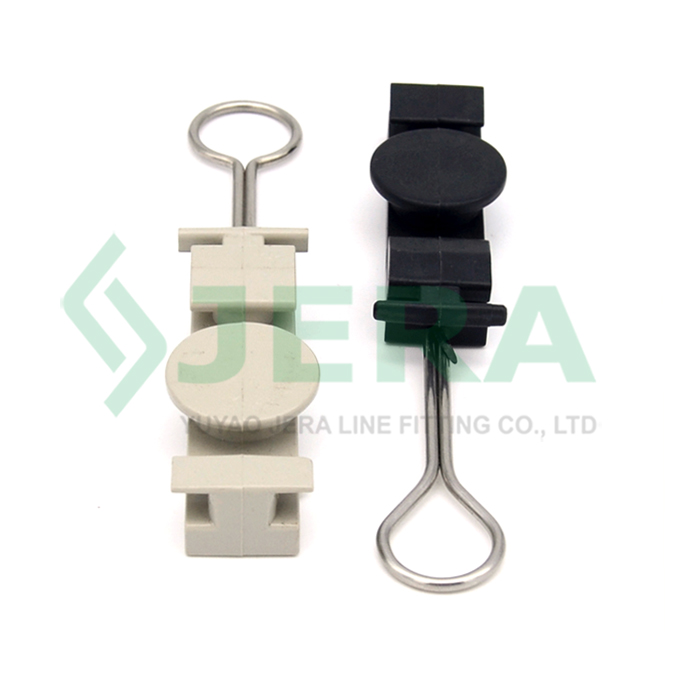

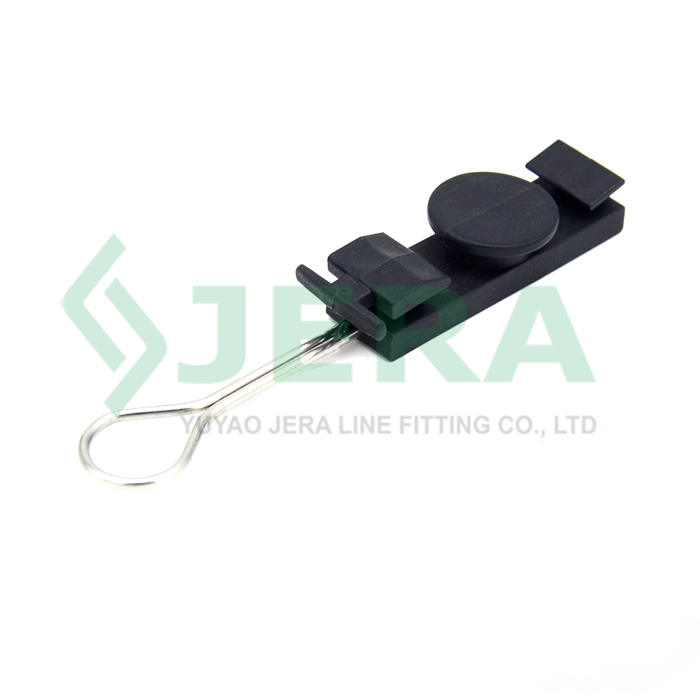

Ftth S-type drop clamp

Ftth Drop Cable Clamp, S-Type

S-Type

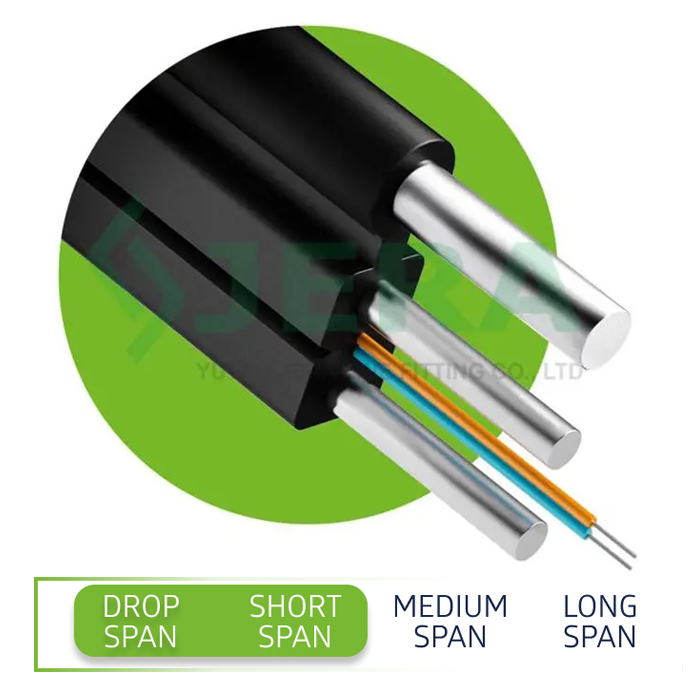

Ftth Drop Cable Clamp other called dead-end FTTH fiber clamp is designed to anchor and support flat or round fiber optical cable on dead-end routes during outdoor FTTH network constructions.

Features

Cable type: Flat
Cable size:2.0*5.0 mm
Span:30-50 m
MBL: 0.5 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Good insulating property
High mechanical strength
Easy installation without additional tools
UV resistant thermoplastic and stainless steel material, durable
Excellent environmental stability
Competitive price

The clamp applied in:

Cable diameter: 2*5 mm

MBL, kN: 0.5

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The wire rope of the wire clamp is made of stainless steel 304. The length is determined by the customer’s needs.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

read more

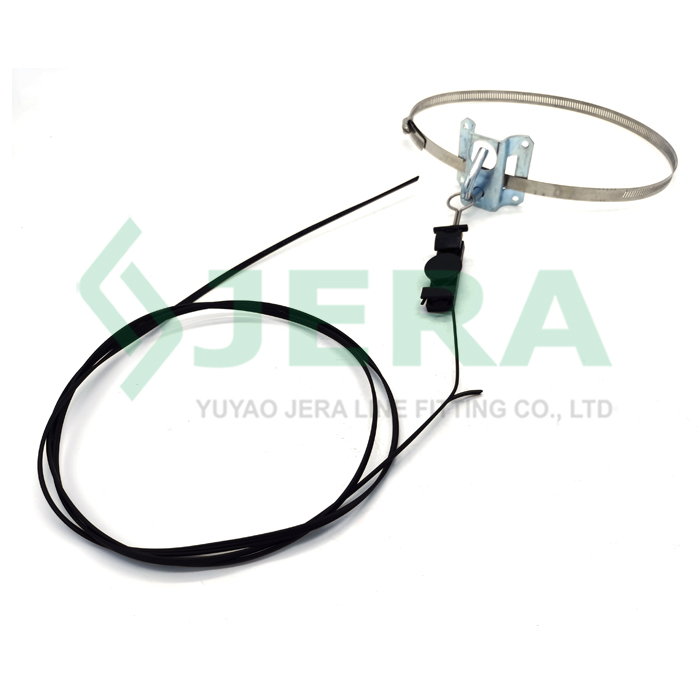

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code	Flat cable size,mm	Material	MBL,KN
S-TYPE	2.0*5.0 with messenger	UV resistant plastic & stainless steel	0.5
