FTTH Cross arm YK-42×400

YK-42x400

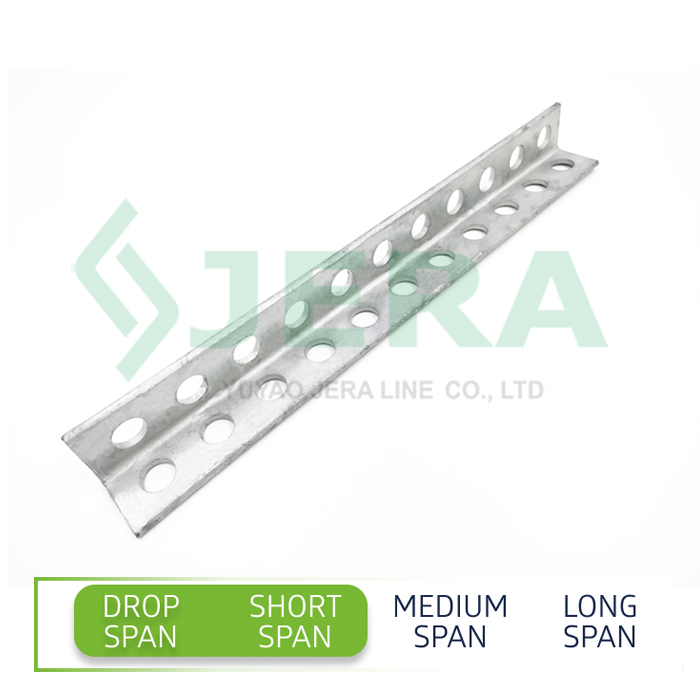

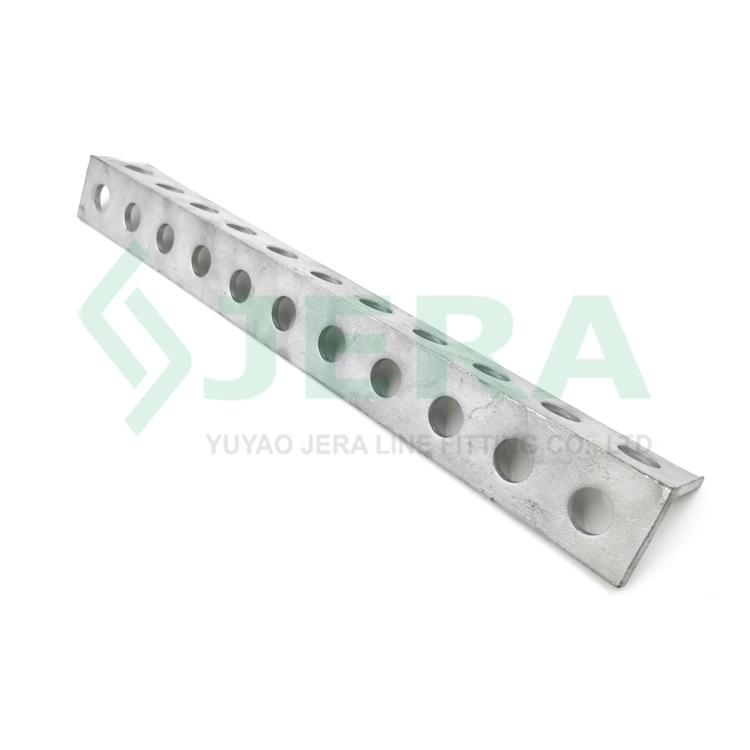

FTTH Cross arm YK-42×400, either called console traverse is a galvanized steel pole hardware fitting that allows the securing of up to 11 parallel aerial distribution cables and drop wires on wood, metal or concrete poles during outdoor FTTH line constructions.
FTTH Cross arm YK-42×400
Features
    • Bracket type: Tension
    • Application: Pole
    • Span:30-70 meters
    • MBL: 15 KN
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Hot dip galvanized steel, durable
  • Used together with UPB bracket attached on wooden, metal or concrete poles
  • No sharp edges, won’t hurt operator during installation
  • With 11 holes (17mm diameter) for aerial cable tension clamps
  • Excellent environmental stability
  • High mechanical strength
  • Fair price
FTTH Cross arm YK-42×400 FTTH Cross arm YK-42×400

SPECIFICATION

FTTH Cross arm YK-42×400, either called console traverse is a galvanized steel pole hardware fitting that allows the securing of up to 11 parallel aerial distribution cables and drop wires on wood, metal or concrete poles during outdoor FTTH line constructions.

The Cross-arm bracket is made of high strength carbon steel and whole surface is proceed with hot dip galvanized finish, which will greatly extend service life to this supporting arm during various weather conditions. And for safe installation, all the edges are smooth processed.

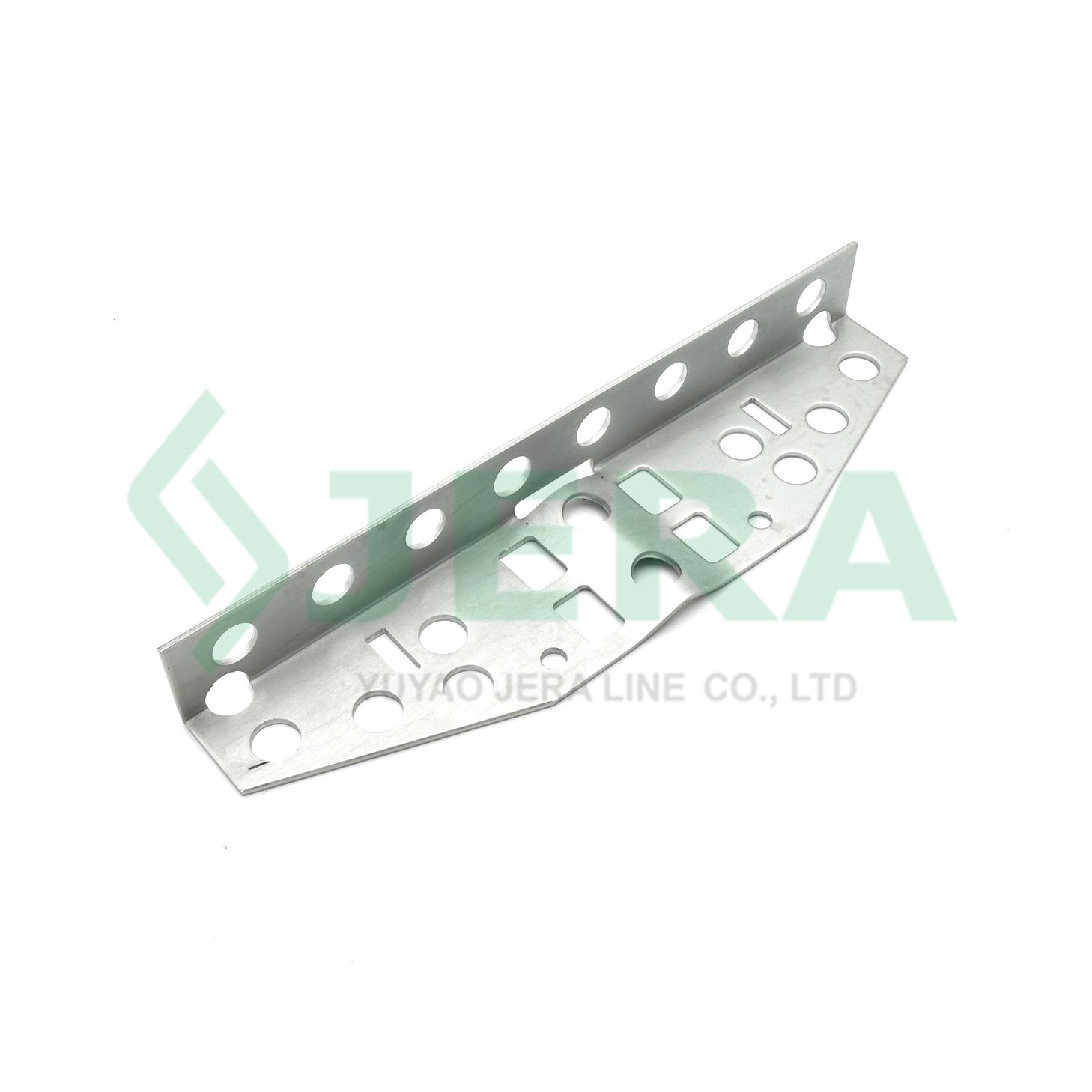

This ftth pole console is designed with 22 holes, use on overhead for attaching fiber optic cable fittings. It allows covering almost all the possible configurations for pole attaching of fiber clamp and fittings.

read more

APPLICATION

Usually this pole cross-arm is mounts on a bracket ( pole bracket UPB ) as an assembly and fixed on wooden, metal, concrete pole by stainless steel strap or pole bolt. This hardware have passed the tension test, corrosion resistance test which are available in our interior laboratory.

Jera line is a direct ftth cross arm factory, operating according to ISO9001:2015, and we are a direct factory who provides a wide range components for aerial ftth line deployment. Our product includes fiber optic drop cable, tension clamps, suspension clamp, fiber optic distribution box, fiber optic patch cords and etc. We provide a whole set solution for our client not only single product.

Welcome to contact us for more information about this ftth pole console price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Code

MBL, kN

Material

Dimension,mm

YK-42

15

Hot dip galvanized steel

42*42*400
