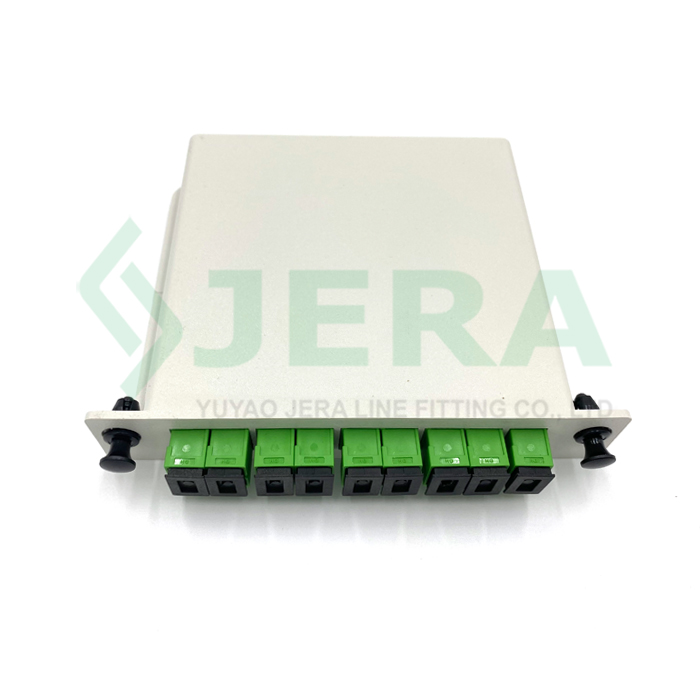

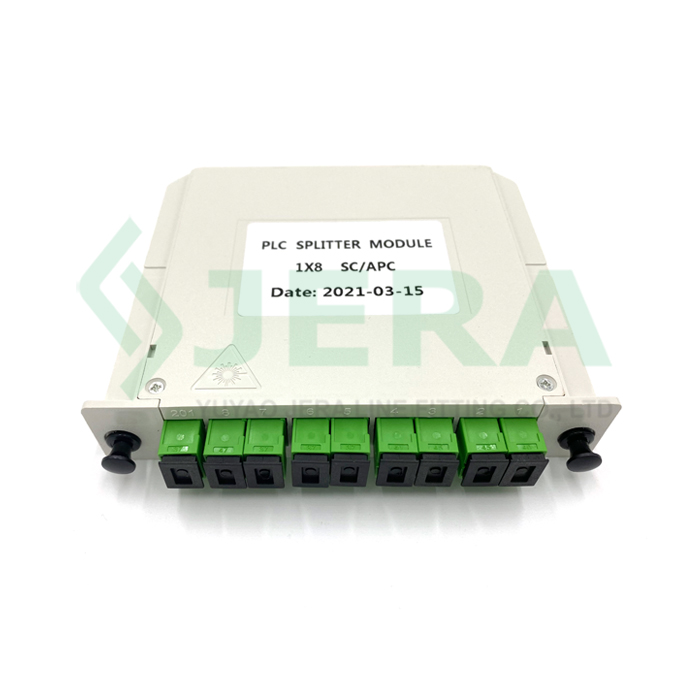

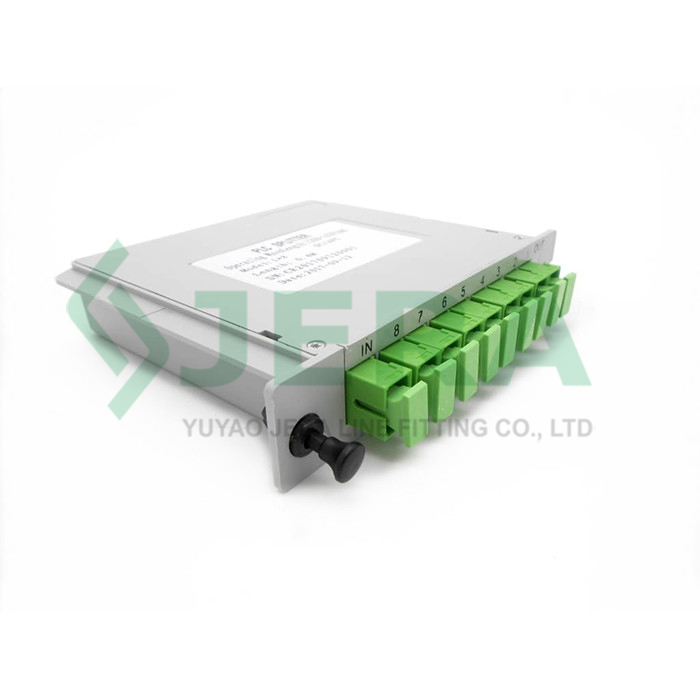

FTTH cassette PLC splitter 1×8 SC/APC

Features

Type: 1×8
Adapter type: LC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Product information:

1x8 LC-APC fiber optic PLC splitter also known as 1x8 APC fiber optic PLC splitter single module, is a type of optical power management device that is fabricated using silica optical waveguide technology. It can evenly input optical signals into multiple outlets from a single or dual inlet, and can also merge multiple optical signals into a single or dual optical fibers.

Key features:

Standard sizes and mounting hole positions, easy to operate
Plastic casing to protect the optical fiber inside
Mature technology and guaranteed product quality
Meet RoHS standard
competitive price and low cost

Application:

Applied in passive optical networks (EPON, GPON, BPON, etc.) to evenly distribute one or more input optical signals to multiple output optical signals.

Specification:

The 1 x 8 PLC Fiber Splitter internally consists of a PLC optical splitter chip and fiber arrays coupled at both ends. The chip uses semiconductor technology to grow a layer of beam-splitting waveguides on a quartz substrate, with one input end and N output end waveguides on the chip. Then, input and output fiber arrays are coupled at both ends of the chip. Externally, it is composed of a square steel tube, optical cable, and fiber connectors.

The Blockless Fiber PLC Splitter is more convenient than the traditional ABS box-type Fiber PLC Splitter. Please choose according to your needs.

type	1×8
P/N	PLC-1×8-1260-1650nm
Fiber Grade	G.657A1
Fiber length(m)	≥1
Connector Type	LC/APC
Steel Tube/Case size(mm)	60×7×4
Insertion Loss（dB）	≤10.5
Return Loss	≥ 55dB
Uniformity（dB）	≤0.8
Input/Output Fiber Diameter	900μm
