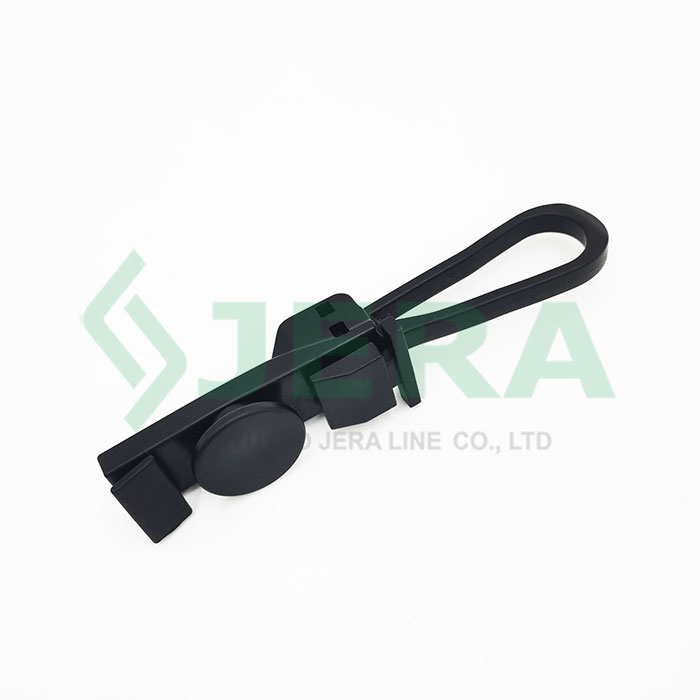

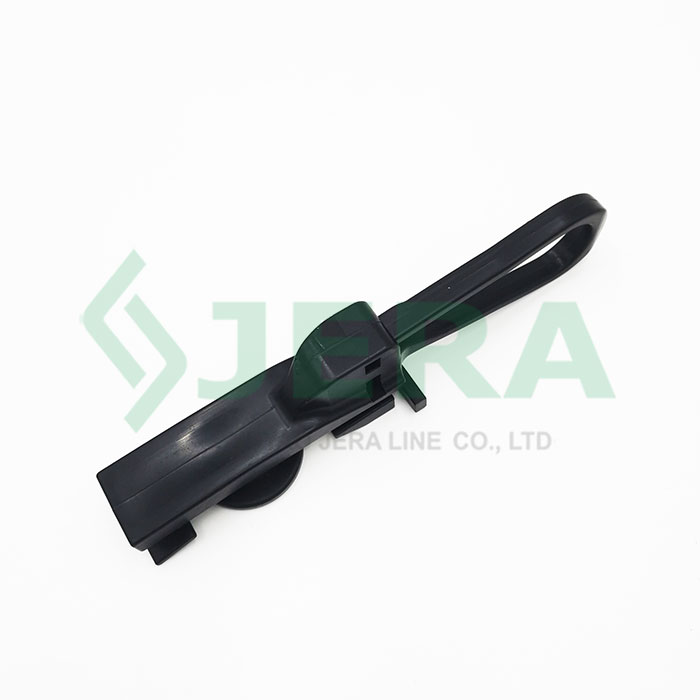

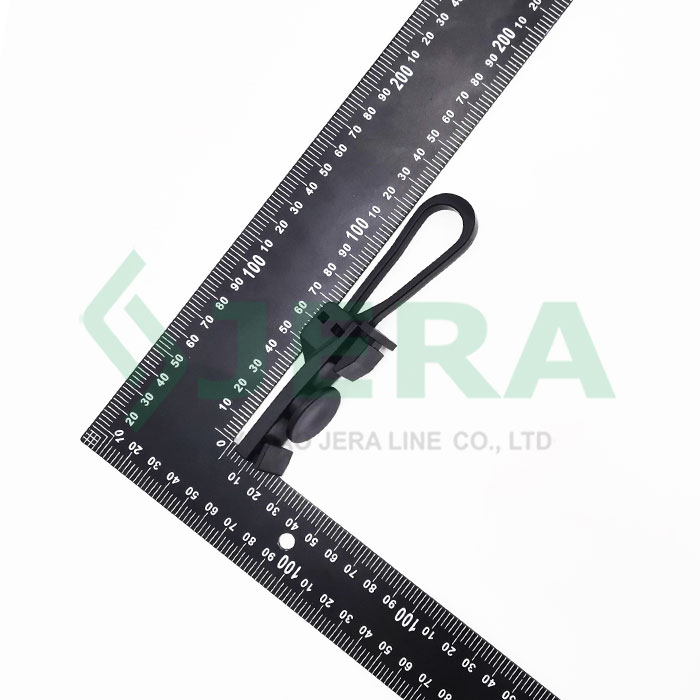

Ftth Cable P Clamp, So-Type

So-Type

Ftth Cable P Clamp So-Type other called ftth drop wire clamp is designed to anchor and support flat fiber optical cable on dead-end routes of outdoor FTTH network.

Features

Cable type: Flat
Cable size:2.0*5.0, with steel wire or messenger.
Span:30-70 m
MBL: 0.3 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Open wire bail design.
Ideal for multiply connections.
Suitable for Fig 8 drop cable with messenger wire.
Tool free installation
Made of engineering polymer, for outdoor application.
Saves your fiber optics budget.

The clamp applied in:

Cable diameter: 2.0*5.0mm

MBL, KN: 0.3

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The wire rope of the wire clamp is made of stainless steel 304. The length is determined by the customer’s needs.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

read more

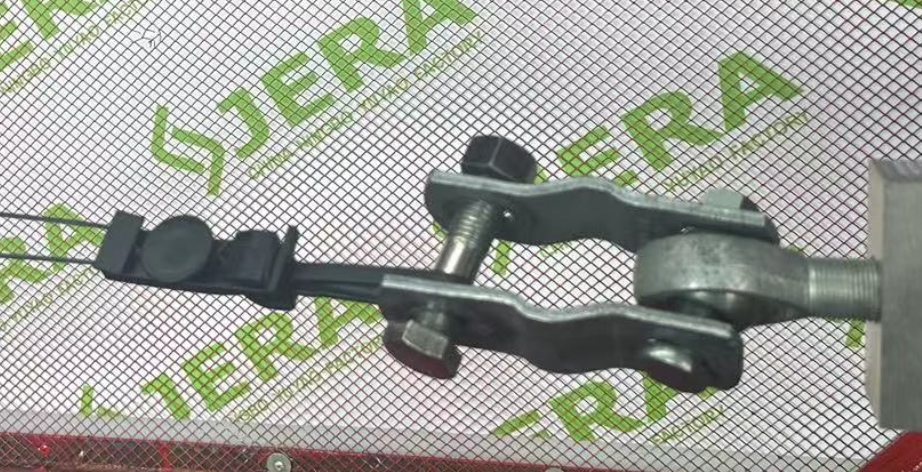

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code	Flat cable size mm	Material	MBL,KN
SO-TYPE	2.0*5.0	UV resistant plastic	0.3
