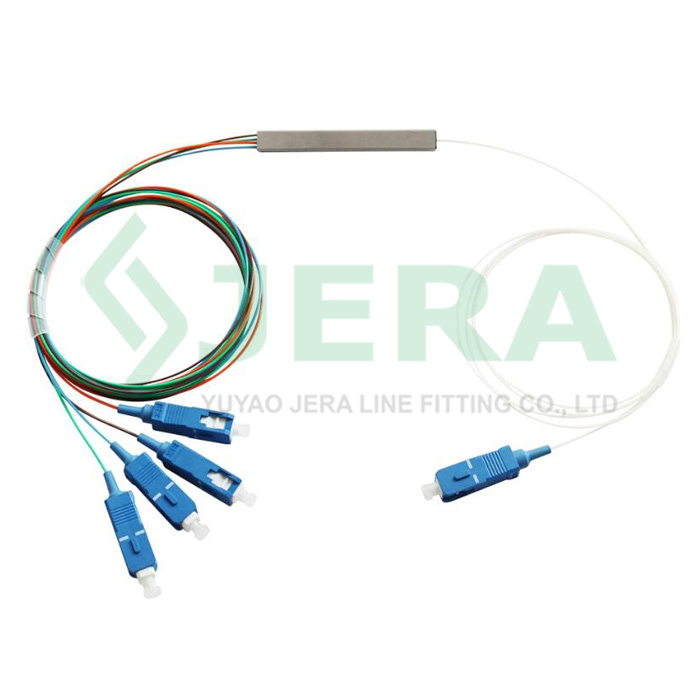

FTTH blockless fiber PLC splitter 1×4 SC/UPC

1×4 SC/UPC

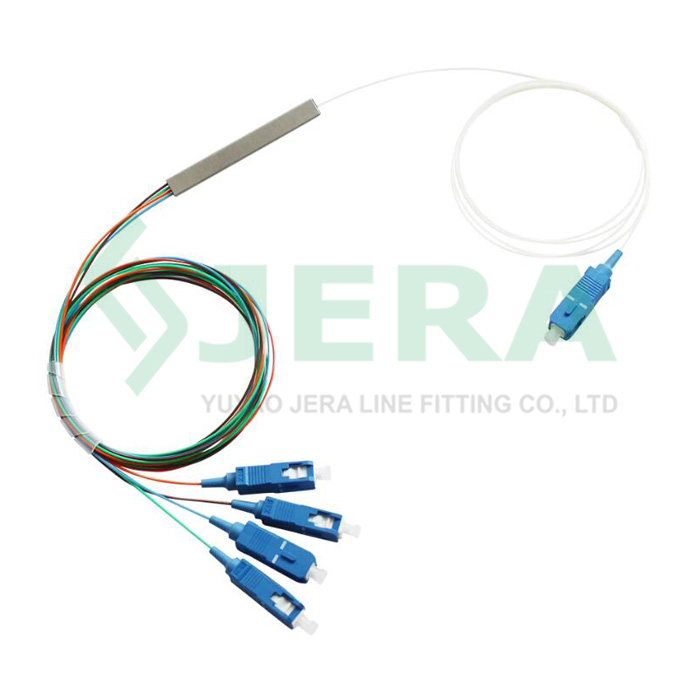

FTTH blockless fiber PLC splitter also called steel tube mini PLC splitter is an important passive optical product, widely used in fiber optic networks to realize optical light distribution. It’s a common product used in CATV data network, optical communication system, fiber testing equipment, Fiber to home, fiber to the building etc.

Features

Type: 1×4
Adapter type: SC
Polish type: UPC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

The splitter interface type is SC/UPC
Wide operation wavelength 1260-1650nm
Compact structure allow applied with various termination boxes
Good uniformity and low insertion loss
Easy and low cost FTTH installation
Meet telcordia GR-1221 and GR-1209
Excelletn mechanical stability
Competitive price

FTTH blockless fiber PLC splitter also called steel tube mini PLC splitter is an important passive optical product, widely used in fiber optic networks to realize optical light distribution. It’s a common product used in CATV data network, optical communication system, fiber testing equipment, Fiber to home, fiber to the building etc.

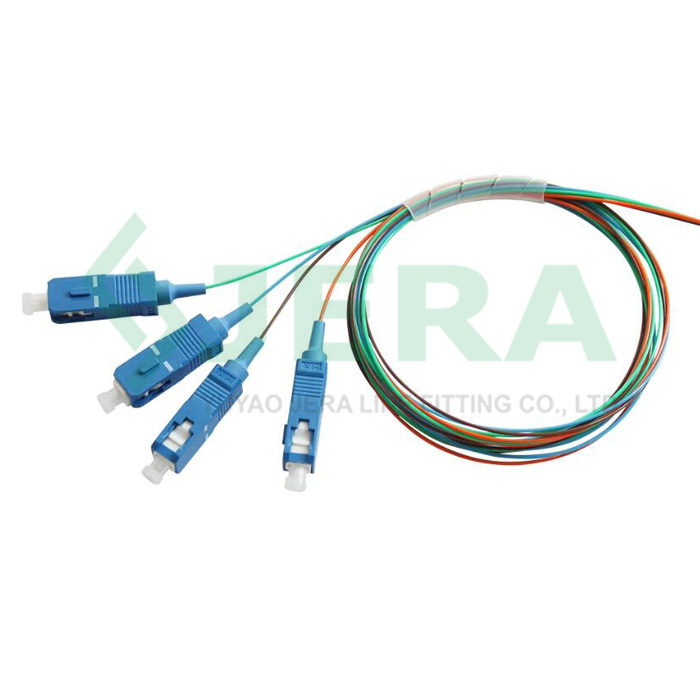

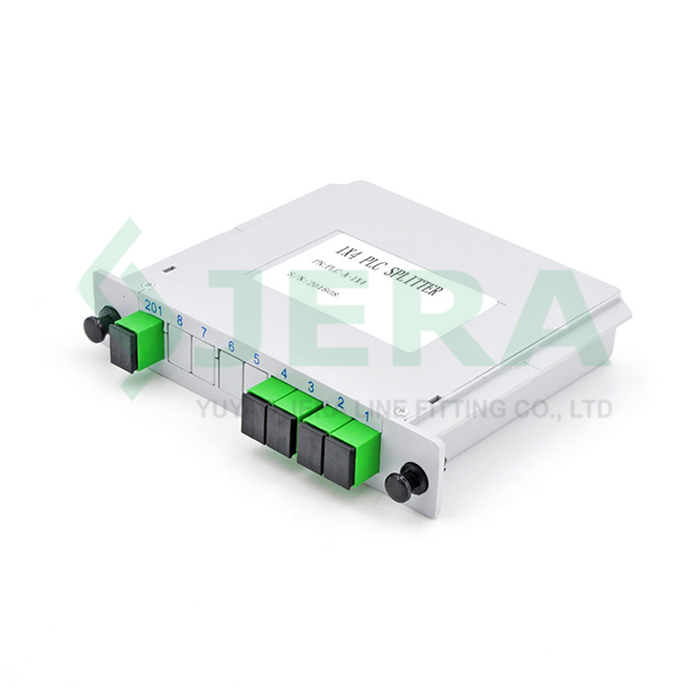

This UPC PLC fiber splitter 1×4 has stronger fiber protection than bare fiber fiber splitter, it’s a miniaturization result of cassette splitter.

read more

Jera line is operating according to ISO 9001:2015. Each steel tube type PLC splitter manufactured refer to telcordia GR-1221 and GR-1209, we proceed essential fiber reflect test before shippment.

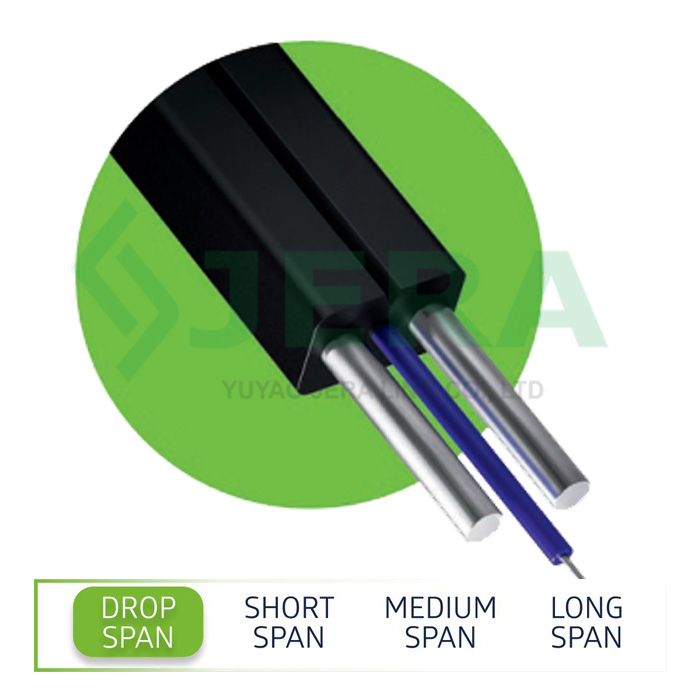

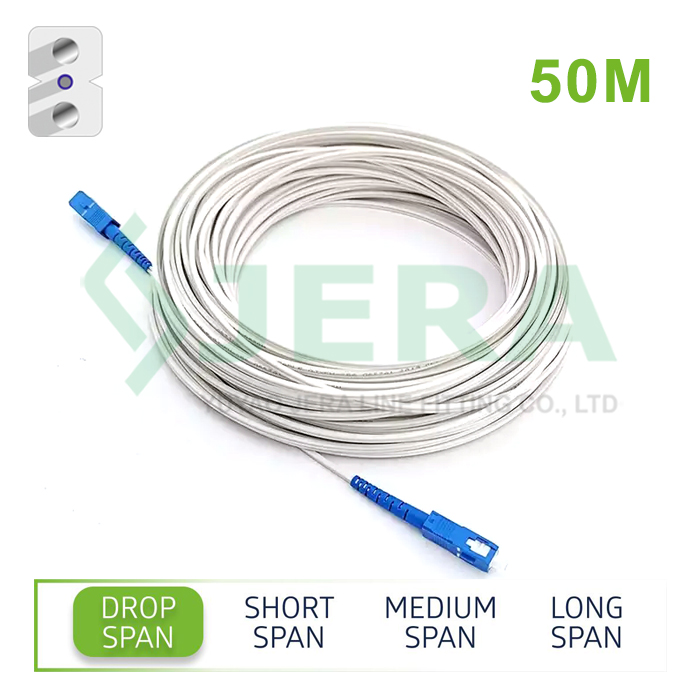

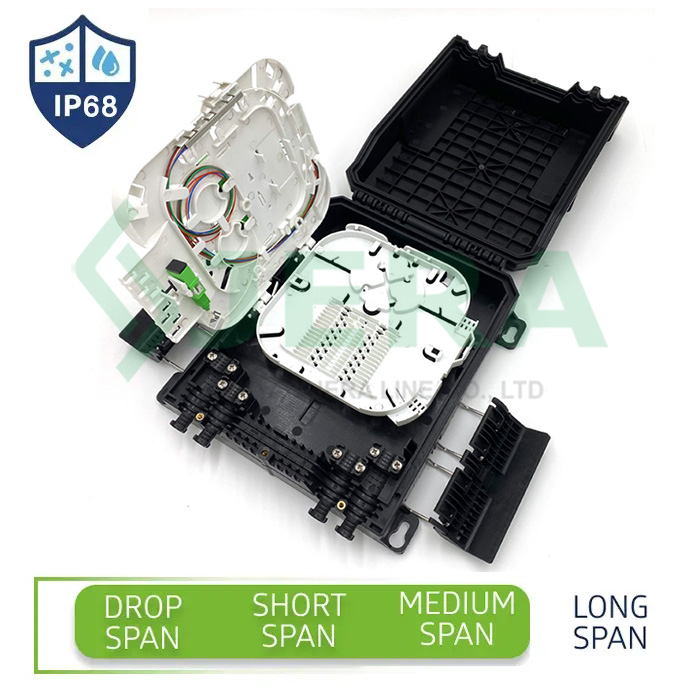

Jera line is a direct fiber optic cable factory, who provides a complete solution for aerial FTTx line constructions. Our product including fiber optic cables, **drop cable patchcords ,** ADSS cable clamps, cable bracket, fiber optic termination boxes, guy grips, stainless steel bandings and so on.

Feel free to contact us for more information about this FTTH blockless fiber PLC splitter 1×4 SC/UPC price.

read more

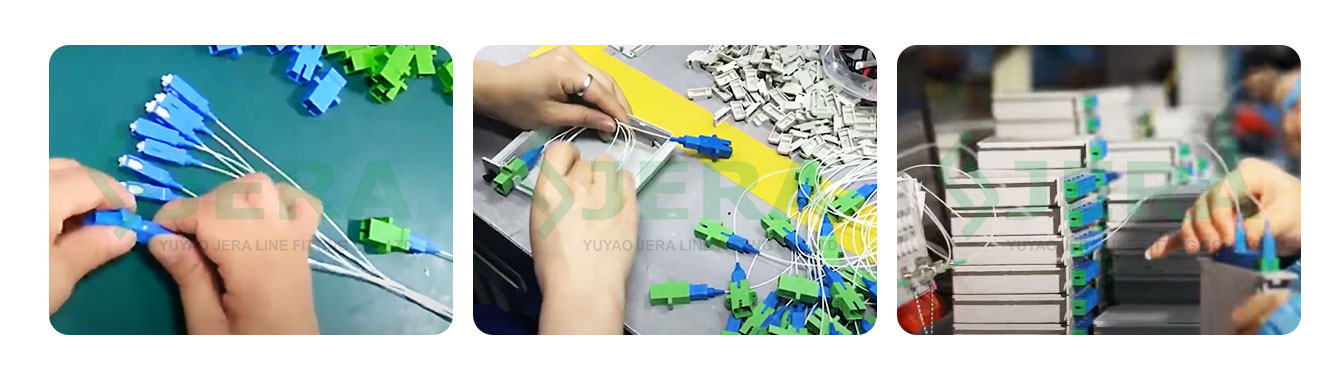

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×4
Operating wavelength (nm)		1260-1650
Optical fiber thickness,mm mmmm		0.9
Optical fiber type		G657A1,G657A2
Adapter type		SC
Polish type		UPC
Insertion loss(dB)	Typical	10.5
Insertion loss(dB)	Maximum	10.7
Uniformity(dB)	Typical	0.6
Uniformity(dB)	Maximum	0.8
Polarization Dependent Loss(dB)	Typical	0.15
Polarization Dependent Loss(dB)	Maximum	0.25
Wavelength dependent Loss(dB)	Typical	0.15
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40 to 85
Optical fiber length (m)		0.5, 1.0, 1.5
