Outdoor Fiber Optic Termination Box
/
Outdoor Fiber Termination Boxes ABS-type IP54
/
/
/
/
/
/
/
/
/
/
/
/

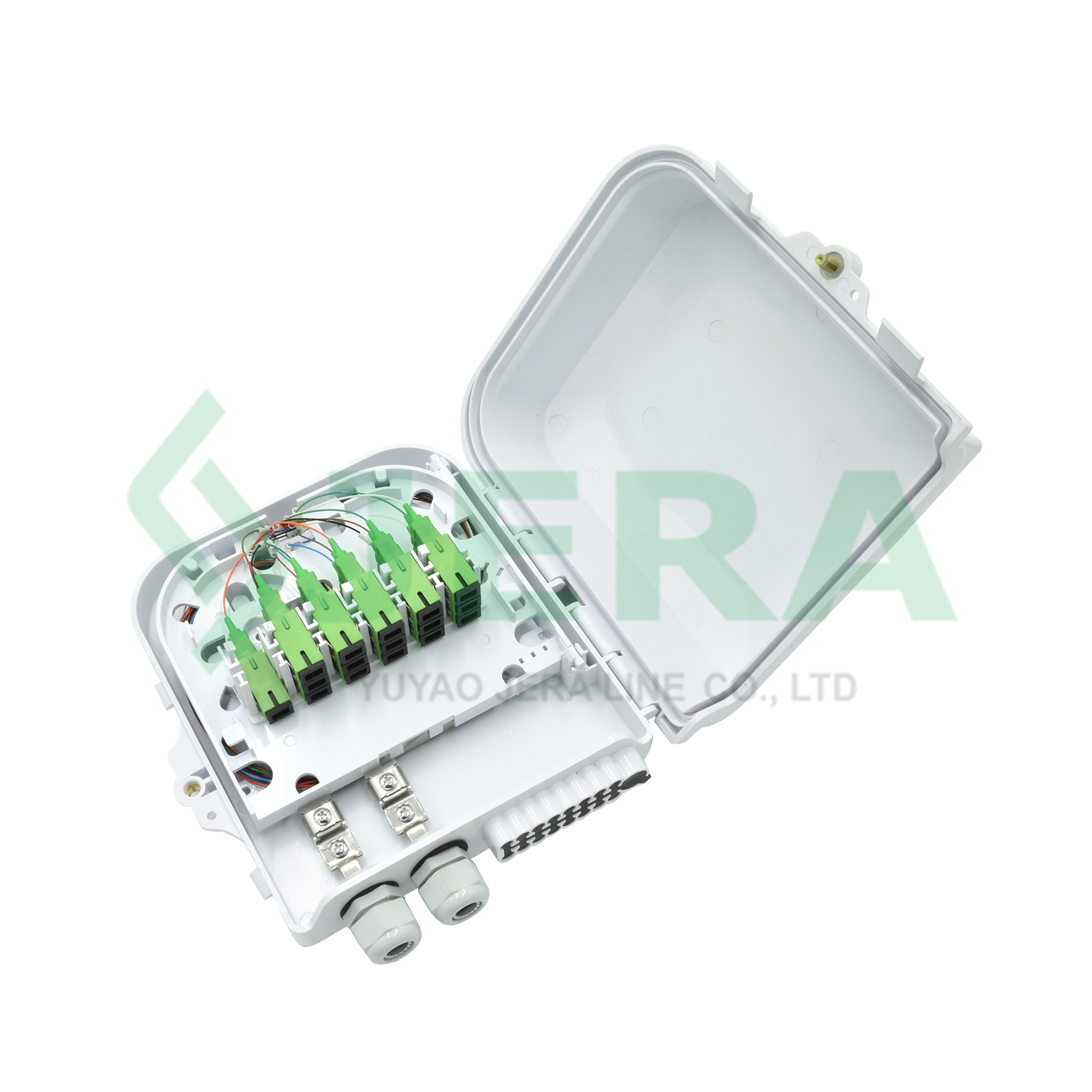

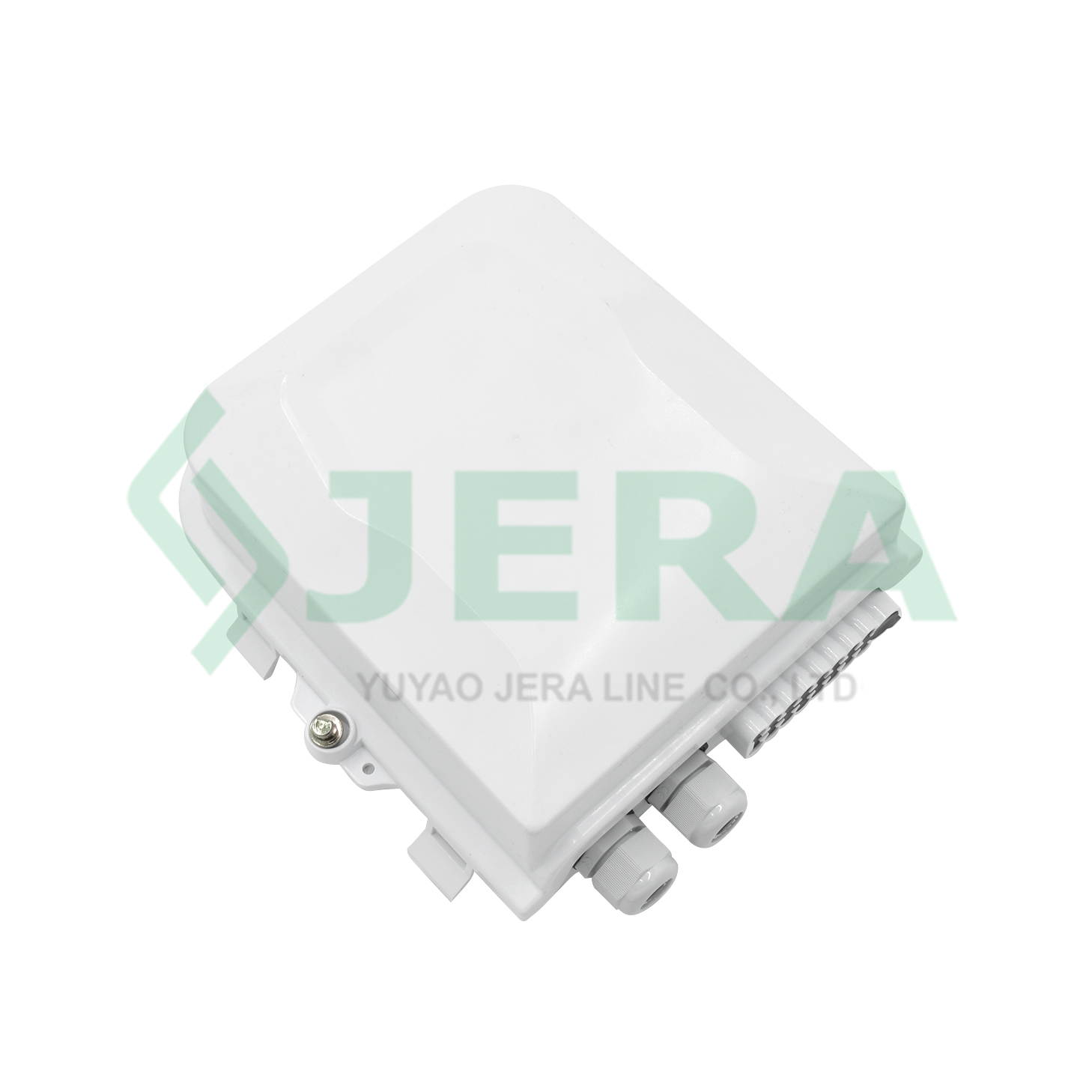

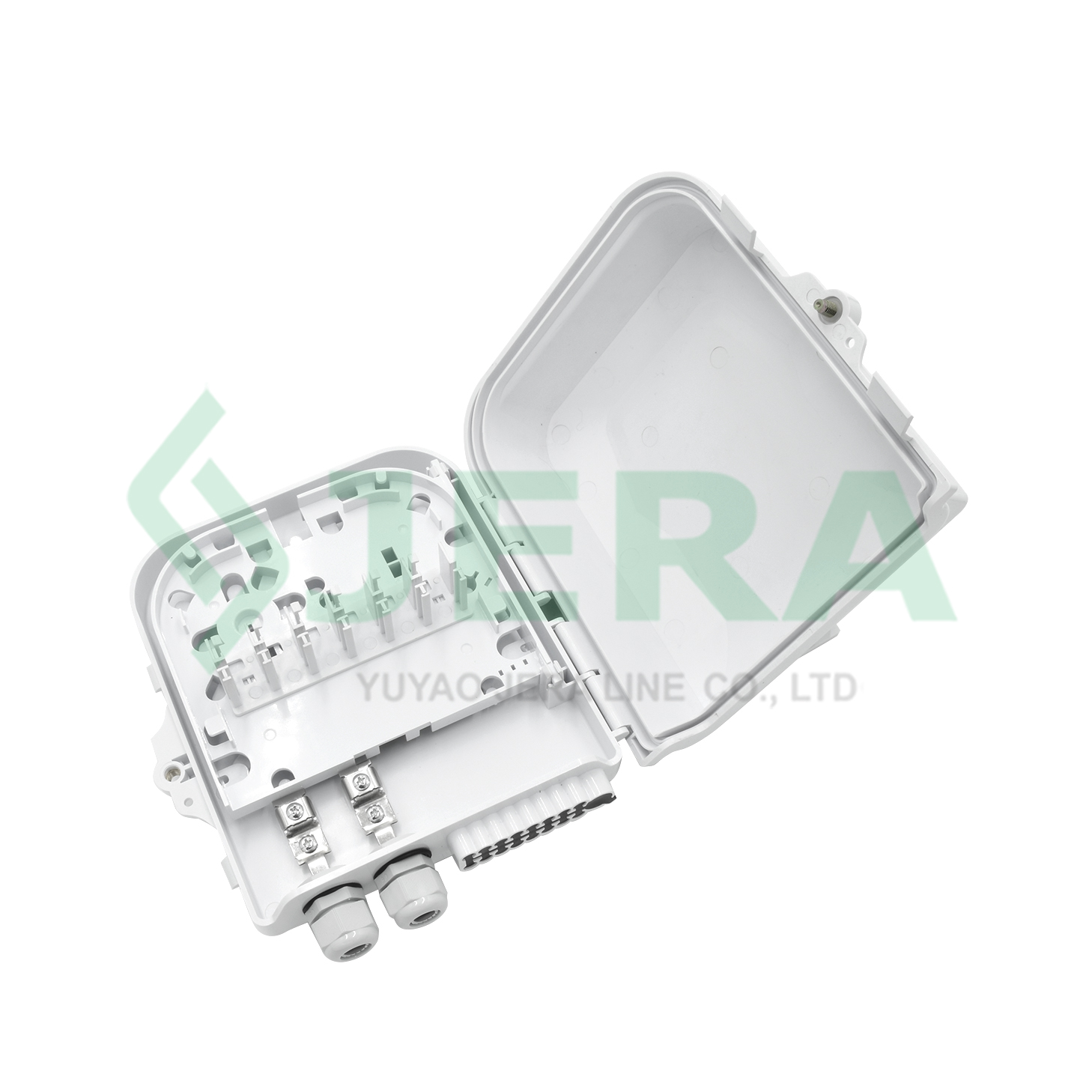

FODB-8E.3-2B, 16 core fiber optic box

Fiber Floor Box Model FODB-8E.3-2B is a specialized fiber optical distribution box designed for FTTH (Fiber to the Home) network deployments. Its primary function is to terminate feeder optic cables and connect them to fiber optical cords, patch cords, and pigtail cords during the last-mile connectivity phase to end-users.
FODB-8E.3-2B, 16 core fiber optic box
Features
    • Feeding cable: 2 of Ø15
    • Drop cable: 24 of ∅3; 3 of ∅10
    • Adapter SC type: 24
    • Material: ABS,PVC
Contact Us
DESCRIPTION Specification Test
REVIEW

Application

  • Outdoor Deployment: Designed for installation on outdoor walls or utility poles, serving as a reliable connection point for fiber optic lines to ensure stable signal transmission in outdoor FTTH network deployments.
  • Indoor Deployment: Ideal for indoor applications, providing a dedicated solution for splicing indoor optical cables and securely protecting fiber pigtails to maintain signal integrity.



Key features

  • Economy option for FTTH applications where 1*16 splitter is applied for cascade fiber deployment.

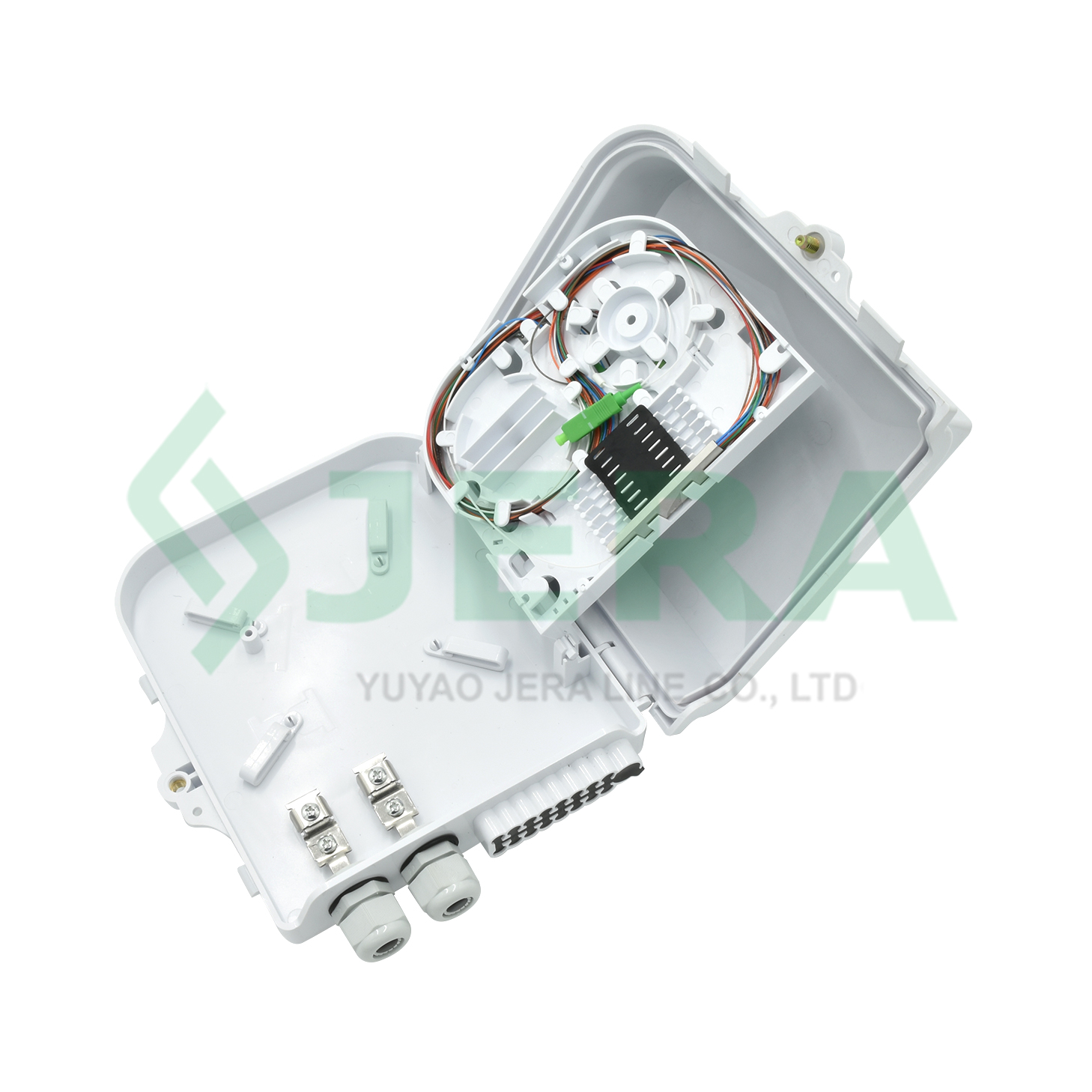

  • Component Compatibility: Optimized for the installation of PLC splitters and SC adapters, ensuring seamless integration with standard optical components.
  • Durable Construction: Constructed from premium ABS and rubber materials, delivering exceptional mechanical strength and structural stability.
  • Secure Design: Vandal-resistant housing with a lock-and-key mechanism for enhanced security; no grounding device required, simplifying installation.
  • User-Friendly Connections: Streamlined interface enables quick and convenient drop cable connections, reducing on-site installation time.

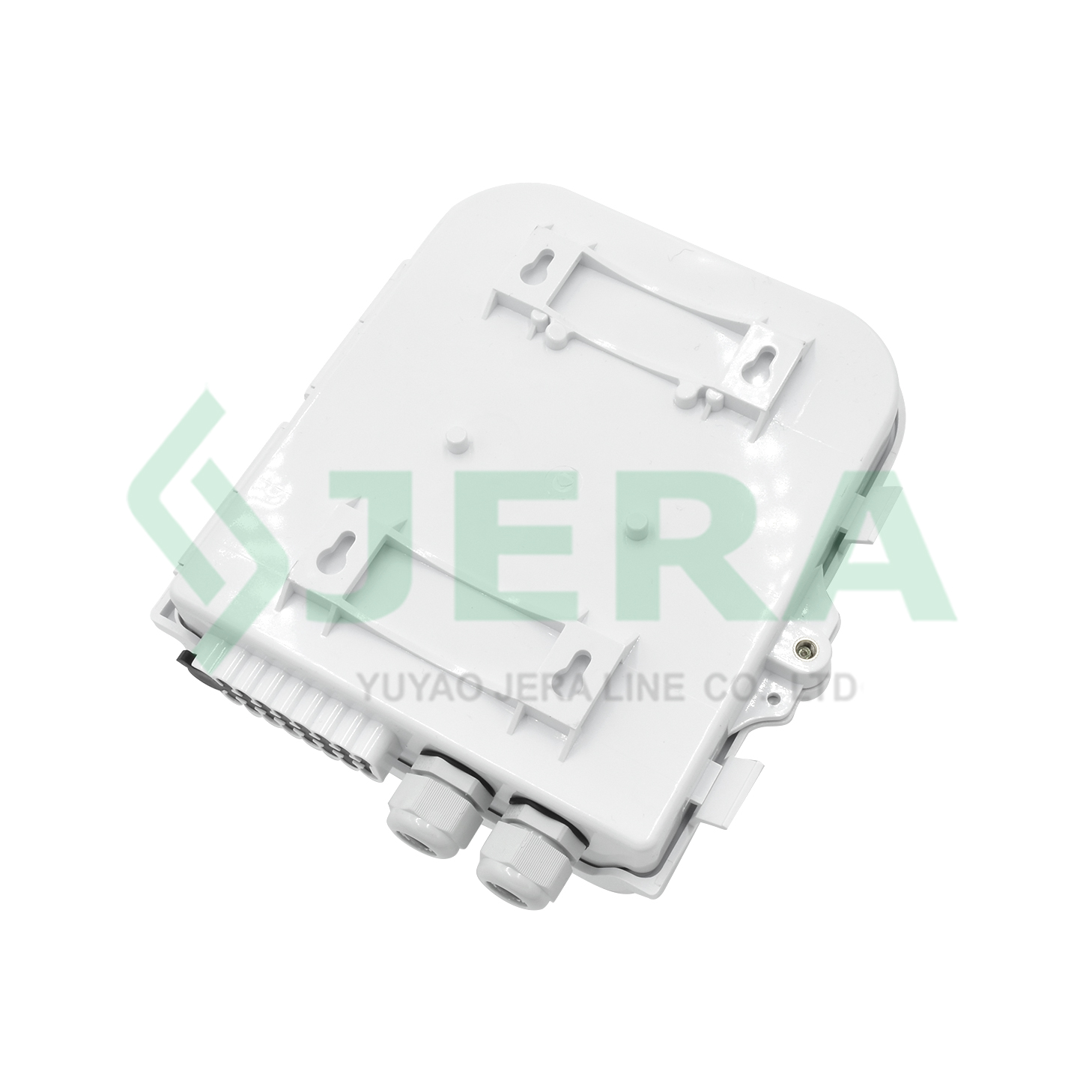

  • Versatile Mounting: Supports two easy-to-install methods: screw-fixed wall mounting and stainless steel pole mounting.



Technical specification

Product code

FODB-8E.3-2B

Feeding cable dimensions, mm:

1 of ∅16

Drop cable dimensions, mm:

16 of ∅3, 1 of ∅10

Max splicing capacity:

8 (16*)

Adapters, SC type:

16+2

PLC splitters , blockless 60x7x4 mm

1 of 1:16

IP protection

53

Overall dimensions, mm

210×195×86


Test

The box use the materials which is according to standard of ABS - type IP54.

ABS - type IP54" refers to a device or component whose shell is made of ABS plastic and has a protection level of IP54.

Our internal laboratory is capable to proceed such a series of standard related type tests.

Welcome to contact us for further information.
