Flat fiber optic drop cable 2 fibers

Flat fiber optic drop cable 2 fibers, also called fiber optic GYFBY cable is designed to used on last mile installation routes to connect final users to FTTH or GPON line.

Features

Application: Outdoor
Fiber quantity: 2 fiber
Dimensions: 4.0*2.0 mm
Reinforcement: FRP

DESCRIPTION Specification Test

REVIEW

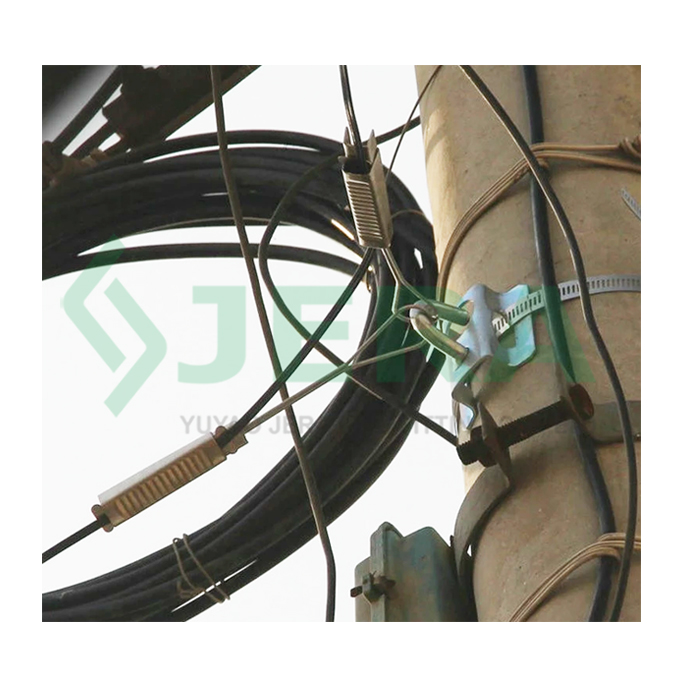

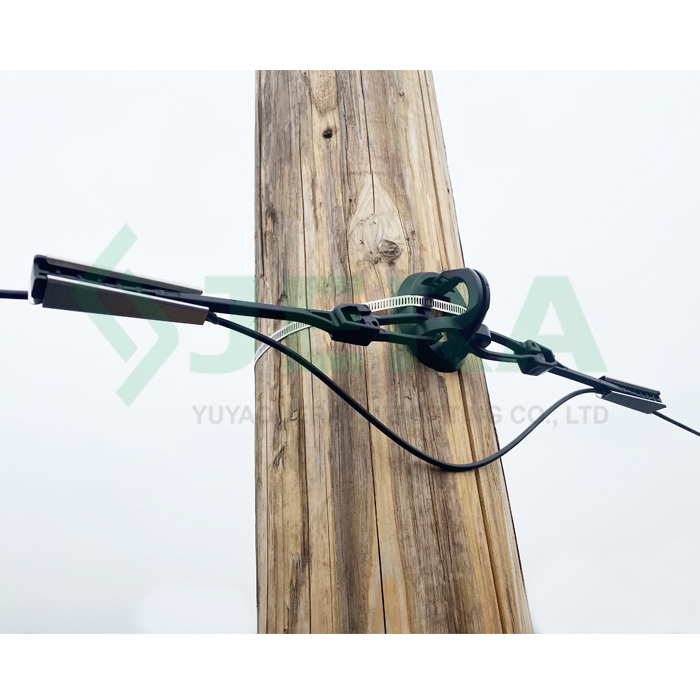

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Technical specification

Item	Technology Parameters
Applications	Outdoor, indoor
Product code	FOC-F-HDPE-BC+2×0.8-FRP+1.2-PBT-2xG657A1-4.0*2.0
Loose tube material and diameter	PBT, 1.2(±0.2)mm
Strength member material and size	FRP rods, 0.8 mm
Fiber cores	2
Fiber core options	G.652.D, G.657A1, G.657A2
Cable jacket color	Black
Sheath material	HDPE
Cable dimension,mm	4.0*2.0 (oval）
Tensile strength, N	800
Certification	IEC-60794-1-2, ISO9001:2015
Length	1000/2000 m per drum

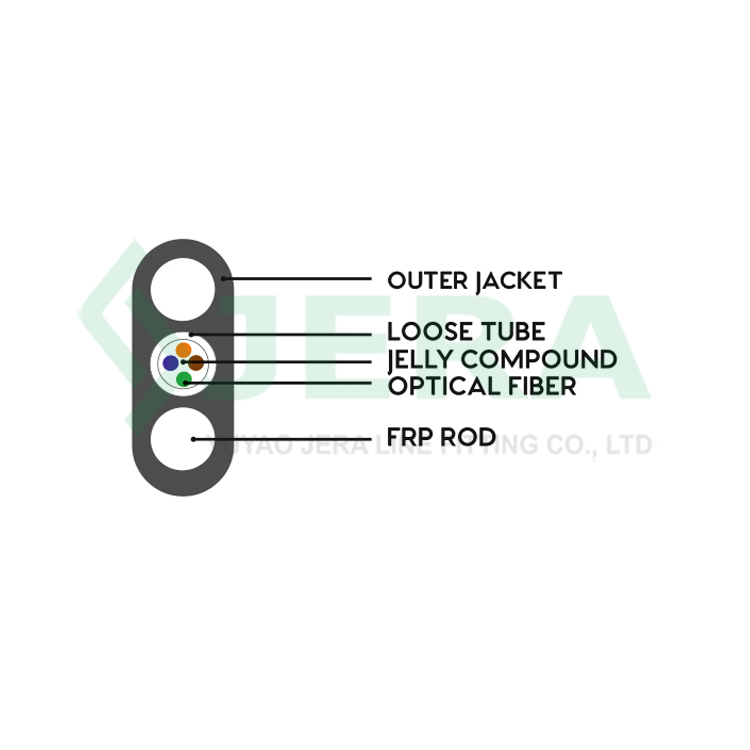

Drawing

Test

Fiber optic core reflection test is proceed by Optical Time Domain Reflectometer (OTDR). Which is a device used to precisely detect faults in an optical fiber link of a communication networks.

Jera proceed test of FTTH drop cables on wavelengths (1310,1550 and 1625 nm). We use EXFO FTB-1 in this quality tests. Examining the quality of our cables to ensure ours customer could receive products which meet quality requirements.

We do this test on every cables we produce.
