Figure 8 Drop Cable, 2 fibers red stripe

Figure 8 Drop Cable, 2 fibers red stripe

The JERA LINE Figure 8 Drop Cable with 2 fibers and a distinctive red stripe is engineered for superior performance in telecommunications and data networking applications. This robust and flexible cable design simplifies installation while ensuring reliable connectivity in both indoor and outdoor environments.

Features

DESCRIPTION Specification Test

REVIEW

Key Features

Dual Fiber Design
Figure 8 Configuration
Durable Construction
Red Stripe Identification
Versatile Applications
Lightweight and Flexible

The JERA LINE Figure 8 Drop Cable, 2 Fibers with Red Stripe combines performance, durability, and ease of installation, making it the ideal choice for modern fiber optic networks. Trust JERA LINE to deliver quality and reliability in every connection.

read more

**Fiber-to-the-Home (FTTH)** :Ideal for connecting residential customers directly to fiber networks, ensuring high-speed internet and cable services.

**Outdoor Telecommunications** :Used in outdoor installations for connecting distribution points to homes or businesses, especially in areas with challenging environmental conditions.

**Mobile Backhaul** :Connects cell towers to the core network, supporting mobile data traffic and enhancing communication capabilities.

**Community Broadband Initiatives** :Facilitates the deployment of fiber networks in community projects, providing reliable internet access to underserved areas.

**Data Center Interconnections** :Suitable for linking equipment within data centers, enhancing data transfer speeds and reliability.

**Network Extensions** :Used to extend existing fiber networks to new developments or remote locations, ensuring consistent connectivity.

**Smart City Applications** :Supports various smart city infrastructure, including sensors, cameras, and Wi-Fi access points.

**Commercial Buildings** : Provides robust connectivity solutions for office buildings, ensuring reliable internet and communication services.

read more

Manufacturing

Watch Our Factory Video

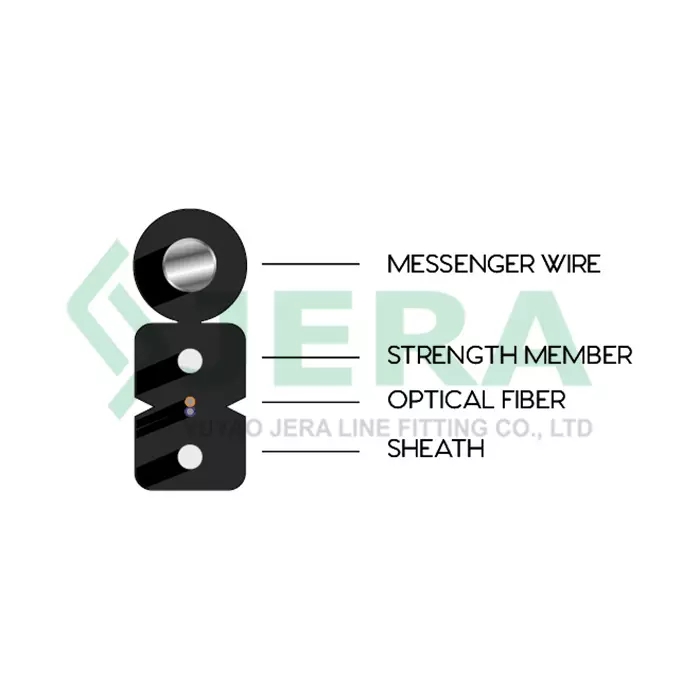

Technical specification

ITEMS	DESCRIPTION
Fibers quantity	2 fiber
Self-supporting. Strength member material	Galvinized steel wire, breaking load > 135 kgF, zink coating > 122g/m2
Self-supporting.Strength member diameter	1.2 (mm)
Strength member material	FRP
Strength member diameter (mm)	0.5
Sheath thickness (mm)	≥0.40
Cable diameter (mm)	2.0*5.3 (+-0.2mm)
Cable weight (kg/km)	21
Operating temperature range (°C)	-10/+60
Tensile strength short/long term (N)	600/300
