Figure 8 Drop Cable, 1-fiber red stripe, 1 fiber

Figure 8 Drop Cable, 1-fiber red stripe, 1 fiber

The Figure 8 Drop Cable with a 1-fiber red stripe is designed for efficient aerial installations. It features a single, high-quality fiber housed in a robust and weather-resistant outer sheath, ensuring durability and protection against environmental factors.

Features

Application: Outdoor

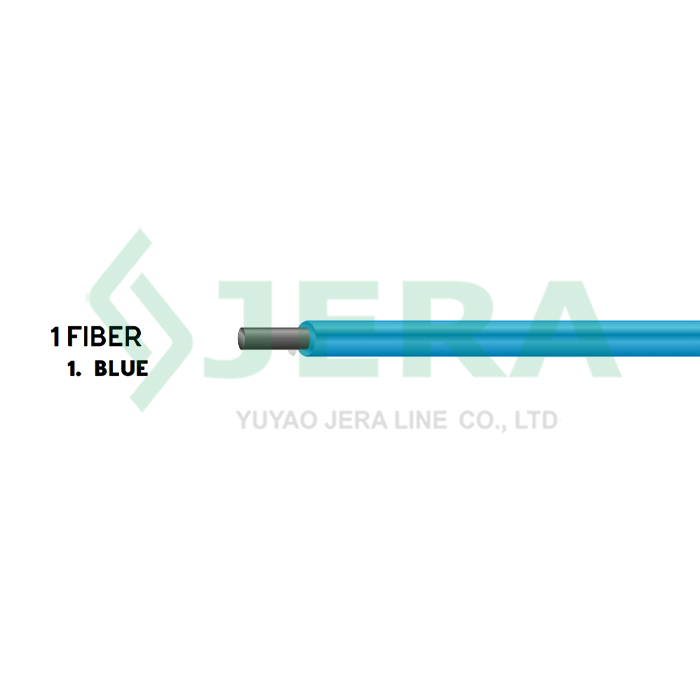

Fiber quantity: 1 fibers
Dimensions: 5.3*2.0 mm
Reinforcement: FRP

DESCRIPTION Specification Test

REVIEW

Key Features

Single Fiber
Distinctive Red Stripe
Figure 8 Design
Durable Outer Sheath
Flexibility
Low Signal Loss
Lightweight
Versatile Applications

The distinctive red stripe enhances visibility for easy identification during installation and maintenance. This cable is perfect for connecting fiber optic networks, providing reliable performance and minimal signal loss. Ideal for residential and commercial applications, it combines flexibility with strength for seamless deployment.

read more

**Fiber-to-the-Home (FTTH)** :Used for direct fiber connections to residential premises, providing high-speed internet and cable services.

**Telecommunications** :Employed in local loop networks for connecting subscribers to central offices or distribution points.

**Data Centers** :Suitable for interconnecting equipment within data centers, facilitating high-speed data transfer.
**Outdoor Networks** : Designed for outdoor use, it can be installed in various environmental conditions, making it ideal for last-mile connections.

**Network Extensions** :Used to extend fiber networks to remote areas, ensuring reliable connectivity for businesses and residential users.

**Community Wi-Fi Solutions** :Supports community broadband initiatives by providing fiber connectivity to access points.

**Mobile Backhaul** :Connects cell towers to the core network, supporting mobile data traffic.

read more

Manufacturing

Watch Our Factory Video

Technical specification

ITEMS	DESCRIPTION
Fibers quantity	1 fiber
Self-supporting. Strength member material	Galvinized steel wire, breaking load > 135 kgF, zink coating > 122g/m2
Self-supporting.Strength member diameter	1.2 (mm)
Strength member material	FRP
Strength member diameter (mm)	0.5
Sheath thickness (mm)	≥0.40
Cable diameter (mm)	2.0*5.3 (+-0.2mm)
Cable weight (kg/km)	20.5
Operating temperature range (°C)	-10/+60
Tensile strength short/long term (N)	600/300
