Figure 8 cable tension clamp, PA-07x320-BD

Figure 8 cable tension clamp, PA-07×320-BD

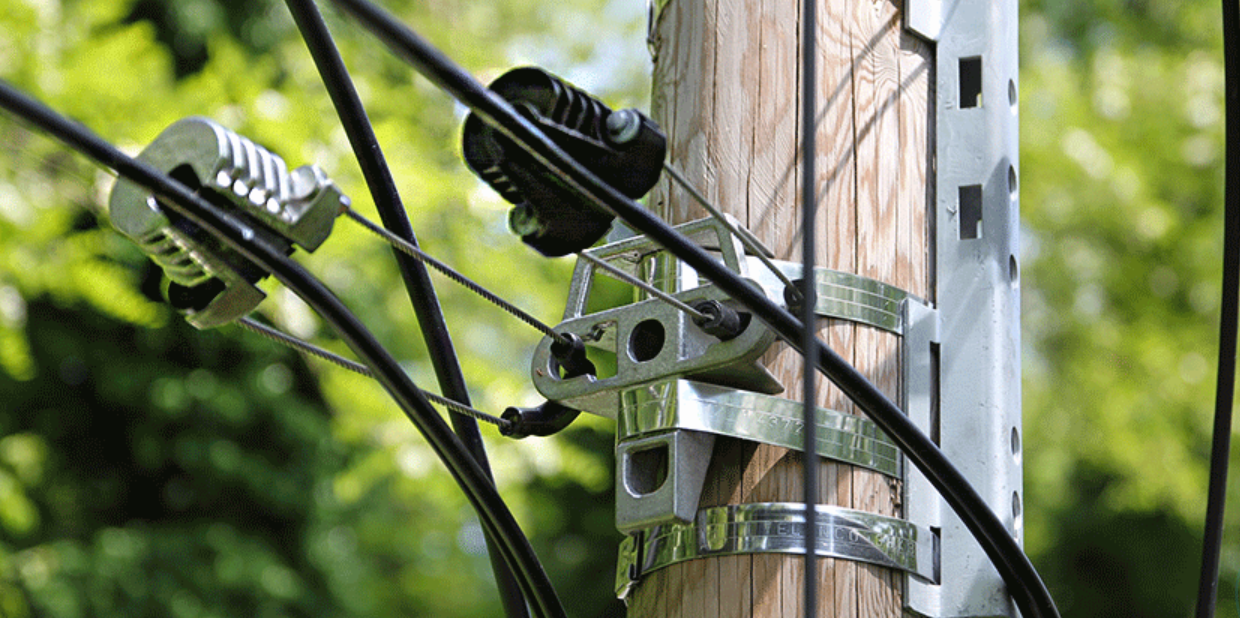

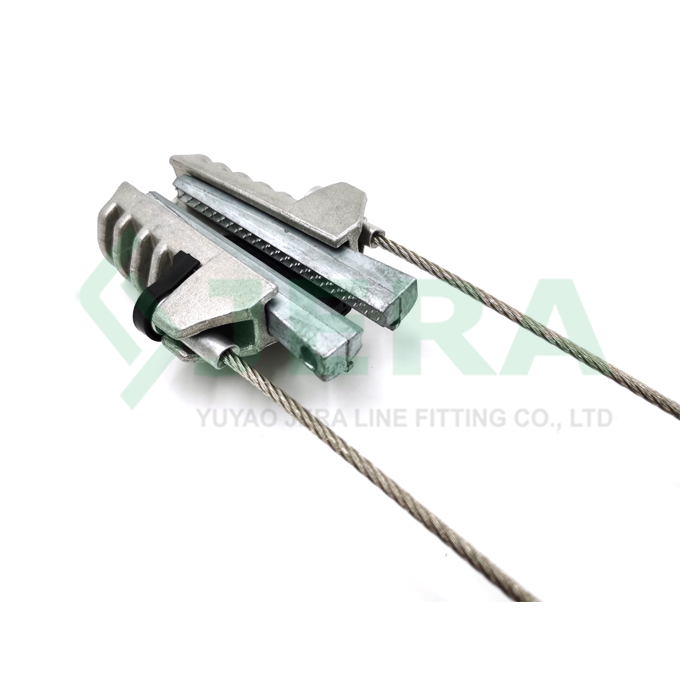

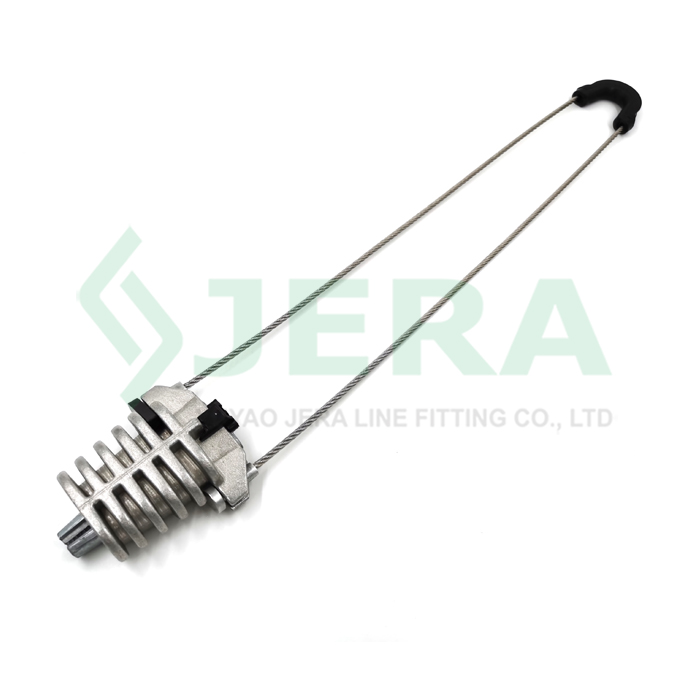

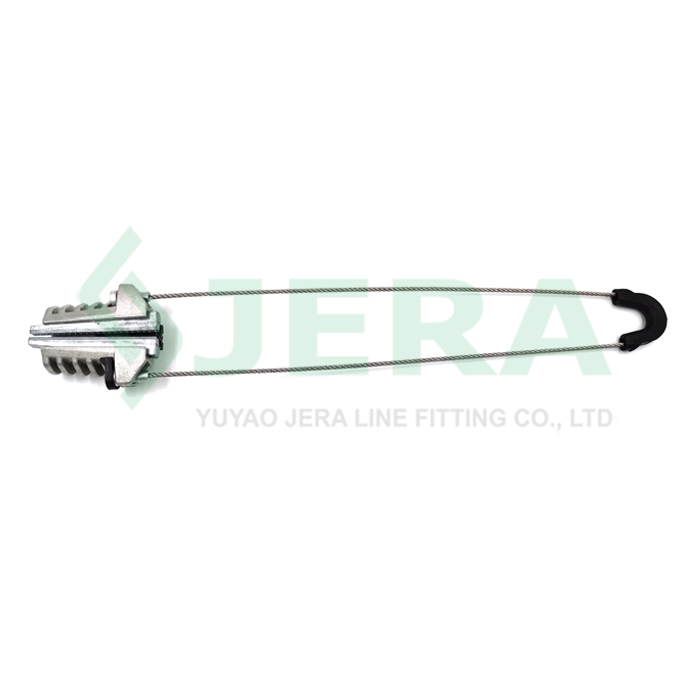

Figure 8 cable tension clamp PA-07×320-BD other called ftth figure 8 cable clamp is a clamp designed to anchor figure 8 cable with steel messenger during FTTH line construction. Compare to other similar clamps, this anchor clamp has bigger sliding wedge and special teeth, which will not hurt cable sheath.

Features

Self-adjustable sliding wedge, tool free installation
Aluminum alloy and stainless steel material, guarantee long time usage
No cable shell damage and slipping during application
Superior mechanical tensile strength
Good environmental stability
Competitive price of anchor clamp

DESCRIPTION Specification Test

REVIEW

The package of this figure 8 cable accessories is carton box, pallets packaging is also available, please contact our sales team for more information.

Jera line is a direct figure 8 cable tension clamp factory, and mainly produces fiber optic drop cable and related accessories for aerial ftth deployments. We are operating according to ISO 9001:2015 standards, all jera produced clamps are inspected by a series test including UV resistant test, ultimate tensile strength and etc which allow us to sell products to over 40 counties.

Technical specification

Product code	Messenger diameter size,mm	Material	MBL,KN	Bail length,mm
PA-07×320-BD	4-7	Stainless steel, aluminum, zink	7	320

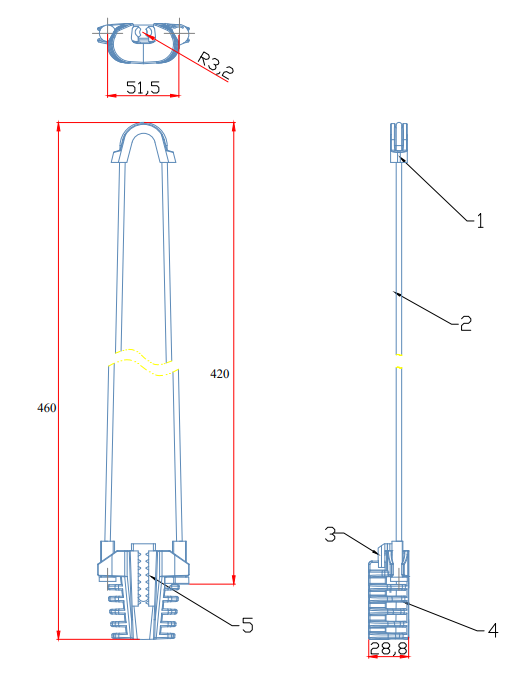

Drawing

Test

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
