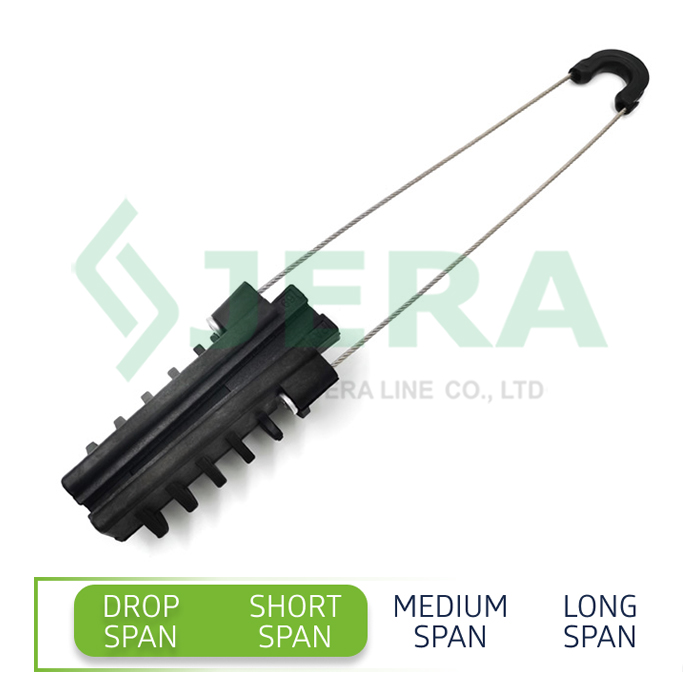

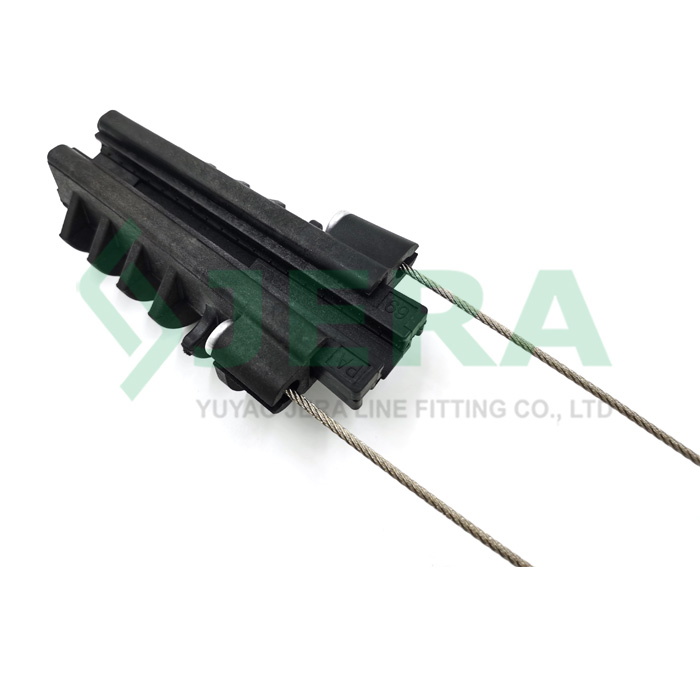

Figure 8 Cable Anchor Clamp, PA-69

Figure 8 Cable Anchor Clamp, PA-69 (6-9mm)

Figure 8 Cable Anchor Clamp PA-69 other called ftth cable anchor clamp, is designed to tension and anchor figure 8 cable or round ADSS cable on outdoor aerial FTTH solutions.

Features

Self-adjustable wedge and tools free installation
UV resistant thermoplastic and stainless steel bail, durable
No cable jacket damages and slipping
Excellent Environmental Stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

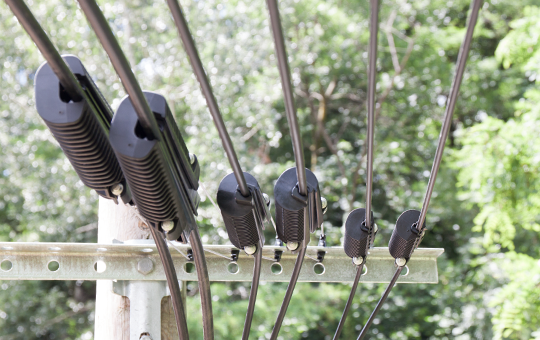

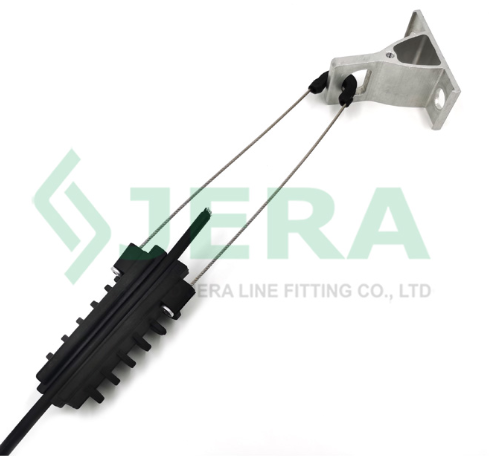

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

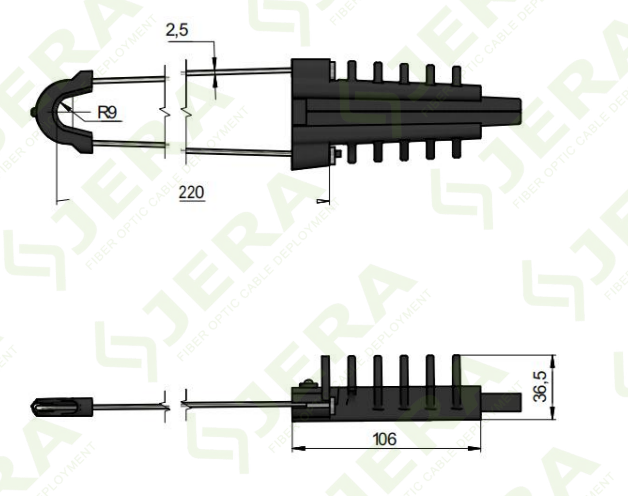

Technical specification

Product code	Messenger diameter size,mm	Material	MBL,KN	Bail length,mm
PA-69	6-9	UV resistant plastic, stainless steel	2.0	230

TEST

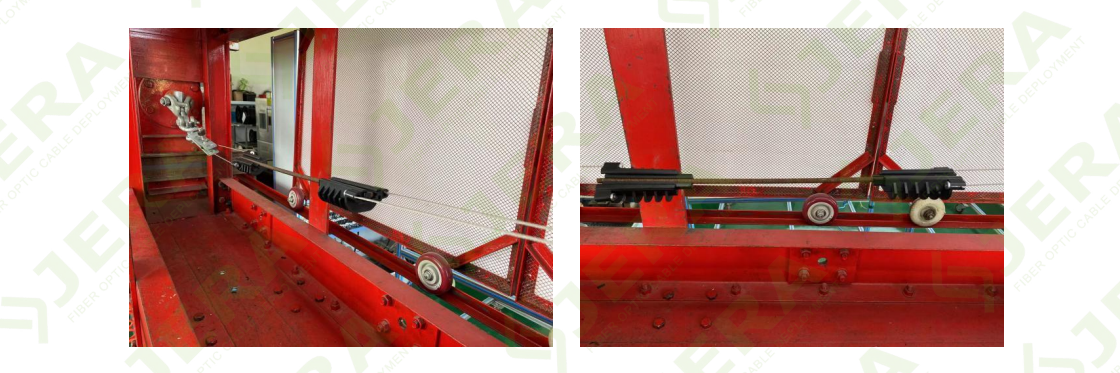

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
