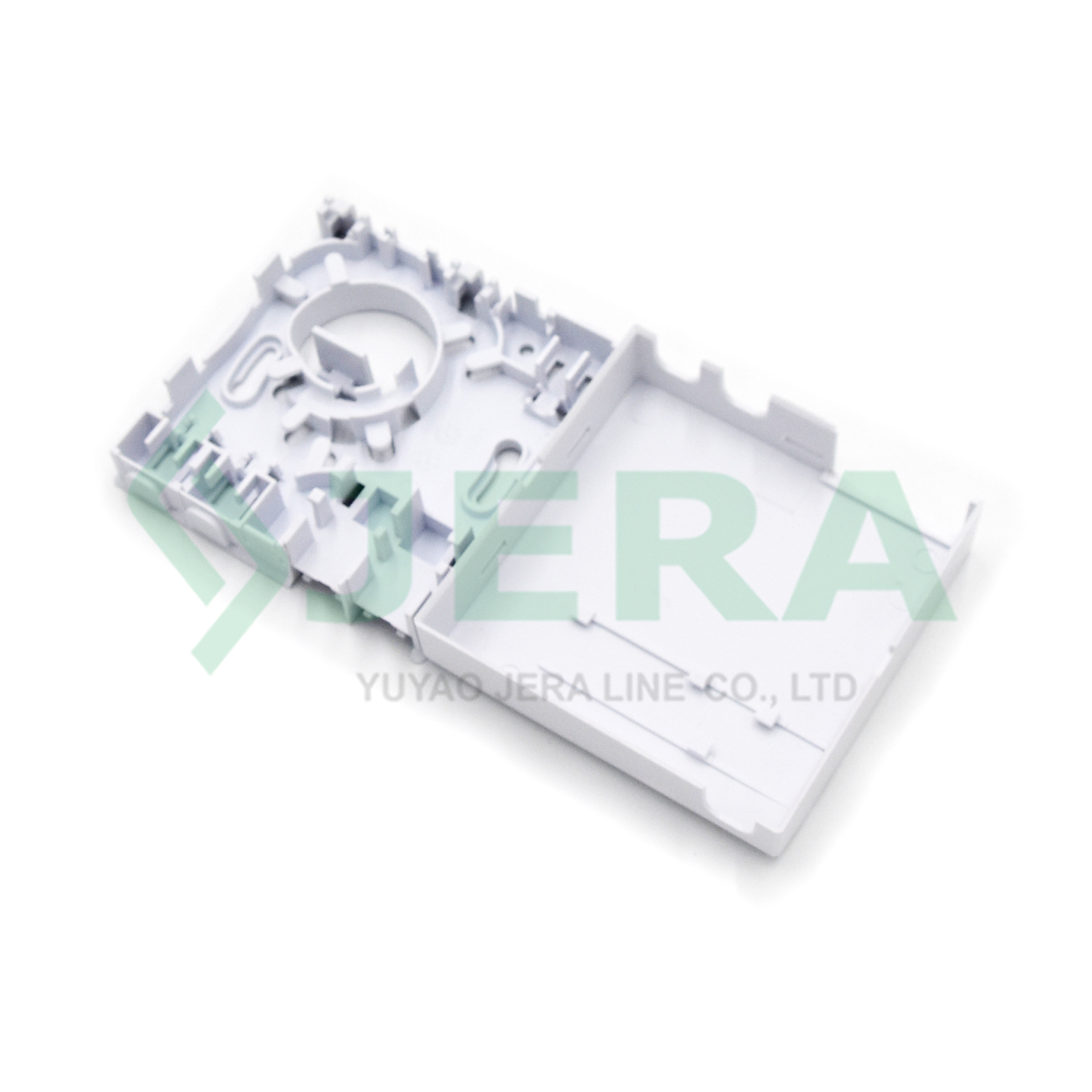

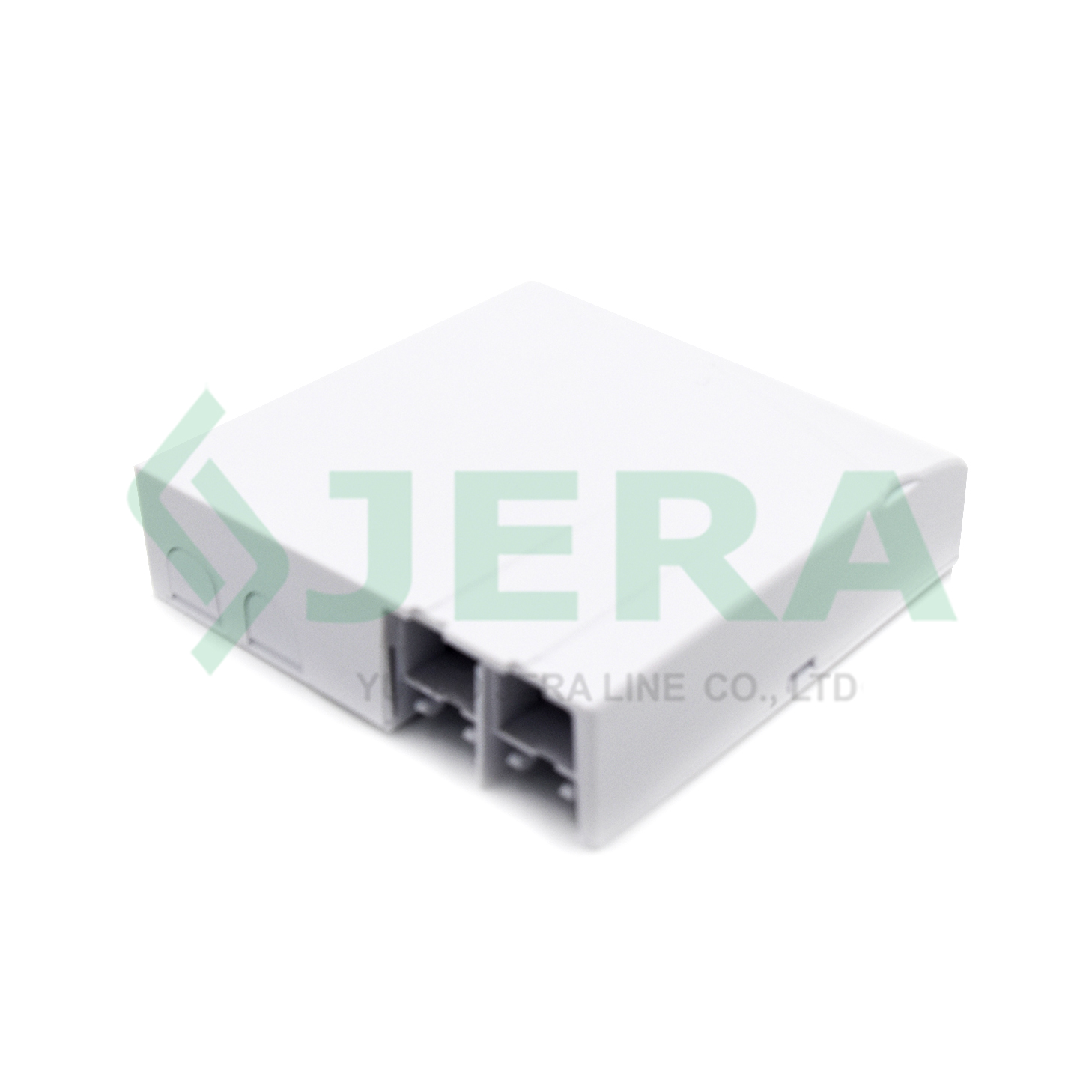

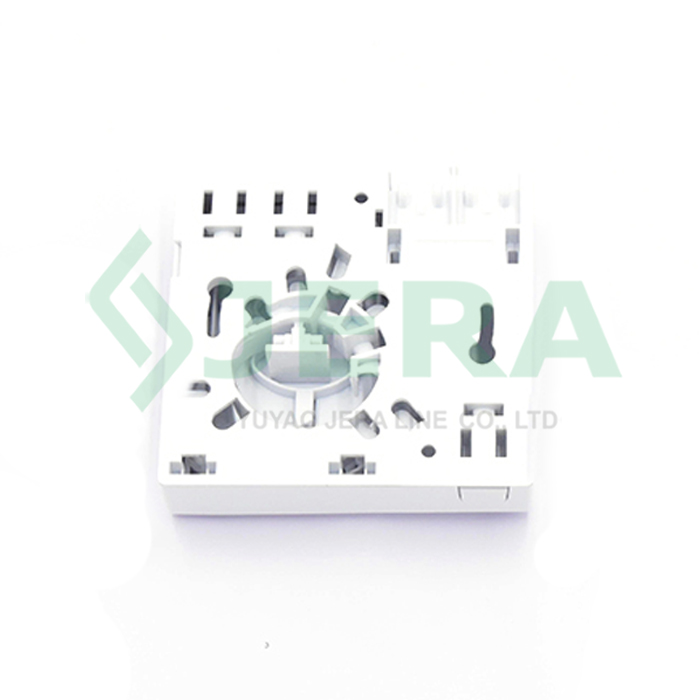

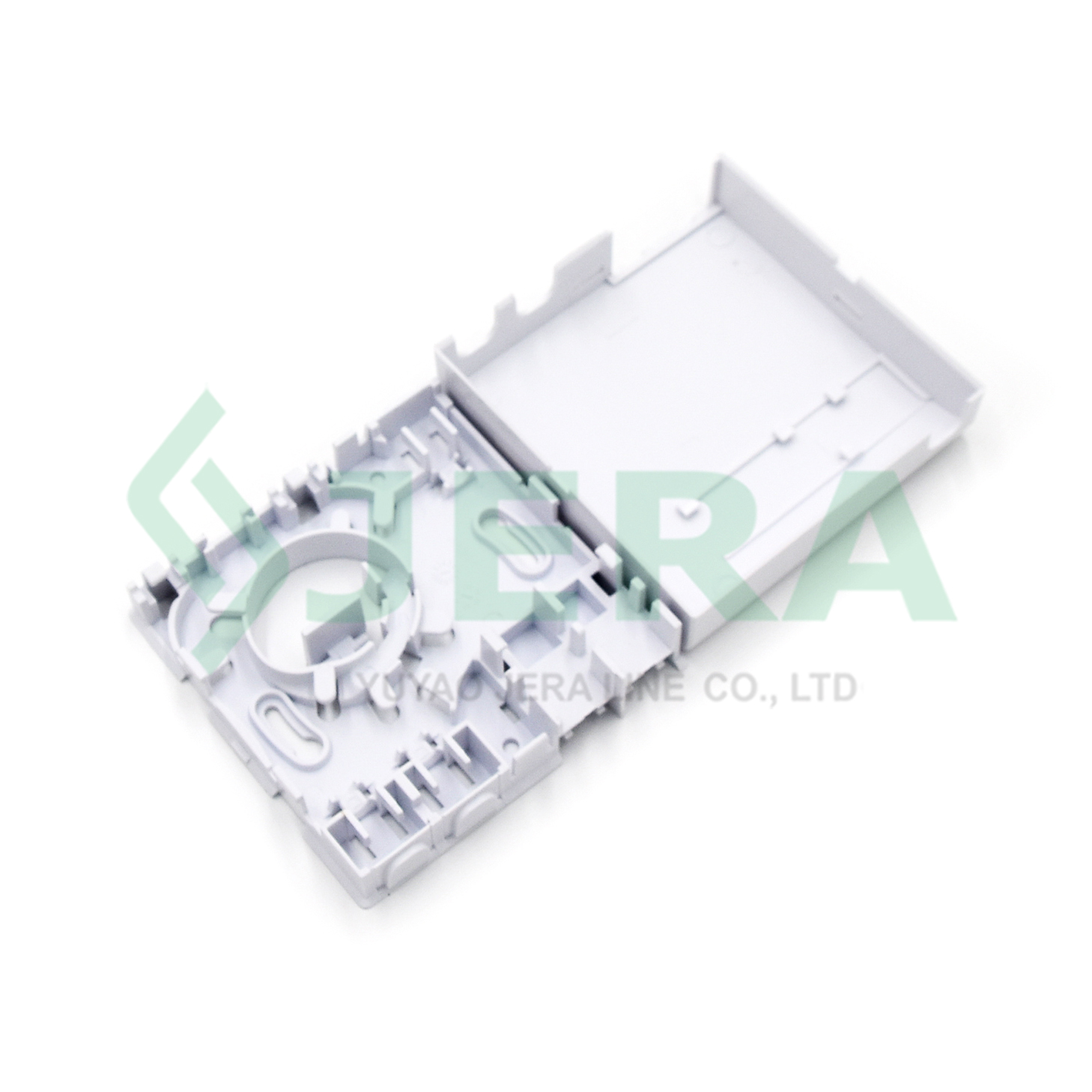

Fiber socket faceplate ODP-05

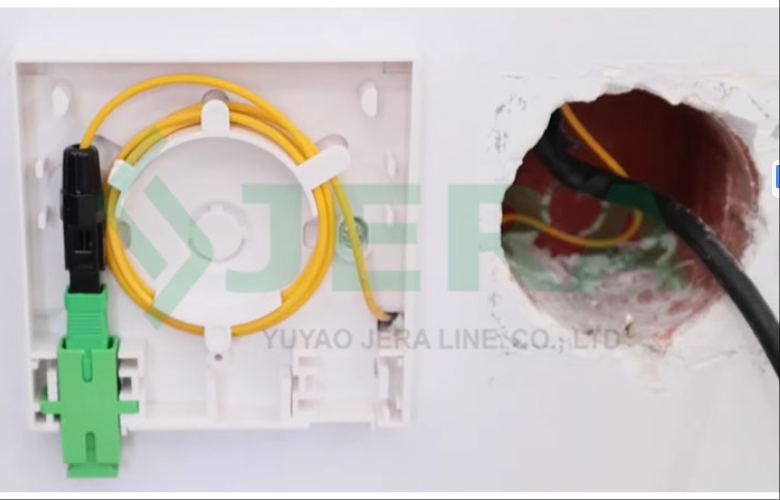

Fiber socket faceplate ODP-05 either called fiber optic outlet, is a device used for connecting passive optical network units. FTTR optical socket provides mechanical or fusion splicing, termination, and wiring in FTTH (Fiber to the Home), FTTO (Fiber to the Office), and FTTD (Fiber to the Desk) applications. It is primarily deployed in users’ homes, typically installed on walls or in standard electrical wiring cabinets. Fiber optics socket is available with additional splice tray.

Features

Application: Indoor
Material： ABS

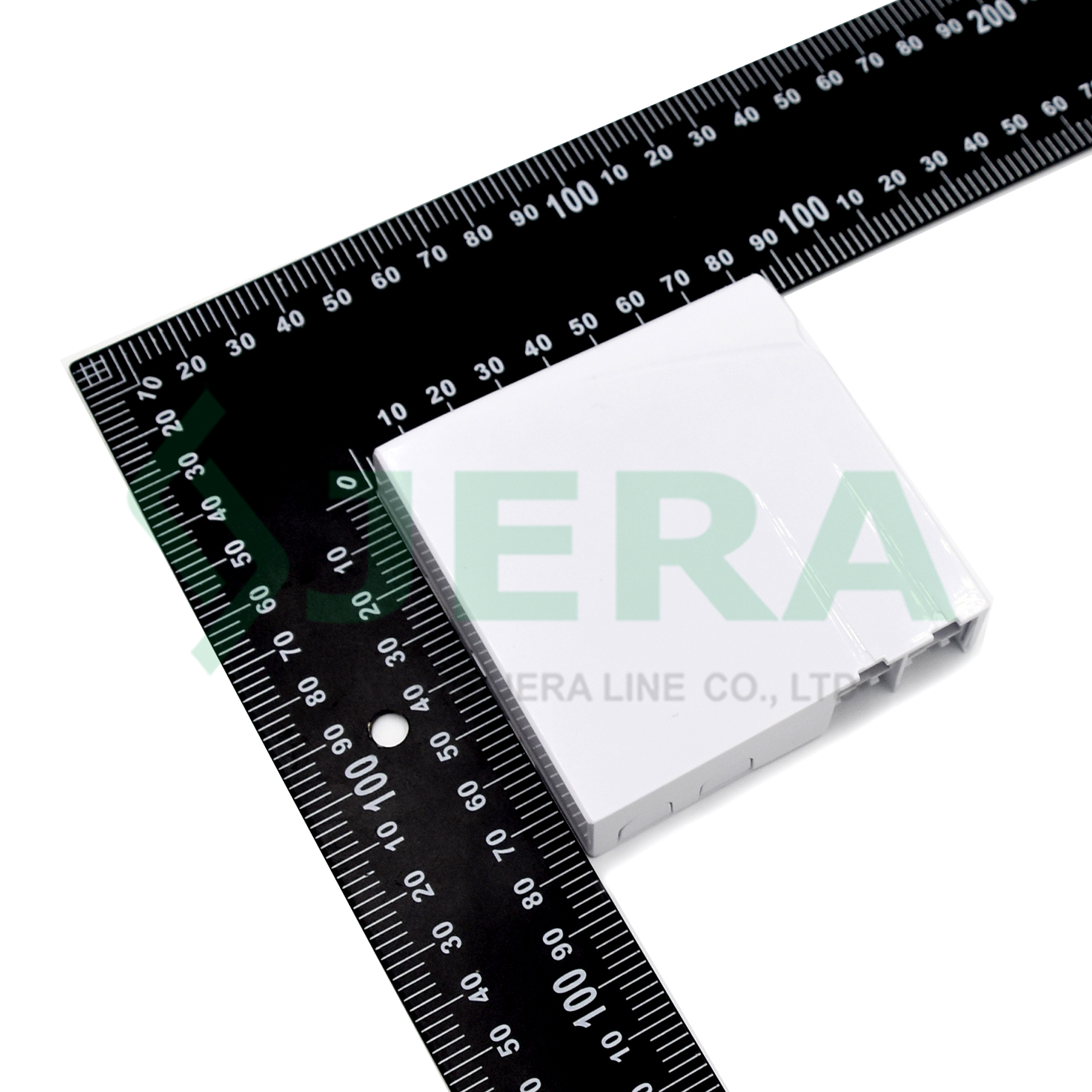

Dimensions: 80*80*20
Adapter SC type: 2

DESCRIPTION Specification Test

REVIEW

Technical specification

Product code	ODP-05
Cable ports	3 ports for round cable, up to 10 mm.
Max cable diameters, mm	10
Adapter ports	2 for regular SC/LC size adapters.
Dimensions (L x D x H), mm	80* 80*20
Max splicing capacity (with additional tray)	no fiber splicing space, maybe equipped by splice tray for 2 fibers splice

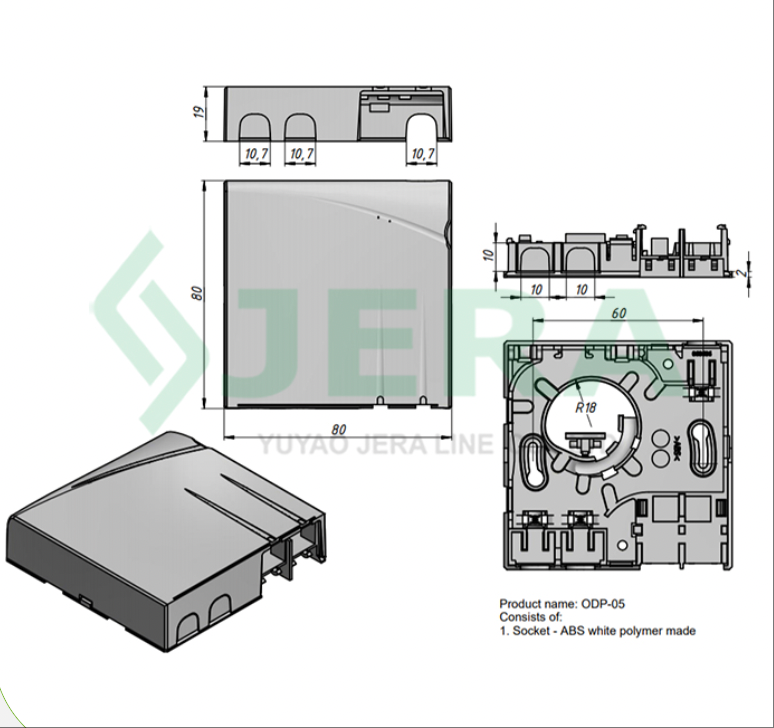

Drawing

Test

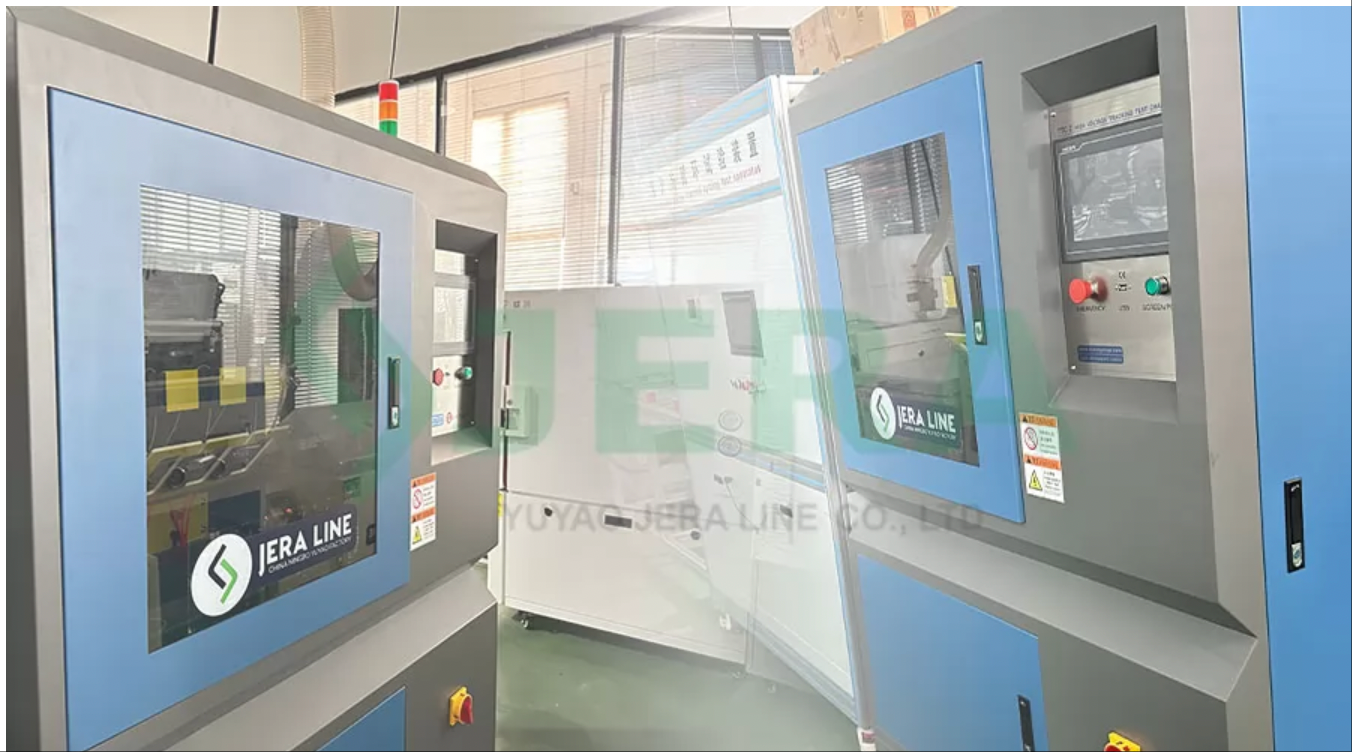

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.
