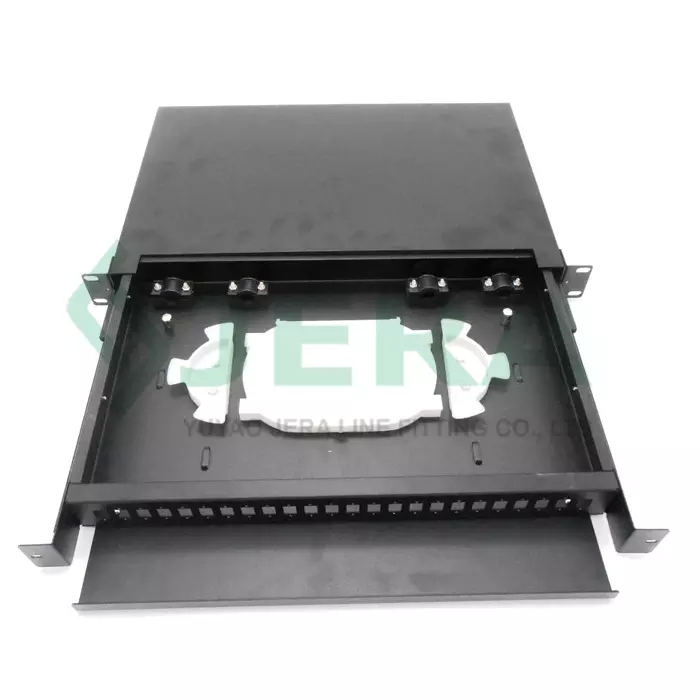

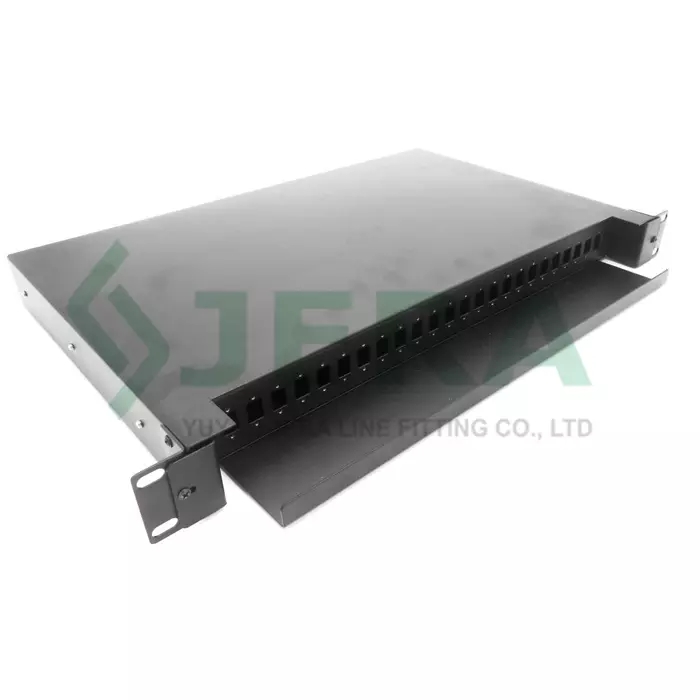

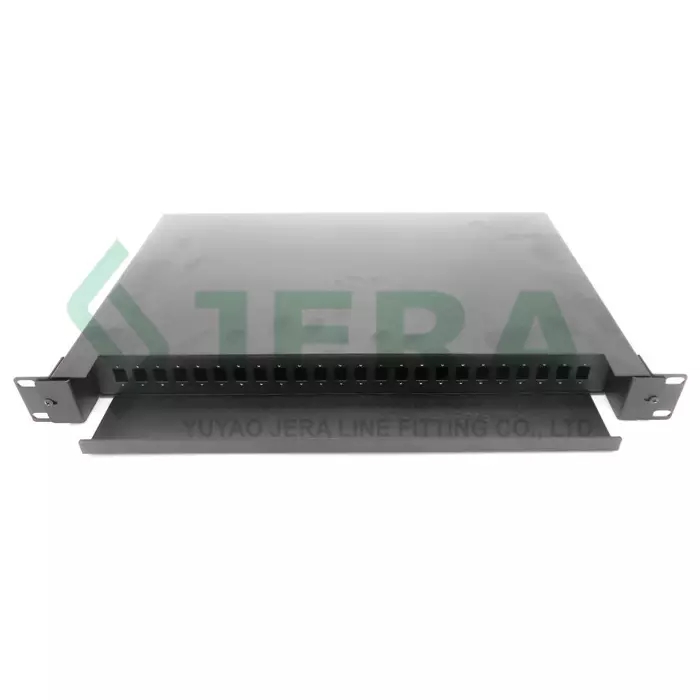

Fiber optical patch panel, 1U-24-SC

1U-24-SC

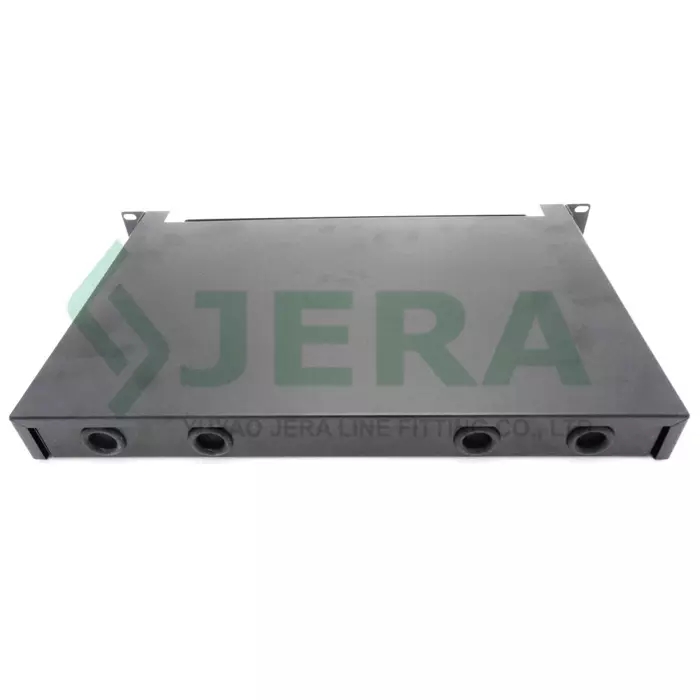

Fiber optical patch panel other called fiber optical termination frame, is designed to distribute, manage and protect fiber cores during telecom networks, in CATV equipment rooms or network equipment room. This fiber optical patch panel has four input ports for feeder cables, and it can accommodate up to 24 of fiber core connections base on SC/APC, LC/Duplex, SC/UPC types patch cords or adapters.

Features

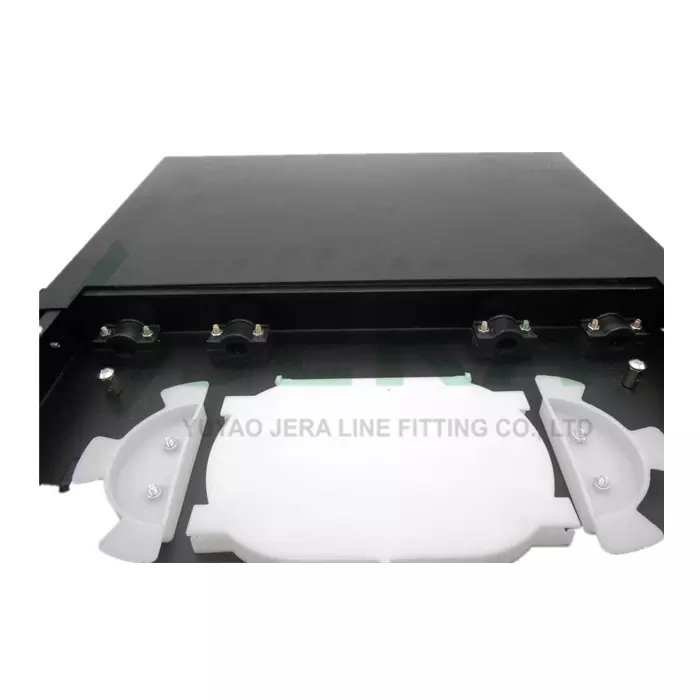

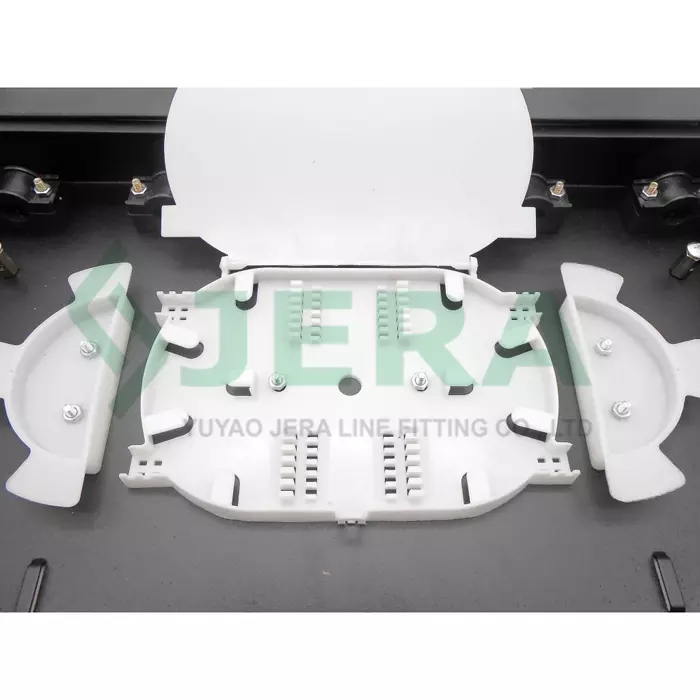

Splice tray inside changeable
Standard size, light weight and robust structure
Various panel plate to fit different adapter interface
Accommodate 24 fiber cores connections
Cold-rolled steel plate by electrostatic spraying
Very easy and convenient to manage and operate
Excellent environmental stability
Competitive price

DESCRIPTION Specification Test

REVIEW

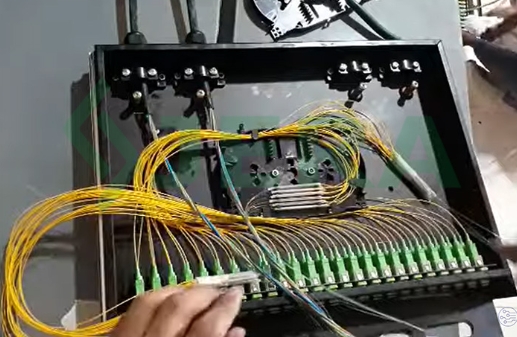

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

Technical specification

Product code	1U-24-SC
Splice tray capacity	24 fibers
Inputs cable diameters	4, diameter 12-17mm
Dimensions, mm	49034045
Adaptor	24 SC
Separate adapter placates	No
Application	Indoor, last mile connection
