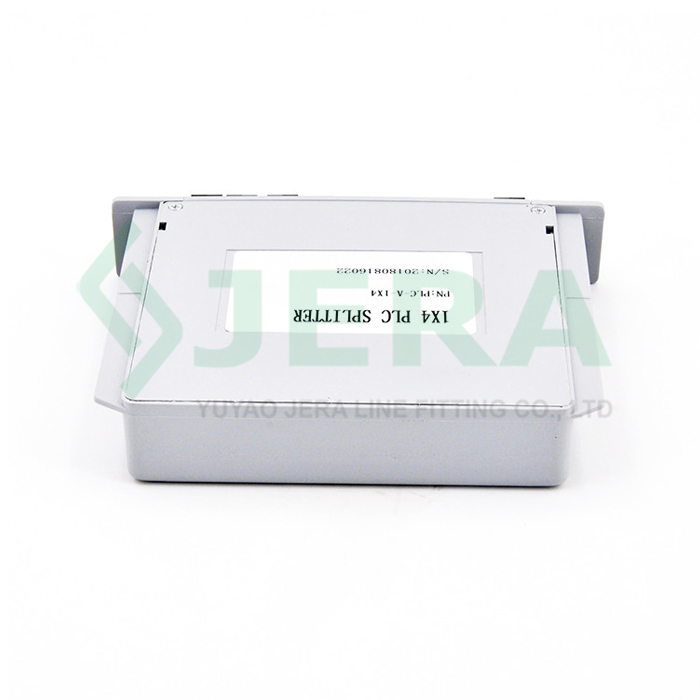

Fiber optical cassette PLC splitter 1×4 SC/APC

1×4 SC/APC

Fiber optical cassette PLC splitter is a light branching device to distribute optical signal to multiple locations during FTTx deployment. The cassette type PLC splitter speed up the installation process for user to save time and cost.

Features

Type: 1×4
Adapter type: SC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Low insertion loss(IL)
Low polarization dependent loss (PDL)
Compact design with adapters or pigtails with SC/APC application
Easy and low cost FTTH installation
Fibers secured by ABS plastic case
High reliability and stability
Competitive price

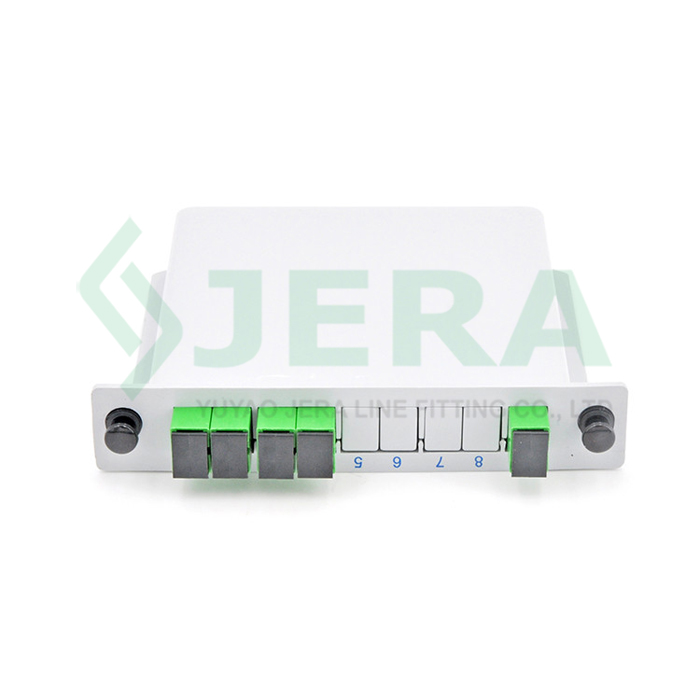

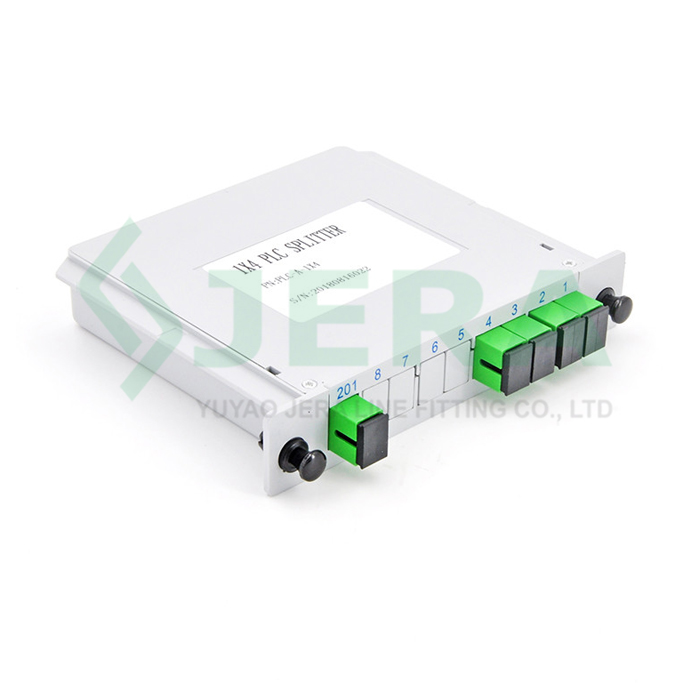

Fiber optical cassette PLC splitter is a light branching device to distribute optical signal to multiple locations during FTTx deployment. The cassette type PLC splitter speed up the installation process for user to save time and cost.

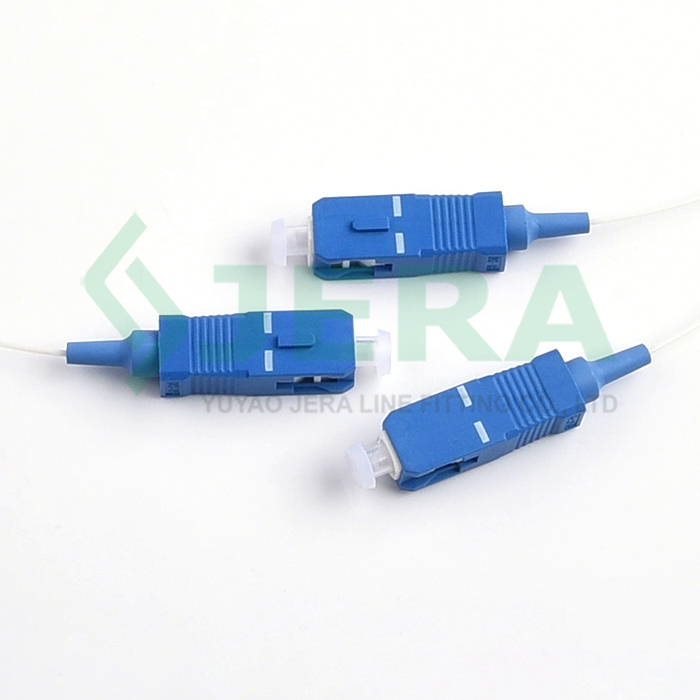

Fiber optic PLC splitters are based on a quartz integrated wave guide optical light distribution device.Fiber optical network uses an optical signal coupled to the branches to connect the terminal equipment and to branch the optical signal.

Jera cassette PLC splitters with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks.

read more

The package of this SC/APC PLC splitter is simple carton box. The pallet packing method is available as well, check more details with our sales.

Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.

Jera line is a direct factory of **fiber optic cables** and related accessories such as drop wire clamps, ADSS clamps, fiber optic termination boxes, pole bandings, dead end guy grips etc.

Welcome to contact us for further details about this 1×4 SC/APC PLC splitters price

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×4
Operating wavelength (nm)		1260-1650
Cassette splitter dimensions, mm		12810025
Splitter cassette material		ABS
Optical fiber type		G652D, G657A1,G657A2
Insertion loss(dB)	Typical	7.2
Insertion loss(dB)	Maximum	7.4
Uniformity(dB)	Typical	0.5
Uniformity(dB)	Maximum	0.6
Polarization Dependent Loss(dB)	Typical	0.1
Polarization Dependent Loss(dB)	Maximum	0.15
Wavelength dependent Loss(dB)	Typical	0.1
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40-85
Optical fiber length (m)		0.5, 1.0, 1.5
