Fiber optic splice closure, FOSC-6(96)

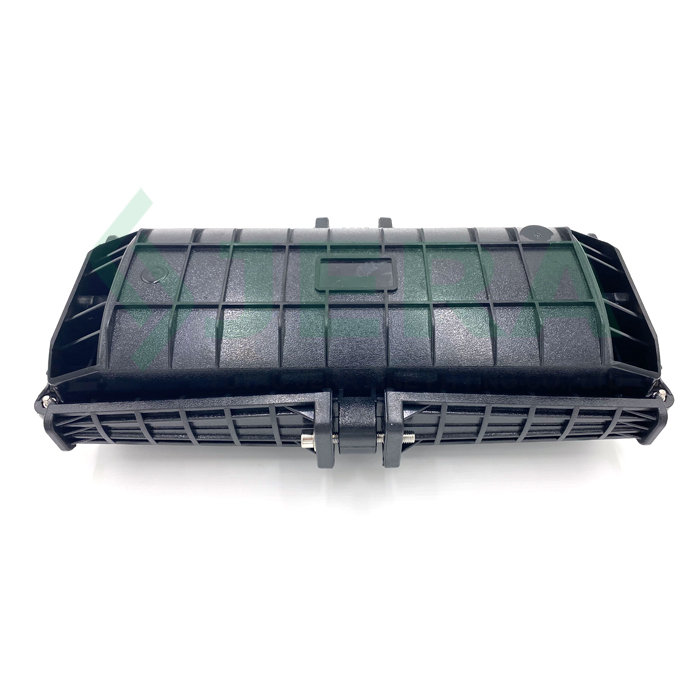

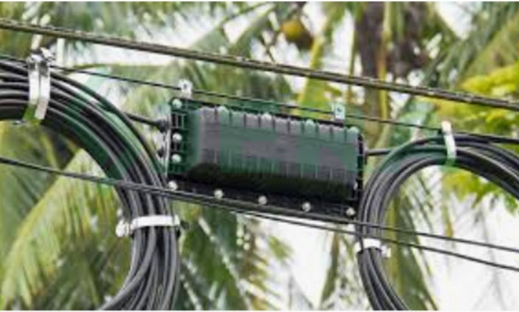

Fiber optic splice closure FOSC-6 (96), also called fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. This horizontal type closure is developed to splice and branch fiber optic cables on underground, aerial, wall-mounting, pole-mounting and duct-mounting routes during FTTX deployment.

Features

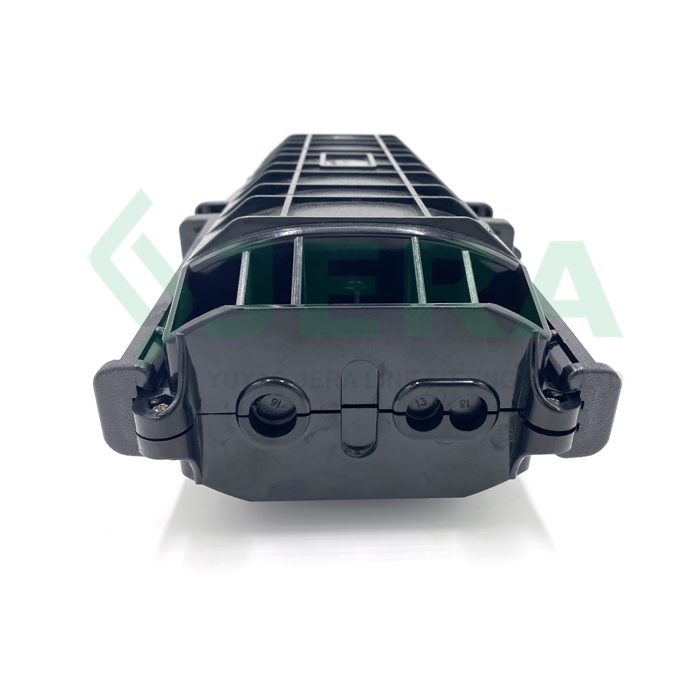

6 round inputs, maximum capacity 96 fibers

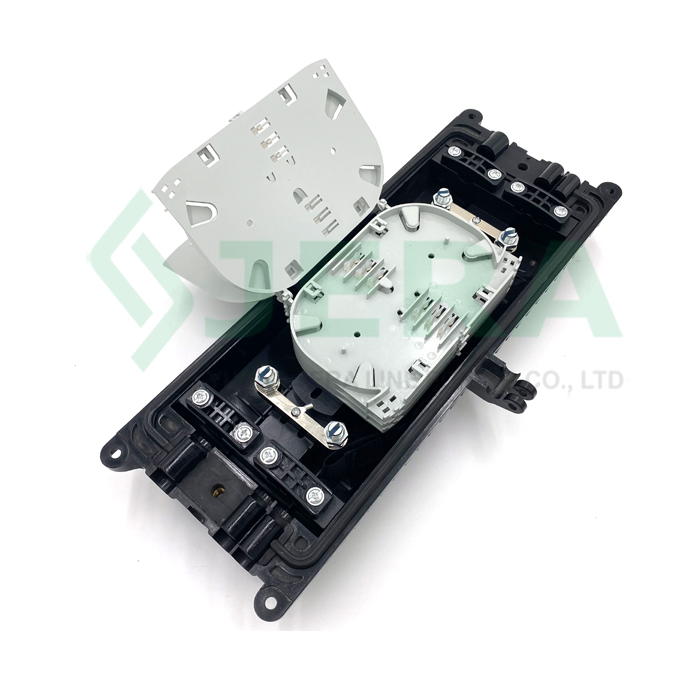

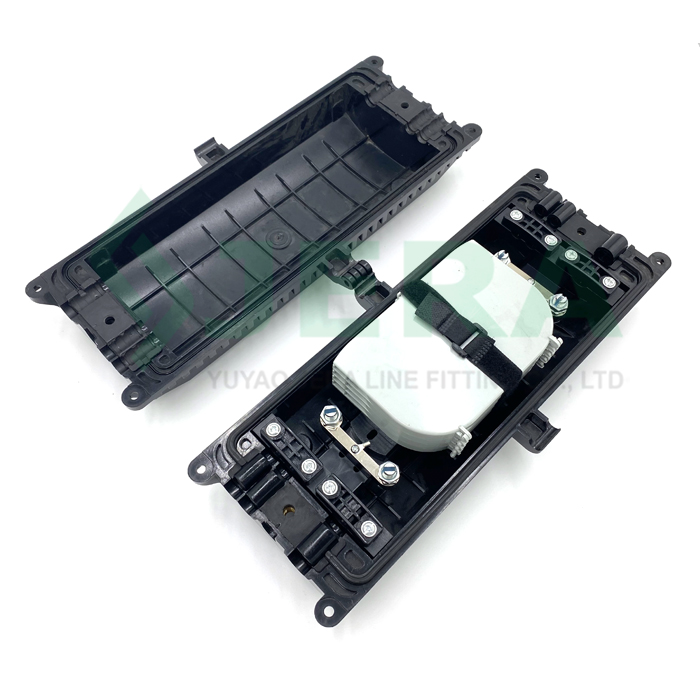

Splice tray capacity is 24 fibers, fibers are stored in 2 layers
Intergrated seal, air tight and water proof
Made of high quality termoplastic, guarantee wet and dust proof
Applied in through, branch or mid span splice locations
High mechanical strengths
Competitive price

DESCRIPTION Specification Test

REVIEW

The package of horizontal fiber optic closure is carton box. The pallet packing method is available as well, check more details with our sales.

Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.

We supply fiber optical cable accessories for FTTH constructions and provide the whole kit of accessories to our customers, such as fiber optic cable, cable clamps, cable bracket, fiber optic termination boxes, PLC splitters, patch cord and so on.

Technical specification

Product code	Fiber’s capacity	Inputs and cable diameters	Dimensions, mm	Application
FOSC-6(96)	6*12/24	4Φ13mm,2Φ16mm,	385200110	Central loop &Last mile connections

Test

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

-Anchor clamps

-Fiber optic cable

-Fiber optic splice closures

-Fiber optic distribution boxes

-FTTH drop cable clamp

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
