Fiber optic splice closure, FOSC-4(144)

Key Features

• Innovative elastic integrated seal fitting
• 4 round inputs and 1 oval input, maximum capacity 144 fibers
• Splice tray capacity is 24 fibers, fibers are stored in 2 layers

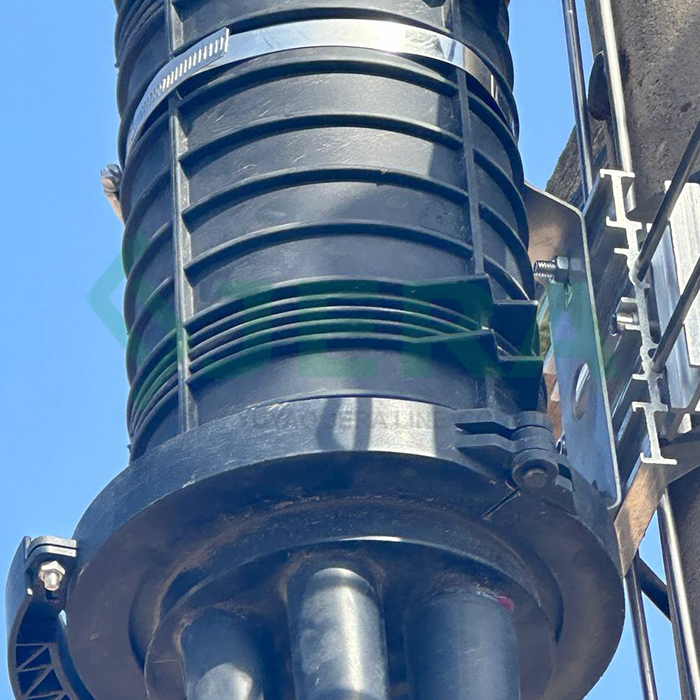

• Additional bracket allows installation on concrete pole or wooden walls
• Made of high quality termoplastic, guarantee for long time usage
• Applied in through, branch or mid span splice locations
• High mechanical strengths
• Competitive price

Specification

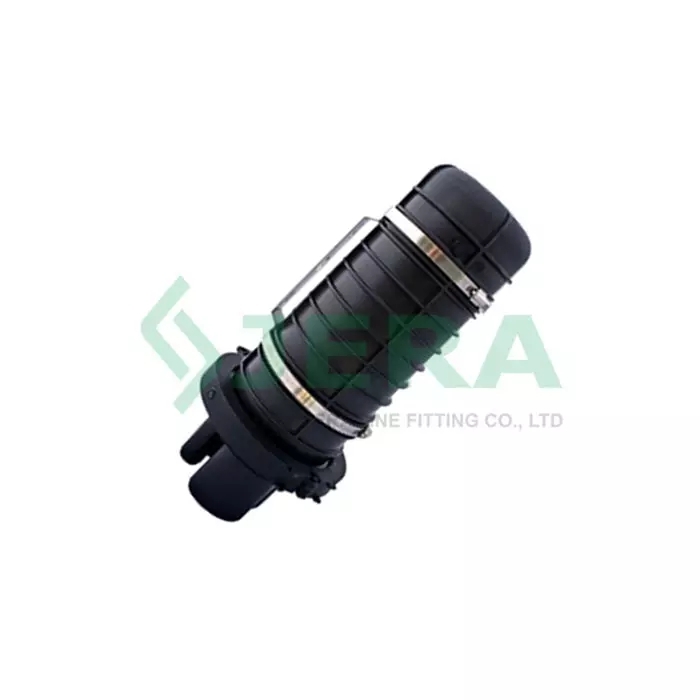

Fiber optic closure FOSC-4 (144), also called dome fiber optic splice closure, is a device used to provide space and protection for fiber optic cables spliced together. It’s can be placed in underground, aerial, wall-mounting, pole-mounting and duct-mounting routes during FTTX network constructions.

Vertical fiber optic closure looks like a dome,the dome shape makes it easy to be buried in many applications.High-capacity versions and variations in the number of splicing trays are also available in the market to meet the complex needs of today’s fiber-optic networks. The number of inlet/outlet ports of the dome fiber optic closure also varies with application needs.

Jear Fiber optic splice closures are made of 1 st grade UV resistant plastic which is weather and rust proof provide confident performance whether in overhead or buried underground during FTTX network constructions. We also provide relevant accessories such as pole bracket, stainless steel banding, cable slack storage and etc which are available in jera line product range.

Application

The package of horizontal fiber optic closure is carton box. The pallet packing method is available as well, check more details with our sales.

Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.

We supply fiber optical cable accessories for FTTH constructions and provide the whole kit of accessories to our customers, such as fiber optic cable, cable clamps, cable bracket, fiber optic termination boxes, PLC splitters, patch cord and so on.

Welcome to contact us about Fiber optic splice closure price.
