Key Features
-
Innovative elastic integrated seal fitting, IP-67
-
Three round inputs and 1 oval input, maximum capacity 64 fibers
-
Splice tray capacity of 16 fibers, fibers are stored in 2 layers
-
The PLC splitter block less splitter maybe be installed, 60x7x4 mm
-
Curved radius meets with international standard
-
Made of high quality termoplastic, guarantee wet and dust proof
-
Applied in through, branch or mid span splice locations
-
High mechanical strengths
-
Competitive price
Specification

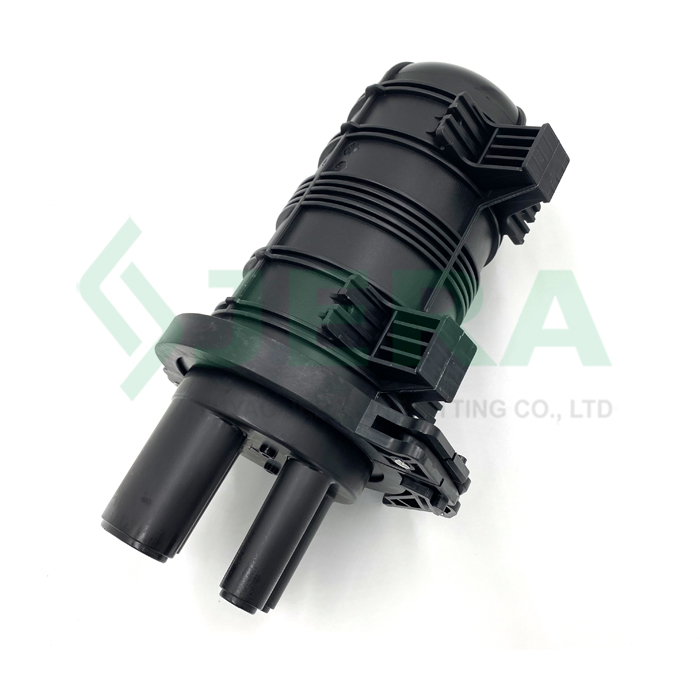

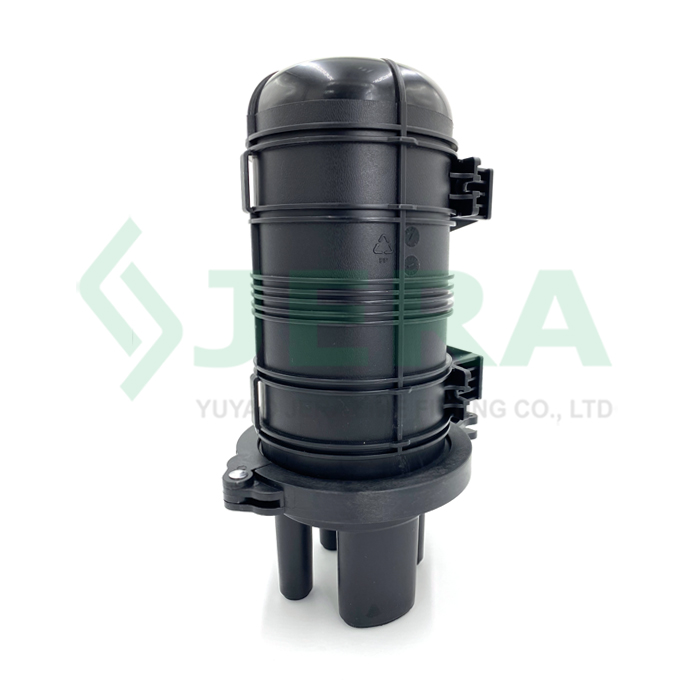

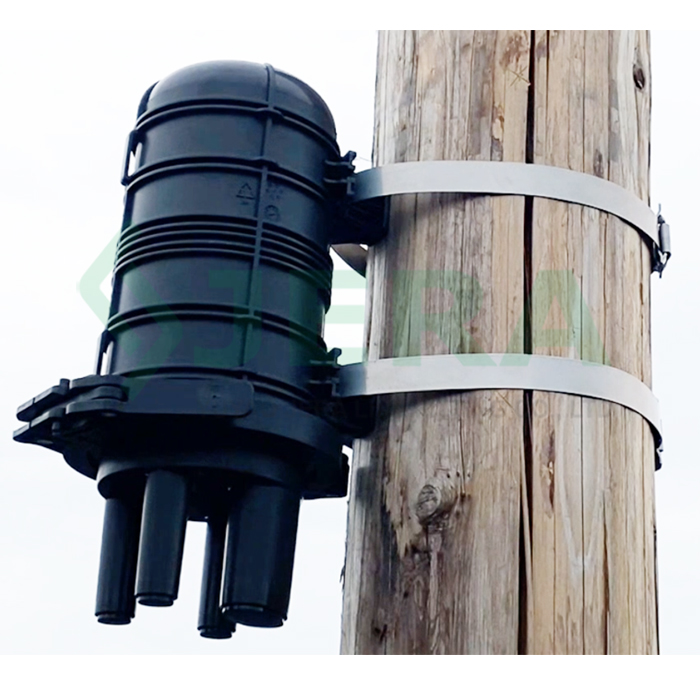

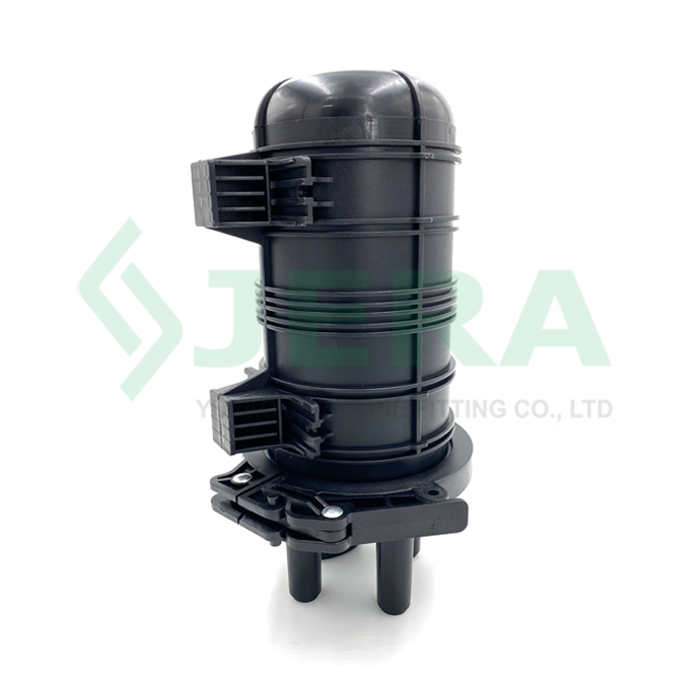

Fiber optic splice closure FOSC-2D, also called dome type fiber splice closure, is a device used for protecting fiber cable splices in straight-through and branching applications. It’s can be placed in underground, aerial, wall-mounting, pole-mounting and duct-mounting routes during FTTX solutions.
Fiber Optic Closure is a fiber management products typically used with outdoor fiber optical cables. Outdoor fiber cables ends come into the splice closure and the optical fibers of these cables can be connected by splicing them together.

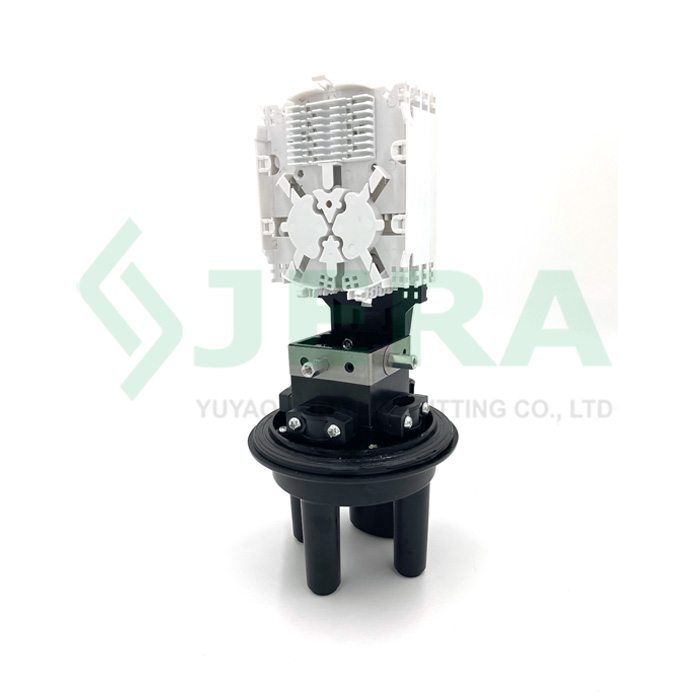

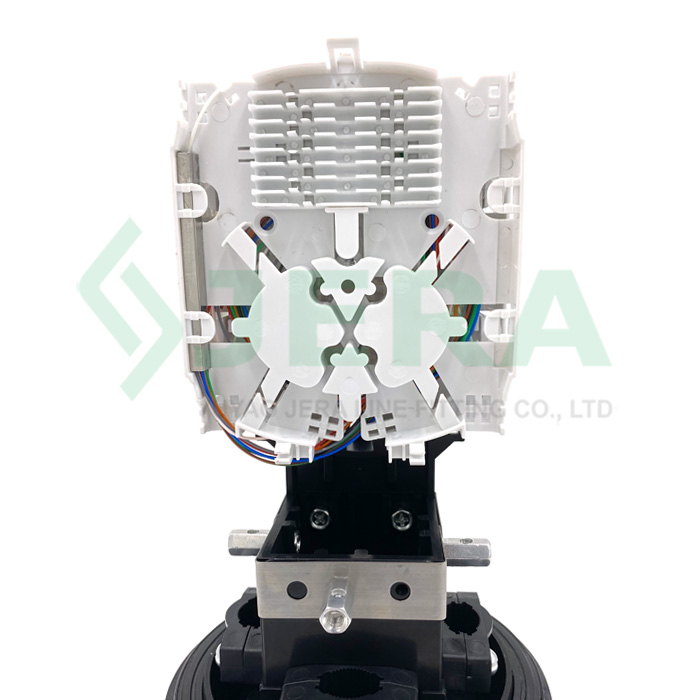

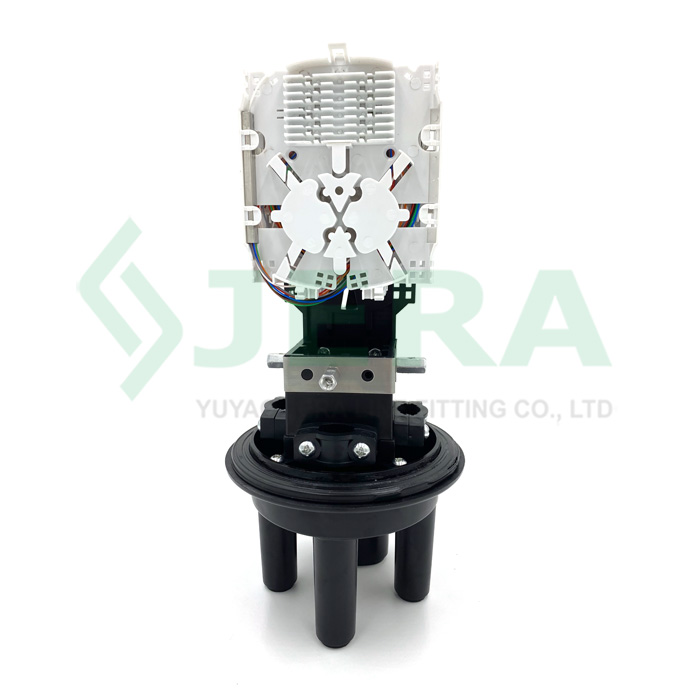

The jointed optical fibers are put into the fiber optic trays which are installed inside the splice closure. Tray is made of soft material, holds tubes tightly, with less accidental damage possible during insert of fiber heat shrink tubes. And our splice tray can accommodate up two of fiber optical PLC splitters, more convenient for fiber core organizing, also release more space for fiber storage.
Application

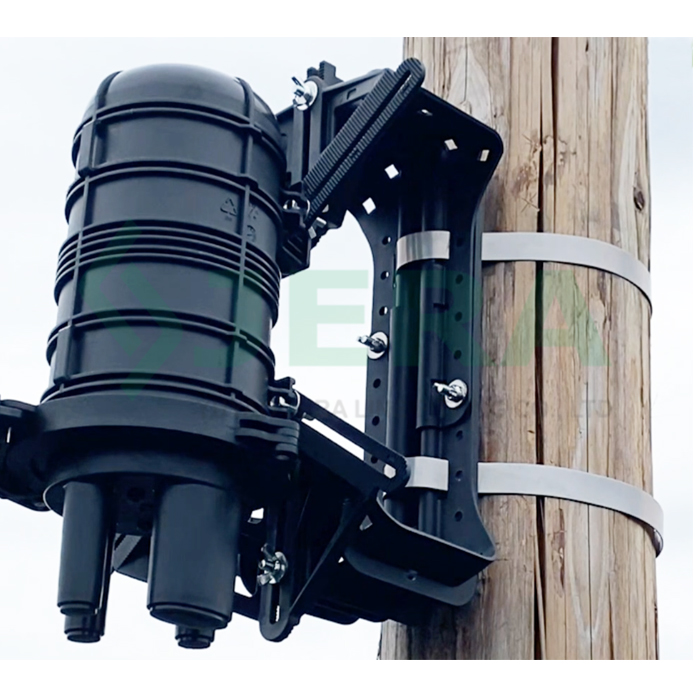

Jera ADSS Fiber Optical Splice Closure are made of 1st grade UV resistant plastic which is weather and rust proof provide confident performance whether in overhead or buried underground during FTTX network constructions. We also provide relevant accessories such as pole bracket, stainless steel banding, cable slack storage and etc which are available in jera line product range.
The package of FOSC Fiber optic splice closure is carton box. The pallet packing method is available as well, check more details with our sales.
Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.
We supply fiber optical cable accessories for FTTH constructions and provide the whole kit of accessories to our customers, such as fiber optic cable, fiber optic distribution boxes , cable clamps, cable bracket, fiber optic termination boxes, PLC splitters, patch cord and so on.
Welcome to contact about fiber optic splice closure price.
