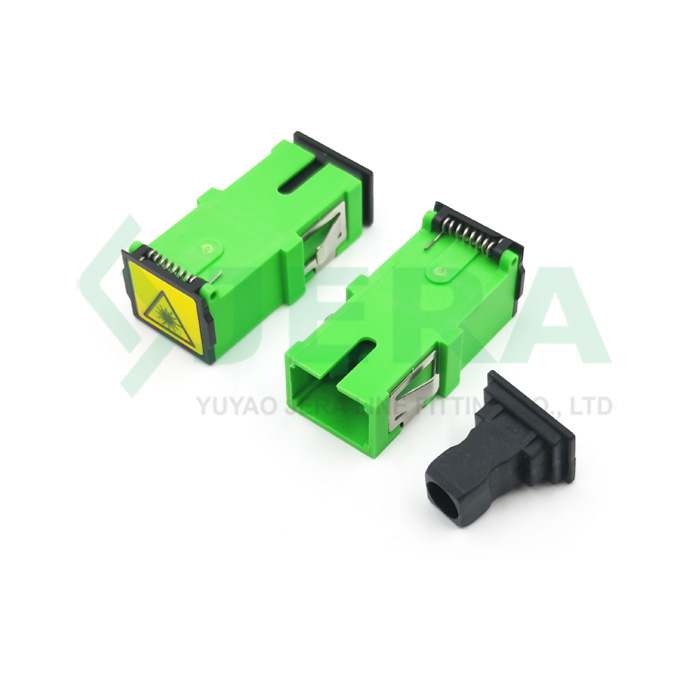

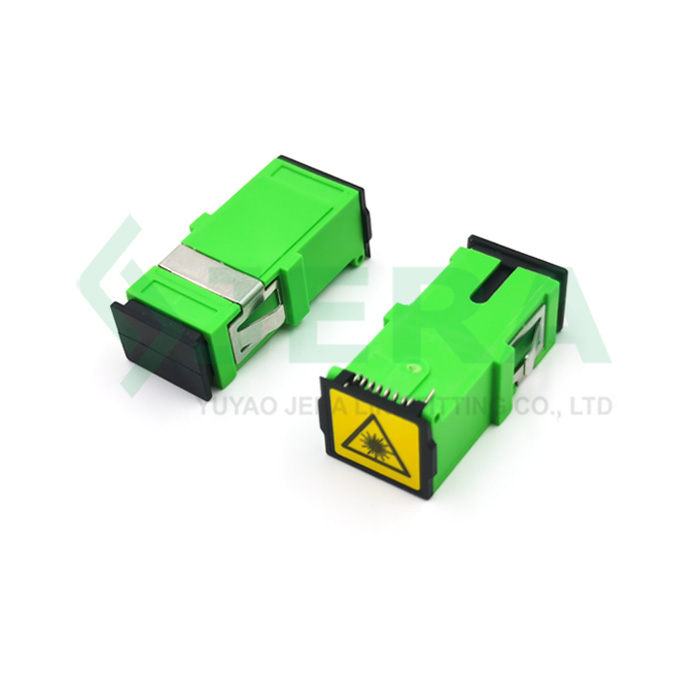

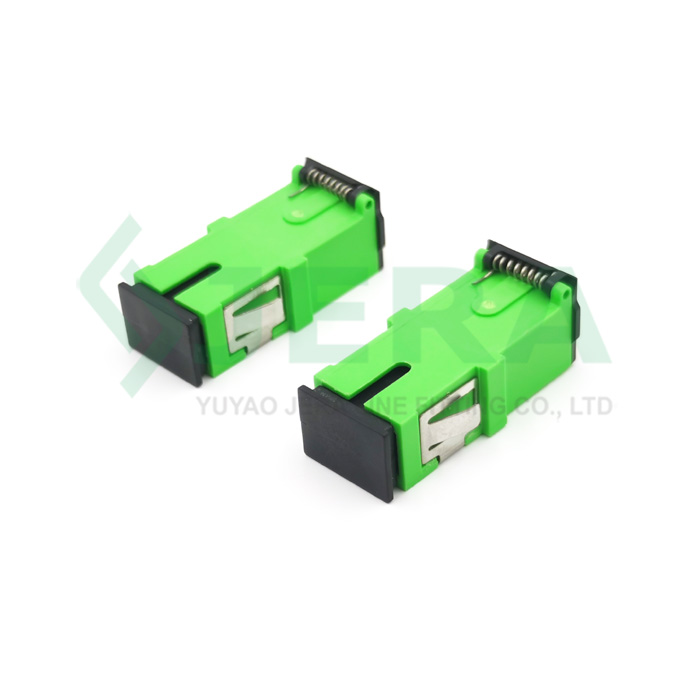

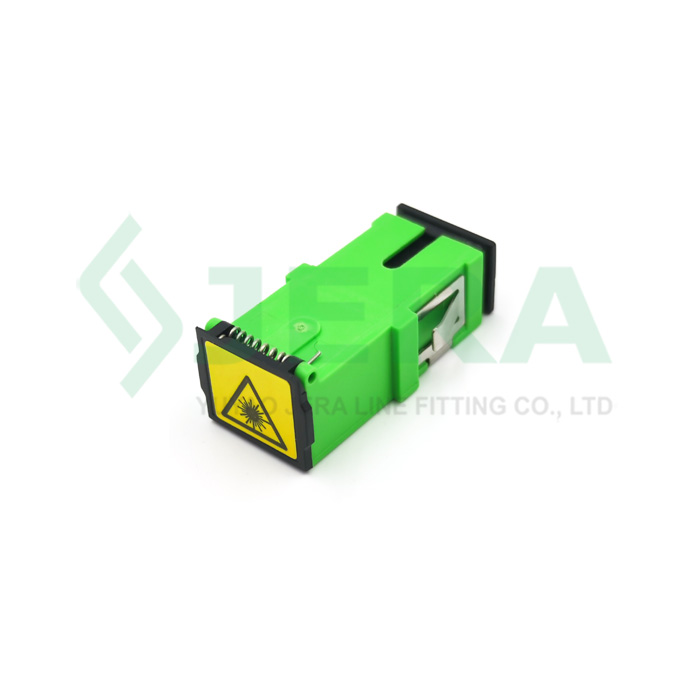

Fiber optic SC/APC adapter, shutter type

Fiber optic SC/APC adapter, shutter type

Fiber optic SC shutter adapter, either called fiber optic coupler, designed to link the fiber cables or fiber optic connectors with standard SC (male) connectors between two fiber optic FTTH networks. By connecting two connectors, simplex optic adapters allow the light single to be transmitted at most lower losses.

Features

Type: Simplex
Socket type: SC
Polish type: UPC/APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Compact size, adapter with plastic shutter
Good durability and exchangeability
Low insertion loss and back reflection loss
Dust caps protect against debris and contamination
Wide range working temperature
High reliability and stability
Competitive price

Fiber optic adapter generally consists of three parts, two fiber optic connectors and a coupler.

Two optical fiber connectors connect the two optical fiber tail ends. The coupler acts as a bushing.

SC (Standard Connector)：The standard square joint is made of engineering plastic, which has the advantages of high temperature resistance and not easy to oxidize.

APC: Polished at an 8-degree angle.

The casing is usually made of wear-resistant, dustproof, and waterproof materials. The connection interface is usually made of ceramic. This design protects internal components from the external environment, ensures stable fiber connection and reduces optical signal loss.

Adapters sometimes also include some auxiliary parts, such as sealing rings, locks, etc., to cope with complex environments.

read more

Applied Indoor, for connecting fiber optic cable to various devices such as routers, switches, and servers, ensuring seamless and high-speed data transmission within a confined space.

read more

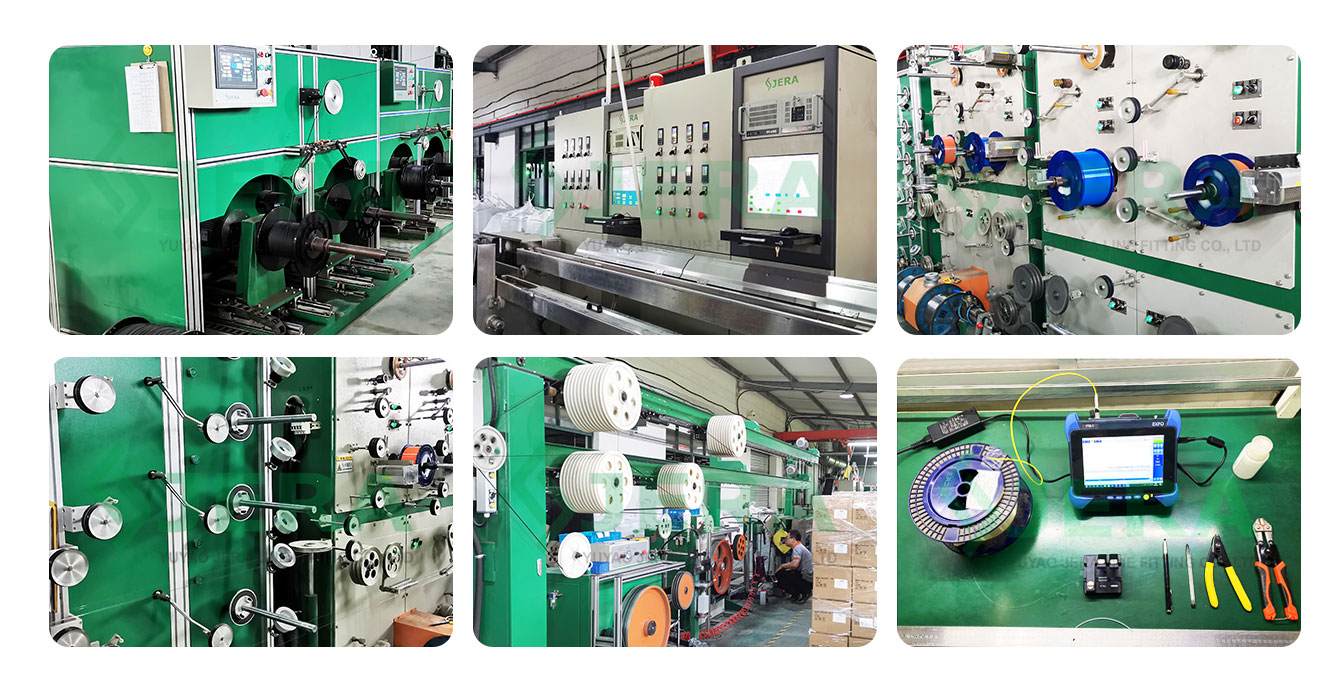

Manufacturing

Watch Our Factory Video

Technical specification

Adapter Type	Polish Type	Color	Fiber Counts	Fiber Mode	Insertion Loss (IL)	Working Temperature
SC/UPC	UPC	Blue	Simplex	Singlemode	≤0.3dB	-40~+85℃
SC/APC	APC	Green	Simplex	Singlemode	≤0.3dB	-40~+85℃
