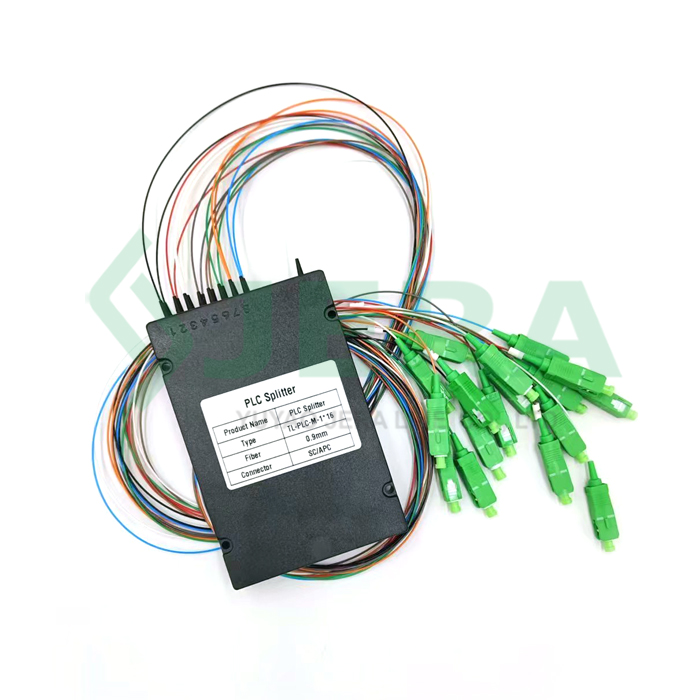

Fiber Optic PLC Splitter 1×16

Fiber Optic PLC Splitter 1×16

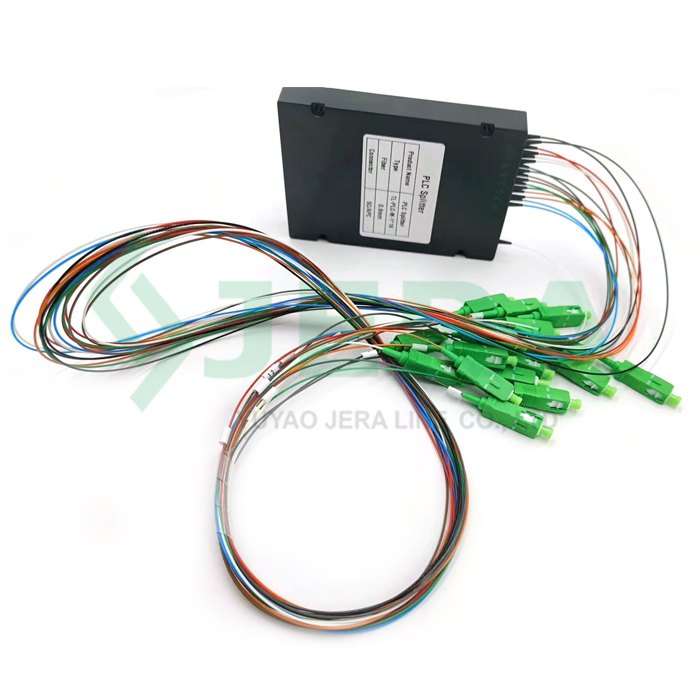

Fiber Optic PLC Splitter 1×16（Planar Lightwave Circuit Splitter）, either called Pigtailed Optical Branching Device. The role of the plc splitters are to distribute combined optical signals and is an important component used in passive optical networks (PON). Unlike traditional FBT splitters, PLC splitters are more compact and suitable for high-density applications.
Fiber Optic PLC Splitter 1×16
Features
    • Adapter type: SC
    • Polish type: APC
    • Area: Indoor
Contact Us
DESCRIPTION Specification Test
REVIEW

Key features

  • High polarization extinction ratio
  • Can be installed in an existing box without a separate space for installation
  • The box made of high-quality flame-retardant engineering plastics material
  • Optical performance 100% factory tested
  • Strong stability, not easily affected by environmental factors such as temperature and humidity
  • competitive price
Fiber Optic PLC Splitter 1×16 Fiber Optic PLC Splitter 1×16

SPECIFICATION

Fiber Optic PLC Splitter 1×16（Planar Lightwave Circuit Splitter）, either called Pigtailed Optical Branching Device. The role of the plc splitters are to distribute combined optical signals and is an important component used in passive optical networks (PON). Unlike traditional FBT splitters, PLC splitters are more compact and suitable for high-density applications.

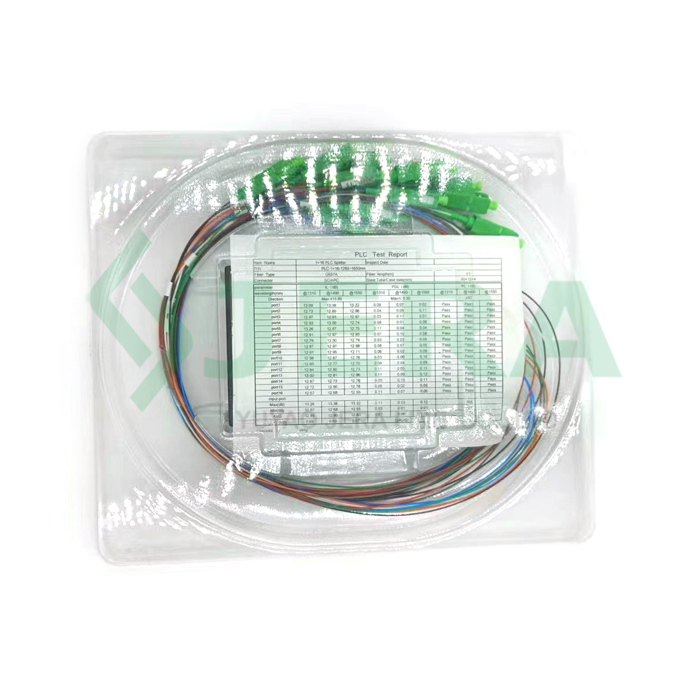

Sc/APC Plastic Box Fiber Optic PLC Splitter is a passive device used in fiber optic communication networks like fiber optic termination box to divide an optical signal into several branches. Its function is to distribute the incoming optical signal from one port to multiple output ports, offering a cost-effective and space-saving solution for fiber splitting.

read more

APPLICATION

In summary, the PLC splitter plays a vital role in fiber optic communication by improving network performance, reducing cost, and optimizing resource utilization effectively.

Jera line is operating according to ISO9001:2015, we have our own laboratory to proceed a series test accordance with European quality inspection standards.The test including Dielectrical test in water, UV and temperature aging test,Corrosion aging test,Mechanical Impact test,Low temperature assembly test,Material hardness test,Fire resistance test,Temperature and Humidity Cycling Test.

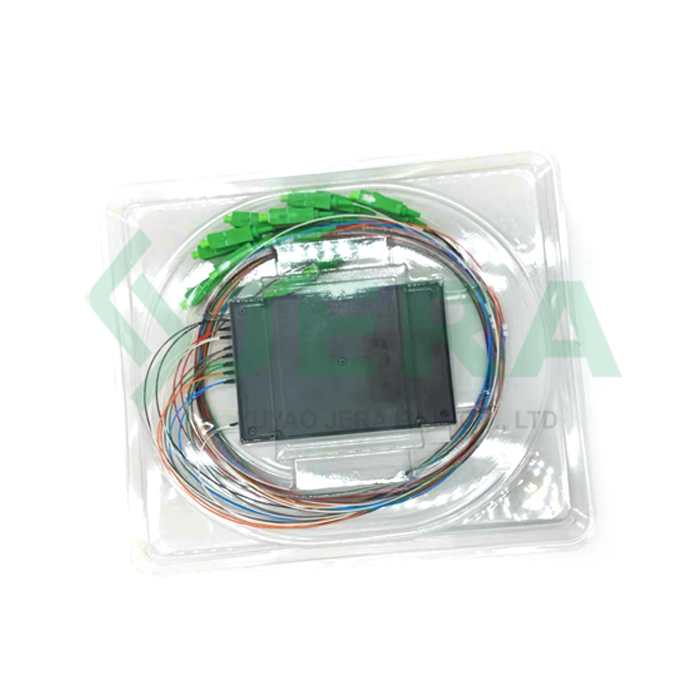

If you need PLC splitters, please feel free to contact our sales team for more details for this 1X16 ABS Box type Fiber PLC Splitter.

read more

Manufacturing

Watch Our Factory Video

Technical specification

type

1×16

Insertion Loss（dB）

≤13.7

Uniformity（dB）

≤1.2

Dimension length（mm）

140

Dimension width（mm）

114

Dimension height（mm）

20
