Fiber Optic Drop Cable with Steel Rods

Fiber Optic Drop Cable with Steel Rods, 2 Fibers

FOC-F-LSZH(BC)+2x0,4-Steel

Fiber Optic Drop Cable with Steel Rods other called bow type cable is designed to used indoor or outdoor, on last mile installation routes to connect final users to telecommunication network. Fiber optic cable are constructed from two optic fibers, reinforced and protected with special material to have good physical properties during fiber to home (FTTH) deployment.

Fiber Optic Drop Cable with Steel Rods, 2 Fibers

Features

Application: Outdoor
Fiber quantity: 2 fiber
Dimensions: 3.0*2.0 mm
Reinforcement: Steel

DESCRIPTION Specification Test

REVIEW

Key Features

Perfect for indoor distribution networks of fiber optics
High connecting usability, easy access to the fiber core
Reliability, reinforced by steel strength member
High flexibility design, fire redundant protect
Tensile load up to 600N, crushing load up to 1kn/10cm
Minimum dimension and weight of drop cable
UV radiation protection
Competitive price

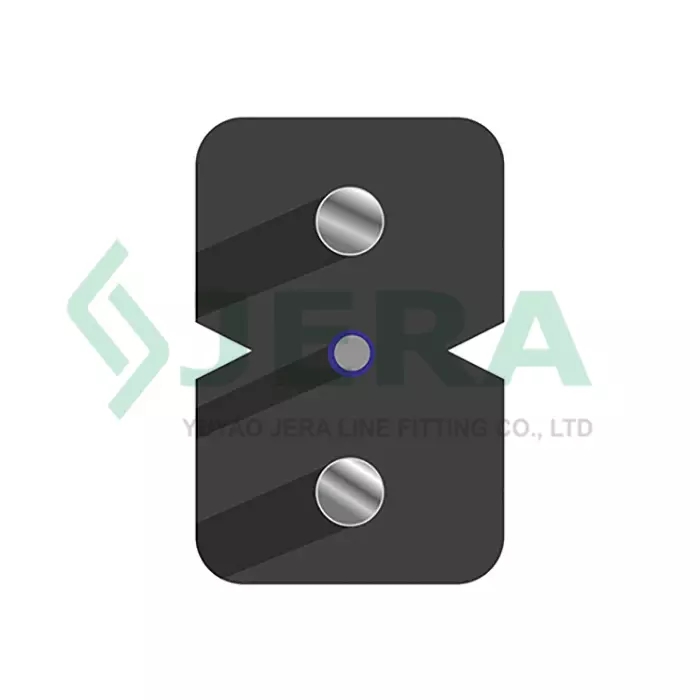

The cable consists of:

The cable dimensions:

- Width: 3.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 2 fiber.

Two of 0.4 mm diameter steel strength member/rod.

LSZH jacket sheath, UV protected.

Optical fiber of Single mode G.652.D or G.657A1, G.657A2 grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

The Steel rods maybe produced of 0.5 mm diameter up to customer request. Strength members maybe extra protected by galvanization treatment.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Item	Technology Parameters
Applications	Indoor, Outdoor
Product code	FOC-F-LSZH(BC)+2×0,4-Steel-2x657A1-2,0*0.3-1000
Cable specification	3.0*2.0
Fiber color	Natural, blue
Fiber type	SM, 9/125 (G.652.D, G.657A1, G.657A2)
Sheath color	Black(white color upon request)
Sheath material	LSZH
Cable dimension,mm	3.0(±0.2)*2.0 (±0.2）
Strength member	Steel rod, d=0.4mm
Cable wight, kg/km	Approx. 10.5
Min. Bending radius mm	7.5(Static) 15 (Dynamic)
Attenuation, dB/km	≤0.4 at 1310nm, ≤0.3 at 1550nm
Short term tensile, N	200
Crush resistance, N/100mm	2200
Operation temperature, ℃	-60~+70
