Outdoor Fiber Optic Termination Box
/
Outdoor Fiber Termination Boxes ABS-type IP54

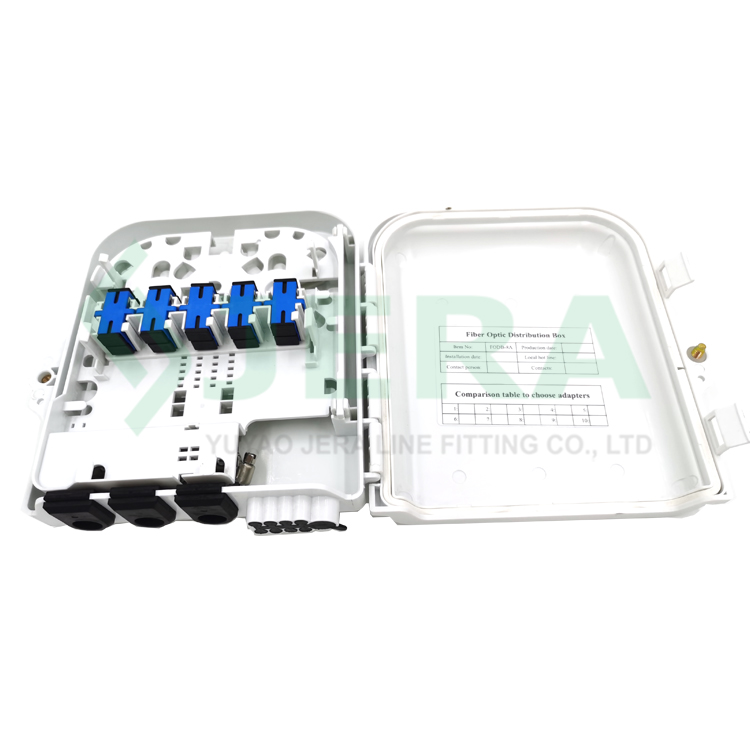

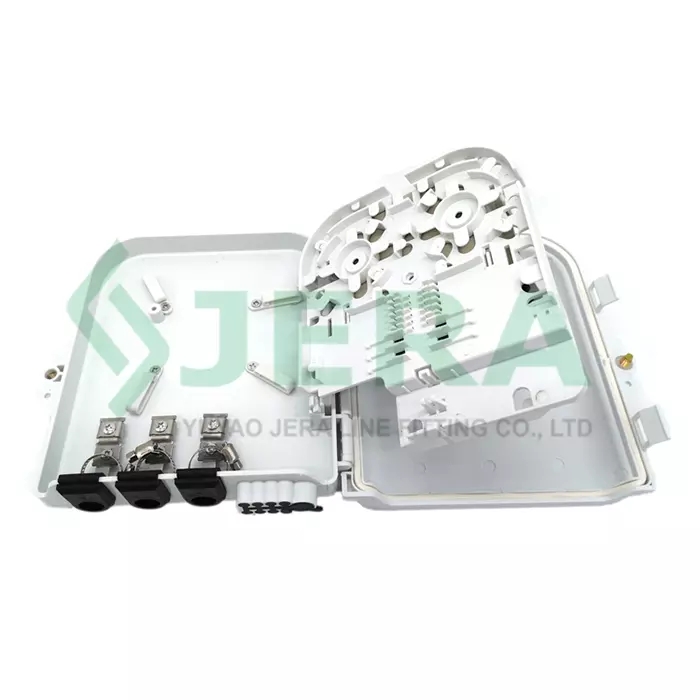

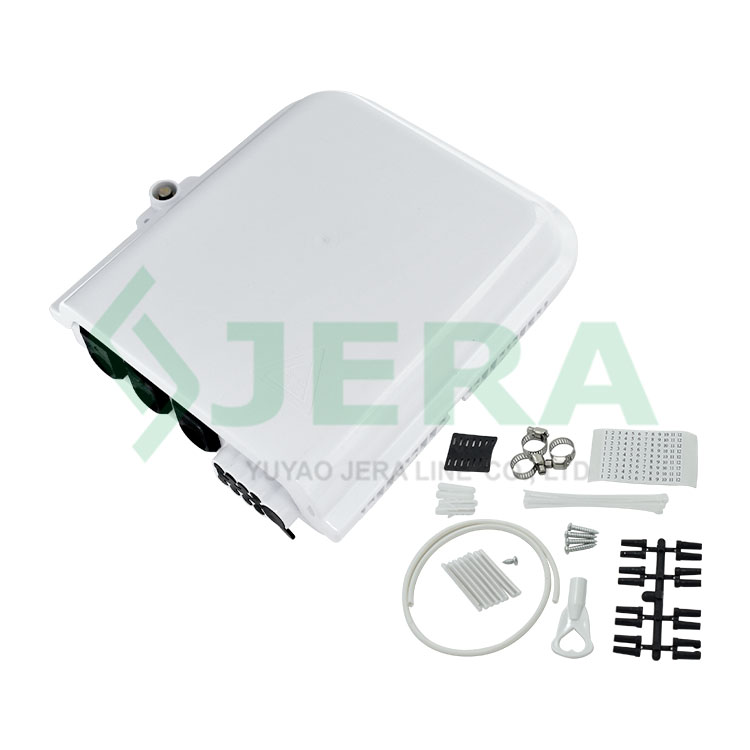

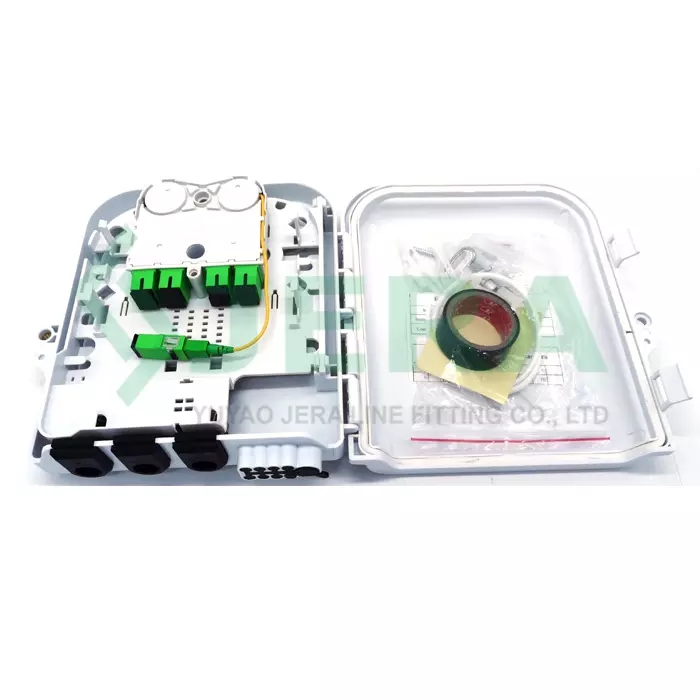

Fiber optic distribution box, FODB-8A-3+C2

FTTH distribution box FODB-8A-3+C2 also called fiber access distribution box, is a device developed to terminate and distribute feeder optic cable to fiber optical cords, patch cords, pigtail cords on the routes of last mile to users during FTTH telecommunication network constructions.
Fiber optic distribution box, FODB-8A-3+C2
Features

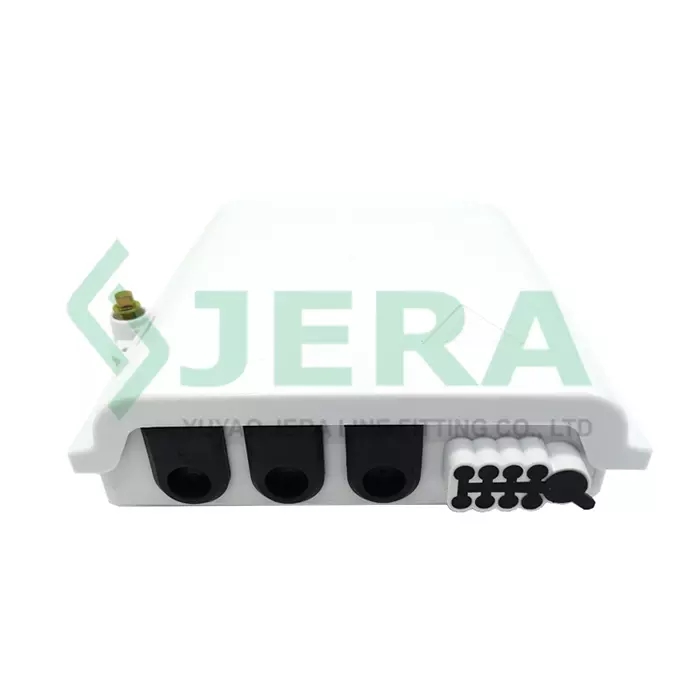

    • Feeding cable: 3 of Ø17
    • Drop cable:8 of ∅3, 1 of ∅10
    • Max splicing capacity: 8 (16*)
    • IP protection：53
Contact Us
DESCRIPTION Specification Test
REVIEW

Application

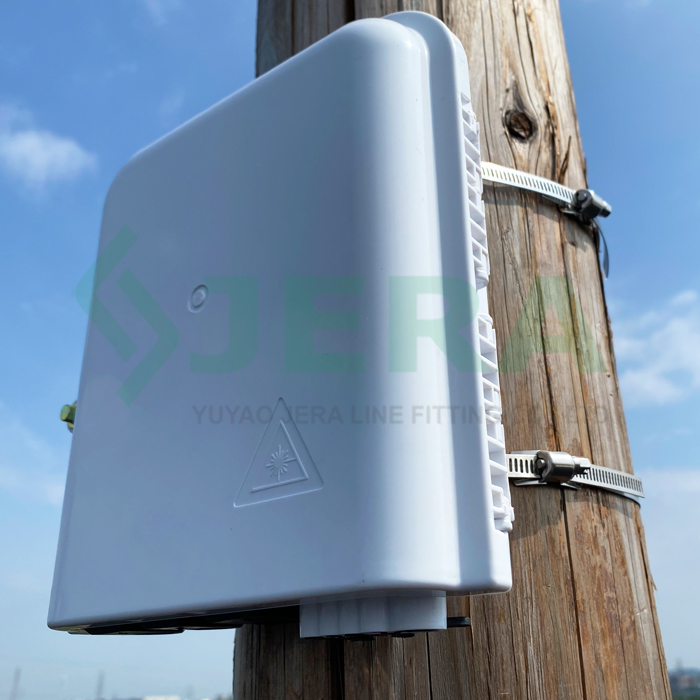

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.







Technical specification

Product code

FODB-8A-3+C2

Feeding cable dimensions, mm:

3 of ∅17

Drop cable dimensions, mm:

8 of ∅3, 1 of ∅10

Max splicing capacity:

8 (16*)

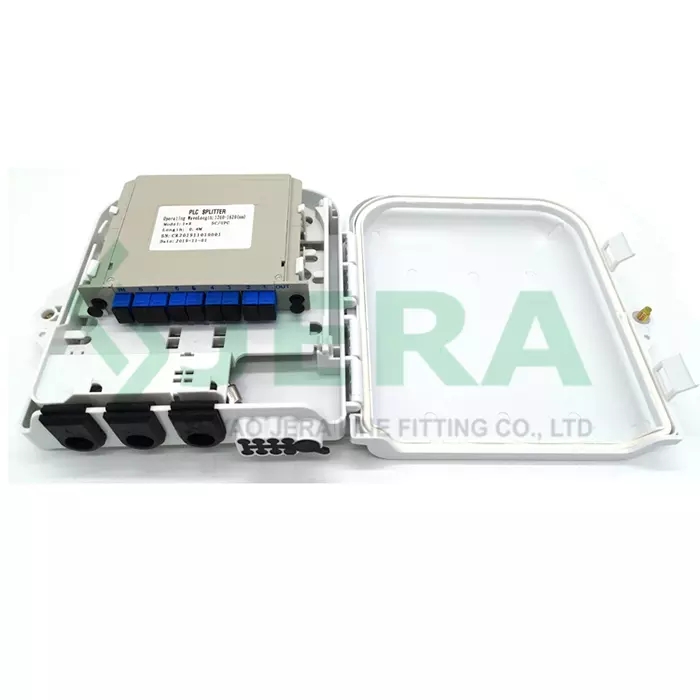

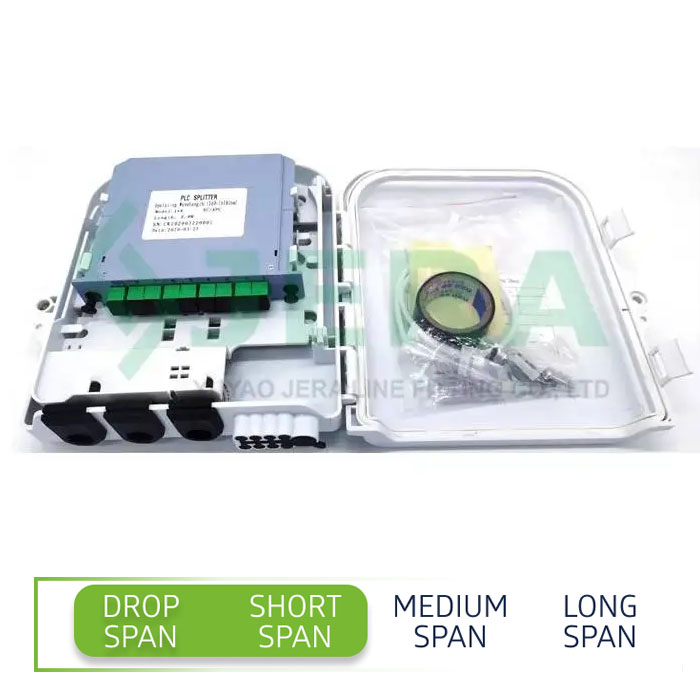

PLC splitter, cassette 128x100x25 mm

1 of 1:8

PLC splitters , blockless 60x7x4 mm

1 of 1:8 or 2 of 1:4

IP protection

53

Overall dimensions, mm

210×195×55

* two layers for storage of fiber splicing tubes
