Ftth fiber optic cable

Fiber optic cable with FRP wire and FRP rods, 1 fiber

FOC-F8-1,0-FRP-LSZH(BC)+2x0,5-FRP

Ftth fiber optic cable also called Ftth fiber optic cable is designed to used indoor and outdoor, on last mile installation routes to connect final users to FTTH or GPON line. 4 fiber self-support cable is applied when request small size and high mechanical strength on middle span of network constructions.

Fiber optic cable with FRP wire and FRP rods, 1 fiber

Features

Application: Outdoor
Fiber quantity: 1 fiber
Dimensions: 5.0 *2.0mm
Reinforcement: FRP

DESCRIPTION Specification Test

REVIEW

Key Features

Perfect for indoor and outdoor distribution networks
High connecting usability, easy access to the fiber core
Full dielectric design, reinforced by FRP strength member
High flexibility design, fire redundant protect
Tensile load rating up to 1.8kn, crush load up to 2.2kn/10cm
Minimum dimension and weight of drop cable
UV radiation protection for long time usage
Competitive price

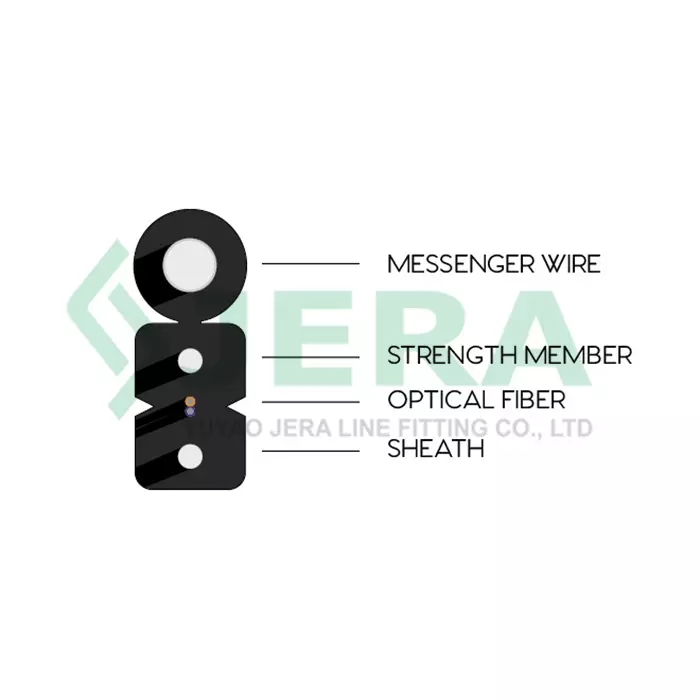

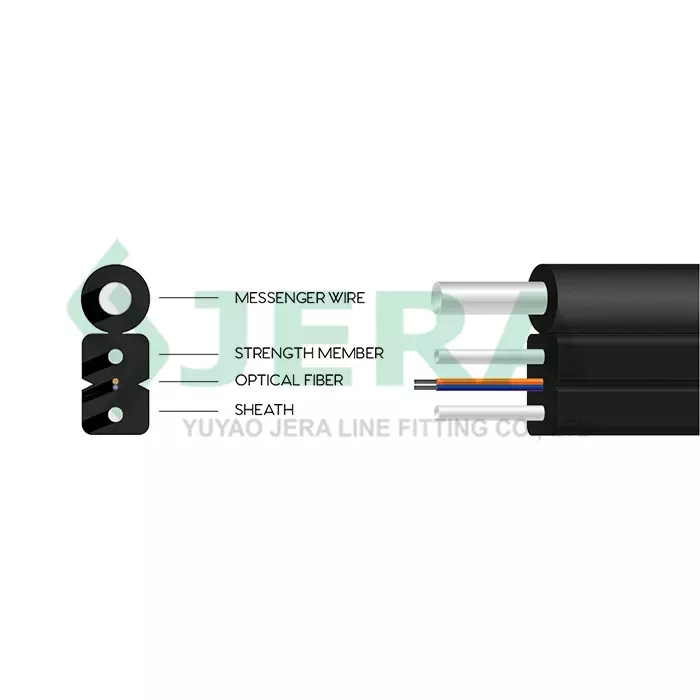

The cable consists of:

The cable dimensions:

- Width : 5.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 1 fiber.

One of 1.0 mm diameter and two of 0.5 mm diameter FRP rod.

LSZH jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

Strength members maybe extra protected by galvanization treatment.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Item	Technology Parameters
Applications	Outdoor
Product code	FOC-F8-1,0-FRP-LSZH(BC)+2×0,5-FRP-1x657A1-2,0×5,0-1000 m
Cable specification	5.0*2.0
Fiber color	Natural,blue,yellow,green
Fiber type	SM, 9/125 (G.652.D, G.657A1, G.657A2)
Sheath color	Black(white color upon request)
Sheath material	LSZH
Cable dimension,mm	5.0(±0.2)*2.0 (±0.2）
Messenger wire	FRP, d=1.0mm
Strength member	FRP rod, d=0.5mm
Cable wight, kg/km	Approx.16
Min. Bending radius mm	10(Static) 25 (Dynamic)
Attenuation, dB/km	≤0.4 at 1310nm, ≤0.3 at 1550nm
Short term tensile, N	1800
Crush resistance, N/100mm	2200
Operation temperature, ℃	-60~+70
