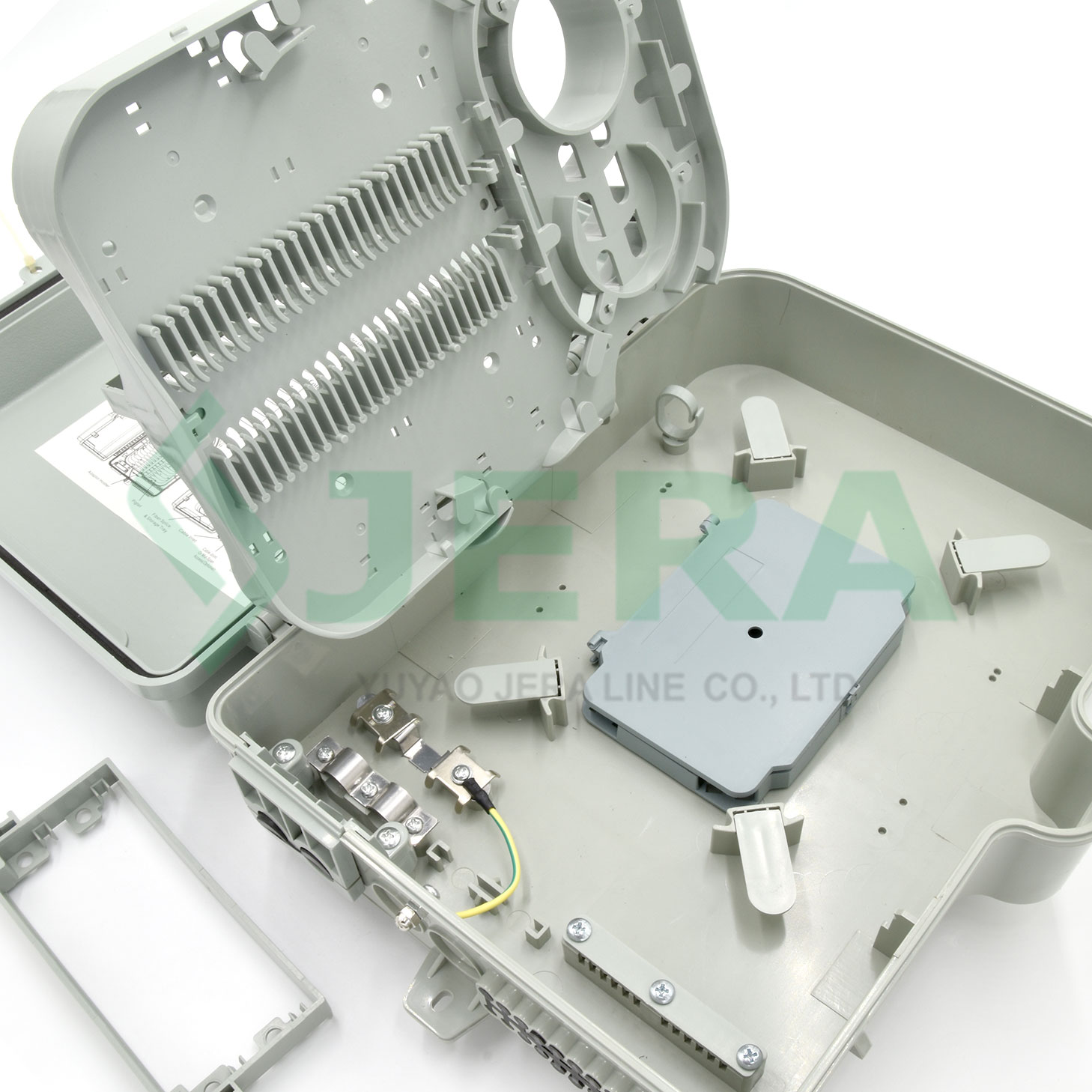

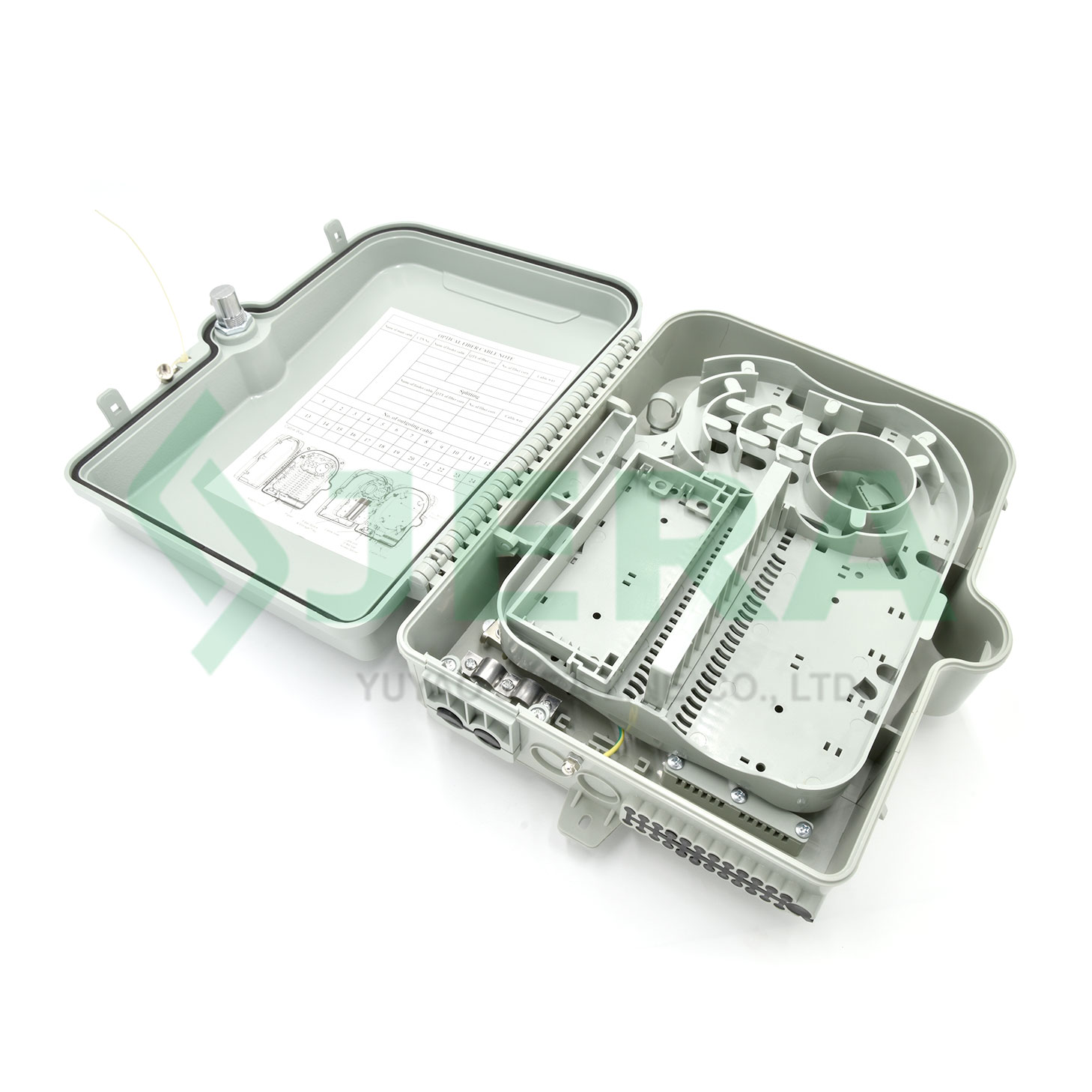

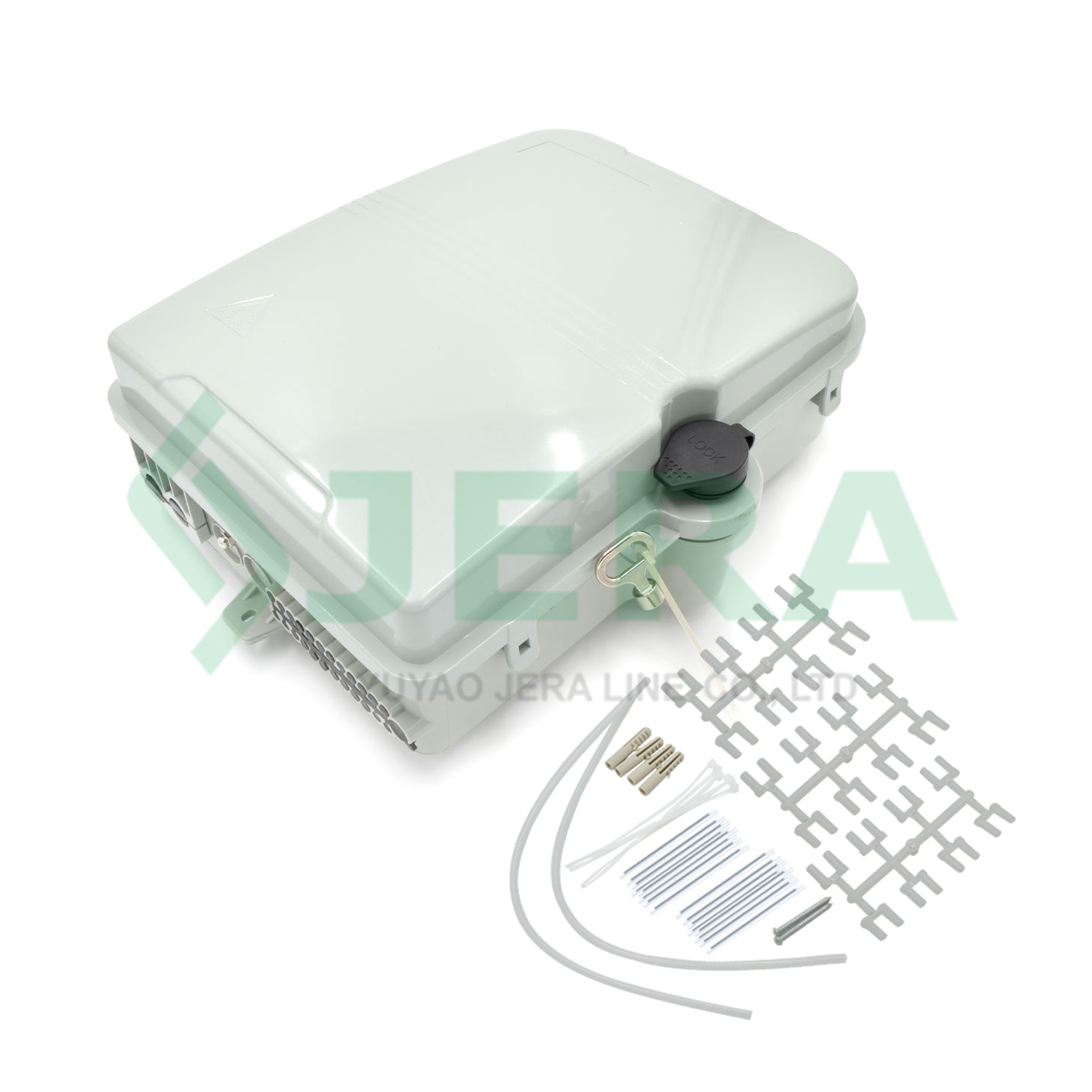

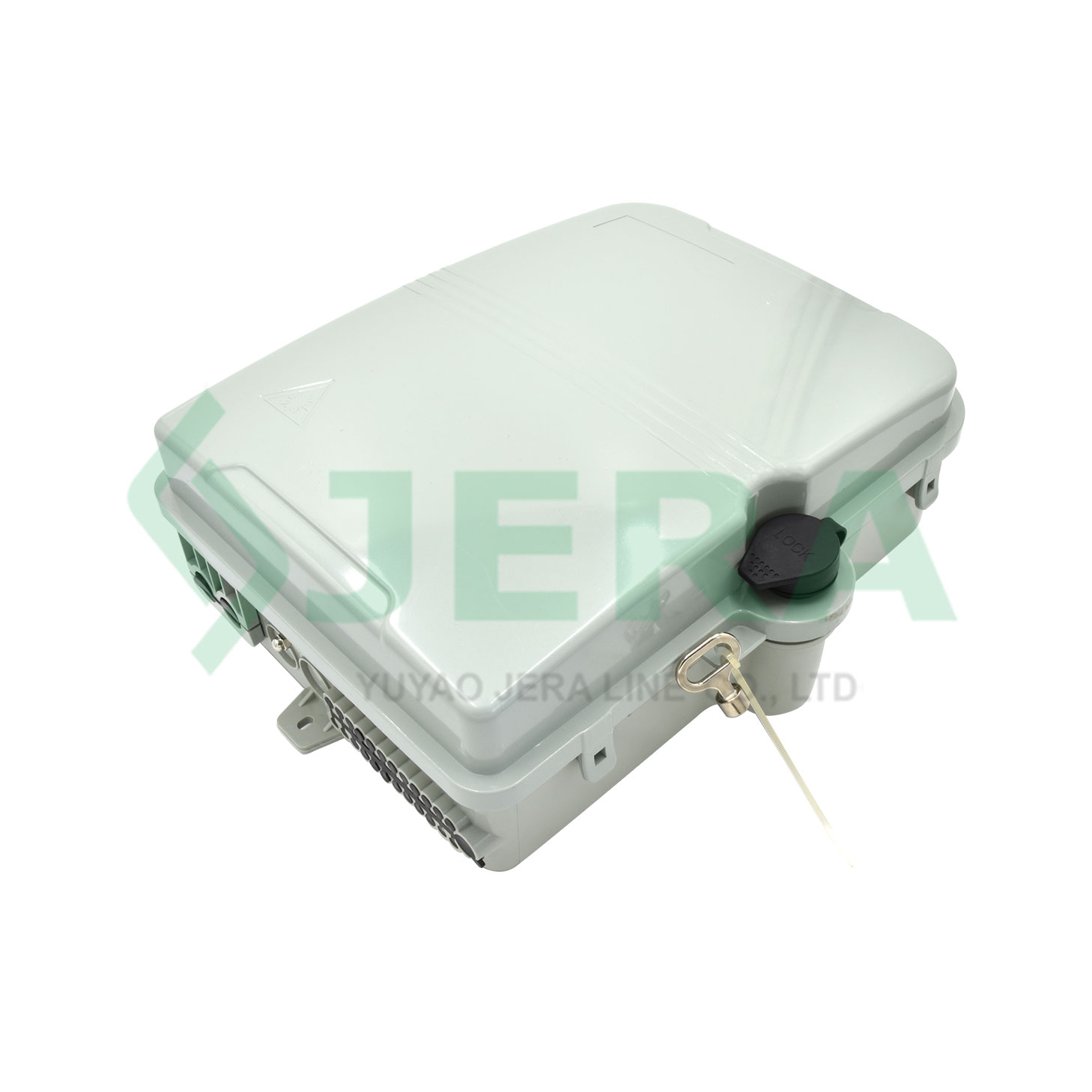

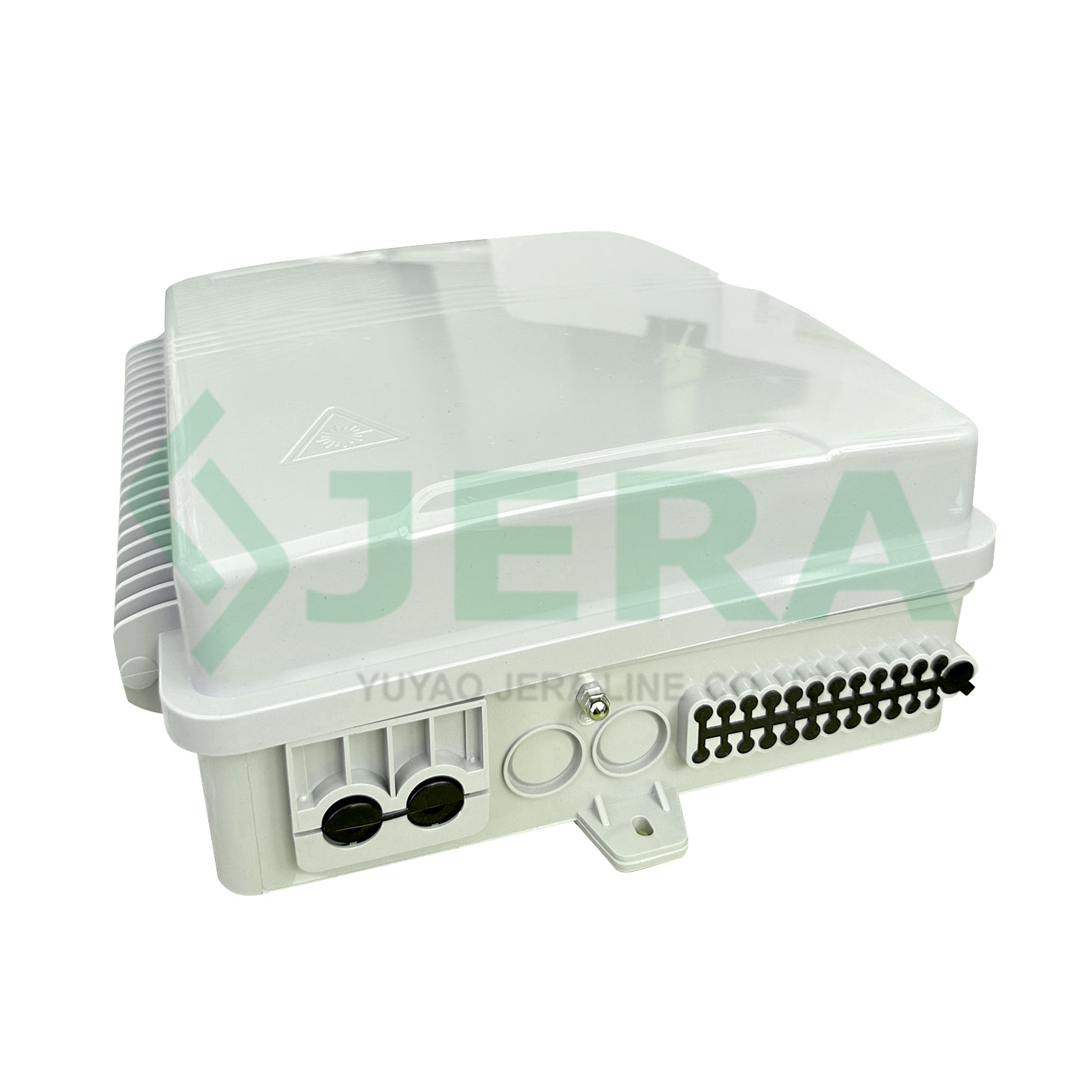

Fiber optic cable terminaion box, FODB-24A

Fiber optic cable terminaion box, FODB-24A,is a device used to terminate and distribute feeder optic cable to fiber optical cords, patch cords, pigtail cords on the routes of last mile to users during FTTH telecommunication network constructions.

Features

Feeding cable: 2 of Ø15
Drop cable: 24 of ∅3; 3 of ∅10
Adapter SC type: 24
Material: ABS,PVC

DESCRIPTION Specification Test

REVIEW

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

Key features

2 cable inputs and 13 outputs ports;

Intergrated seal sealed , wet and dust proof;

Appropriate for PLC splitters, SC adapter installation;

Made of high quality ABS and PVC, with high mechanical strength;

No ground device, anti-vandal and equipped with lock and key;

Interior stainless steel ties allow fixating feeder cable of different size without slippage;

Provide quick and easy access for drop cable connection;

Easy operation, screw installation on wall;

Excellent environment stability.

Technical specification

Product code	FODB-24A
Feeders	2
Inputs cable diameters, mm	2 of max dia 15mm
Output drop cables, mm	24 of max dia 3mm and 3 max dia 10mm
Dimensions, mm	350280100
Adapter	24 SC
Material	ABS,PVC

Test

UV and temperature aging test

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

Anchor clamps
Fiber optic cable
Fiber optic splice closures
Fiber optic distribution boxes
FTTH drop cable clamp

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
