Outdoor Fiber Optic Termination Box
/
Outdoor Fiber Termination Boxes ABS-type IP54
/
/
/
/
/
/

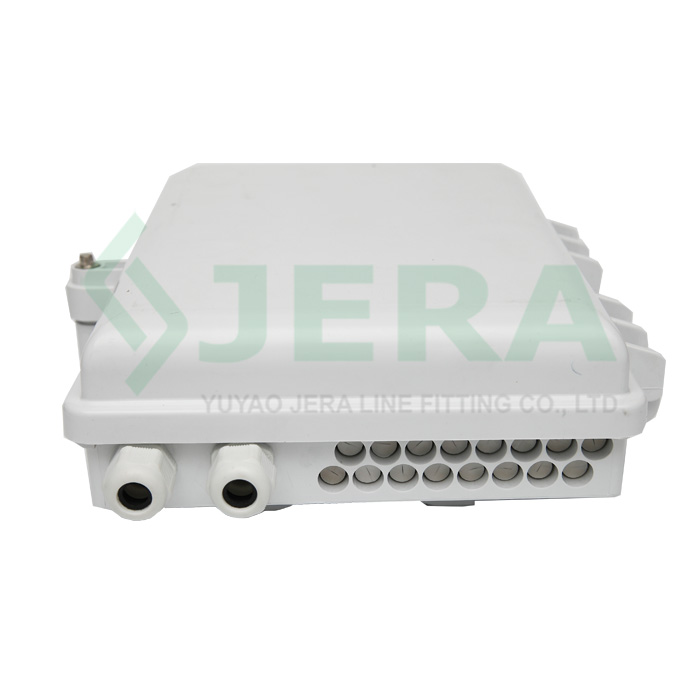

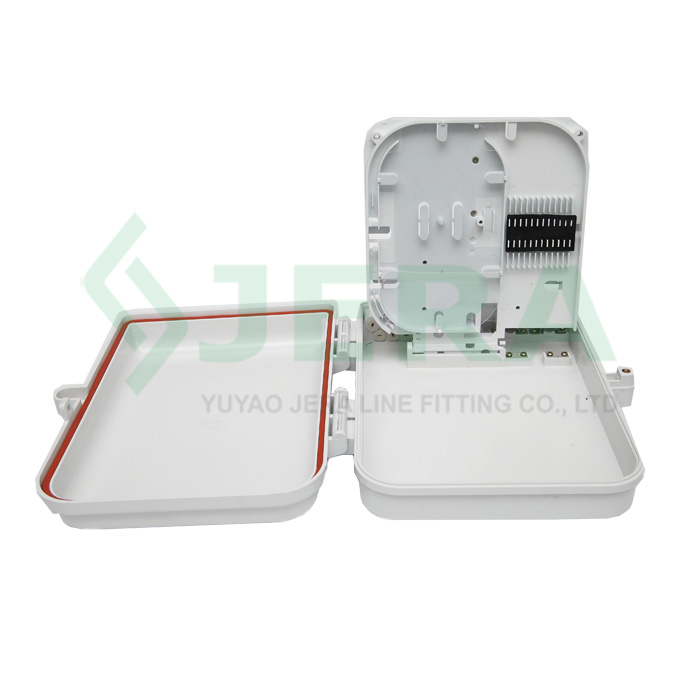

Fiber optic cable distribution box, FODB-16X

Fiber optic cable distribution box FODB-16X also called 16 core fiber distribution box, is a device used to terminate and distribute feeder optic cable to fiber optical cords, patch cords, pigtail cords on the routes of last mile to users during FTTH telecommunication network constructions.
Fiber optic cable distribution box, FODB-16X
Features
    • Feeding cable: 2 of Ø17
    • Drop cable: 16 of Ø3
    • Max splicing capacity: 16
    • Adapter SC type: 16
Contact Us
DESCRIPTION Specification Test
REVIEW

Application

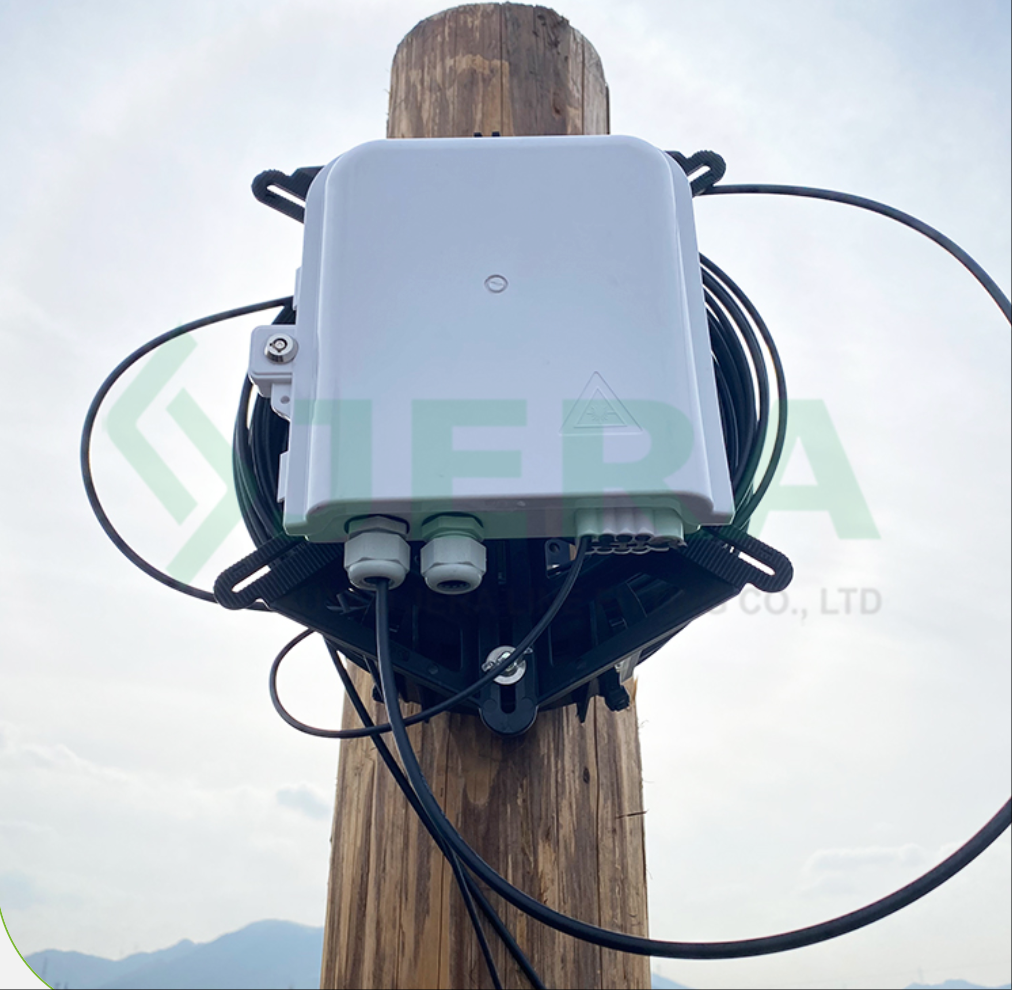

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.





Technical specification

Product code

FODB-16X

Feeding cable dimensions, mm:

2 of ∅17

Drop cable dimentions, mm:

16 of ∅3

Max splicing capacity:

16

Adapters, SC type:

16

PLC splitters , blockless 60x7x4 mm

1 of 1:8 or 2 of 1:4

IP protection

53

Overall dimensions, mm

320×260×90

* two layers for storage of fiber splicing tubes
