Fiber Floor Box, FODB-8A-B

Fiber Floor Box, FODB-8A-2B

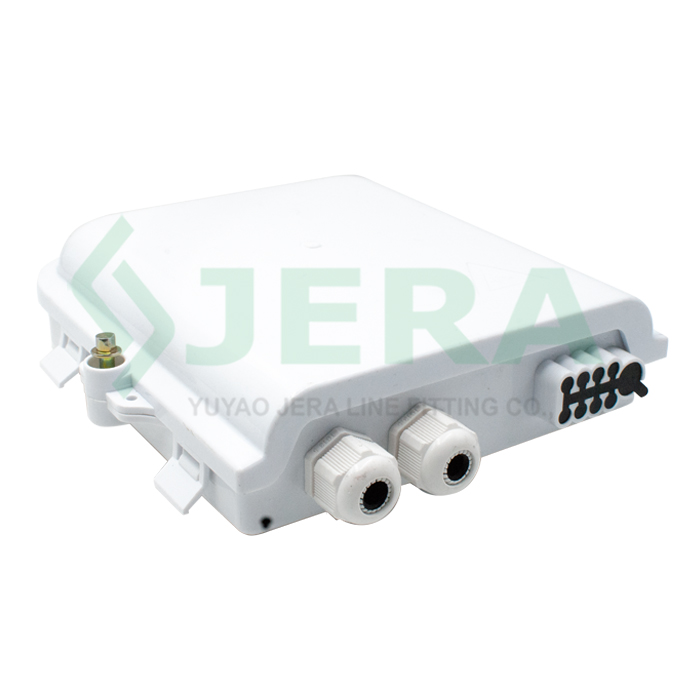

Fiber Floor Box, FODB-8A-2B other called fiber optical distribution box, is a device developed to terminate feeder optic cable to fiber optical cords, patch cords, pigtail cords on the routes of last mile to users during FTTH network line deployments.

Features

Feeding cable: 2 of Ø12
Drop cable: 8 of ∅3, 1 of ∅10
Max splicing capacity: 8 (16*)
Adapter SC type: 10+2

DESCRIPTION Specification Test

REVIEW

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

Technical specification

Product code	FODB-8A-2B
Feeding cable dimensions, mm:	2 of ∅12
Drop cable dimensions, mm:	8 of ∅3, 1 of ∅10
Max splicing capacity:	8 (16*)

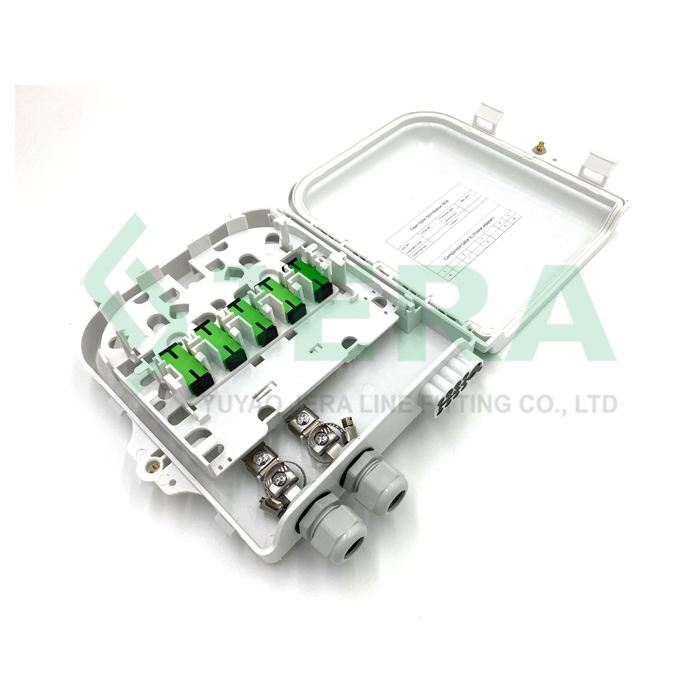

Adapters, SC type:	10+2

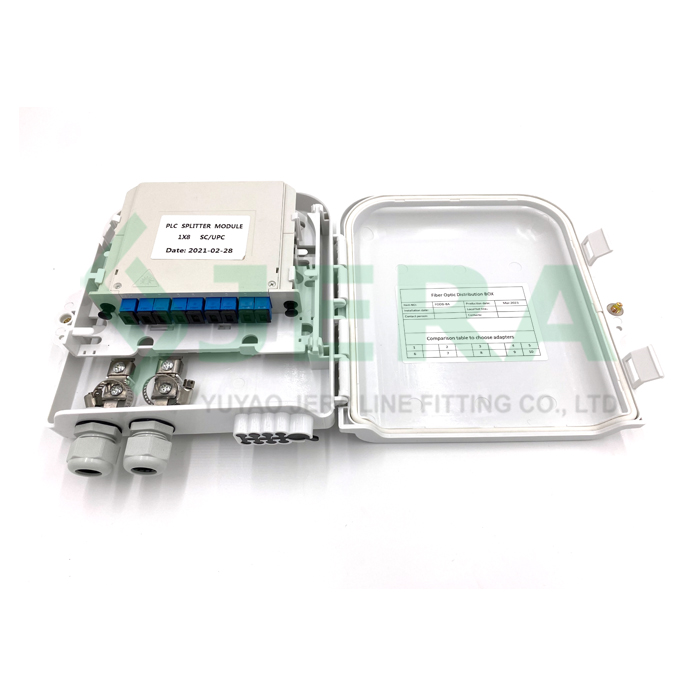

PLC splitters , blockless 60x7x4 mm	1 of 1:8 or 2 of 1:4
IP protection	53
Overall dimensions, mm	210×195×55

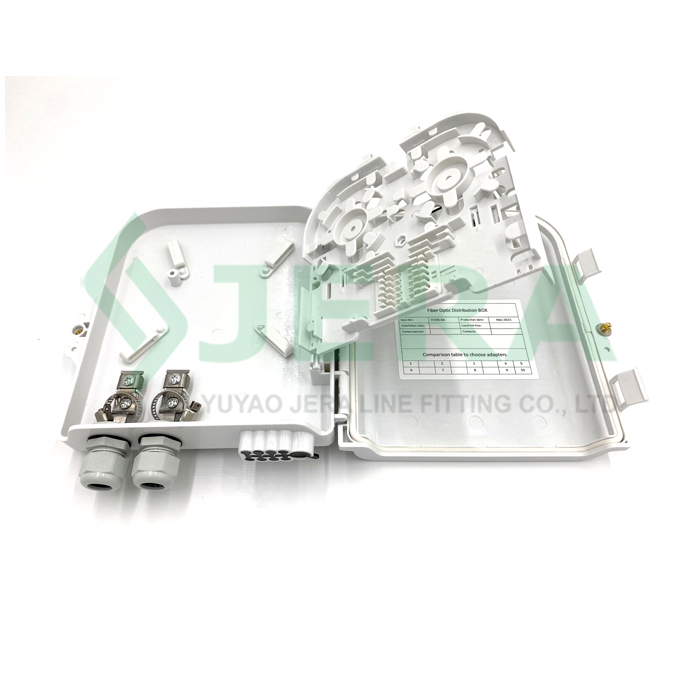

* two layers for storage of fiber splicing tubes

Key Features

1. 2 cable inputs and 9 outputs ports
2. Intergrated seal sealed , wet and dust proof
3. Appropriate for PLC splitters, SC adapter installation
4. Made of high quality ABS and PVC, with high mechanical strength
5. No ground device, anti-vandal and equipped with lock and key
6. Provide quick and easy access for drop cable connection
7. Easy operation, screw installation on wall and stainless steel on pole
8. Excellent environment stability

Test

The box use the materials which is according to standard of ABS ABS - type IP54.

ABS - type IP54" refers to a device or component whose shell is made of ABS plastic and has a protection level of IP54.

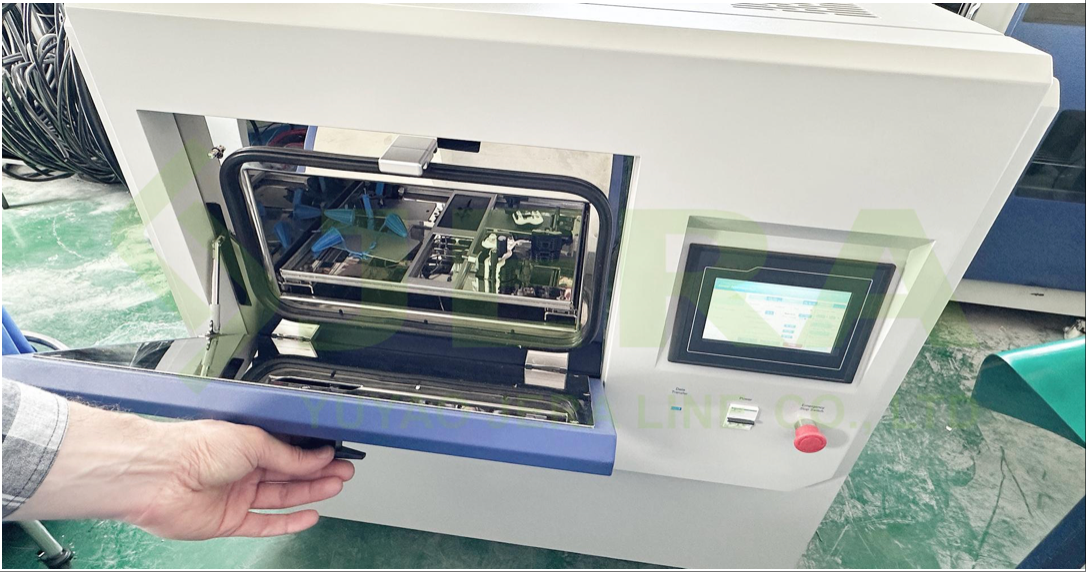

We use standard IEC 61284 to perform the climate aging test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.

Welcome to contact us for further information.
