Fiber cable tension bracket, CA-1500.1

Fiber cable tension bracket CA-1500.1

CA-1500.1

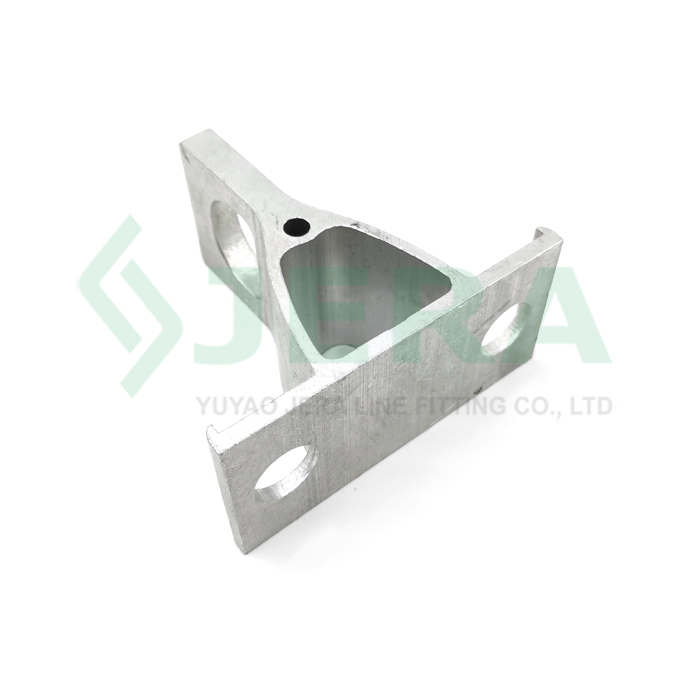

Fiber cable tension bracket CA-1500.1, also called aerial anchor bracket developed for tensioning the Adss cable clamps or Figure 8 optic cable clamps in outdoor FTTH line constructions together with fiber optic cable.

Features

Bracket type: Tension
Application: Pole
Span: 70-200 meters
MBL: 20 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Easy install and operate to save costs
Aluminum alloy material, corrosion resistant and durable
Stainless steel bands or bolts installation
Excellent environmental stability
With high mechanical strengths
Competitive price

Fiber cable tension bracket CA-1500.1, also called aerial anchor bracket developed for tensioning the Adss cable clamps or Figure 8 optic cable clamps in outdoor FTTH line constructions together with fiber optic cable.

The Adss cable bracket is made of high strength aluminum alloy, by die casting production technology, due to the material configuration this bracket is rust-proof and with good environment stability.

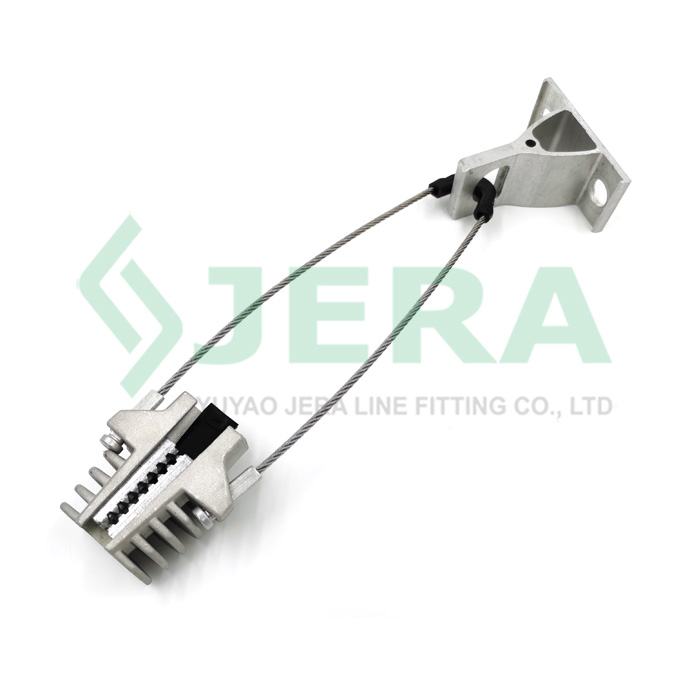

The pole bracket CA-1500.1 has high mechanical strengths which is allow it to be used with ADSS anchor clamps or figure eight anchor clamp at a long duration of time under a sufficient mechanical load.

read more

In addition, the installation of this FTTH bracket is very easy, it can be installed on wall or pole by bolts or stainless steel bands, which were produced by Jera line in a reliable quality and competitive price.

Fiber optic cable bracket inspected by variety of tests which are available in our internal laboratory, , such as Temperature and humidity cycling test, Tensile strength test, Aging test, Corrosion resistance test etc. These tests ensure that our product can be used in various harsh weather conditions.

Jera line produce all the fiber optical cable accessories for ftth network constructions and provide the whole set of accessories to our clients, such as ADSS cable clamps, cable bracket, stainless steel straps, buckle, hooks, **fiber optic splice closure** , fiber optic distribution boxes.

Welcome to contact us for this overhead pole line bracket.

read more

Manufacturing

Watch Our Factory Video

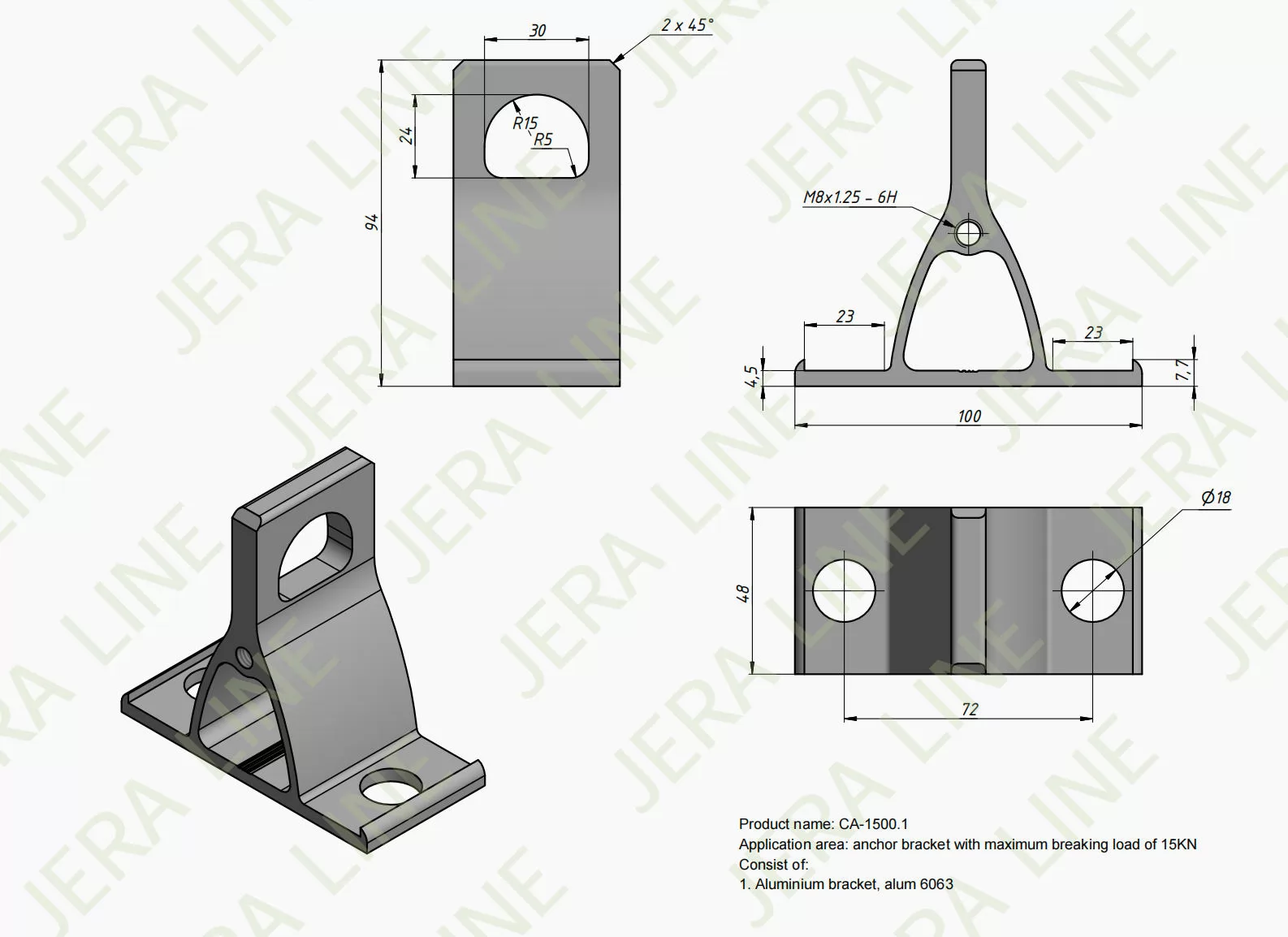

Technical specification

Product code	MBL, kN	Weight. kg	Material
CA-1500.1	20	0.11	Aluminum alloy
