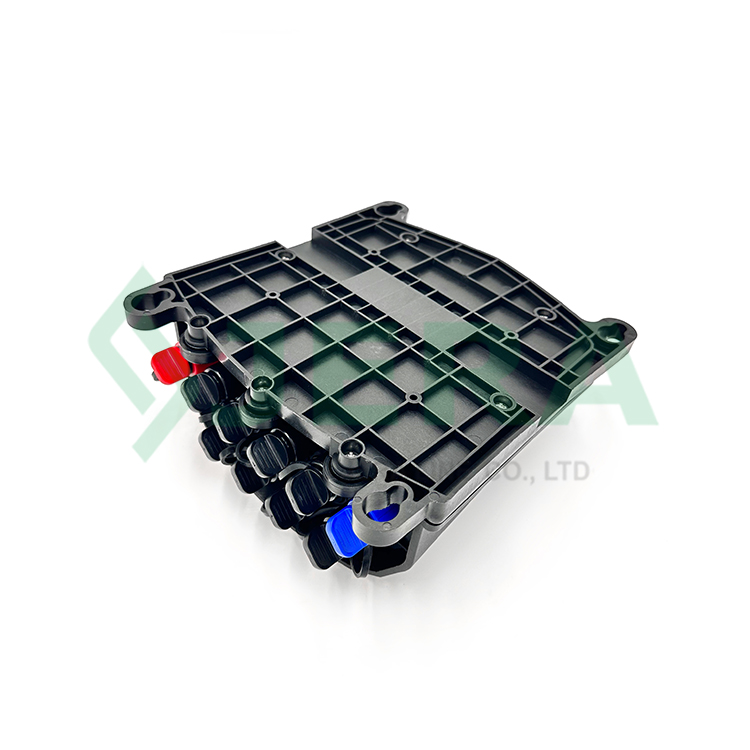

Fiber access terminal FAT-8M

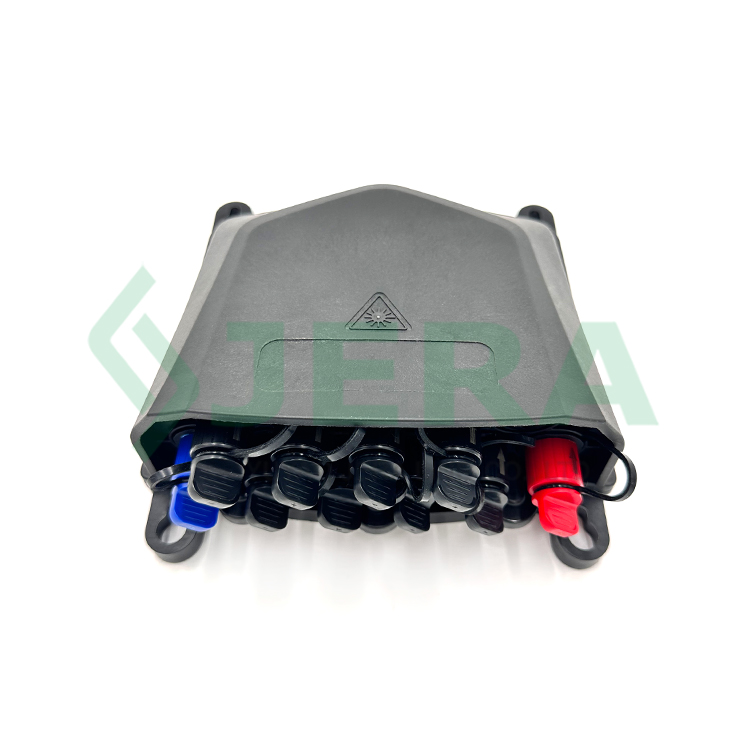

Fiber access terminal FAT-8M either called Pre Terminal Connectorized Quick ODN Box，is a type of fiber termination box used for fiber-to-the-home (FTTH) or fiber-to-the-building (FTTB) applications. It is designed to connect and protect fiber optic cables and equipment in the outdoor environment. The FAT-8M features an eight port FOSC (Fiber Optic Splice Closure) and is capable of storing up to 8 fusion splices and 8 mechanical splices. The box also has a cable management system to ensure neat a

Features

Compact size with high-density fiber capacity
Easy to install and maintain:don’t need to open the cover to use
High-quality performance: UV resistant, corrosion resistant plastic
Wide range of operating temperatures
Cost-effective: factory direct price

DESCRIPTION Specification Test

REVIEW

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Technical specification

Product code	FAT-8M
Feeding cable dimension（mm）	1 of Bayonet type
Drop cable dimension（mm）	8+1 of Bayonet type
Max Fiber splicing capacity	2
Adapters，SC type	10+1 Bayonet type
Blockless PLC splitters 60×7×4mm	1:2 FBT(70:30 or customized)+1:8 PLC
Overall dimensions（mm）	195X195X85
