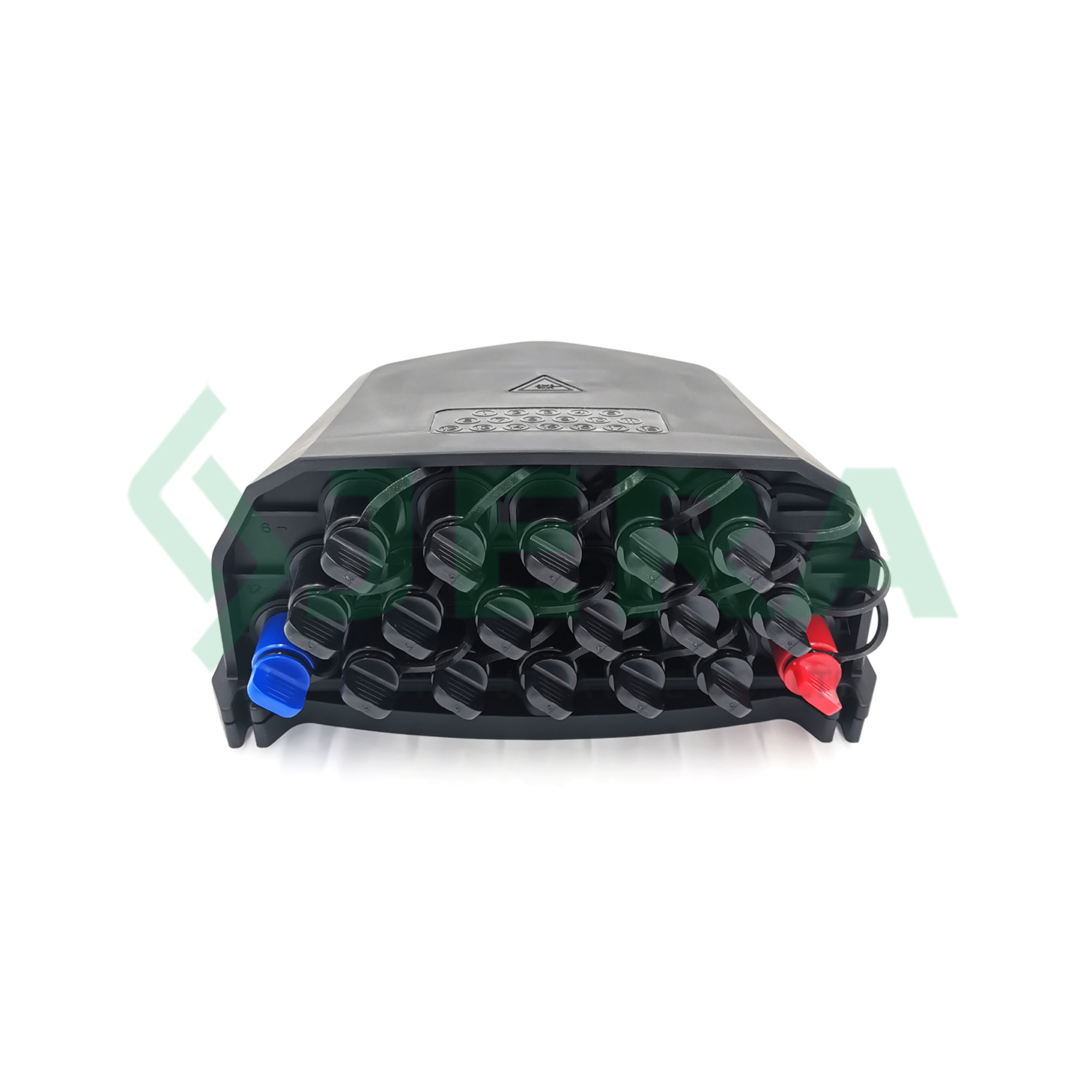

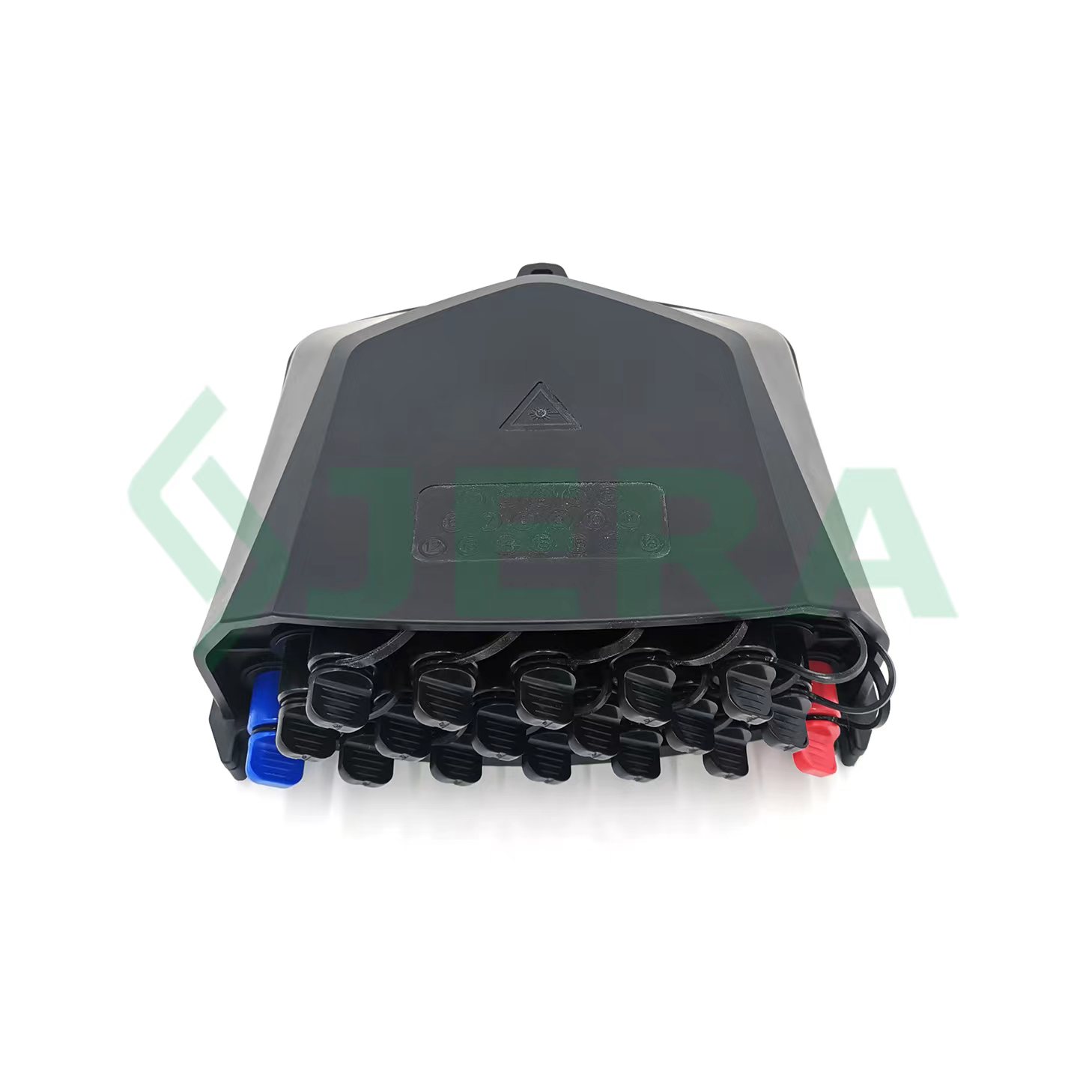

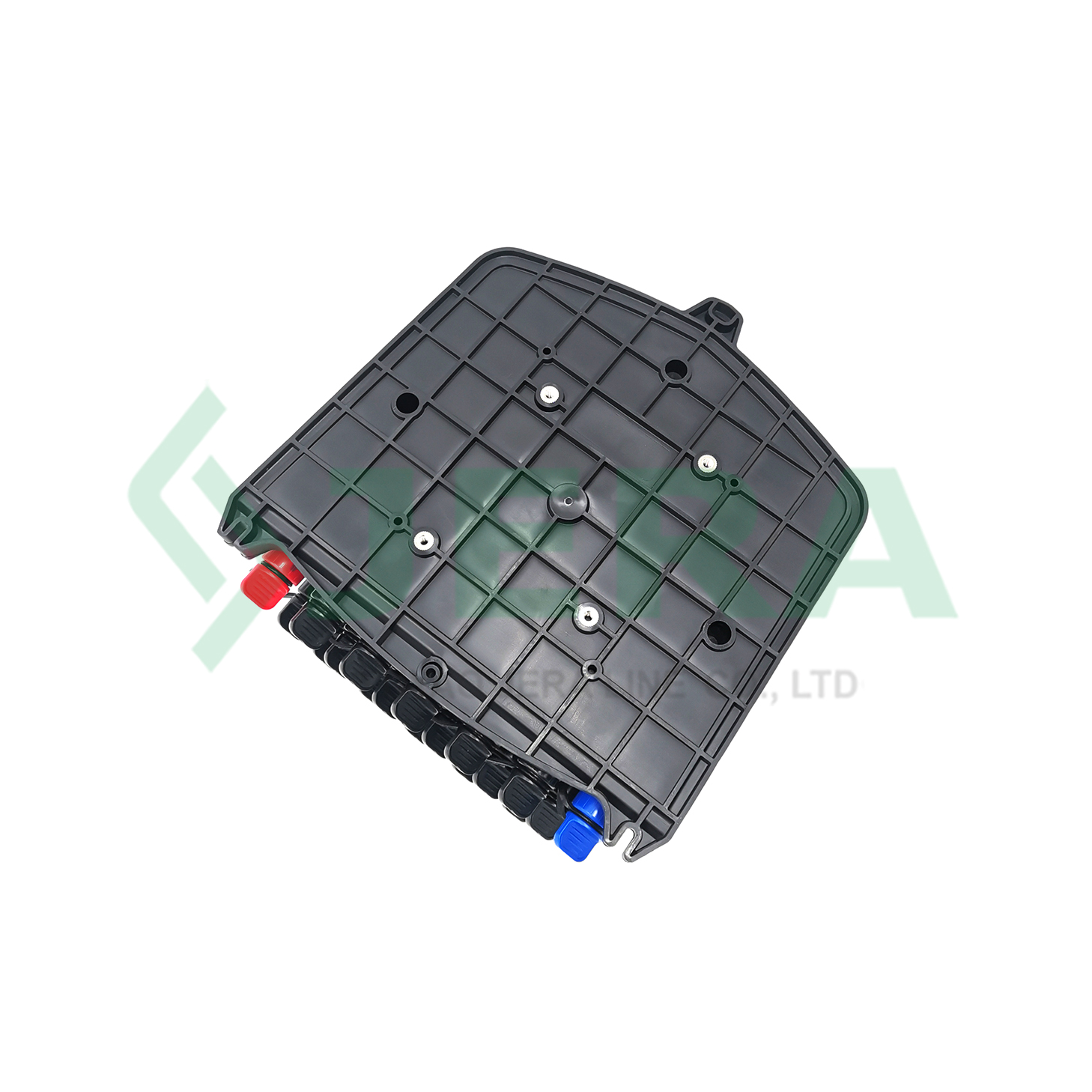

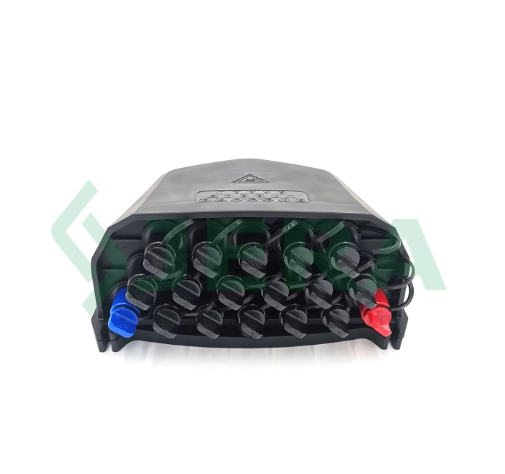

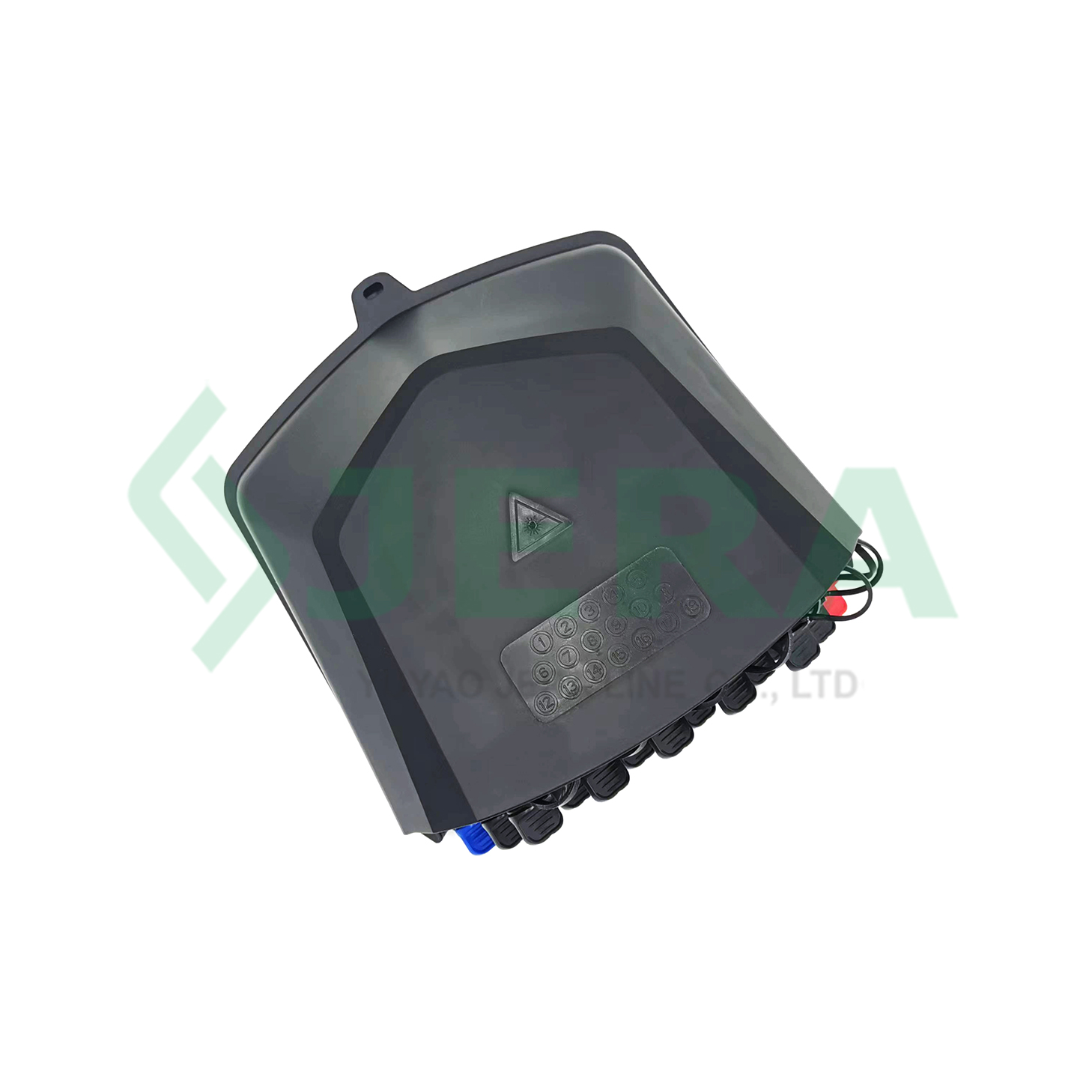

Fiber access terminal FAT-16M

Fiber access terminal FAT-16M either called FTTH Optical Fiber Distribution Box FAT-16M，is a terminal device for optical fiber access network. It has the characteristics of optical fiber access, multiple ports, high-speed transmission and management functions, and is suitable for various optical fiber access network application scenarios.

Features

Water-proof design with IP65 Protection level
With multiple ports, can be connected simultaneously
No need to open the box to connect
Comes complete with brackets and bandings、
Excellent anti-seismic effect
UV-blocking high-performance materials
Factory direct sales, high quality and low price

DESCRIPTION Specification Test

REVIEW

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Technical specification

Product code	FAT-16M
Total ports	18 of Mini SC hardened
Feeding cable	1 of Mini SC hardened (Bayonet type)
Drop cables	16+1 of Mini SC hardened (Bayonet type)
Max Fiber splicing capacity	2
Blockless PLC splitters 60×7×4mm	1:2 FBT(70:30 or customized) + 1:16 PLC
Overall dimensions（mm）	230230110
