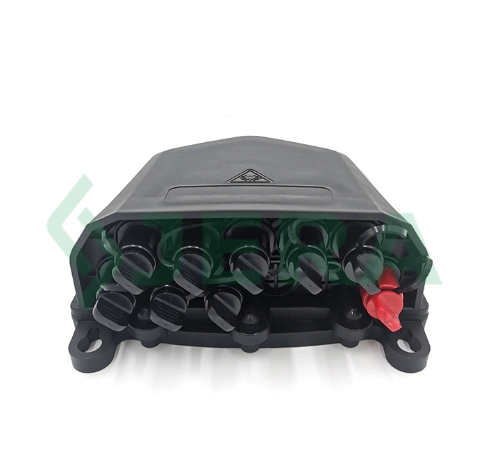

Fiber access terminal box FAT 8M-9-1X8 PLC

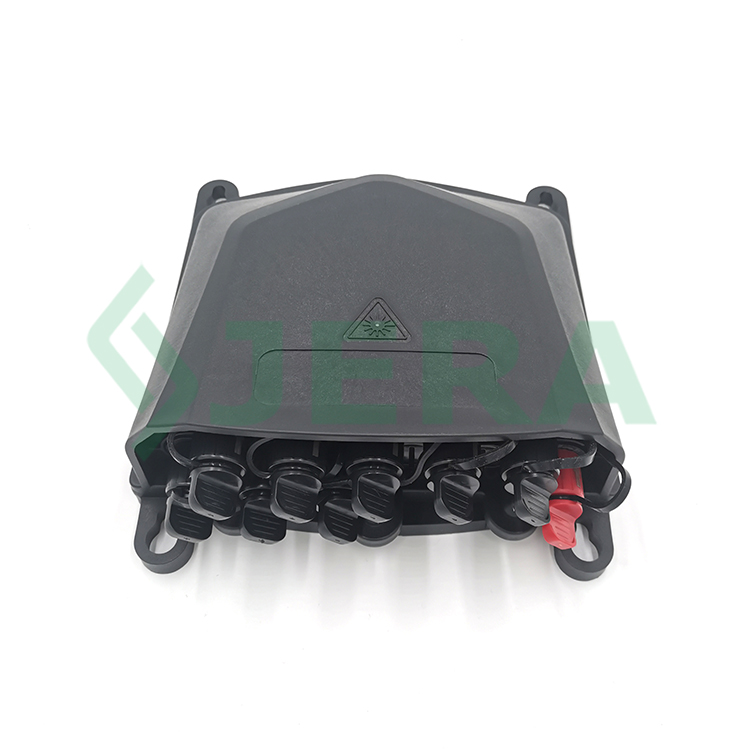

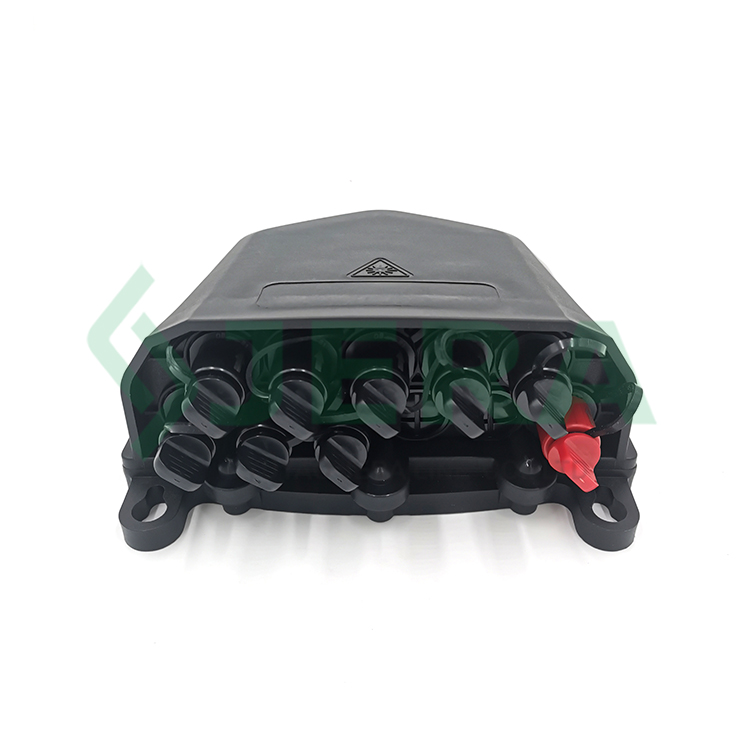

Fiber access terminal box FAT 8M-9-1X8 PLC either called FTTH outdoor fiber optic nap box, uses fast connect technology for splicing, distribution and splitting of wiring and drop-in optical cables. FAT hardened type enclosures are specially designed for outdoor use and have 1 input port and 8 output ports for connecting fiber optic cables and terminal equipment.

Features

Plug and play, no splicing required
Hardened type mini SC adapters, and connectors.
Made of UV-resistant engineering plastics

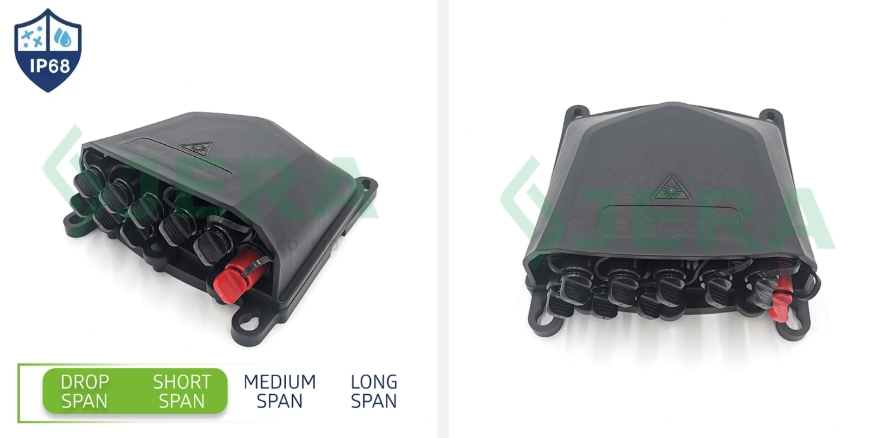

Designed for outdoor applications, IP68 protection

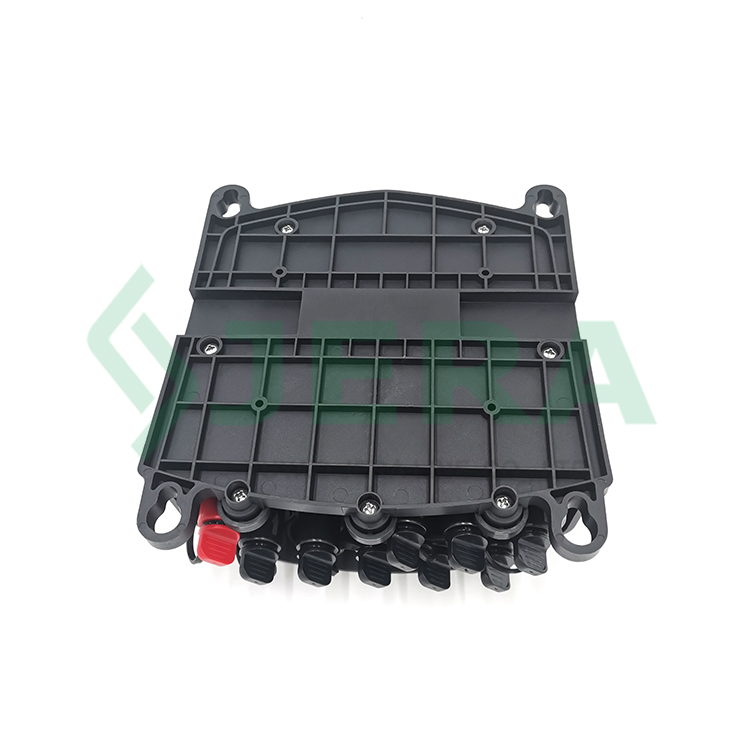

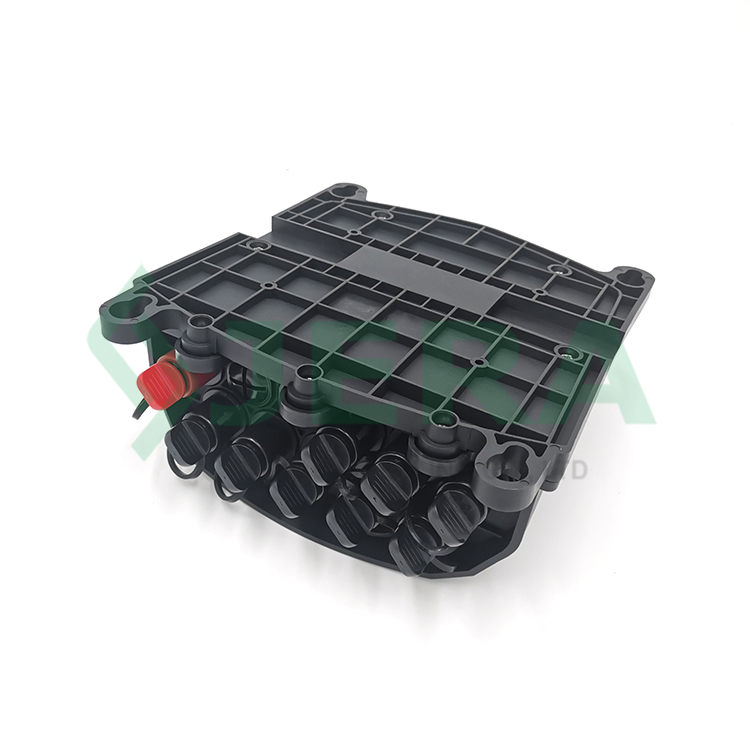

Secured by bolts, maybe opened for further terminations.
Compact design

DESCRIPTION Specification Test

REVIEW

Full outdoor for FTTH end user applications by PLC splitter and hardened mini SC connectors.

Technical specification

Product code	FAT-8M -9
Feeding cable dimension （ mm ）	1 of Hardened type mini SC
Drop cable dimension （ mm ）	8 of Hardened type mini SC
Max Fiber splicing capacity	2
Adapters , SC type	9 Hardened type mini SC
Blockless PLC splitters 60×7×4mm	1:8 PLC
Overall dimensions （ mm ）	195X195X85
