Fast Connect Drop Cable

Fast Connect Drop Cable

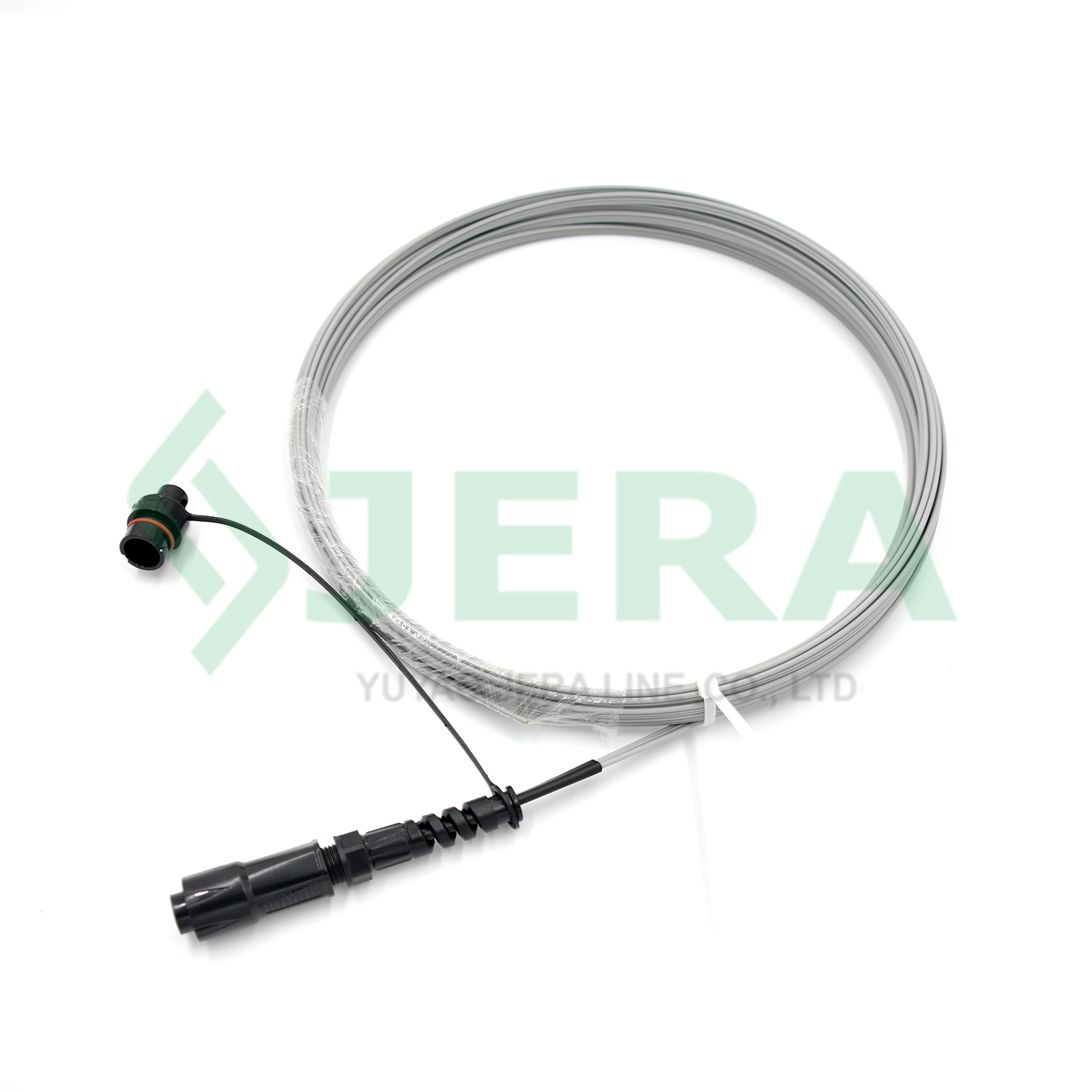

Fast Connect Drop Cable for Outdoor SC/APC/FDC-SA-GJYXCH-1B6a2 Sinalemode,55m,G.657A2 ,LSZH,2*5.3mm bowtype cable Gray color. Fast Connect Drop Cable is a type of fiber optic cable Pre Connectorized which designed specifically for Fiber-to-the-Home (FTTH) or Fiber-to-the-Premises (FTTP) deployments. It’s ideal for “last mile” connections, where the fiber optic cable connects the main distribution network to individual homes or businesses. FastConnect drop cables are engineered for quick installa

Features

DESCRIPTION Specification Test

REVIEW

Key Features

Reduced Installation Time and Costs
Pre-Connectorized Ends
High connecting usability, easy access to the fiber core
High Bandwidth Capability
Available in Different Fiber Types
Competitive price

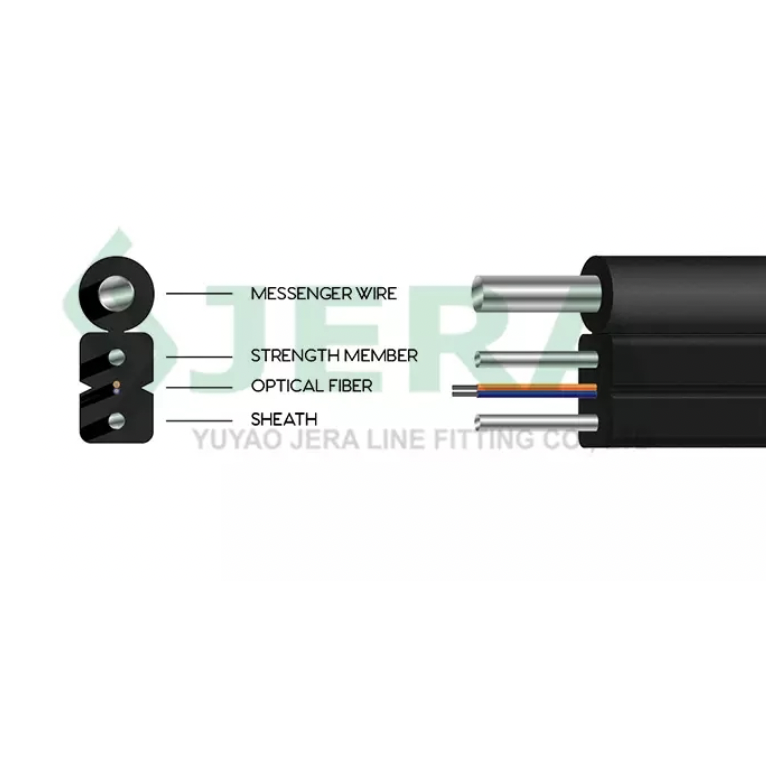

The cable consists of:
The cable dimensions:
“- Width: 5.0 ± 0.2mm
- Height: 2.0±0.2mm
Fiber quantity is 1 fiber.
Two of 0.4 mm diameter steel strength member/rod.
LSZH jacket sheath, UV protected.
Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.
The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.
The Steel rods maybe produced of 0.5 mm diameter up to customer request. Strength members maybe extra protected by galvanization treatment.
LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Item	Technology Parameters
Applications	Outdoor
Product code	SC/APC/FDC-SA-GJYXCH-1B6a2 Sinalemode,55m,G.657A2 ,LSZH,2*5.3mm bowtype cable Gray
Fiber color	Natural
Fiber type	SM, 9/125 (G.652.D, G.657A1, G.657A2)
Sheath color	Gray (Black color upon request)
Sheath material	LSZH
Cable dimension,mm	5.0(±0.2)*2.0 (±0.2）
Strength member	Steel rod, d=0.4mm
Attenuation, dB/km	≤0.4 at 1310nm, ≤0.3 at 1550nm
Tensile strengh, N	200
Operation temperature, ℃	-60~+70
Protection Grade	IP65
