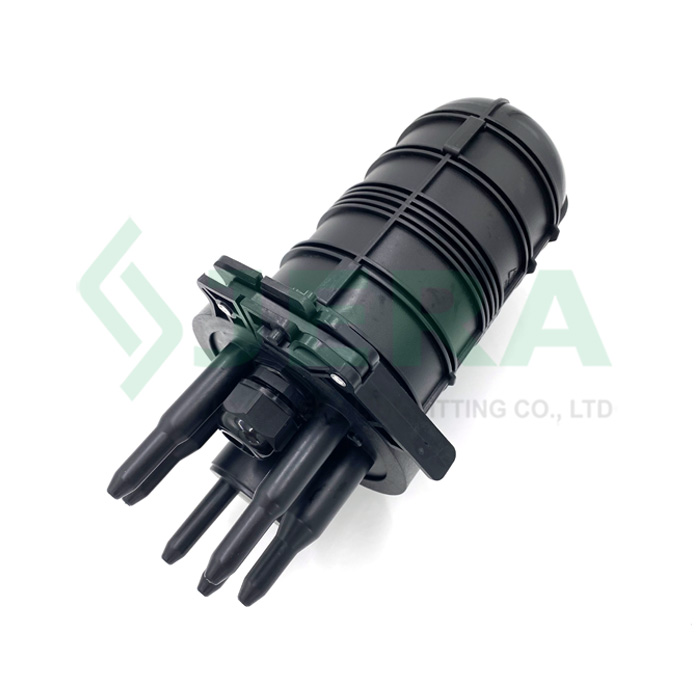

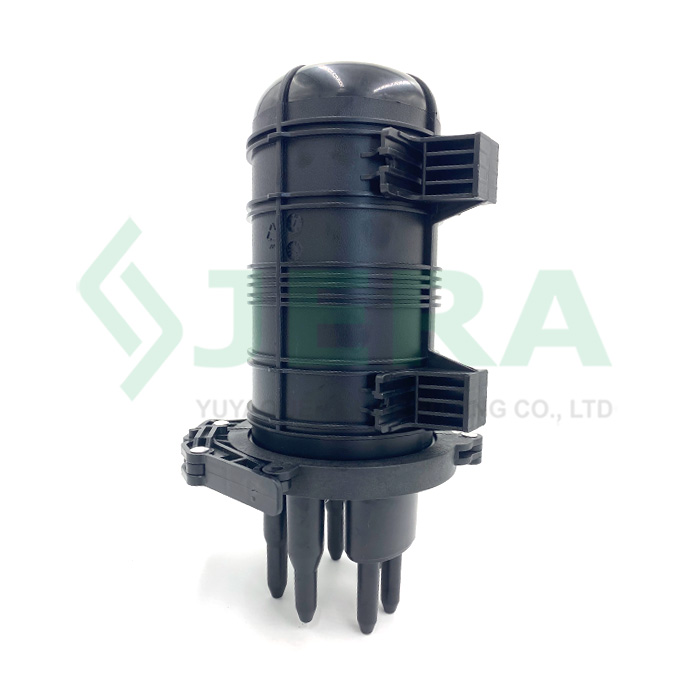

Drop cable closure FOSC-2A.5 (32)

Key Features

• IP63 protection for outdoor application
• Covenient installation by stainless steel bandings
• The dome may remain be fixed on the pole, once you need to open the closure.
• May be equipped with accessory to distribute up to 8 of drop cables
• Universal for SC adapters and PLC blockless splitter application

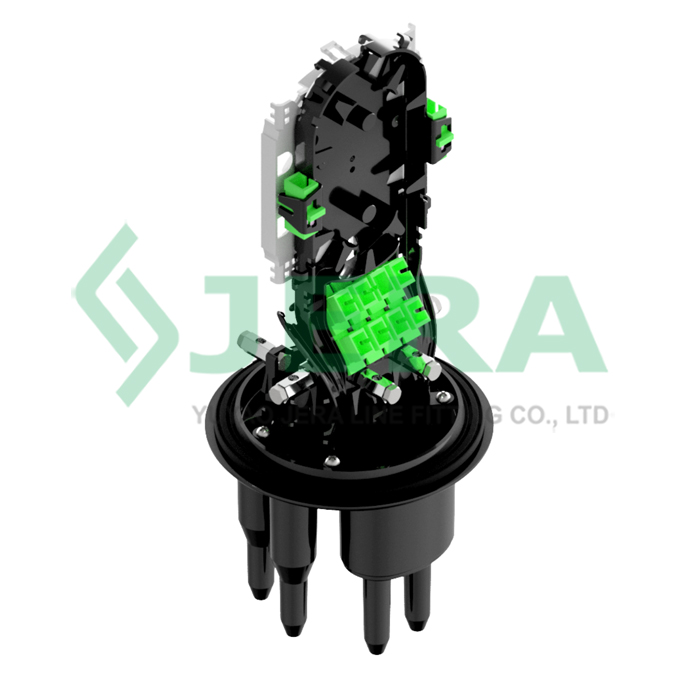

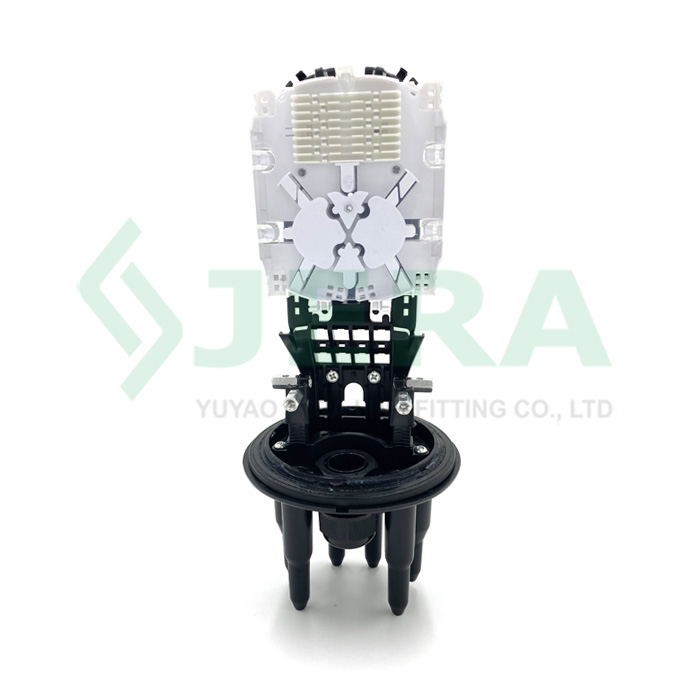

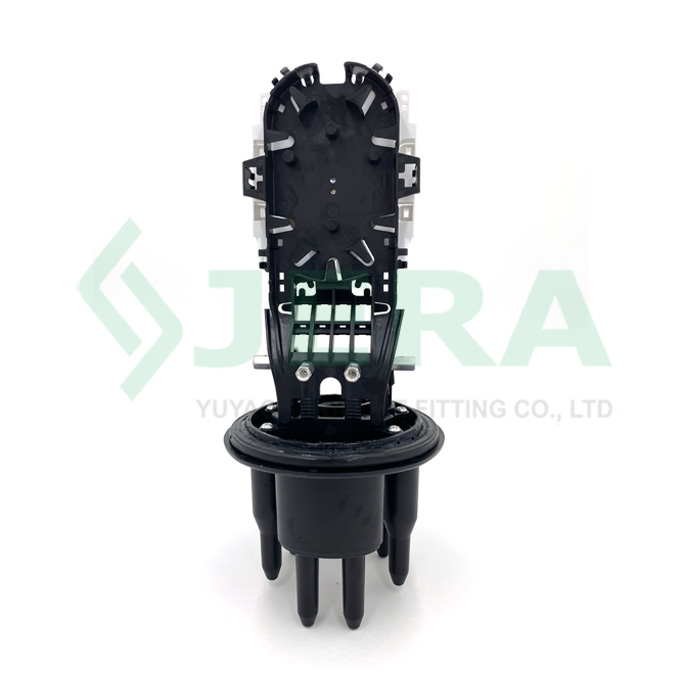

• Improved size of splice tray, more space for fiber splicing
• Fiber tray is made of soft material, holds tubes tightly, with less accidental damage possible
• Competitive price of Drop cable closure

Specification

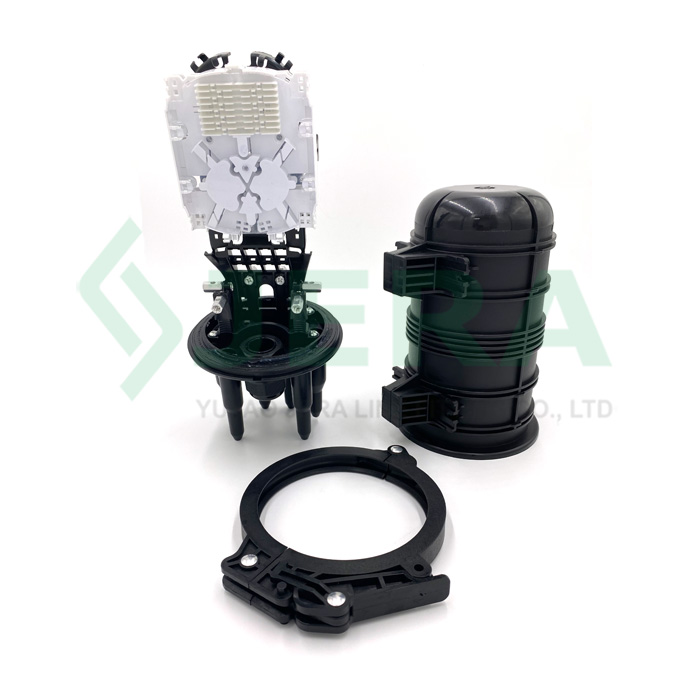

The cable boxes consist of:

The box dimensions:

- Length: 320 mm

- Width：180 mm

- Height: 180 mm

Max fiber splicing capacity: 16 (32*)

Material: ABS

Fiber optic box is a connection device in fiber optic communication, which usually consists of a casing, a base, a plug board, a panel, a protection piece, and a distribution frame. The device is used to provide functions such as fiber optic cable connection, amplifier access, protection and distribution of fiber optic cable ends.

ABS plastic is a terpolymer of three monomers: acrylonitrile (A), butadiene (B) and styrene (S). A makes it resistant to chemical corrosion, heat, and has a certain surface hardness, B makes it have high elasticity and toughness, and S makes it have the processing and molding characteristics of thermoplastics and improve electrical properties.

Application

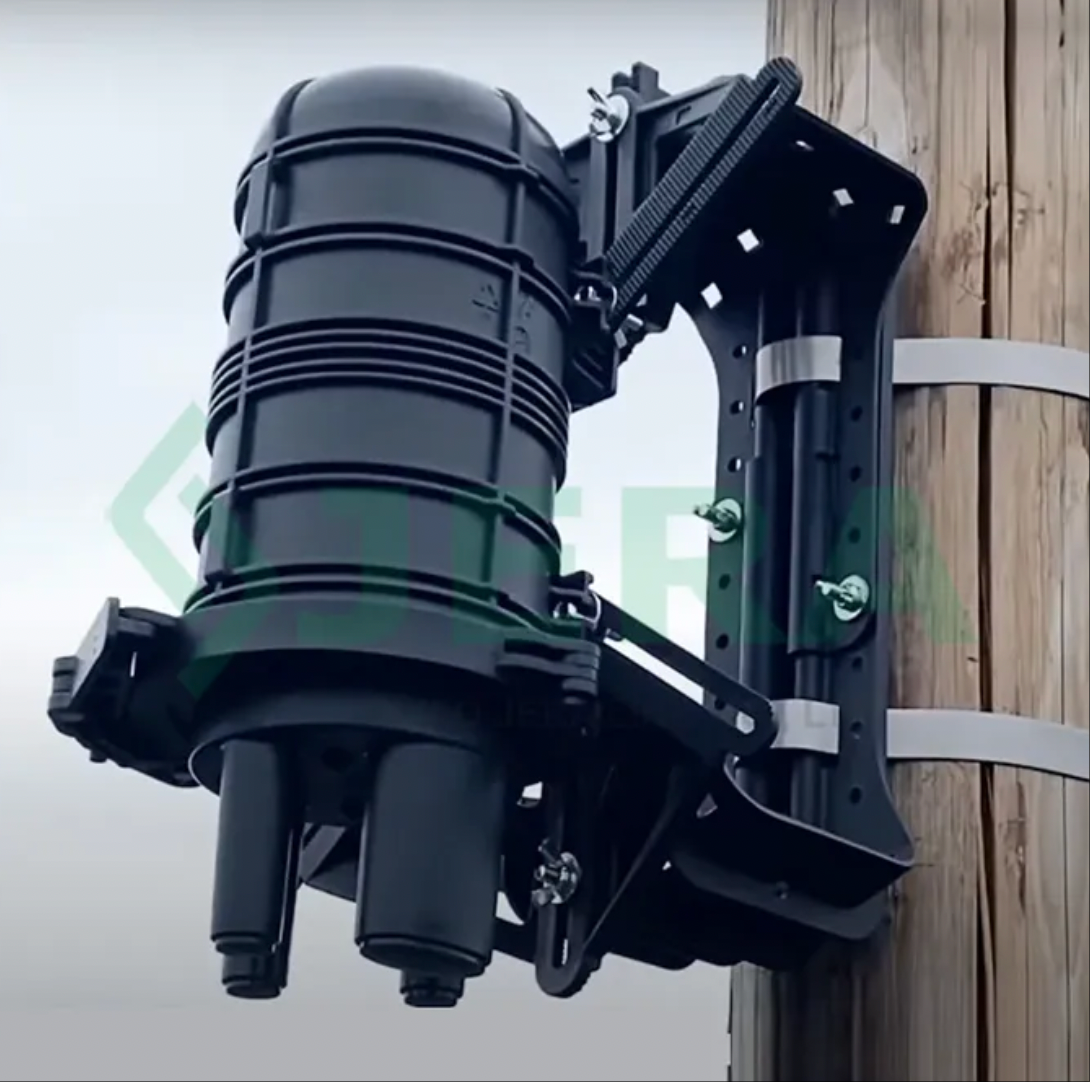

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.
