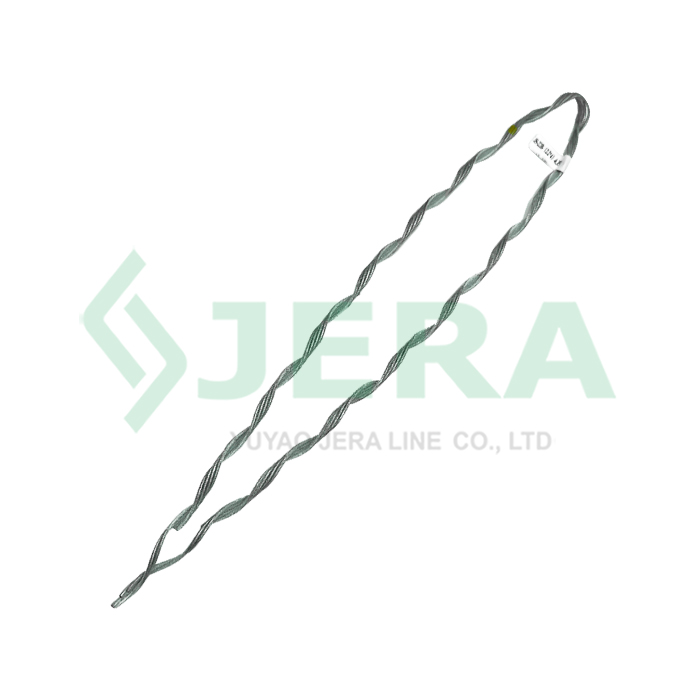

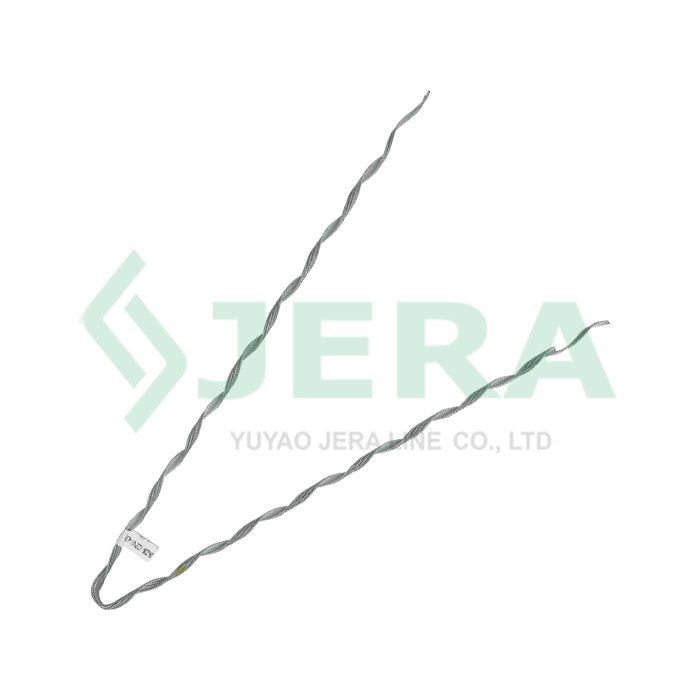

Dead-end for EHS Strand JS-22B

JS-22B

Dead-end for EHS Strand also called Brace Grip, is connecting fittings for overhead power conductors and power overhead optical cable terminals, suspensions, joints, etc. BRACE-GRIP System can be used to replace conventional crimping tubes and crimping tubes, and can be used to connect wires such as aluminum stranded wires, aluminum alloy stranded wires, and steel-cored aluminum stranded wires to achieve their original mechanical strength and electrical conductivity.

Features

Cable type: Strand wire
Cable size: 6.3mm
Span: <50 m
MBL: 29.6 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Aluminum coating for stronger friction
Stand grips provide greater tensile strength
Reduce the difficulty of workers’ work
Increase the contact area of the fiber optic cable to distribute the force evenly
With sand and glue to improve friction between cables
Price negotiable and customizable

Guy wire dead grip is a product made of several single-strand helical wires pre-twisted.

The dead end grip consists of:

Four of 2.2 mm diameter rods.

Material: Galvanized steel

Preformed dead end for strand is made of the same basic material as the strand to which it is applied. Common materials are galvanized steel wire and aluminum-clad steel wire. Galvanized steel is a process in which steel is coated with a layer of zinc to improve its corrosion resistance.

read more

Applied outdoor, for construction of construction to tension or hang optical cables on utility poles.

read more

Manufacturing

Watch Our Factory Video

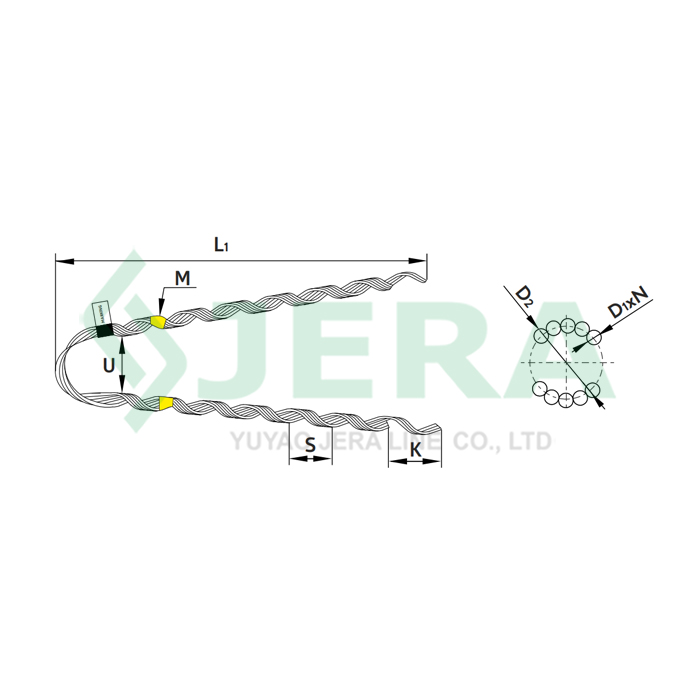

Technical specification

Product Code	JS-22B
MBL, kN	29.6
Complete set	1 pcs
Conductor diameter, mm	6.3
Rotation	Left
Material	Extra High Strength (EHS) 1680N/mm ²
Diameter of rod (D1),mm	2,2
Diameter of rod (D2),mm	9,38
Length (A), mm	525 ± 5mm
Length (K), mm	60
Number of rods (N), pcs	4
Loop dia (U), mm	17 ± 5mm
Step Length (S), mm	63
Color Code (M)	Yellow
Weight, kg	0,13
